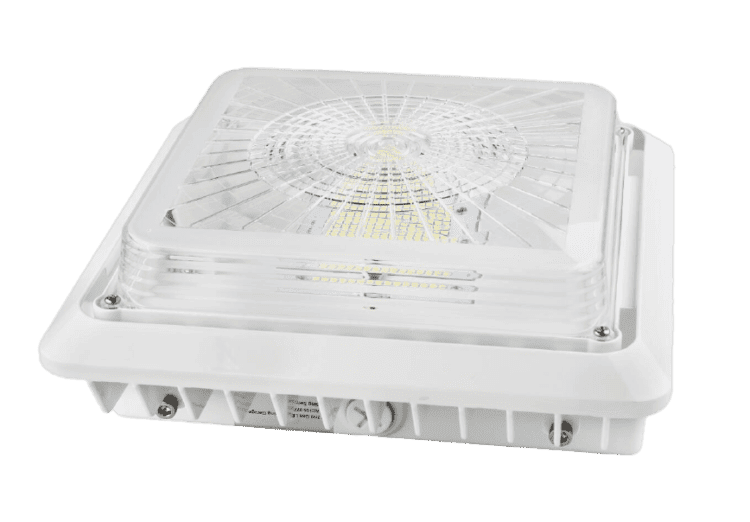

White LED Canopy and Garage Light
Share
The White LED garage canopy fixture features UL Listed certification, selectable wattage (30W/40W/50W), and selectable color temperature (3000K/4000K/5000K), providing flexible lighting solutions for a wide range of commercial and industrial applications.
Designed with a wide beam angle polycarbonate optics, this fixture delivers bright, uniform light distribution while minimizing shadows. Backed by a 5-year warranty, it is an energy-efficient solution for parking garages, parking decks, workshops, automotive service centers, warehouses, loading docks, storage facilities, commercial buildings, apartment complexes, covered parking areas, and utility spaces.
APPLICATIONS
The White LED canopy and garage fixtures are ideal for parking garages, parking decks, drive-throughs, auto service centers, vehicle maintenance facilities, loading docks, warehouse entrances, commercial building entrances, covered walkways, building overhangs, exterior corridors, apartment and condominium parking areas, retail storefront canopies, hotel porte-cochères, transit stations, bus terminals, truck stops, industrial facilities, covered storage areas, fleet parking facilities, airport parking structures, self-storage facilities, and EV charging stations.
FEATURES
| Wattage Selectable | 30/40/50 |
| Color Temperature Selectable | 30K, 40K, 50K |
| Input Voltage | 120/277V |
| Efficacy | 130 lm/W |
| Beam Angle | 160° |
| CRI | 72 |
| Lens | Polycarbonate Clear |
| Fixture Housing | Heavy die-cast aluminum alloy housing |
| Operating Temperature | -4o° to 113°F |
| Fixture Color | White |
| Mounting | Ceiling or Pipe pole |
| HID Equiv. | 100-150W |
| Rated | IP65 |
| LED Lifespan (L70) | 50,000 hours |
| Listed | UL |
| Warranty | 5 year |
| Lumens | 30W- 3,900 40W- 5,200 50w – 7150 |
| Dimensions | 9.5” x 9.5“ x 2.64” |
Catalog Number
ZL-CL-55/40/30W-3CCT-WH-SL
