STORM™ GSM LED Modular High Bay Light

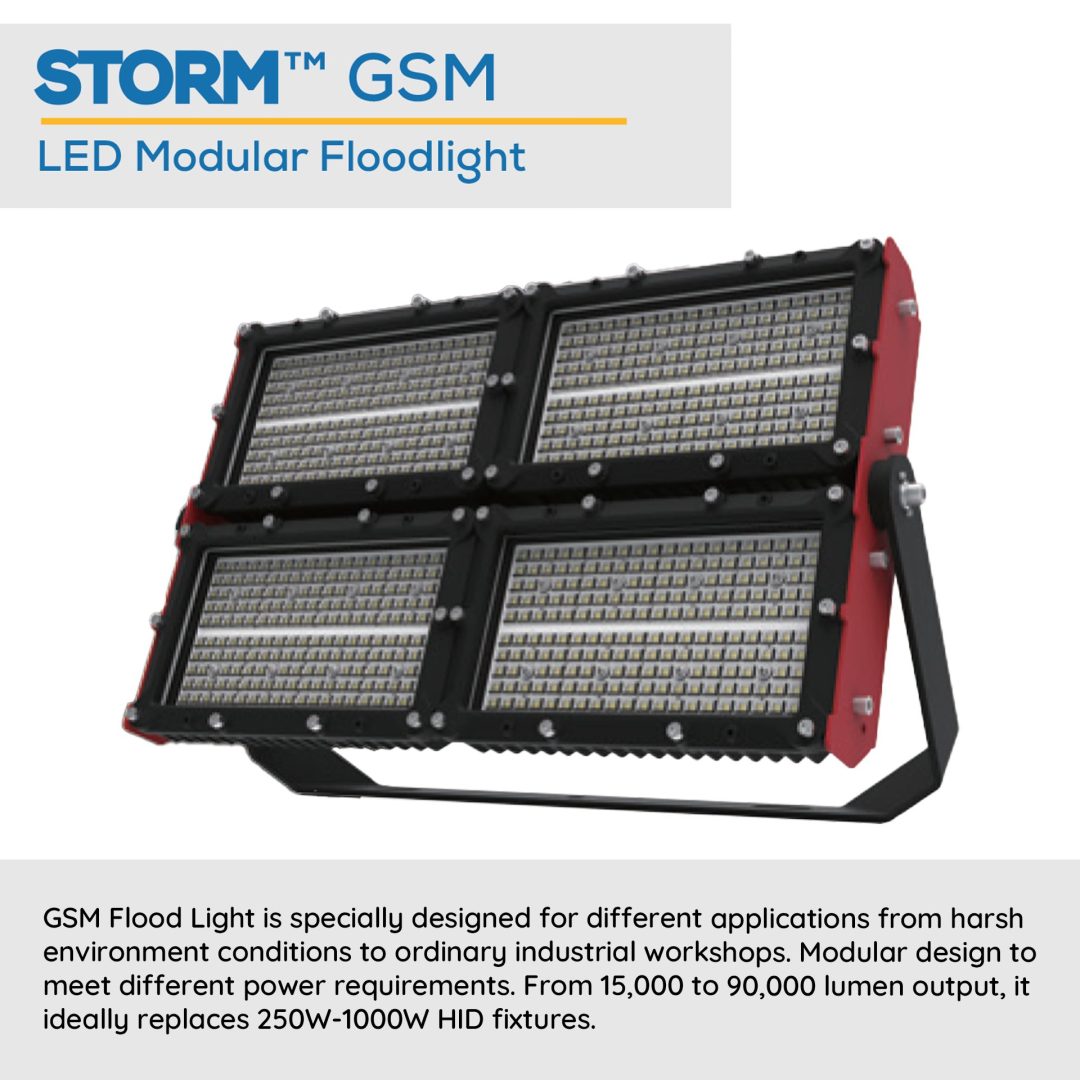

STORM™ GSM Flood Light is specially designed with up to 90,000lm, GSM is specially designed for different applications from harsh environment conditions to ordinary industrial workshops. Modular design to meet different power requirements.
Features
- Durable aluminum housing with baked corrosion-resistant powder epoxy/polyester
- Glass Lens passed IK08, tempered and impact-resistant glass.

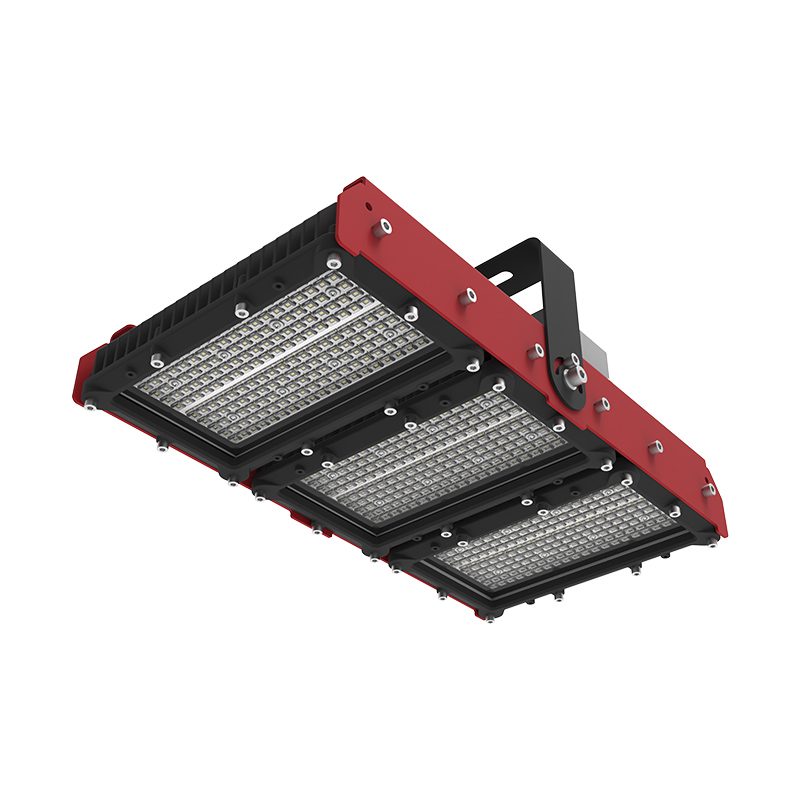

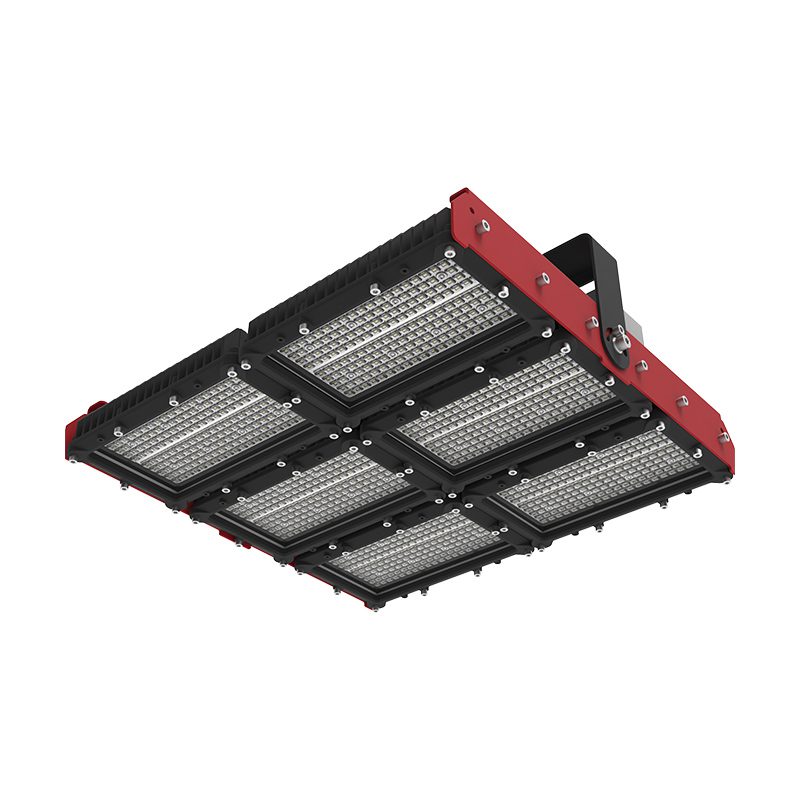

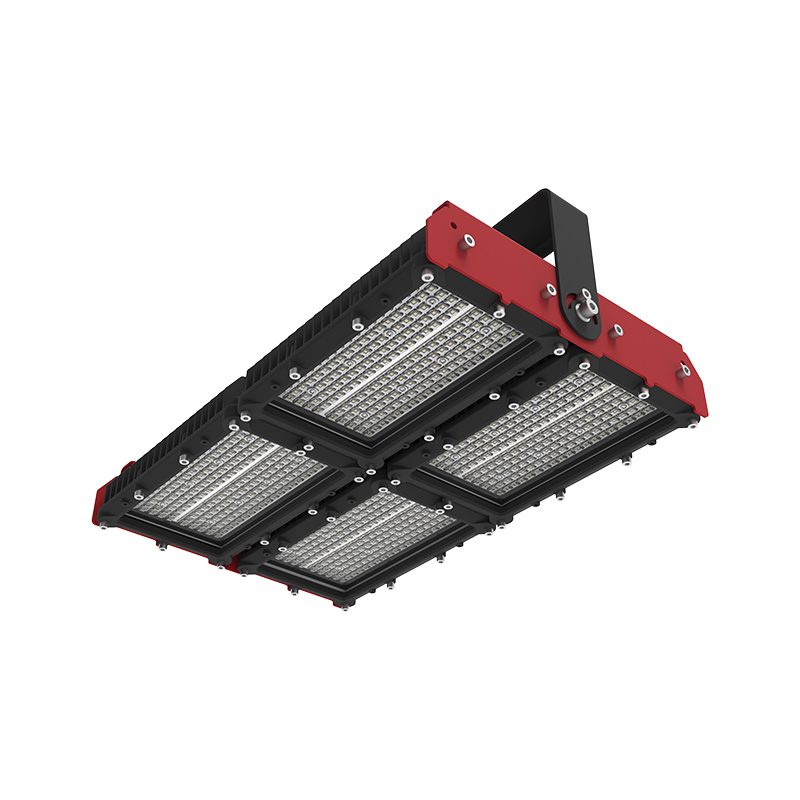

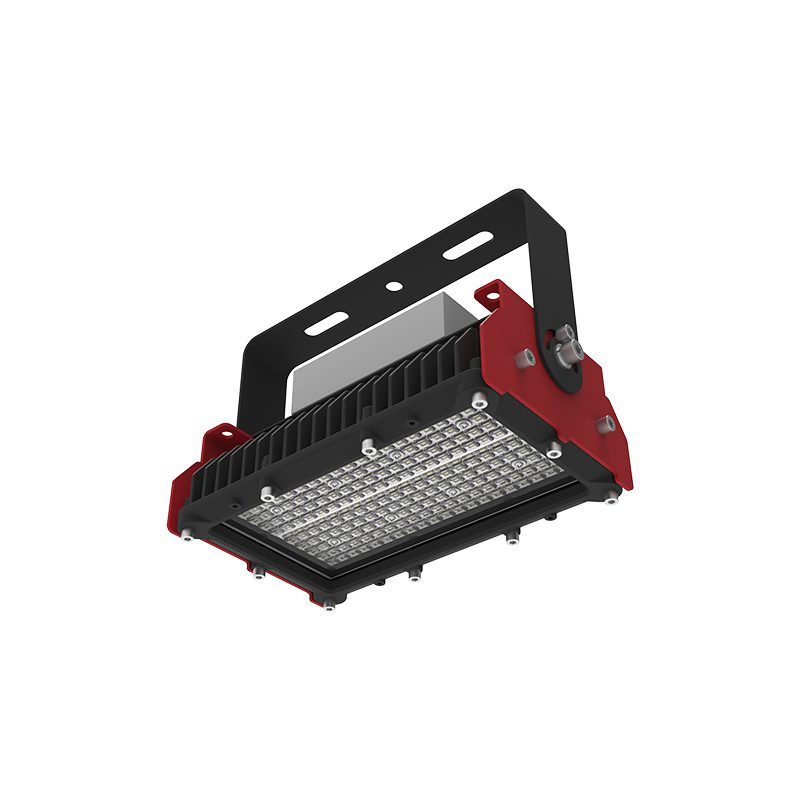

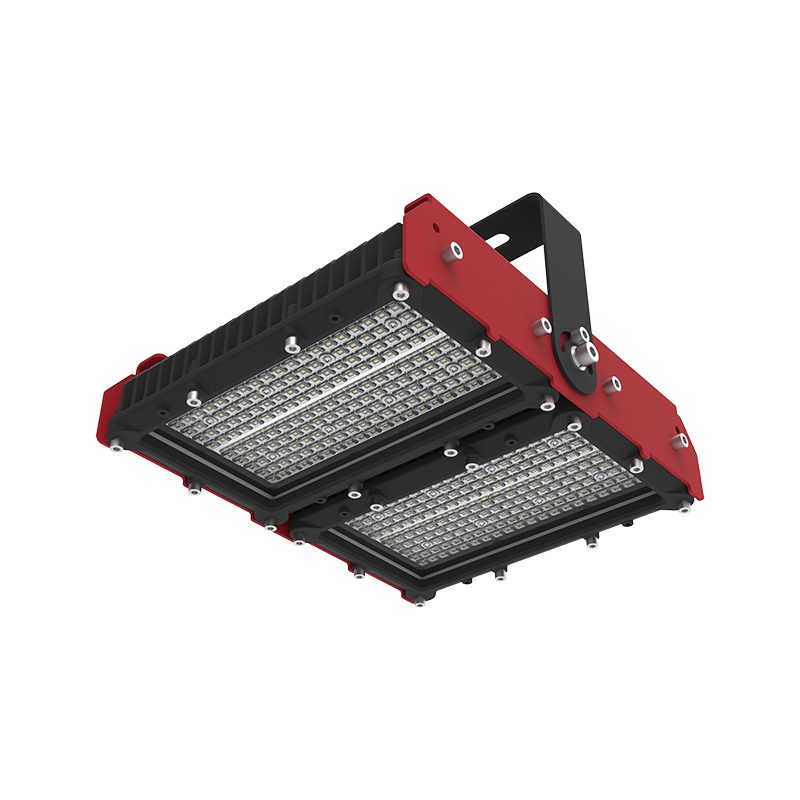

- Modular design provides 5 models with light output ranging from 15,000 lumens up to 90,000 lumens.
- High efficacy LEDs, up to 150lm/w, maintains the same light intensity with less power consumption against the conventional lamps.
- Multiple Optics 30°, 60°, 90°, 110°, T2, T3, T4, different lens provide more choices for various scenarios.

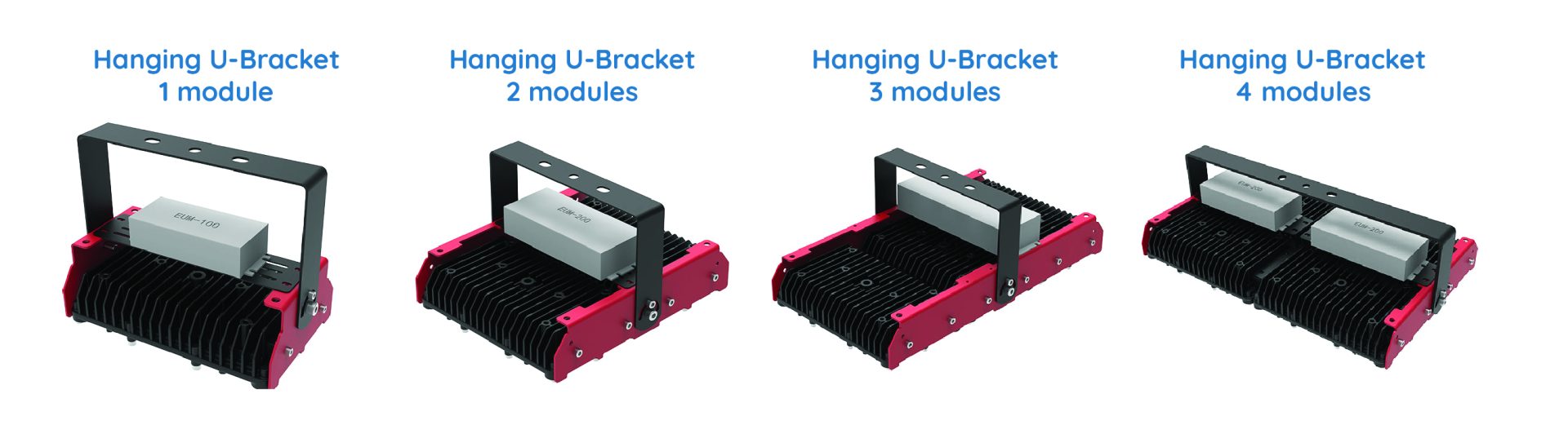

- Adjustable Stainless steel U-bracket brackets allows an easy alignment of the floodlight.
| Rated Power | 100W / 150W / 200W / 300W / 400W / 600W |
|---|---|
| Input Voltage | AC100-277V, 347-480V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 15,000lm ~ 90,000lm |
| Luminous Efficacy | 150Lm/W |
| Beam Angle | 30° / 60° / 90° / 110° / T2 / T3 /T4 |
| CCT | 2700k / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C~+50°C |
| Lens Material | Glass |
| Mounting Options | U-bracket |
| Net Weight | 3.7kg (1 module) 6kg (2 modules) 9.3kg (3 modules) 12kg (4 modules) |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – STORM™ GSM Modular High Bay Light
