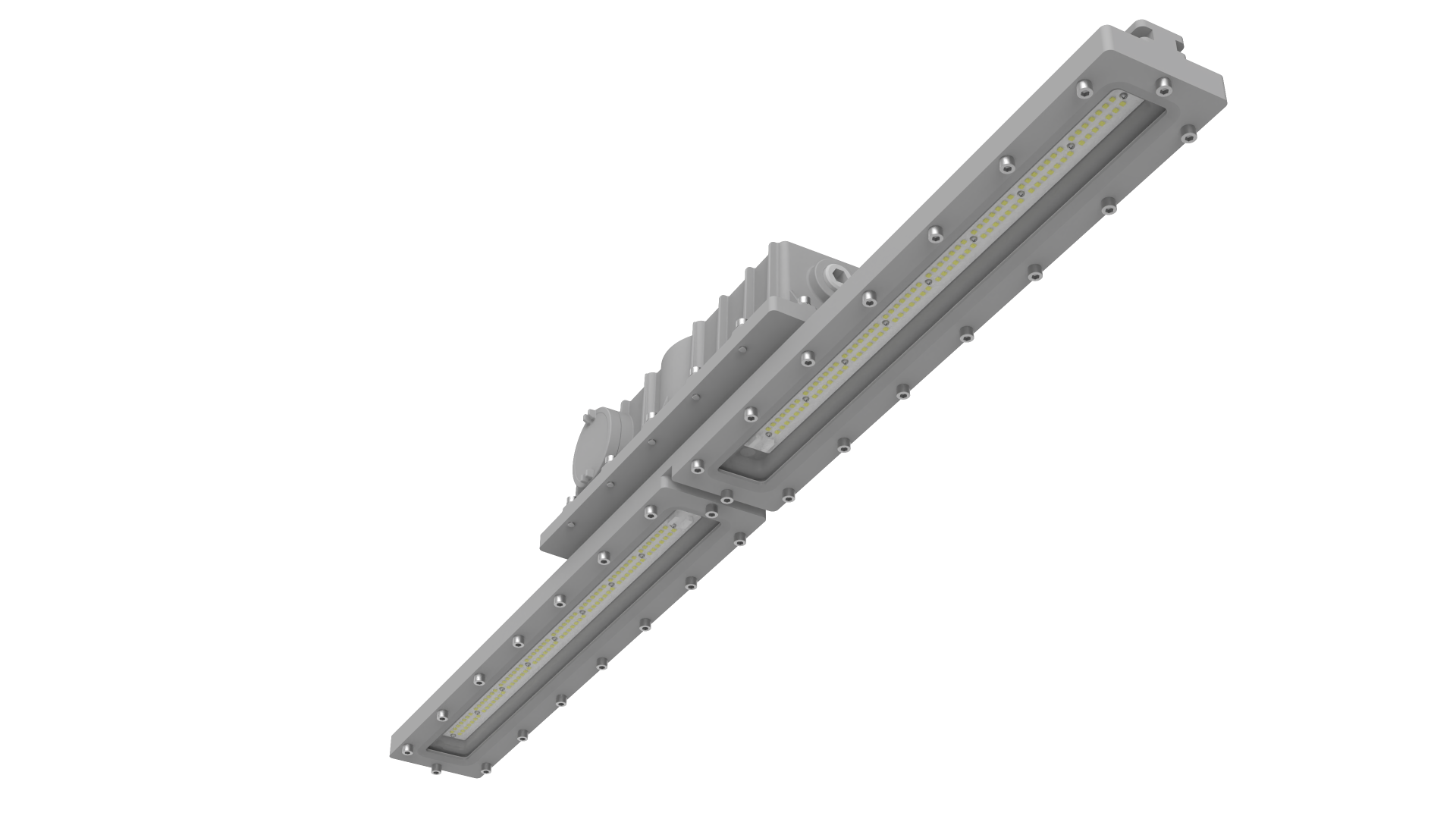

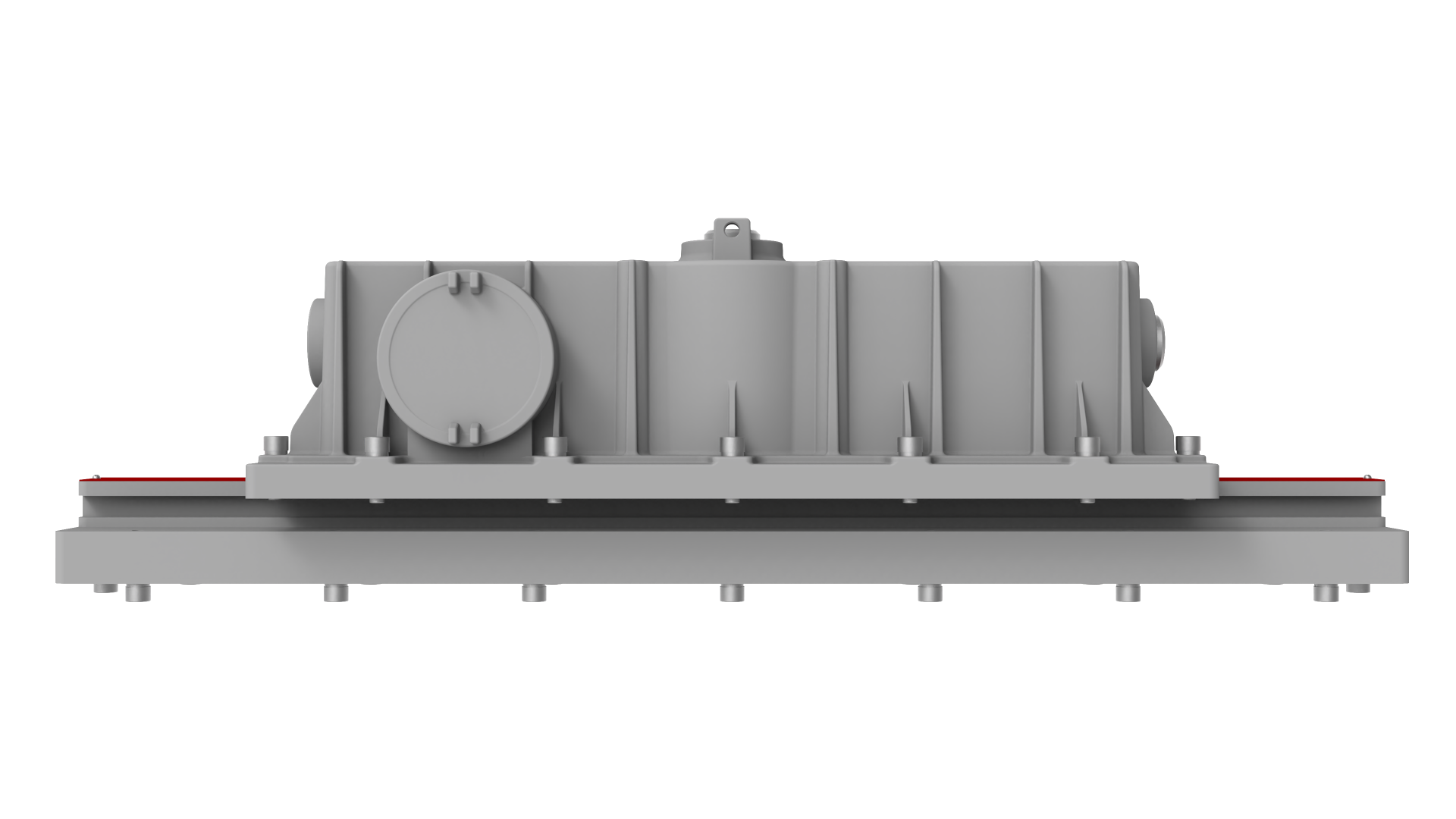

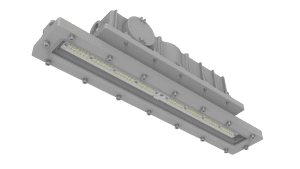

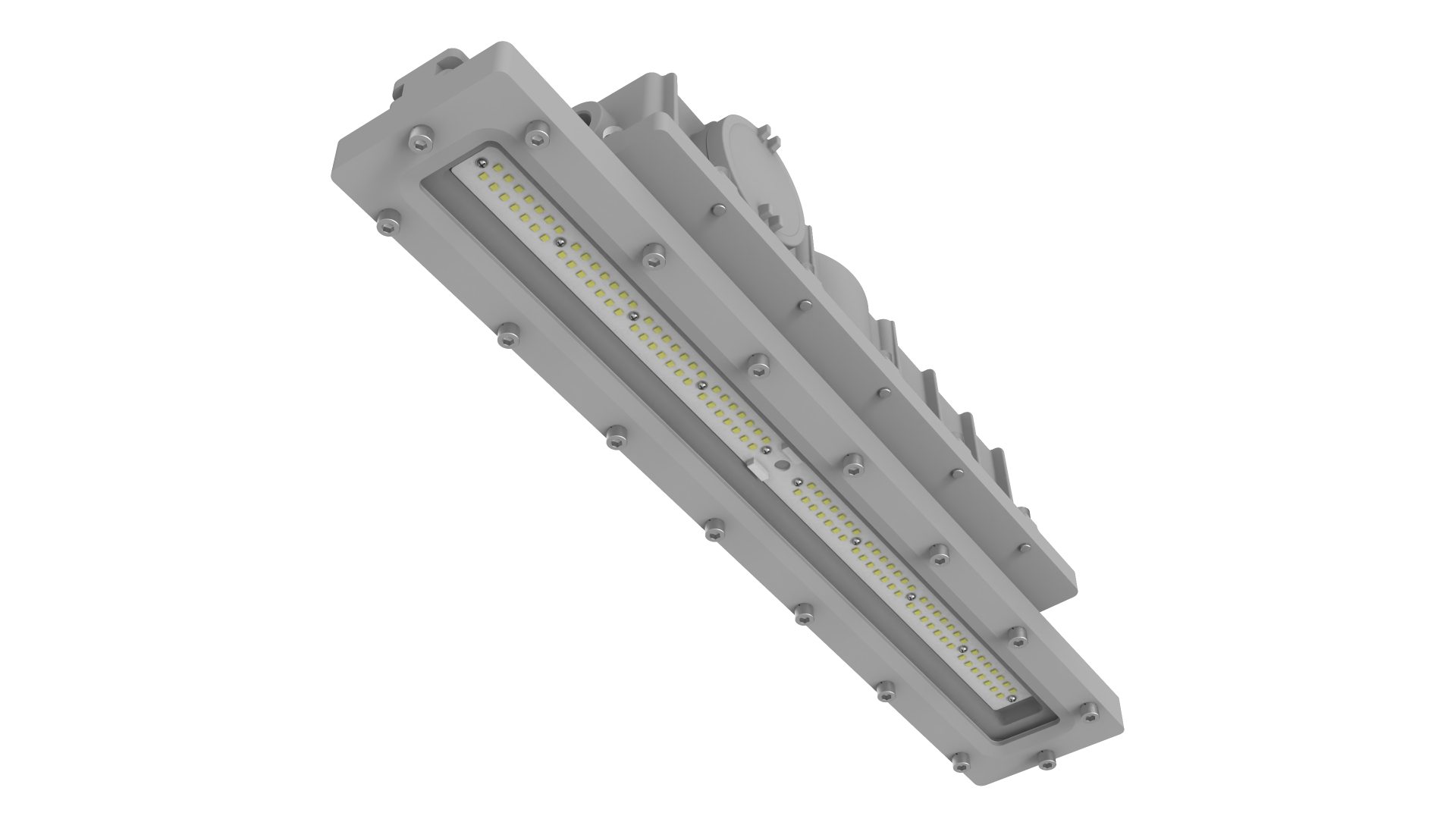

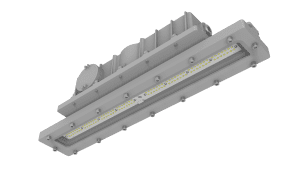

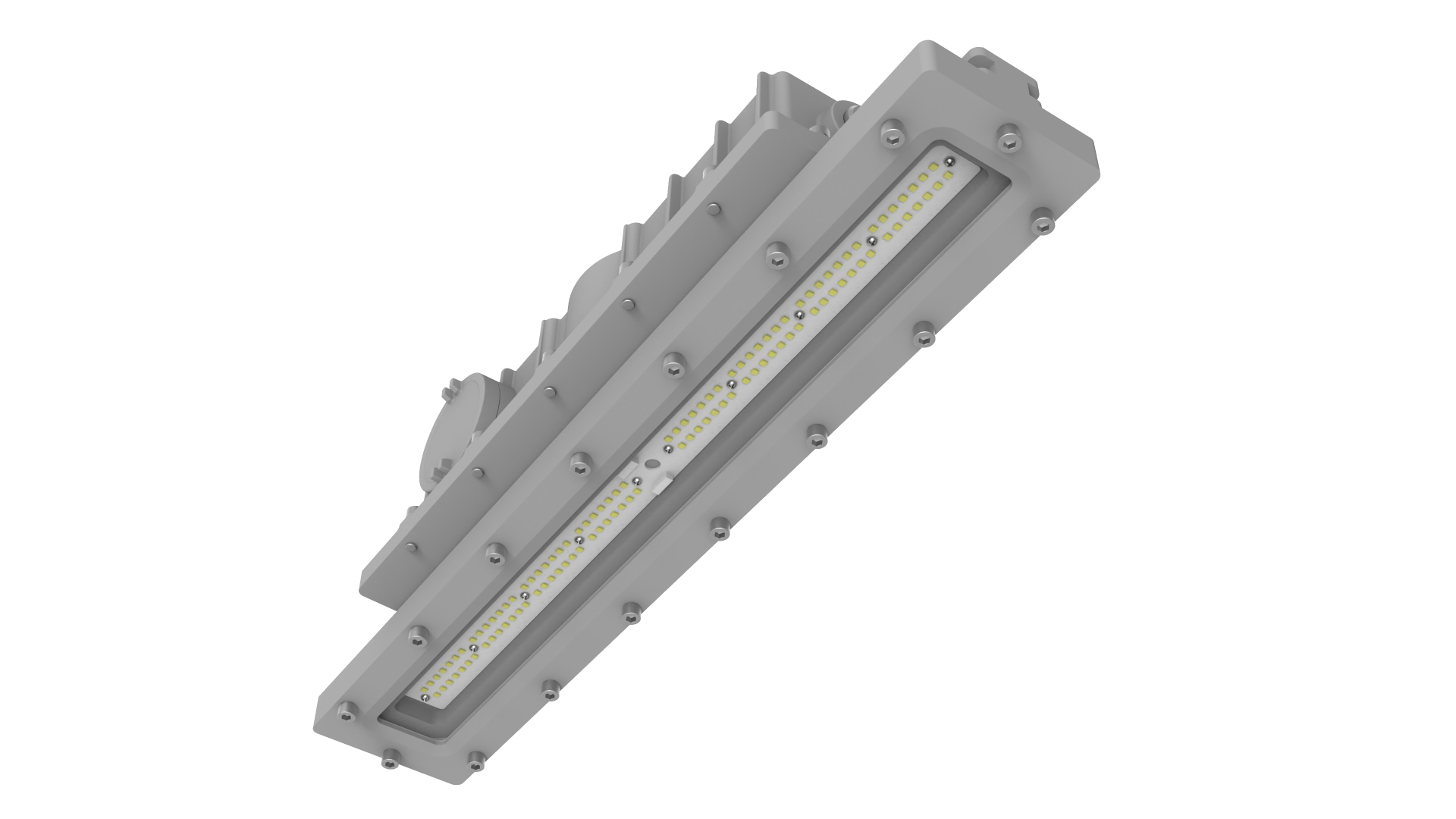

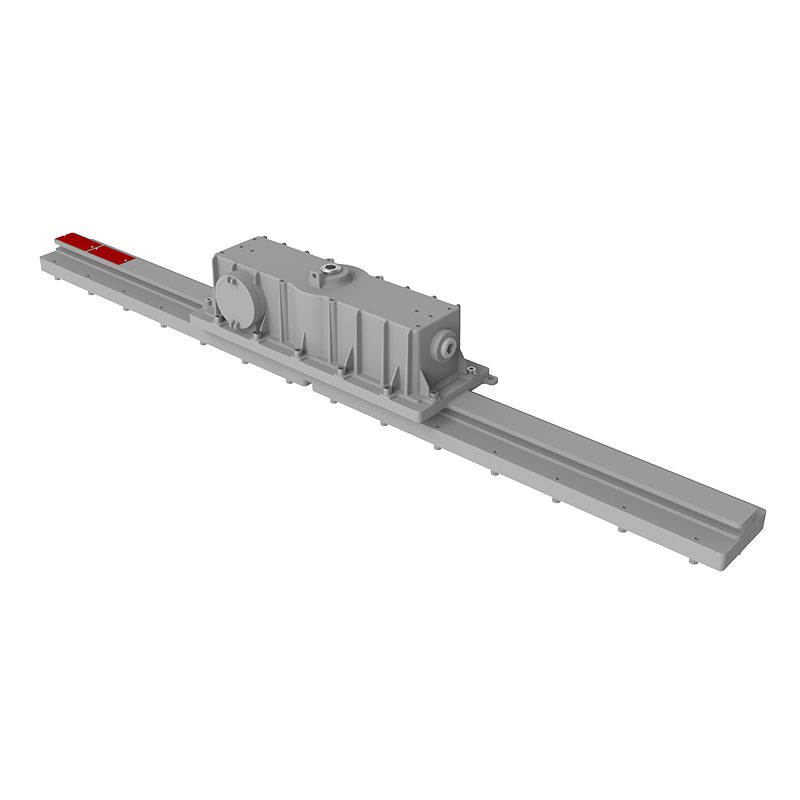

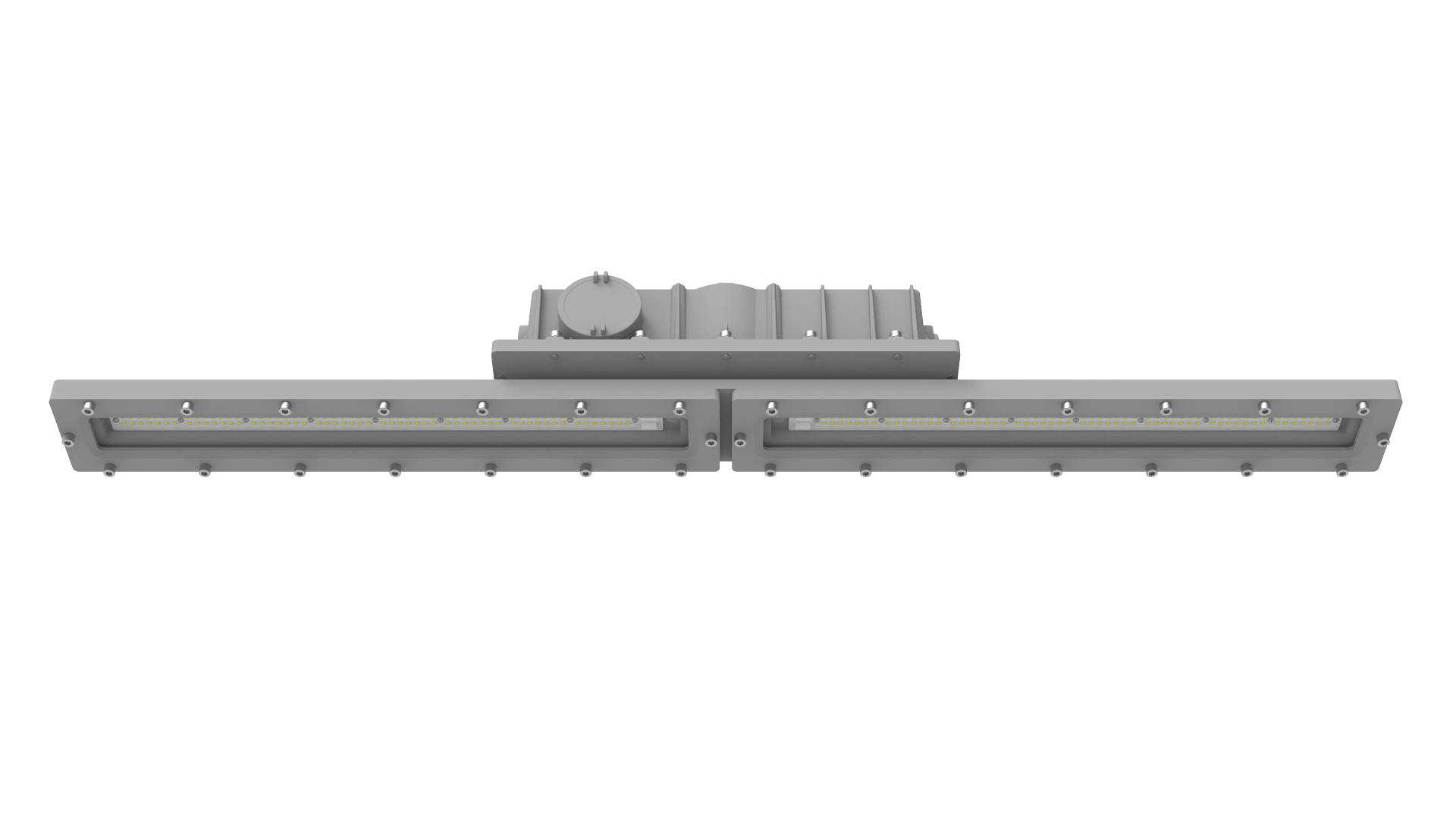

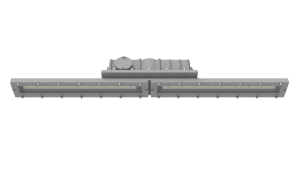

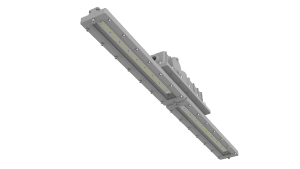

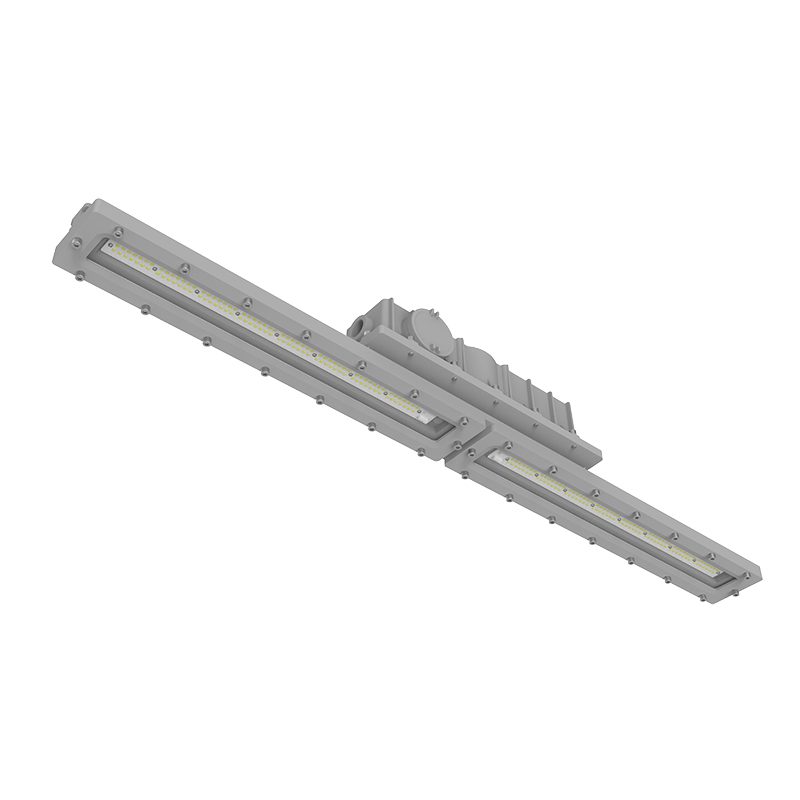

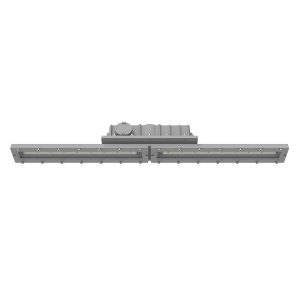

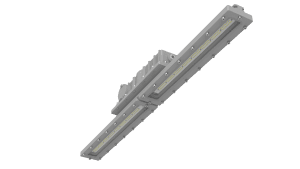

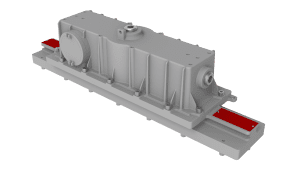

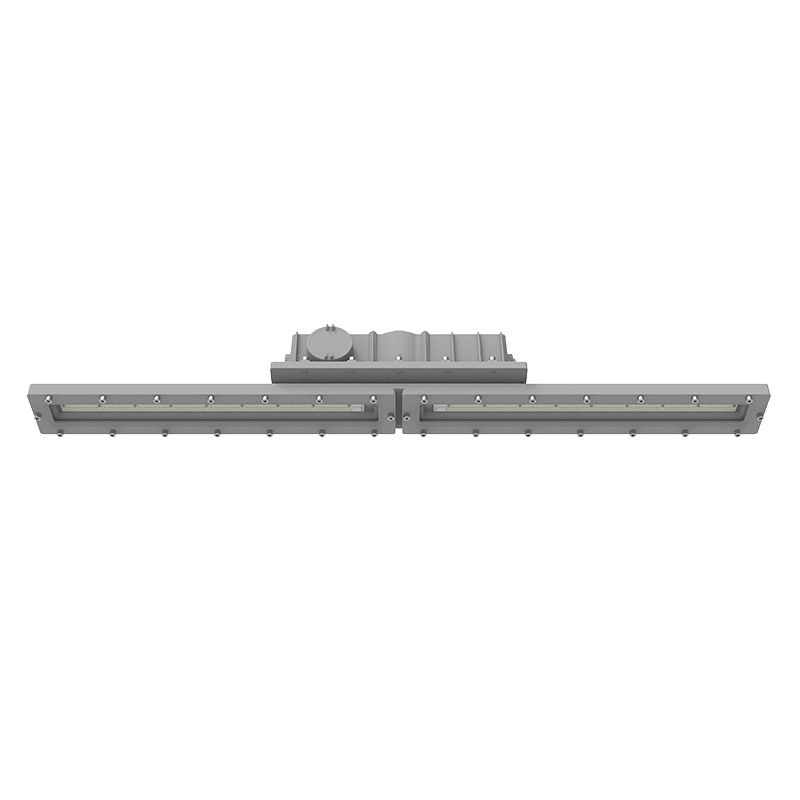

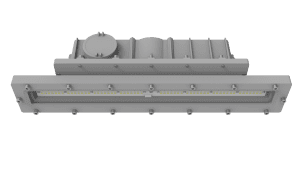

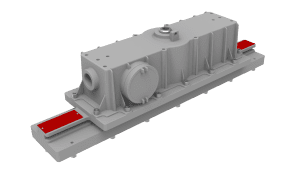

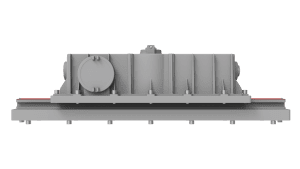

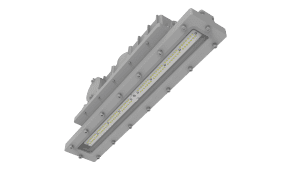

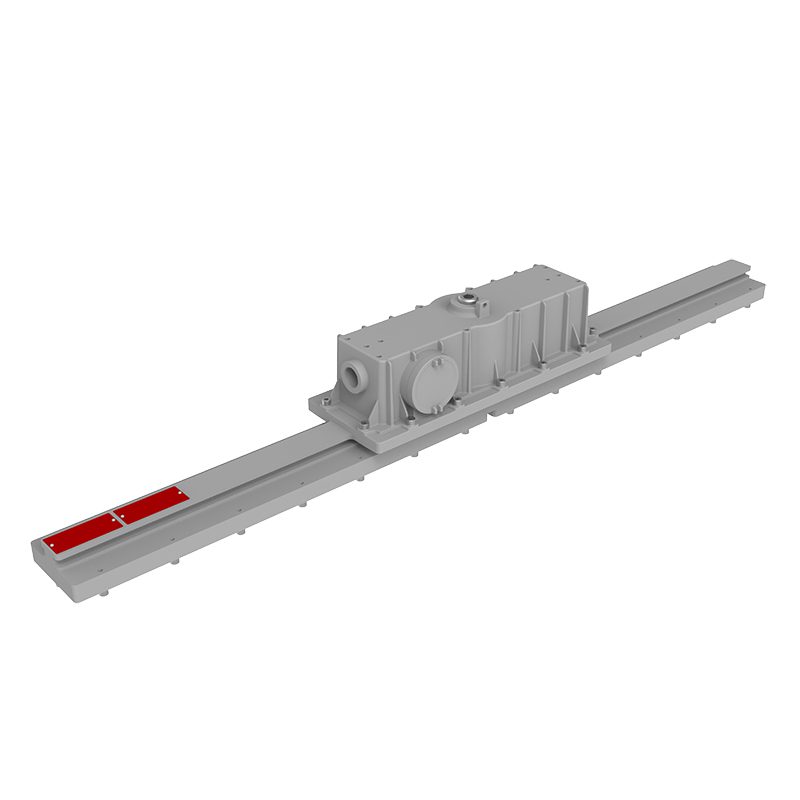

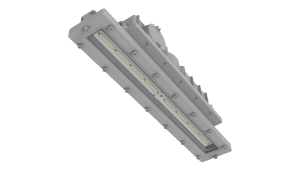

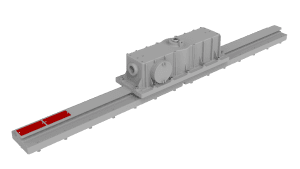

POINTER™ GHLW Hazardous Location Linear Lighting
The POINTER™ GHLW is designed for hazardous environments, the GHLW C1D1 linear light is ideal for environments where explosive and flammable gas, liquids, or vapors are present in normal operating conditions. They are also known for their outstanding thermal shock and impact resistant construction.
Features
- 8.5 kg ONLY, balanced well in weight, safety and durability
- Convenient wiring access through screw-cap cover with toolless, cage clamp terminal block
- 2 models from 3,200 to 16,000 lumens with up to 160Lm/W.
- Superior thermal heat sink design provides outstanding performance from –40°C to +65°C wide enough for any environment
- EMERGENCY BATTERY BACK-UP. 90-minutes minimum running time at 15W in emergency mode.
| Rated Power | 20W/30W/40W/60W/80W/100W |
|---|---|
| Input Voltage | AC100-277V, 277-480V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 3,400lm ~ 17,000lm |
| Luminous Efficacy | 170Lm/W |
| Beam Angle | 110° |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C~+65°C / -20°C~+50°C (EMB) |
| Lens Material | Tempered Glass |

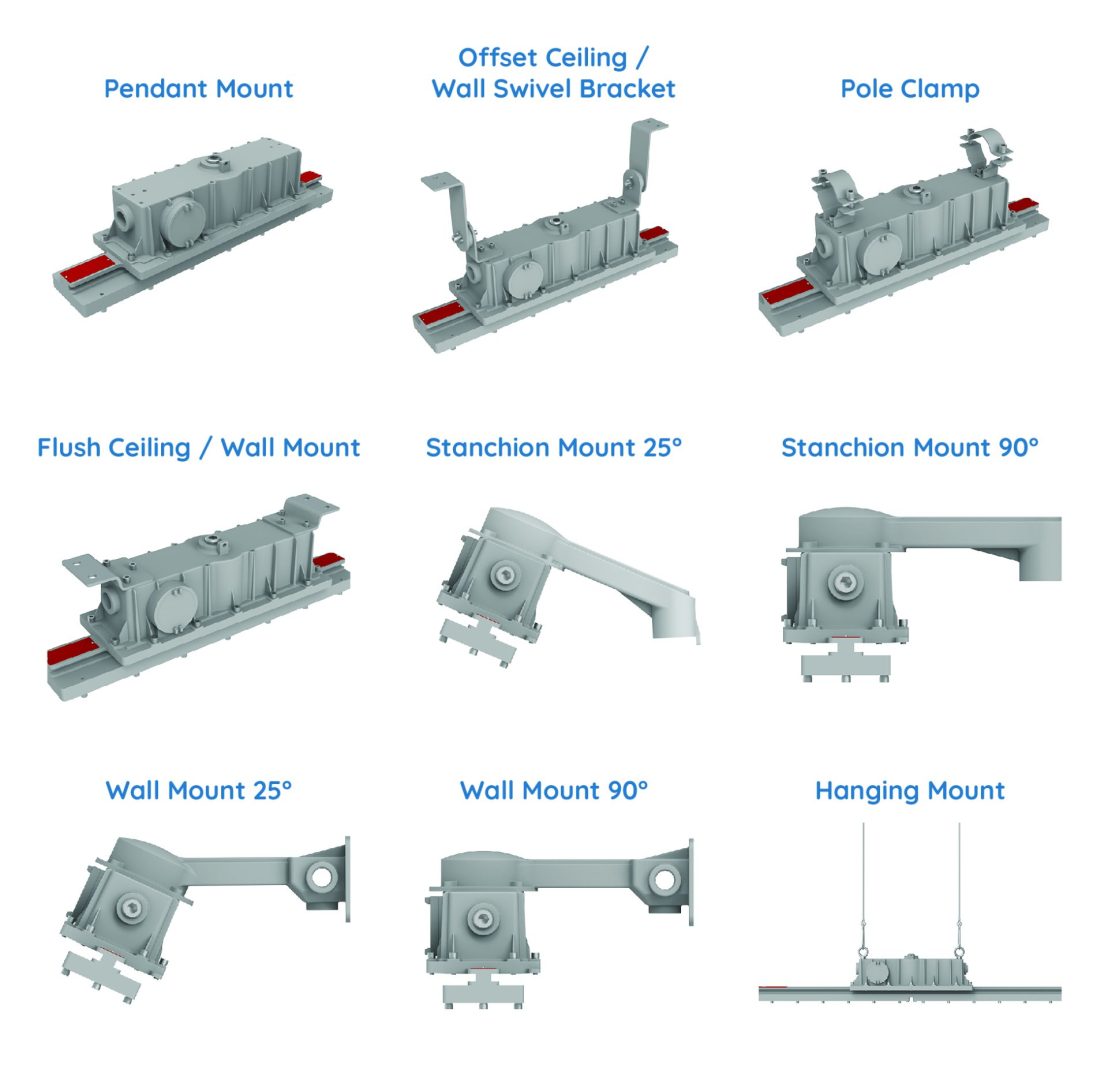

| Mounting Options | Pendant / Ceiling / Wall / Hanging / Stanchion / Hanging |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – POINTER™ GHLW
