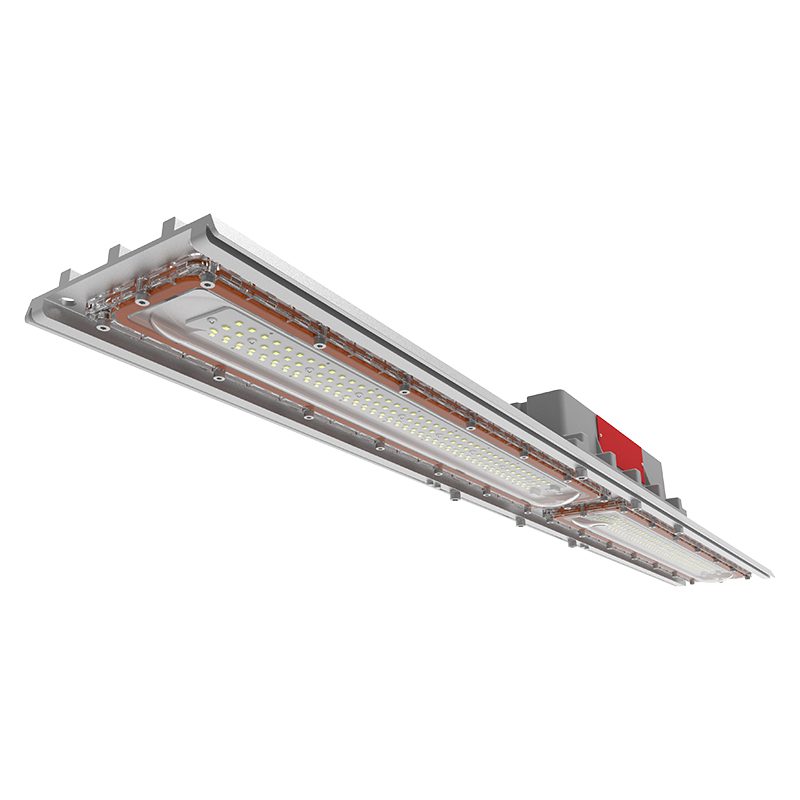

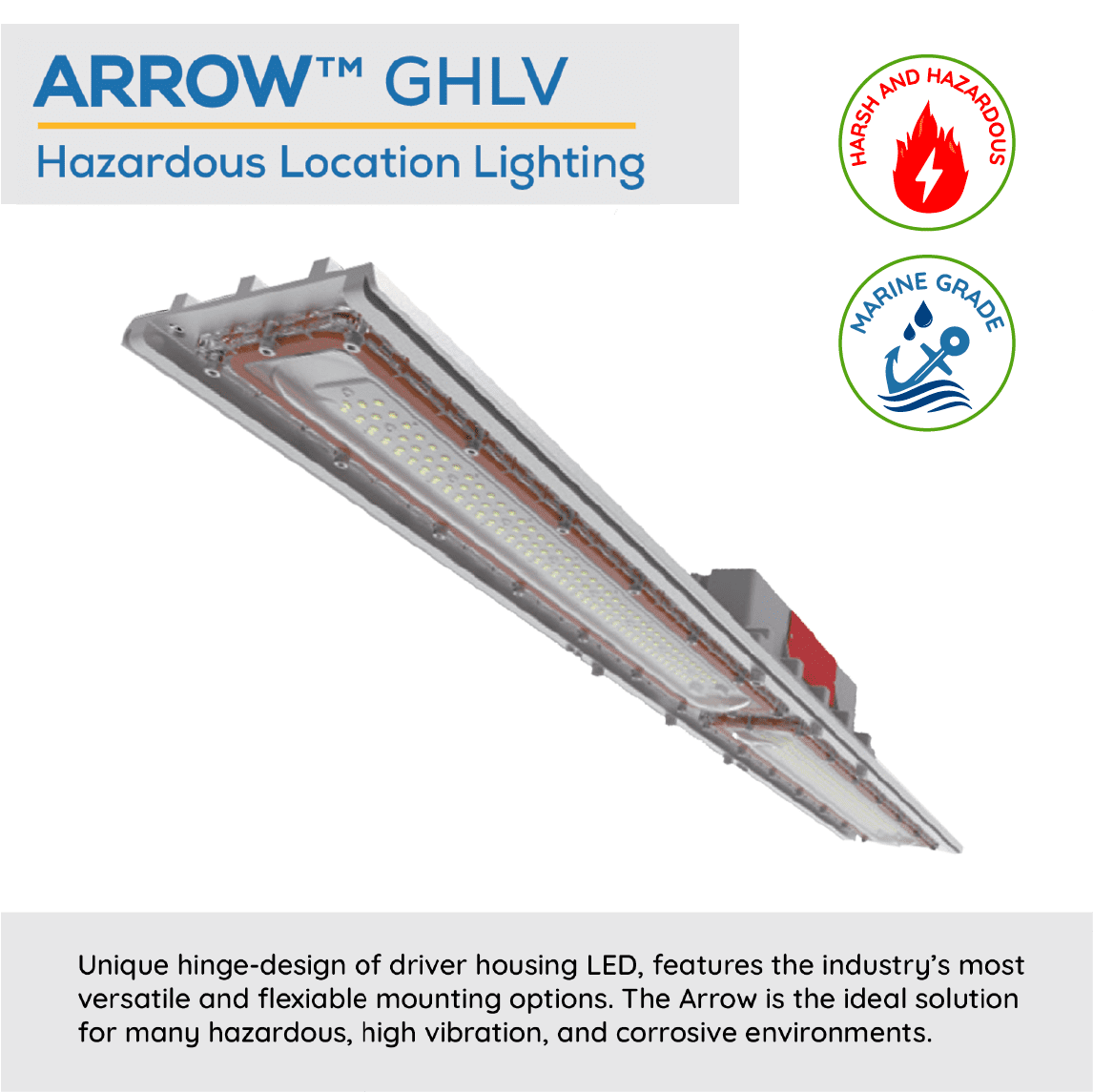

ARROW™ GHLV LED Hazardous Location Linear Light
The ARROW™ GHLV series Linear, unique hinge-design of driver housing LED, features the industry’s most versatile and flexible mounting options. The Arrow is the ideal solution for many hazardous, high vibration, and corrosive environments. Design to be both rugged and durable LED linear portfolio provides options to suit your every need, including lightweight, extreme low profile, and top & side conduit.
Features
- Low Profile and Lighter. 100mm fixture height, perfect for mounting in confined or low height areas.
- Rugged Heat Sink. Superior thermal heat sink design provides outstanding performance from –40°C to +70°C wide enough for any environment
- Simple Installation. Clamshell design easy access to drivers and multiple entries standard for easy through wiring.
- High Output. 2 models from 5,100 to 13,600 lumens with up to 170Lm/W.
- Multiple Beam Angles. 30°, 60°, 90°, 110°, T2, T3, T4, different lens provide more choices for various scenarios.
- Terminal blocks fitted as standard for faster installation
| Rated Power | 30W / 40W / 45W / 60W / 80W |
|---|---|
| Input Voltage | AC100-277V, 347-480V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 5,100lm ~ 13,600lm |
| Luminous Efficacy | 170Lm/W |
| Beam Angle | 30° / 60° / 90° / 110° / T2 / T3 / T4 |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C~+70°C |
| Lens Material | Polycarbonate |

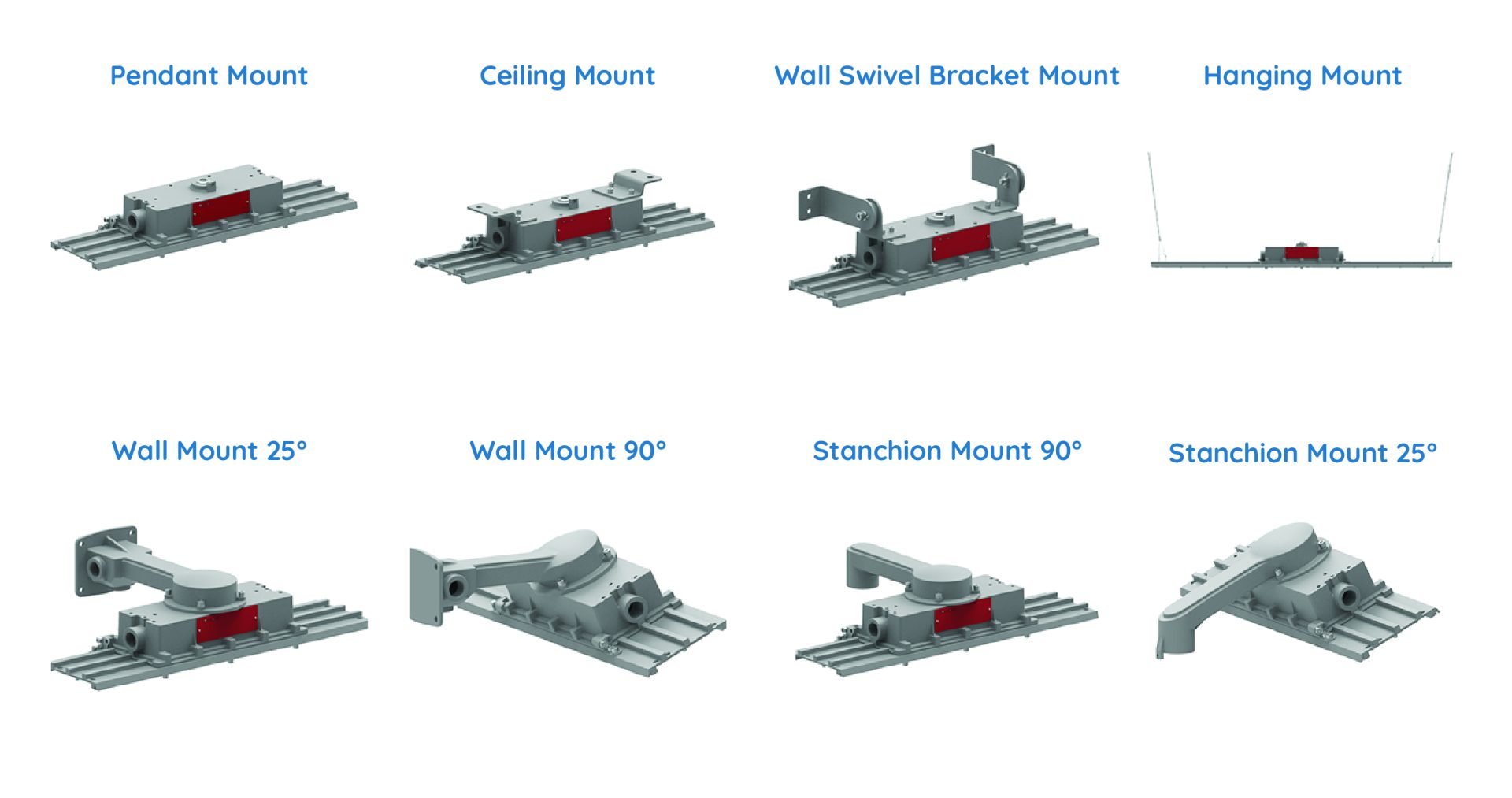

| Mounting Options | Pendant / Ceiling / Wall / Hanging / Stanchion / U-Bracket |

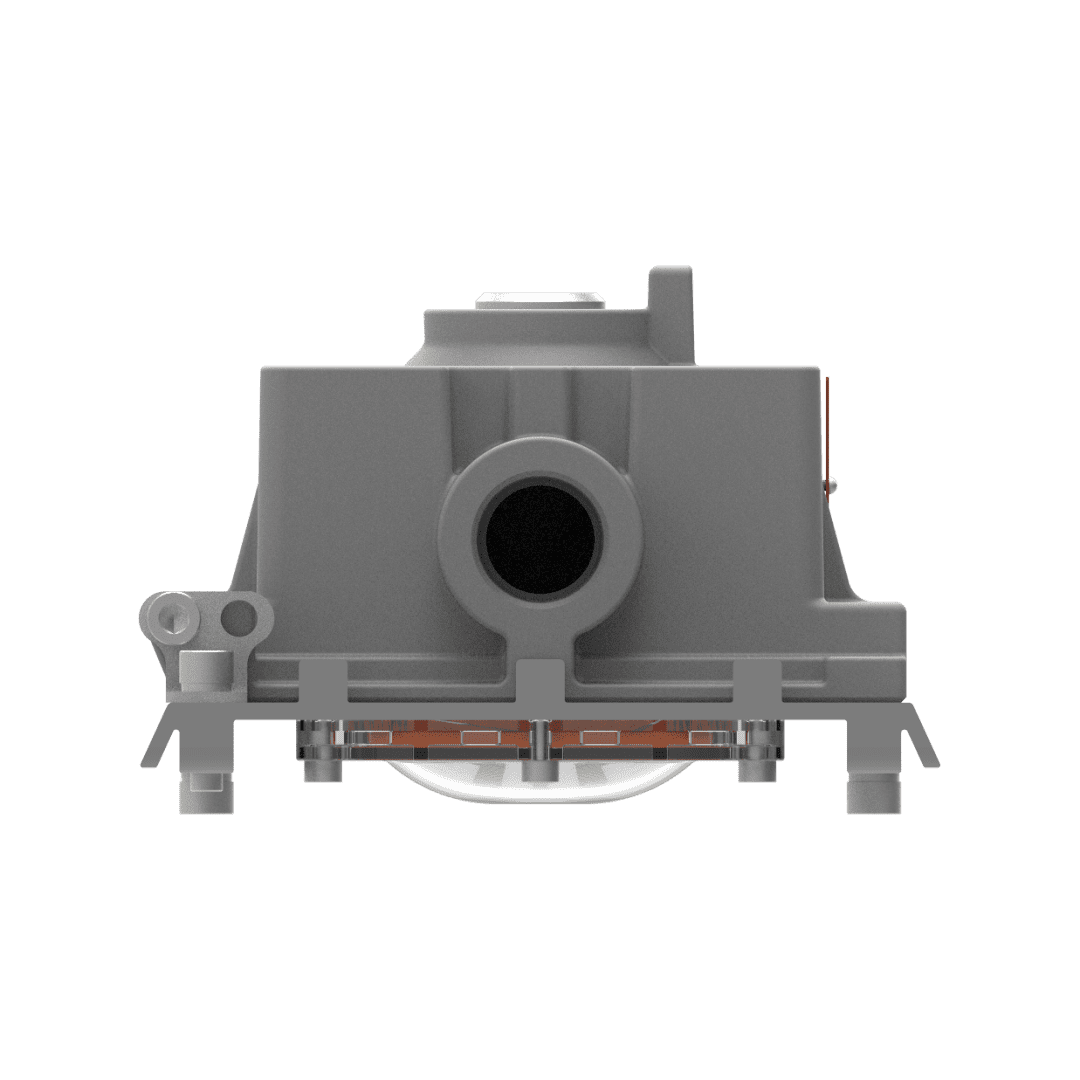

| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 3.2kg (2 Ft) / 5 kg (4 Ft) |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – ARROW™ GHLV
