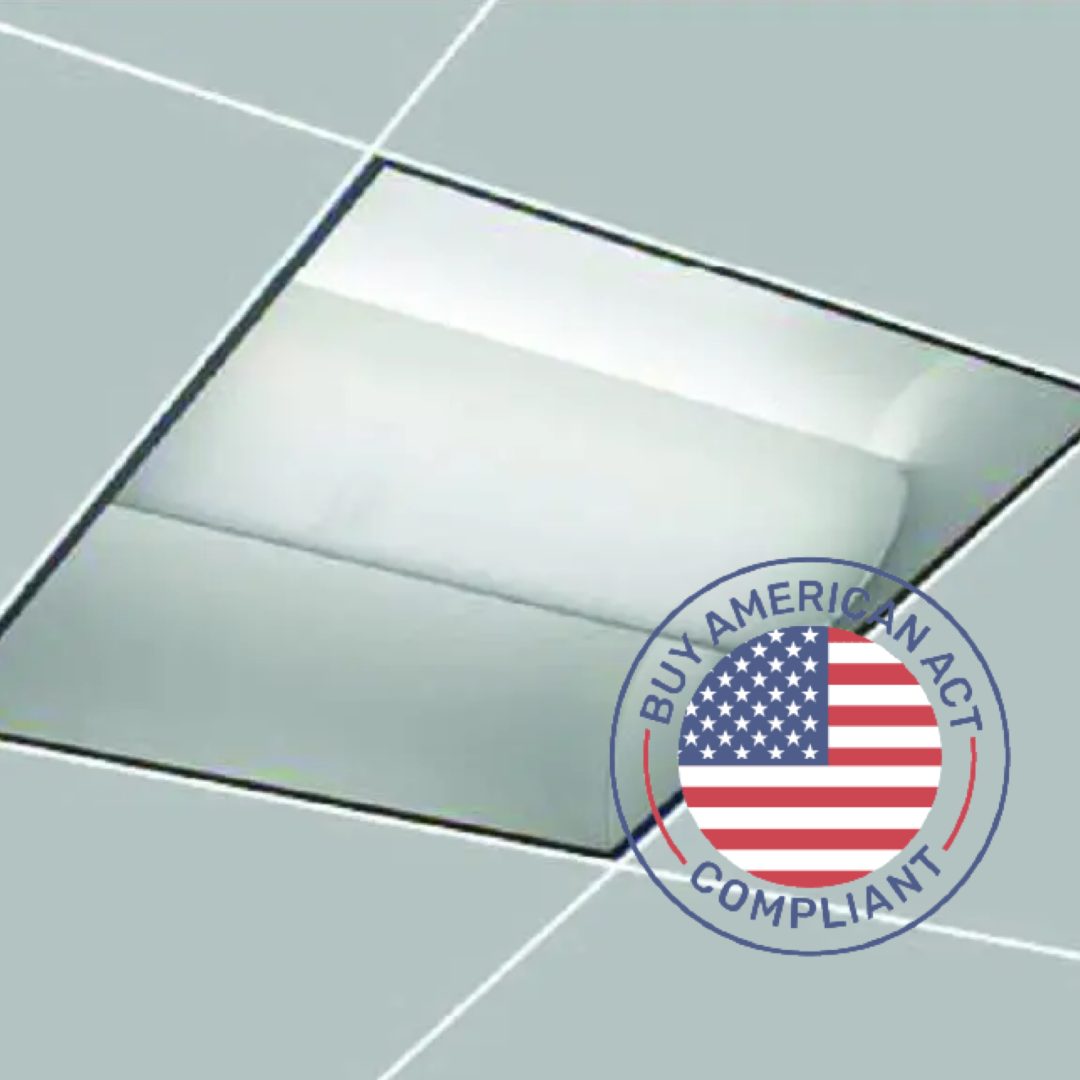

Made in America – Build Your Own LED Center Basket Troffer RDI with Magnilumen Plus Light Engine
Share
Made in America – Build Your Own LED Center Basket Troffer RDI with Magnilumen Plus Light Engine.
Customize this fixture with the high-performance Magnilumen Plus Light Engine. Available in 2×2 and 2×4 fixture sizes, this troffer is ideal for offices, commercial spaces, and institutional environments.
With Build-Your-Own options, you can tailor your fixture to meet specific project needs:
Wattages, Color Temperatures, Lenses, & Accessories
Designed for efficiency, durability, and superior illumination, this center basket troffer delivers high-quality, customizable lighting for a wide range of applications.
Applications
Offices, Commercial and Institutional areas.
FEATURES
| Wattages | Magnilumen Plus: 2×2′- 20W, 30W 2×4′- 40W, 50W, 60W Magnilumen Plus High Output: 2×2′- 30W 2×4′- 60W |
| Color Temperatures | Magnilumen Plus: 30K, 35K, 40K, 50K, 65K, Green, Blue, Orange, Yellow, Red, Amber, Black Light Magnilumen Plus High Output: 40K, 50K Special Order: 30K, 35K |
| Operating Frequency | 50/60Hz |
| Input Voltage | 120/277V |
| CRI | 83 |
| Listed | ETL |
| LED Lifespan (L70) | Magnilumen Plus: 100,000 hours Magnilumen Plus High Output: 50,000 hours |
| Dimming | 0-10V |
| Ambient Temp | -4ºF – 122ºF |
| Mounting | 7/8” knockouts in top, sides and end plates. |
| Warranty | 7 year Magnilumen Standard; 5 year High Output, Color; 3 year Black Light |
| Number of Bars | Magnilumen Plus: 2×2′- 1, 2, or 3 bars 2×4′- 1, 2, or 3 bars Magnilumen Plus High Output: 2×2′- Max 2 bars 2×4′- Max 2 bars |
| Fixture Size | 2×2′ and 2×4’V |
| Options |
EM + Emergency MS – Motion Sensing Sensors – Optional External PIR Sensor Internal Microwave Sensor Motion Sensor include AO Drivers
|
| Lumens | See Lumens Chart |
Catalog Number
See Build Your Own on Spec Sheet
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms.
