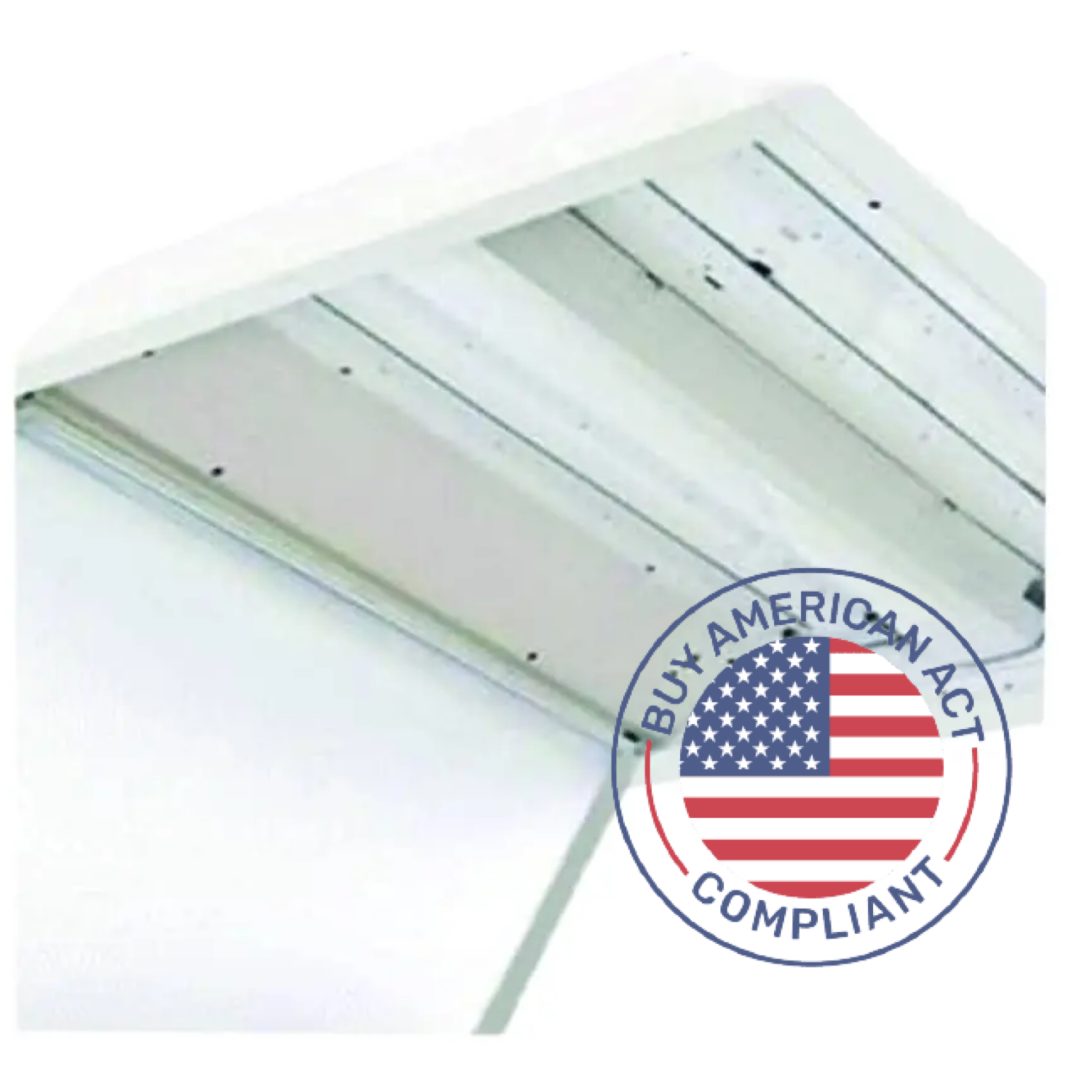

Made in America – Build Your Own Traditional Troffer with Magnilumen Plus Light Engine
Share
Made in America – Build Your Own LED Traditional Troffer with Magnilumen Plus Light Engine. Customize this lighting fixture with, high-performance Magnilumen Plus Light Engines. Available in 2, 4 and 8ft fixture sizes, this troffer is ideal for offices, commercial spaces, and institutional environments.
With Build-Your-Own options, you can tailor your fixture to meet specific project needs:
Wattages, Color Temperatures, Lenses, & Accessories.
Designed for efficiency, durability, and superior illumination, this center basket troffer delivers high-quality, customizable lighting for a wide range of applications.
Applications
FEATURES
| Wattages | Magnilumen Plus: 2×2′- 20W, 30W 2×4′- 40W, 50W, 60W Magnilumen Plus High Output: 2×2′- 30W 2×4′- 60W |
| Color Temps | Magnilumen Plus: 30K, 35K, 40K, 50K, 65K, Green, Blue, Orange, Yellow, Red, Amber, Black Light Magnilumen Plus High Output: 40K, 50K Special Order: 30K, 35K |
| Operating Frequency | 50/60Hz |
| Input Voltage | 120/277VAC |
| CRI | 83 |
| Listed | ETL |
| LED Lifespan (L70) | Magnilumen Plus: 100,000 hours Magnilumen Plus High Output: 50,000 hours |
| Fixture Size | 2×2′ and 2×4’V |
| Dimming | 0-10V |
| Number of Bars | Magnilumen Plus: 2×2′- 1, 2, or 3 bars 2×4′- 1, 2, or 3 bars Magnilumen Plus High Output: 2×2′- Max 2 bars 2×4′- Max 2 bars |
| Ambient Temp | -4ºF – 122ºF |
| Mounting | 7/8” knockouts in top, sides and end plates. |
| Warranty | 7 year Magnilumen Standard; 5 year High Output, Color; 3 year Black Light |
| Options |
EM + Emergency MS – Motion Sensing Sensors – Optional External PIR Sensor Internal Microwave Sensor Motion Sensor include AO Drivers
|
| Lumens | See Lumens Chart |
Catalog Number
See Build Your Own on Spec Sheet
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms.
