Made in America – Build Your Own LED Channel Fixture with Magnilumen Plus+™ Light Engine

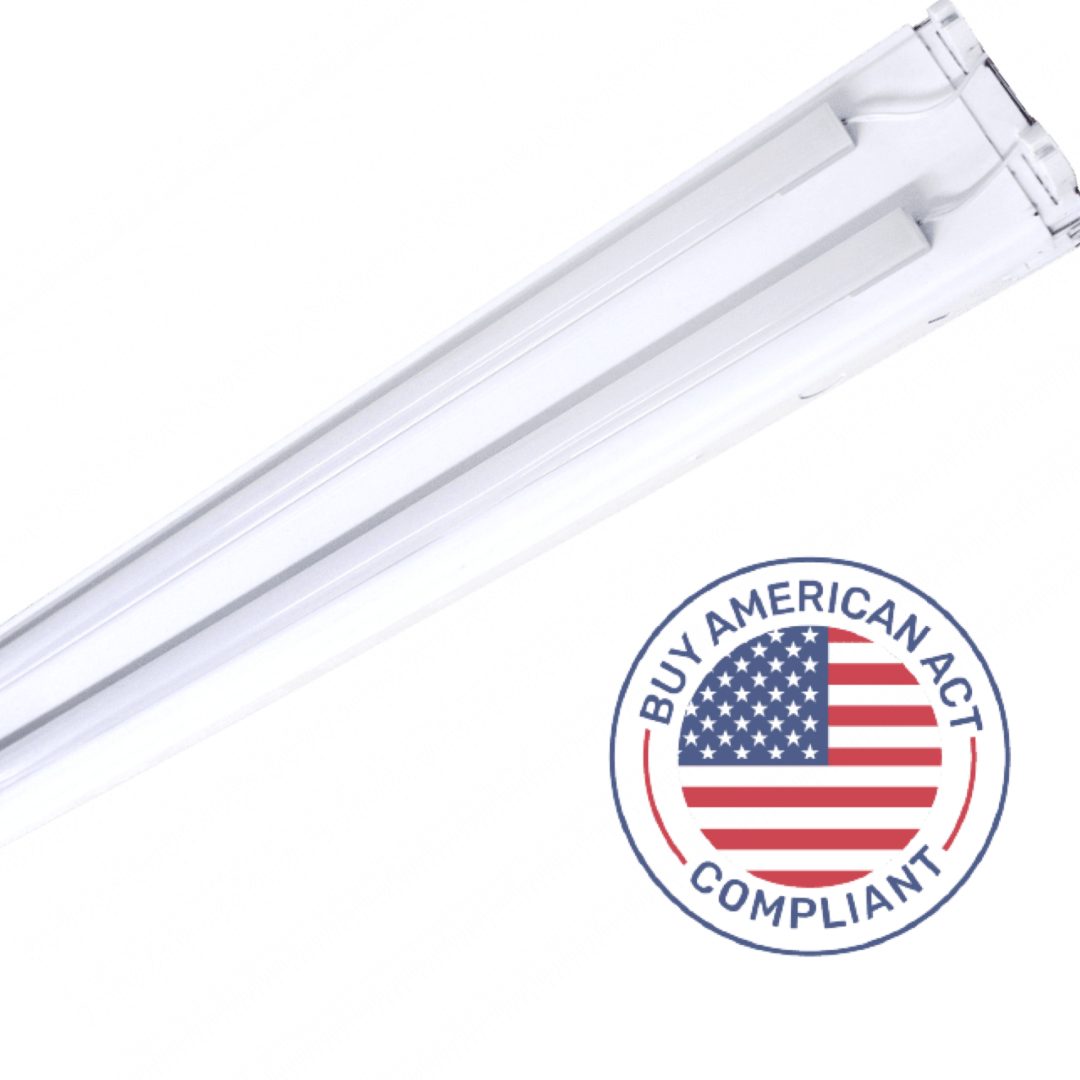

Create a customized lighting solution with this Made in America LED Channel Fixture, featuring the powerful and efficient Magnilumen Plus+™ Light Engine. Built from heavy-gauge, die-formed steel and finished in baked white enamel, this fixture is designed for maximum durability and reflectivity.
The snap-on end plates and driver cover allow for tool-free assembly, and the end plate also functions as a coupler for seamless continuous-run installations. Both symmetric and asymmetric reflectors are available to meet a variety of lighting requirements.
Tailor this fixture with a range of Build-Your-Own options, including: Wattages, Color Temperatures, Lenses and Mounting Options & Accessories
Engineered for outstanding performance and adaptability, this LED channel fixture delivers high-quality, customizable illumination to fit any project need.
Applications

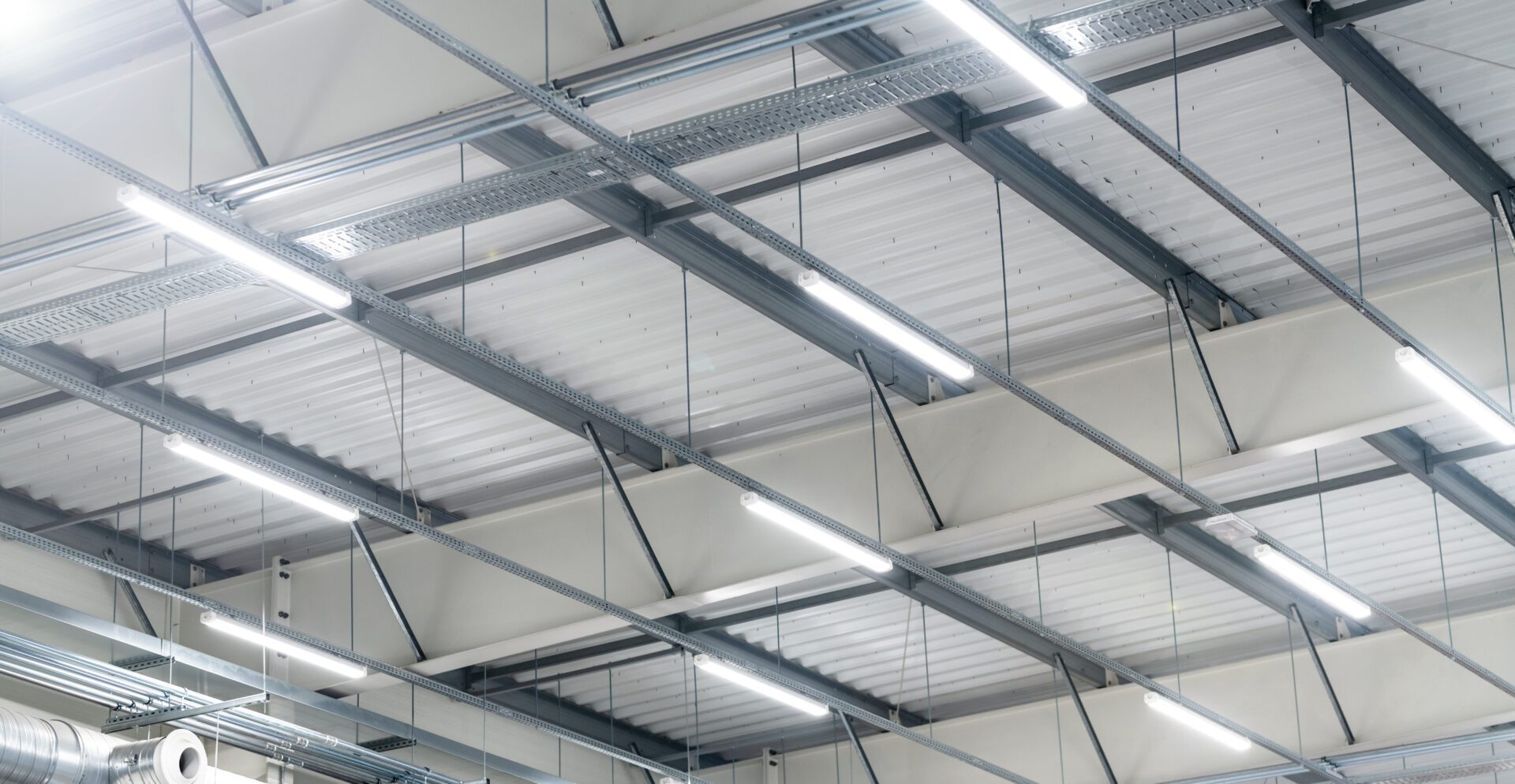

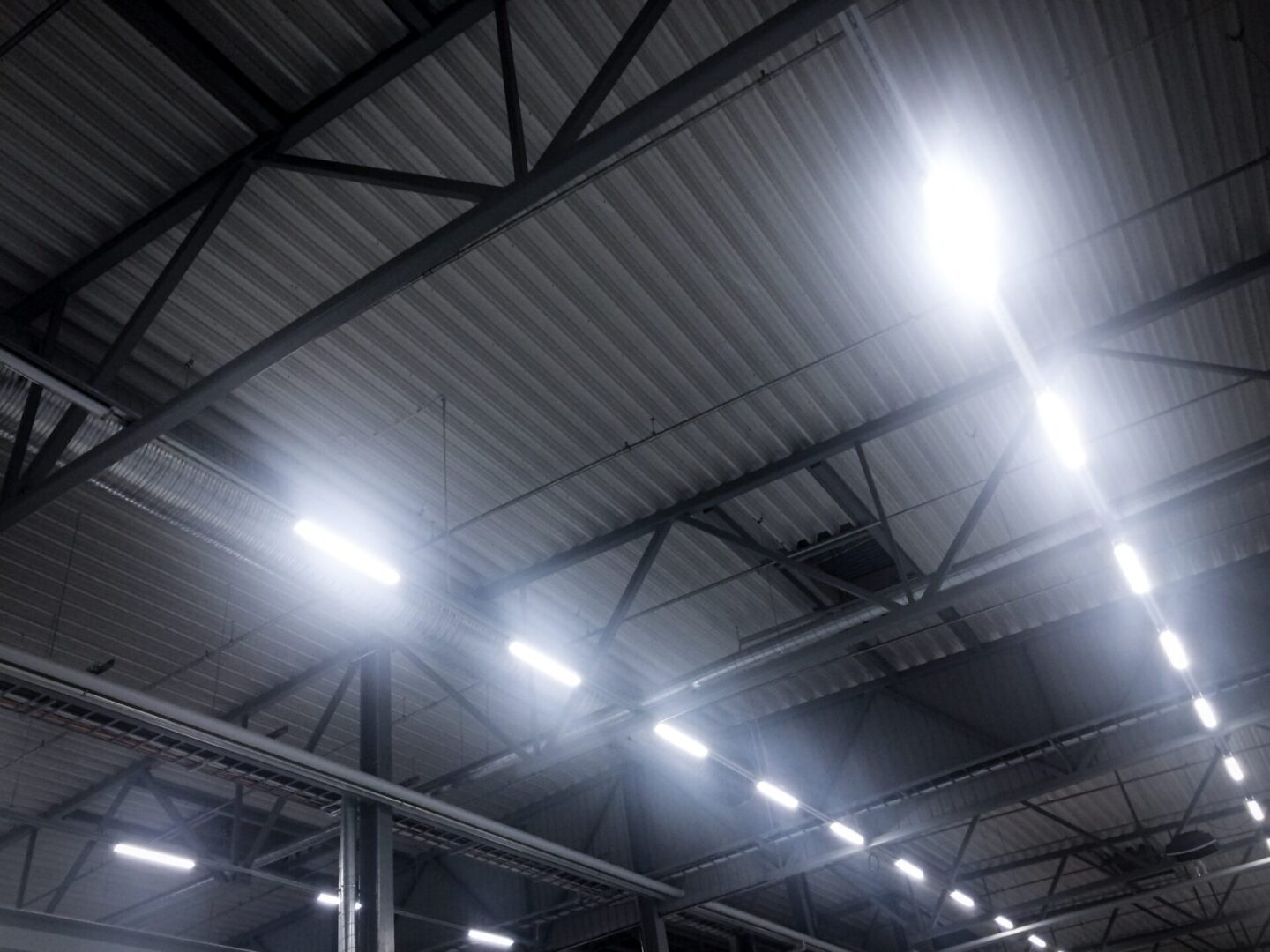

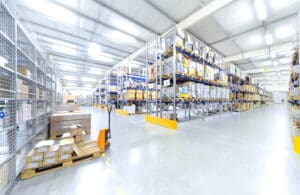

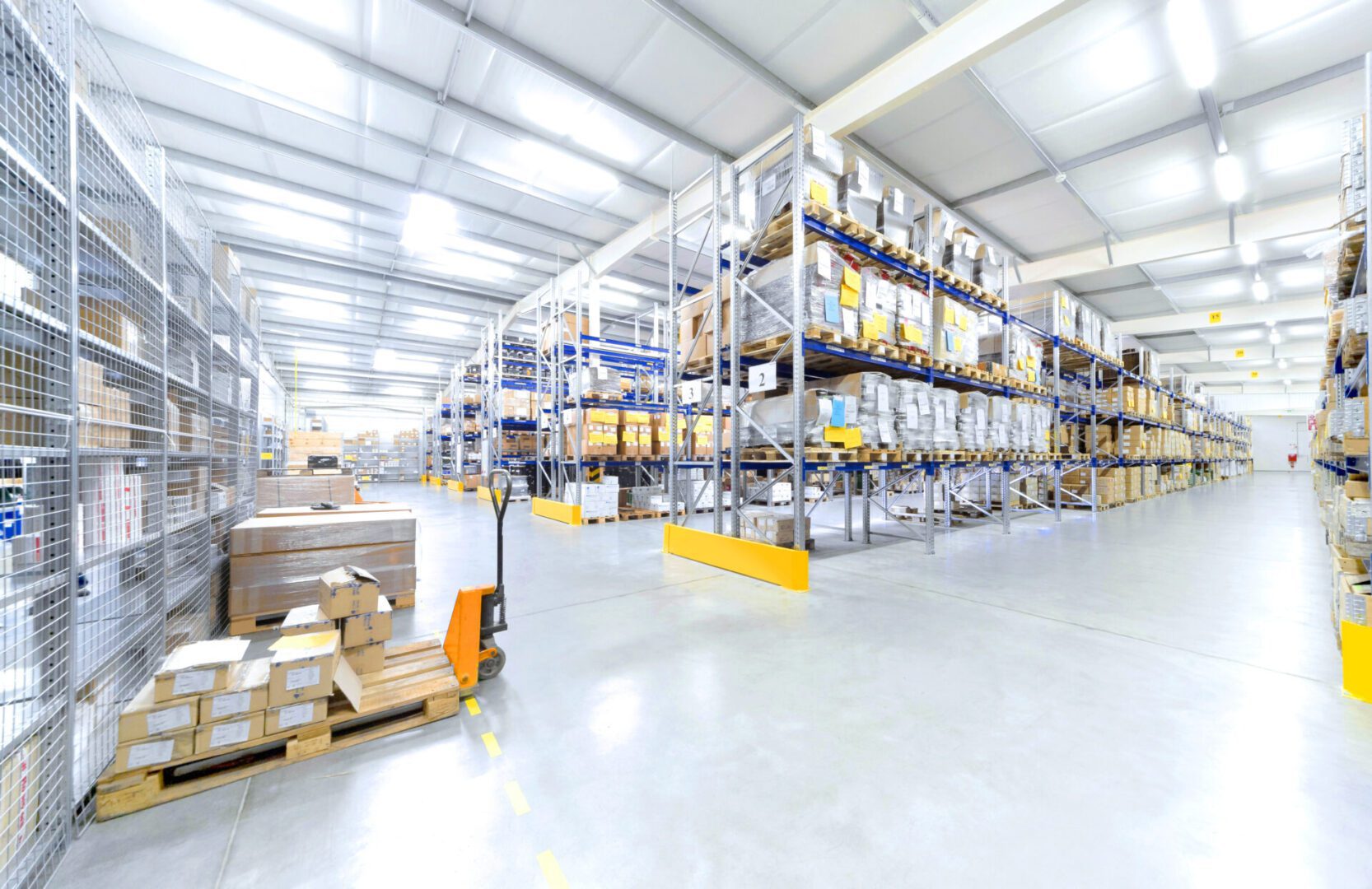

Used in all commercial and industrial areas
FEATURES
| Wattages | Magnilumen Plus: 2ft- 20W, 30W 4ft- 40W, 50W, 60W 8ft- 80W, 100W, 120W Magnilumen Plus High Output: 2ft- 30W 4ft- 60W 8ft- 100W, 120W |
| Color Temperatures | Magnilumen Plus: 30K, 35K, 40K, 50K, 65K, Green, Blue, Orange, Yellow, Red, Amber, Black Light Magnilumen Plus High Output: 40K, 50K Special Order: 30K, 35K |
| Operating Frequency | 50/60Hz |
| Input Voltage | 120/277V |
| CRI | 83 |
| Listed | ETL |
| LED Lifespan (L70) | Magnilumen Plus: 100,000 hours Magnilumen Plus High Output: 50,000 hours |
| Dimming | 0-10V |
| Ambient Temp | -4ºF – 122ºF |
| Mounting | 7/8” knockouts in top, sides and end plates. |
| Number of Bars | Magnilumen Plus: 2ft- 1, 2, or 3 bars 4ft- 1, 2, or 3 bars 8ft- 2, 4, or 6 bars Magnilumen Plus High Output: 2ft- Max 2 bars 4ft- Max 2 bars 8ft- Max 2 or 4 bars |
| Warranty | 7 year Magnilumen Standard; 5 year High Output, Color; 3 year Black Light |
| Options |
EM + Emergency MS – Motion Sensing Sensors – Optional External PIR Sensor Internal Microwave Sensor Motion Sensor include AO Drivers
|
| Lumens | See Lumens Chart |
Catalog Number
See Build Your Own on Spec Sheet
