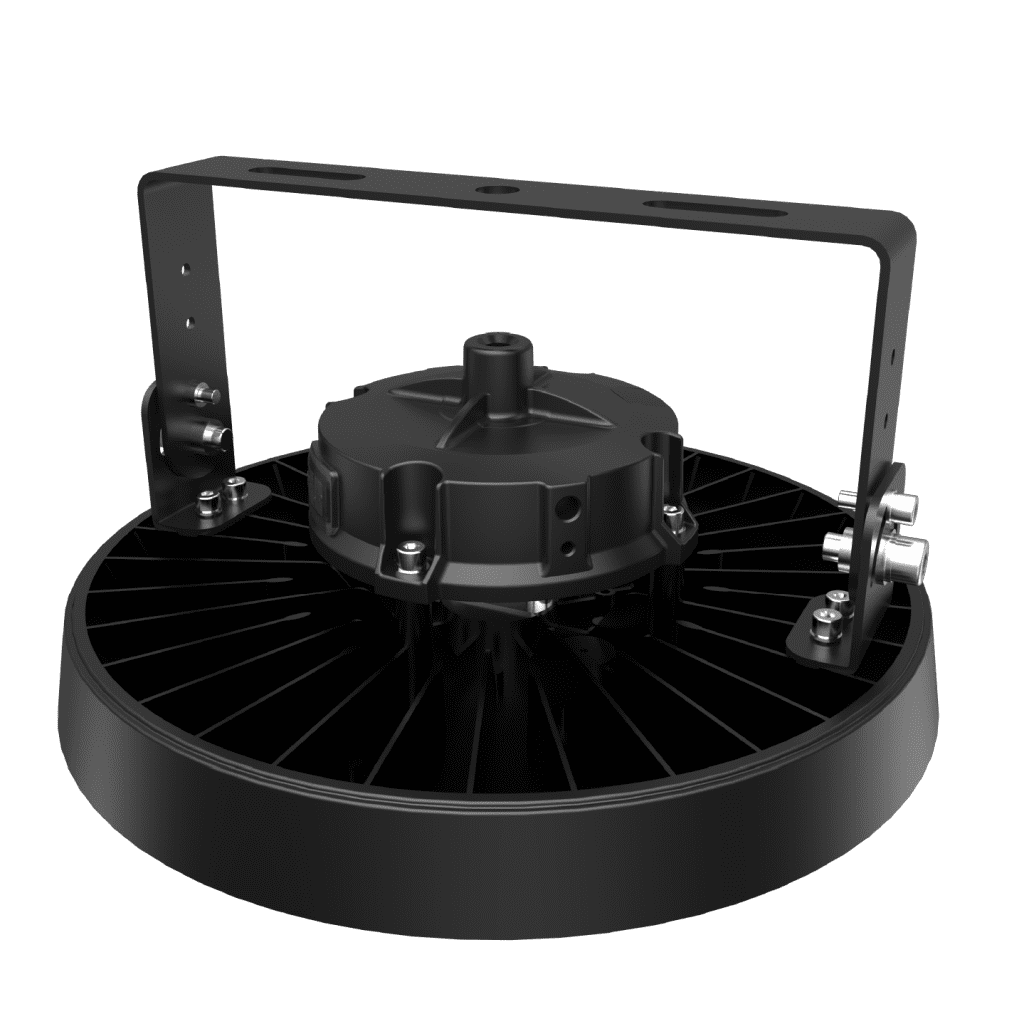

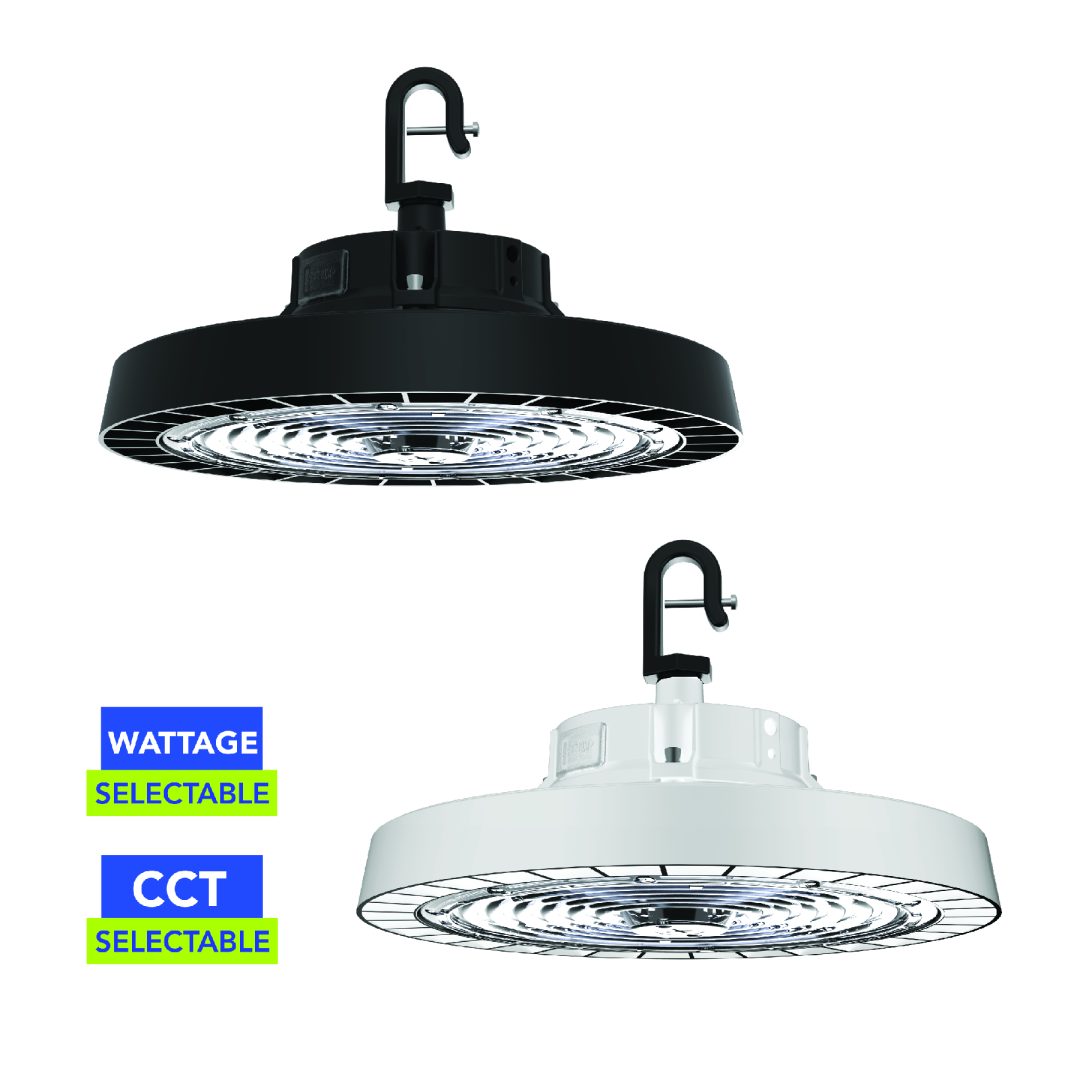

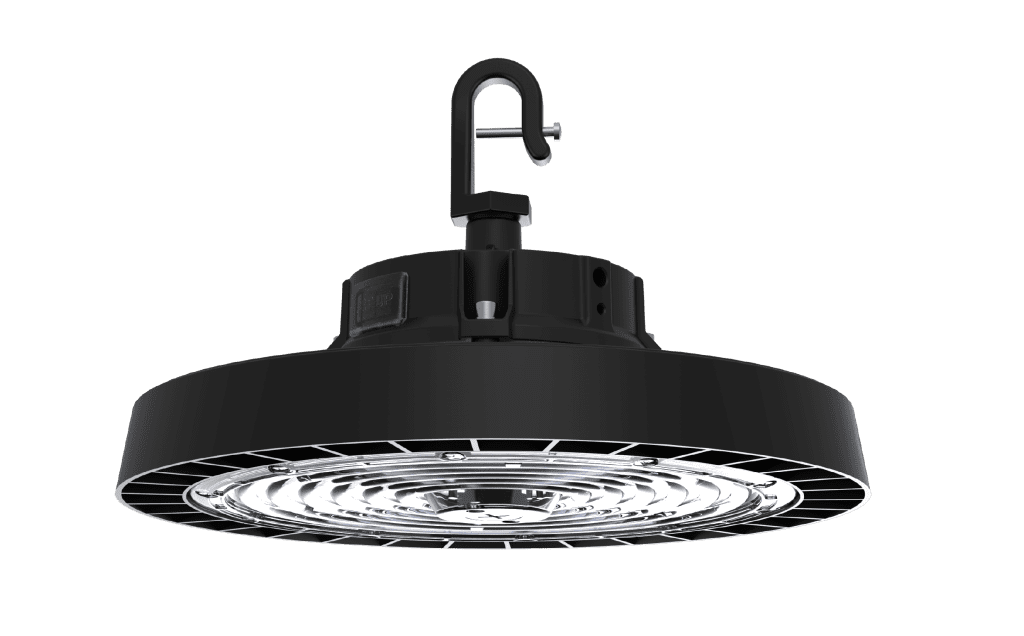

UFO LED High Bay – Wattage and CCT Selectable – MK Series
Share
The versatile UFO LED High Bay Fixture delivers powerful, energy-efficient illumination with selectable wattages of 60W/80W/100W or 150W/200W/240W and selectable color temperatures of 3500K, 4000K, and 5000K. Available in black, with white housing options for the 60W/80W/100W models, these fixtures are sensor-ready with optional emergency battery backup for added flexibility.
Applications

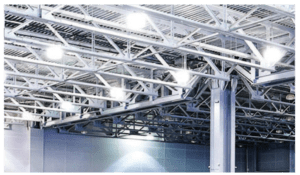

Ideal for warehouses, manufacturing facilities, distribution centers, gymnasiums, and large commercial spaces, these high bays provide reliable lighting solutions for a variety of high-ceiling applications.
Features
| Wattage Selectable | 100W(60/80/100W) 240W(150/200/240W) |
| Color Temperature Selectable | 35K, 40K, 50K |
| Input Voltage | 120/277V |
| Efficacy | 135 lm/W |
| CRI | 80 |
| Lumens at 40K | 60W- 9,000; 80W- 11,200; 100W- 15,000; 150W- 22,500; 200W- 30,000; 240W- 35,000 |
| Fixture Dimensions/Weight | 100W, 80W, 60W (9.4″ × 6.7″) / 4lbs; 240W, 200W, 150W (13.0″ × 7.3″) / 6.2 lbs. |
| Fixture Color | Black Standard; White optional – 100W, 80W, 60W |
| Ambient Temperature | -40° – 122° F,-40° to 50° C |
| Beam Angle | 120° |
| Dimming | 0-10V |
| Rated | IP65 |
| Warranty | 5 year |
| Listed | UL |
| Sensor | Optional |
| Remote | Sold Separately |

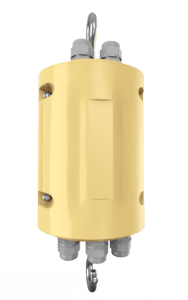

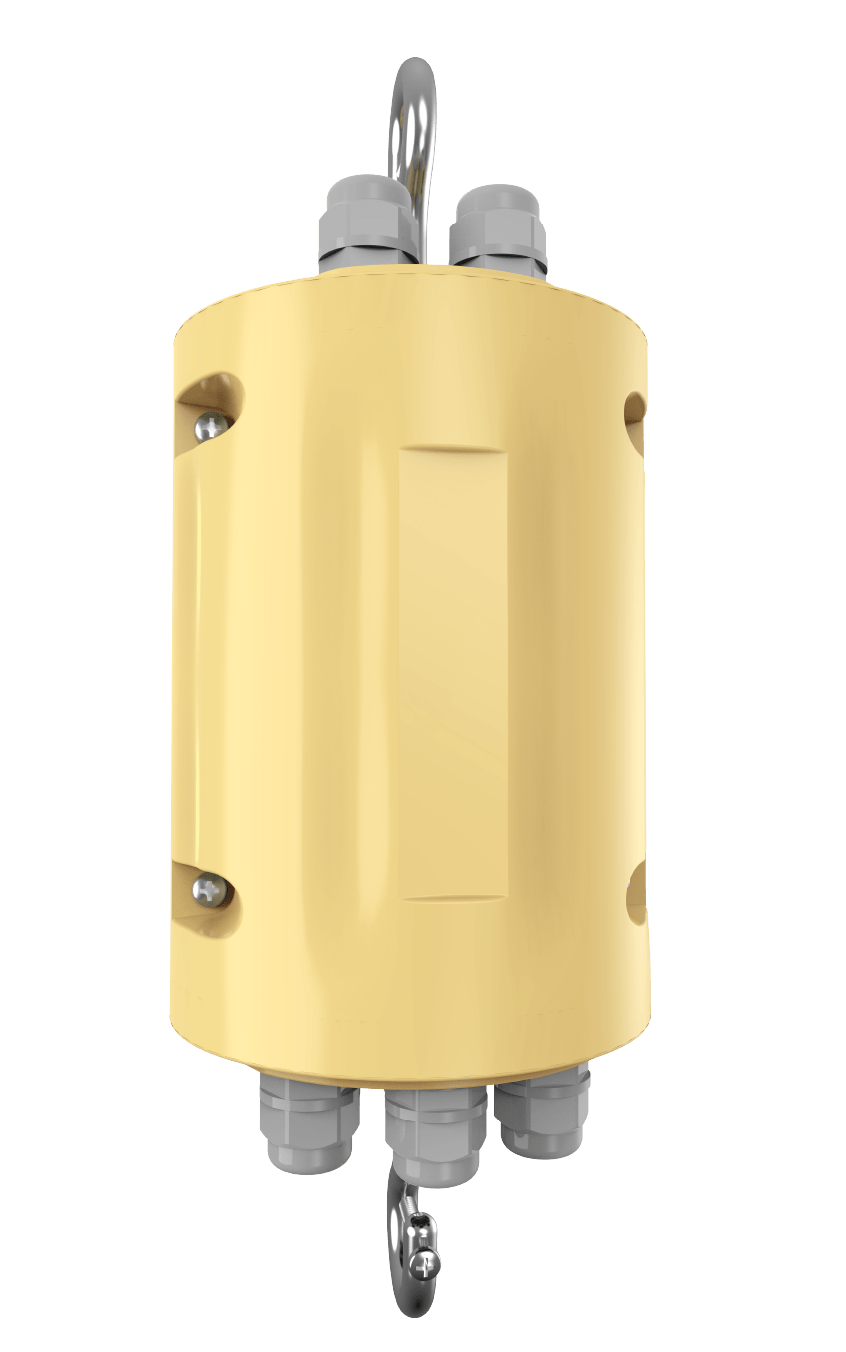

| Emergency Battery | Optional |
Catalog Number
ZL-UFO-60/80/100W-35/40/50K-D-MK
ZL-UFO-240/200/150W-35/40/50K-D-MK
ZL-UFO-60/80/100W-35/40/50K-2V-D-WH-MK
Accessories

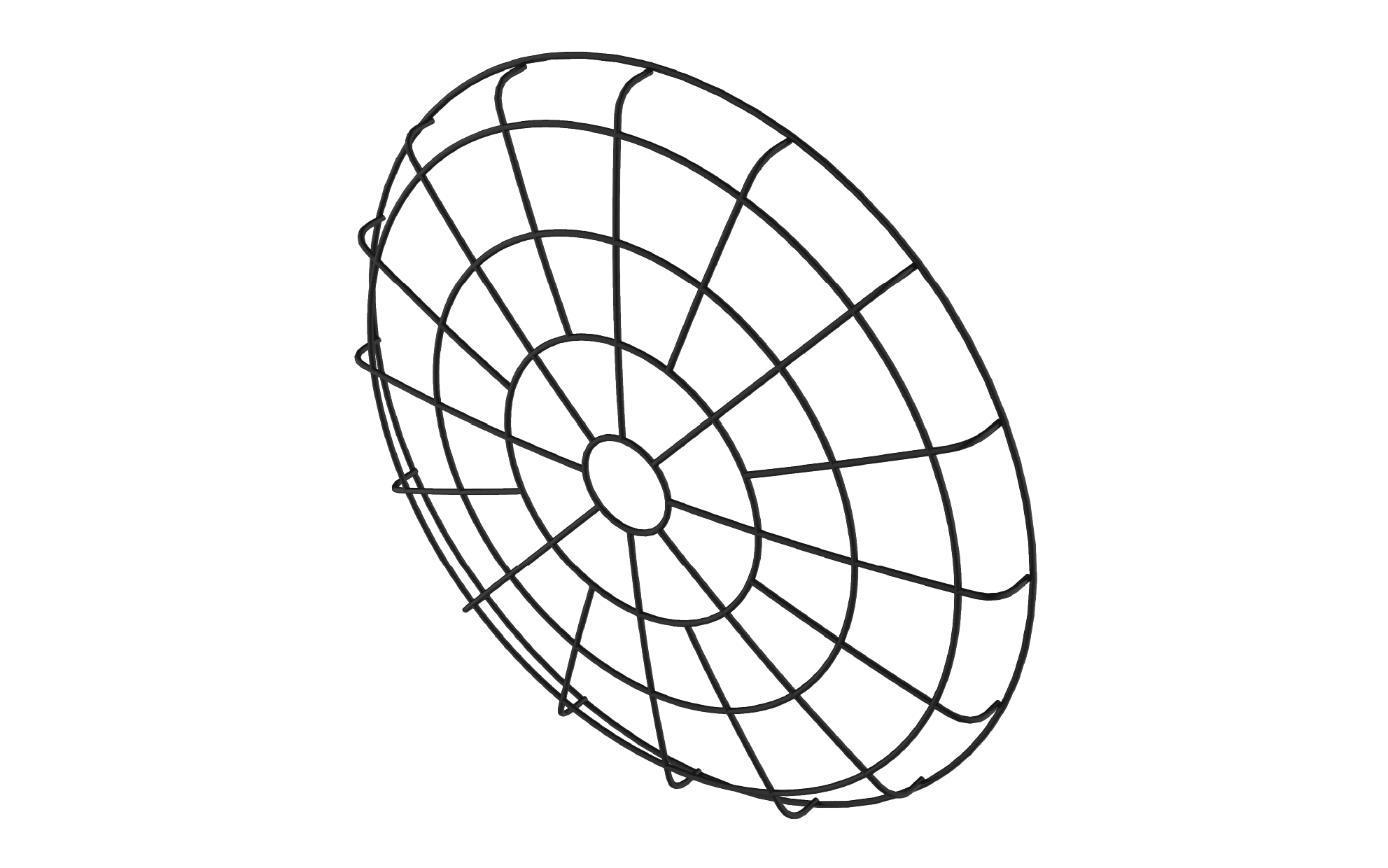

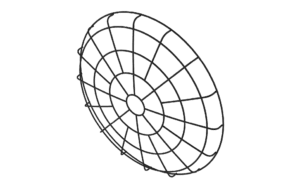

ZL-WIREGUARD-150W-MK

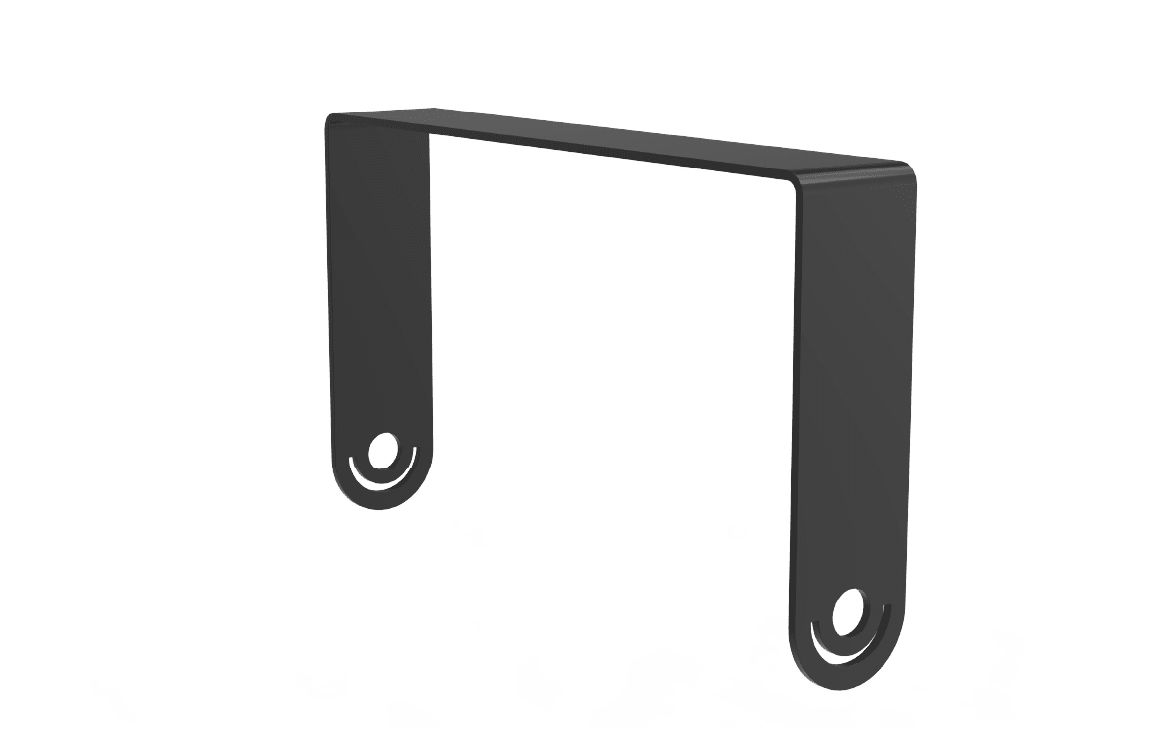

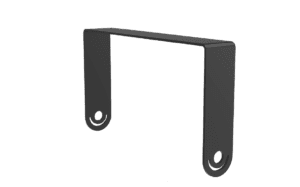

ZL-YOKE-BRACKET-100W-MK
ZL-YOKE-BRACKET-150W-MK
ZL-YOKE-BRACKET-240W-MK

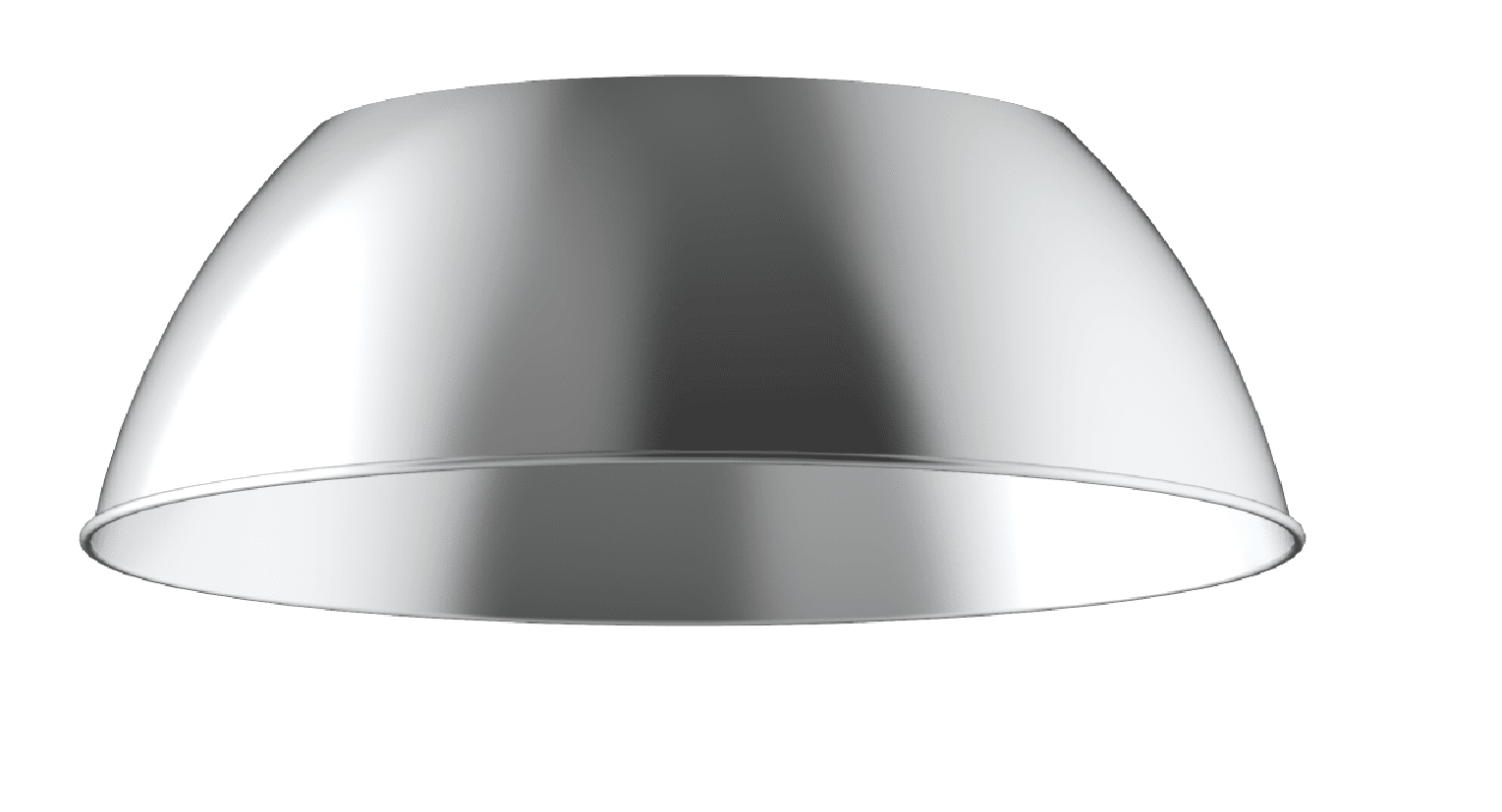

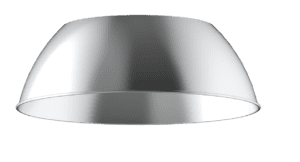

ZL-AL-REFLECTOR-150-MK
ZL-90DEG-PC-REFLECTOR-MK

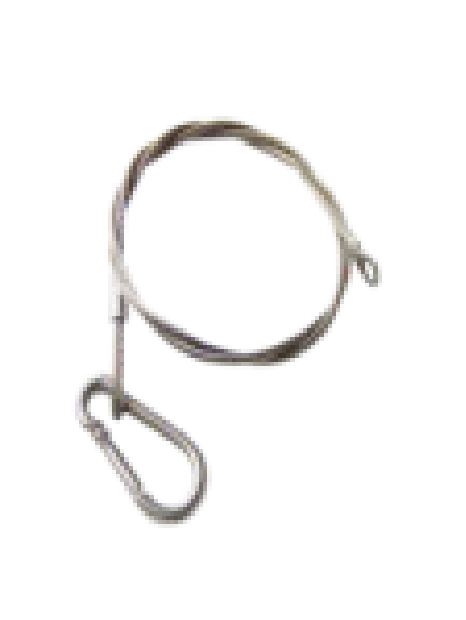

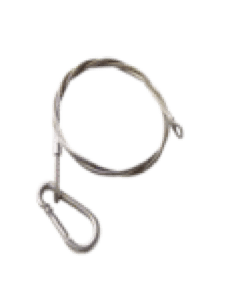

ZL-SAFETY-ROPE-MK

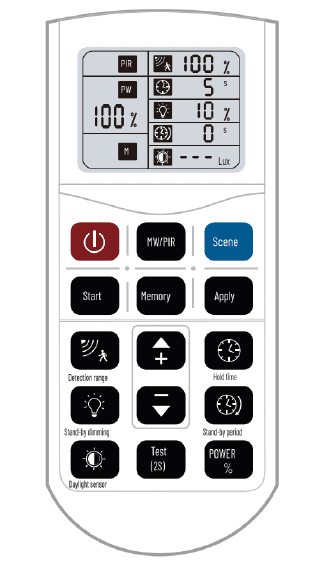

ZL-REMOTE-HD05R
ZL-MV-SENSOR-HD07VR- MH
