Stubby D2 Wattage Selectable LED Corn Lamp
Share

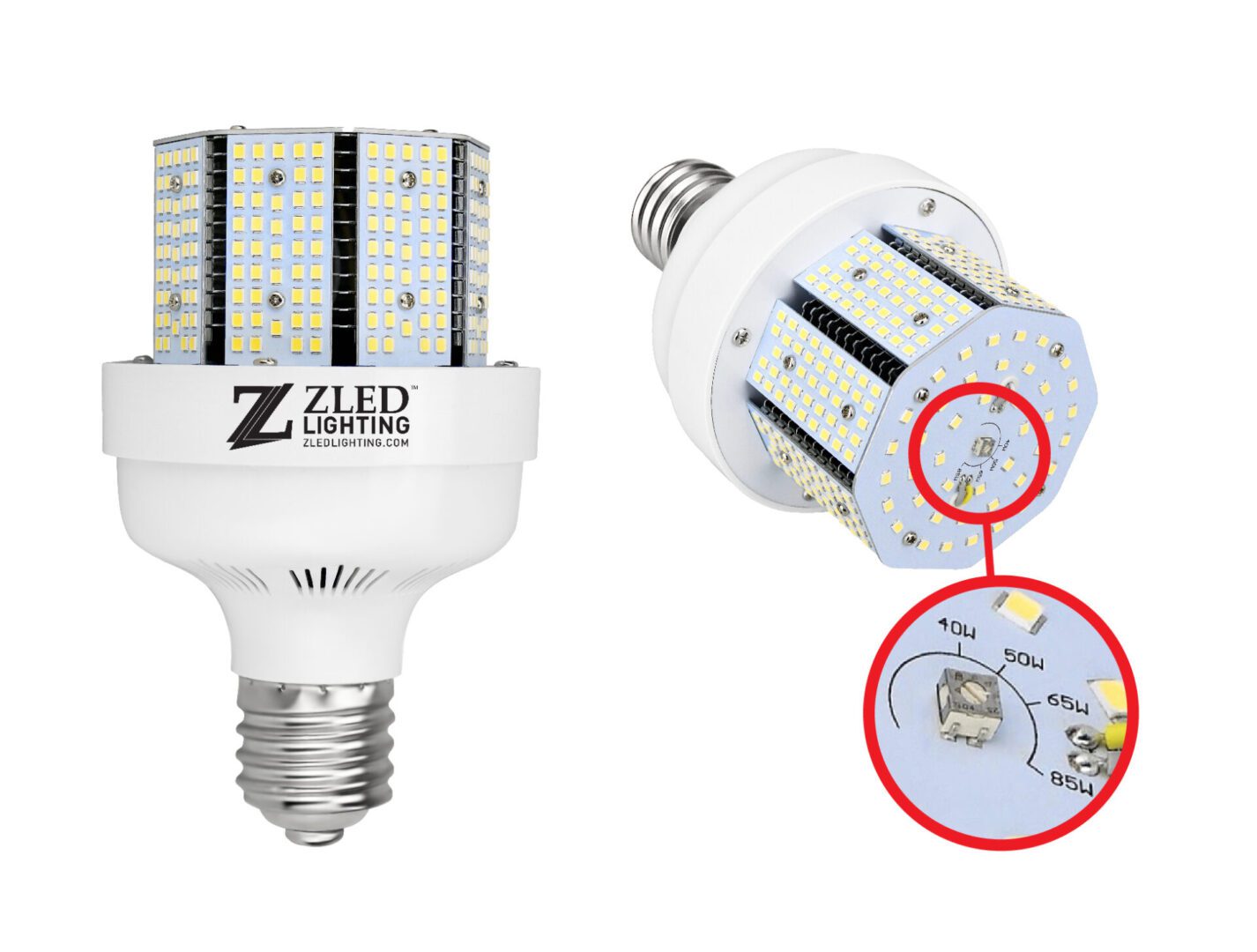

The Stubby D2 LED Corn Lamp now features field-selectable wattage settings via an integrated potentiometer located on top of the lamp, providing greater flexibility for a variety of lighting applications. Its redesigned, slimmer profile allows for easier installation in compact fixtures while still delivering high lumen output and exceptional energy efficiency. The Stubby D2 is an ideal retrofit solution for replacing HID and other traditional lighting technologies in commercial and industrial applications.
Applications
Ideal for retrofit applications in post-top fixtures, bollards, area lights, wall packs, and recessed can fixtures, delivering energy-efficient, high-output illumination with easy installation.
NOTE: DO NOT INSTALL IN SPORTS LIGHTS
FEATURES
| Wattage Selectable | 15-40W, 30-50W, 40-85W, 50-105W |
| Color Temperatures | (standard) 50K; (special order,) 30K, 40K, 57K 65K |
| Efficacy | 165 lm/W 180 lm/W |
| Input Voltage | 120/277V, 480V |
| Base Type | E26, EX39 (DLC only) |
| LED Lifespan (L70) | 50,000 hours |
| Warranty | 5 year |
| Listed | ETL, DLC (EX39 only) |
| Rated | IP20 |
| Surge Protection | 4KV |
| CRI | >80 |
| Active Cooing | On Board Fan |
| Note | Shatter resistant |
| Lumens | 15W – 2475 25W – 4125 30W – 4950 40W – 6600 50W – 8250 65W – 10725 85W – 14025 105W – 17325 |
Catalog Number
180 lm/W is based on 50K, 165 and 180 lm/W may apply to other Kelvins
165 lm/W
C-EX39-105/85/65/50W-50K-STUB-D-2
180 lm/W
C-EX39-85/65/50/40W-50K-STUB-D-2
C-E26-40/30/25/15W-50K-STUB-D-2
C-EX39-40/30/25/15W-50K-STUB-D-2
C-E26-50/40/30W-50K-STUB-D-2
C-EX39-50/40/30W-50K-STUB-D-2
C-E26-85/65/50/40W-50K-STUB-D-2
C-EX39-85/65/50/40W-50K-STUB-D-2
480V – 165 lm/W
C-E26-50/40/30W-50K-STUB-480V-D-2
C-E26-85/65/50/40W-50K-STUB-480V-D-2
C-EX39-105/85/65/50W-50K-STUB-480V-D-2
480V – 180 lm/W
C-E26-40/30/25/15W-50K-STUB-480V-D-2
C-EX39-40/30/25/15W-50K-STUB-480V-D-2
C-EX39-50/40/30W-50K-STUB-480V-D-2
C-EX39-85/65/50/40W-50K-STUB-480V-D-2
