High Efficiency D2 Wattage Selectable LED Corn Lamps
Share

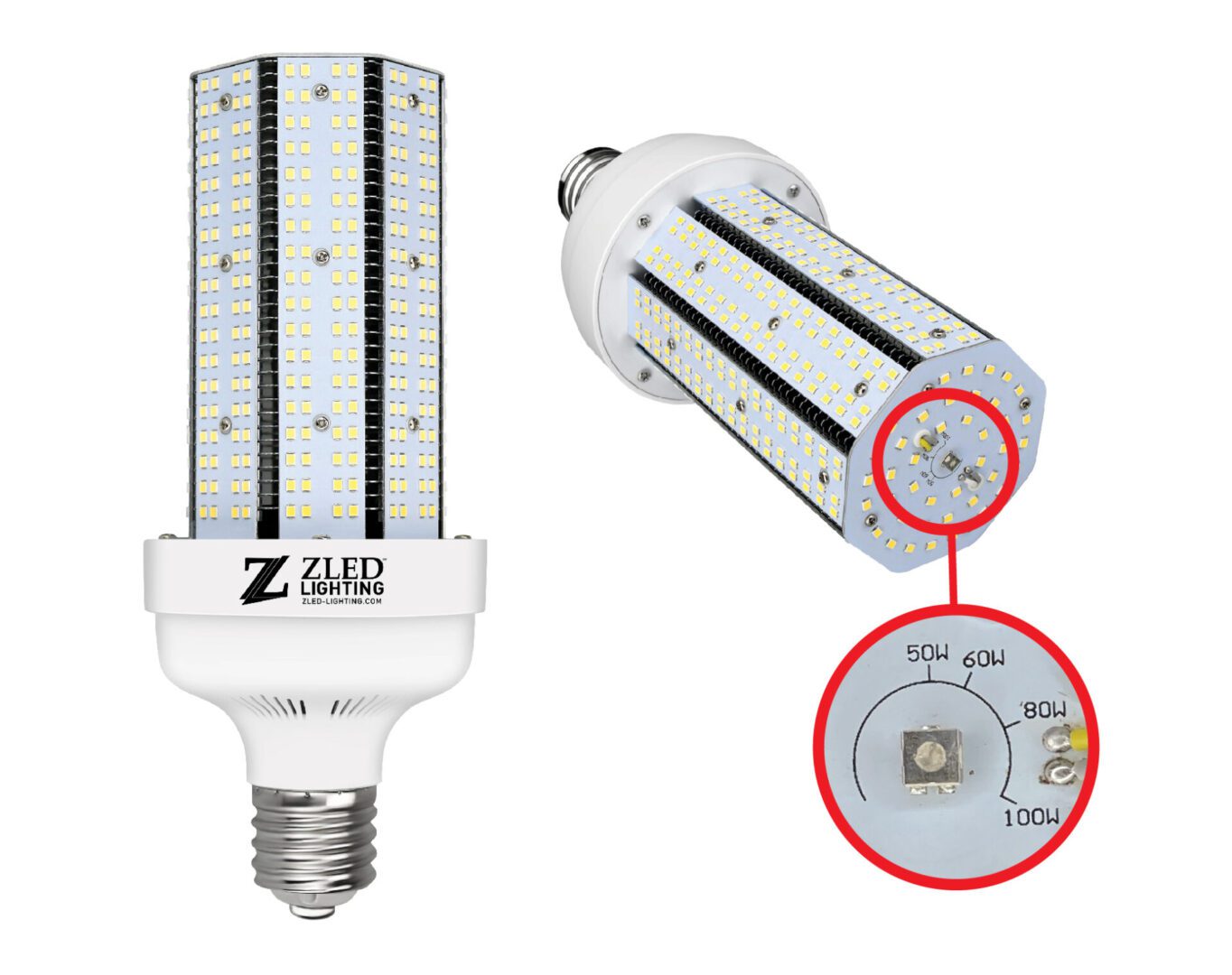

The High Efficiency D2 LED Corn Lamp is designed for a variety of retrofit lighting applications featuring wattage selectable lighting via a potentiometer located on the top of the lamp. The HE D2 designed with a thinner profile for easier installation in fixtures. Engineered to provide an efficient retrofit solution for commercial lighting applications such as warehouses, factories, institutional facilities, and educational campuses.
Applications
Ideal for retrofitting post tops, area lights, wall packs, and recessed can fixtures.
NOTE: DO NOT INSTALL IN SPORTS LIGHTS
FEATURES
| Wattage Selectable | 40/30/25/15W selectable 60/50/40/30W selectable 100/80/60/50W* selectable |
| Color Temperatures | 30K, 40K, 50K (Stock) 57K, 65K (Special Order) |
| Input Voltage | 120/277V, 480V |
| Efficacy | 165 lm/W; 180 lm/W (100/80/60/50W) |
| Material | Shatter Resistant |
| Base Type | E26, EX39 |
| LED Lifespan (L70) | 50,000 hours |
| Warranty | 5 year |
| Listed | ETL, DLC (EX39 Only) |
| Rated | IP20 |
| Beam Angle | 360 degrees |
| CRI | >80Ra |
| Surge Protection | 4KV |
| Dimensions | 40W: E26- 4.17” x 7.87”; EX39- 4.17” x 8.27”
60W: E26- 4.17” x 8.27”; EX39- 4.17” x 8.31” 100W: EX39- 4.17” x 10.24” |
| Note | DO NOT INSTALL IN SPORTS LIGHTS |
| Suggested HID Equiv. | 15W+25W- 50-100W
30W- 150-200W 40W- 175-200W 50W- 175-250W 60W- 200-275W 80W- 250-350W 100W- 400-500W |
| Lumens | 15W- 2,475 25W- 4,125 30W- 4,950 40W- 6,600 50W- 8,250 60W- 9,900 80W- 13,200 100W- 18,000 |
Catalog Number
180 lm/W is based on 50K, 165 and 180 lm/W may apply to other Kelvins
C-E26-40/30/25/15W-50K-HE-D-2
C-EX39-40/30/25/15W-50K-HE-D-2
C-E26-60/50/40/30W-50K-HE-D-2
C-EX39-60/50/40/30W-50K-HE-D-2
C-EX39-100/80/60/50W-50K-HE-D-2 (180 lm/W)
480V
C-E26-40/30/25/15W-50K-HE-480V-D-2
C-EX39-40/30/25/15W-50K-HE-480V-D-2
C-E26-60/50/40/30W-50K-HE-480V-D-2
C-EX39-60/50/40/30W-50K-HE-480V-D-2
C-EX39-100/80/60/50W-50K-HE-480V-D-2
