Square LED Retrofit Kit for HID Fixtures
Share
The HID retrofit kits are a great option when you need to need to make the decision to replace an entire fixture or retrofit the current one.
- If the fixture is in good shape, retrofitting is the better option as it will save you on time and labor costs.

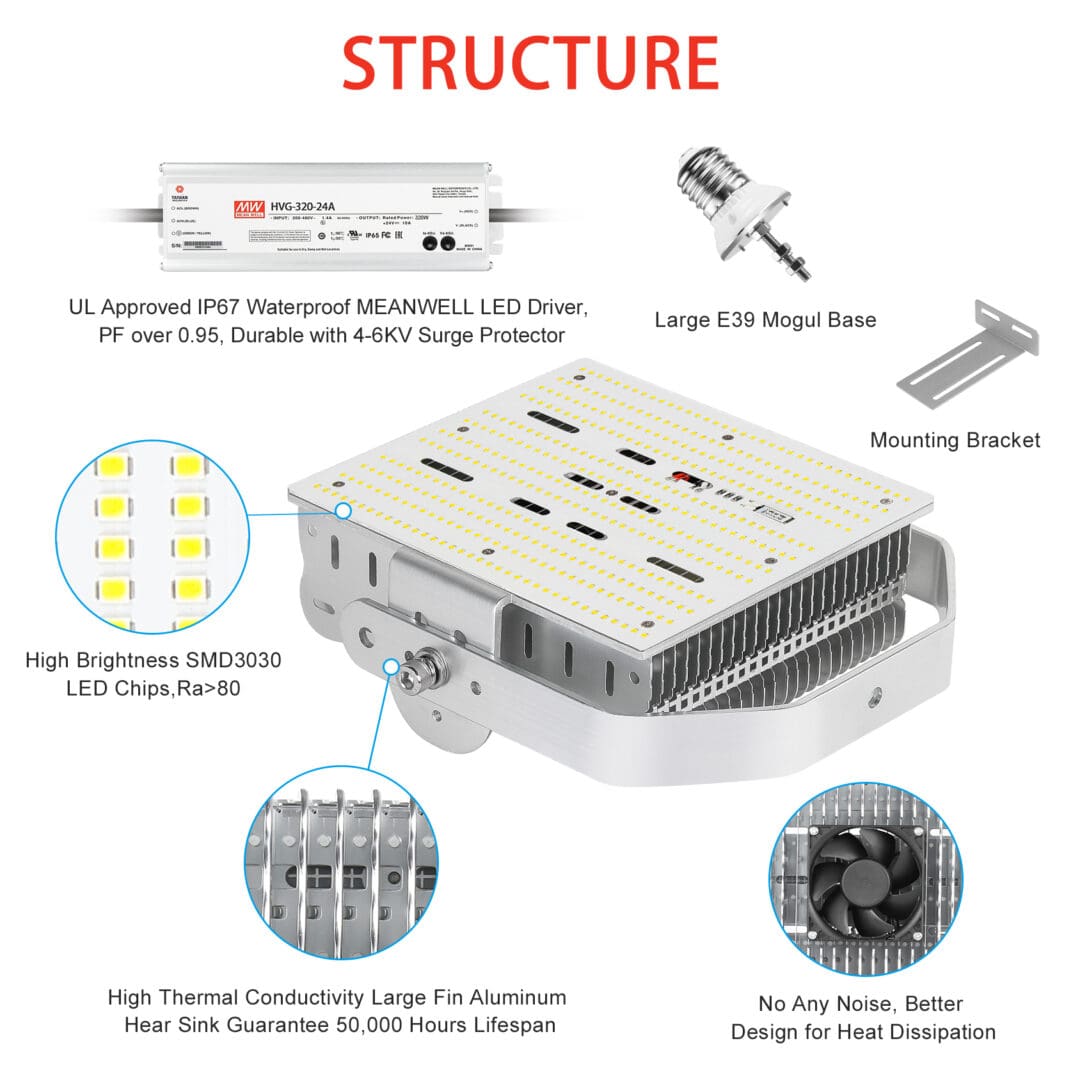

- A major benefit of the HID retrofit kit is with the driver mounted separately, it helps to keep the heat away from the LEDs.
- Additionally, since the HIDRP kit only has LEDS mounted on one side, it forces the light down where as a corn lamp that has LED’s in a 360 degree can lose some of the light in the fixture housing.

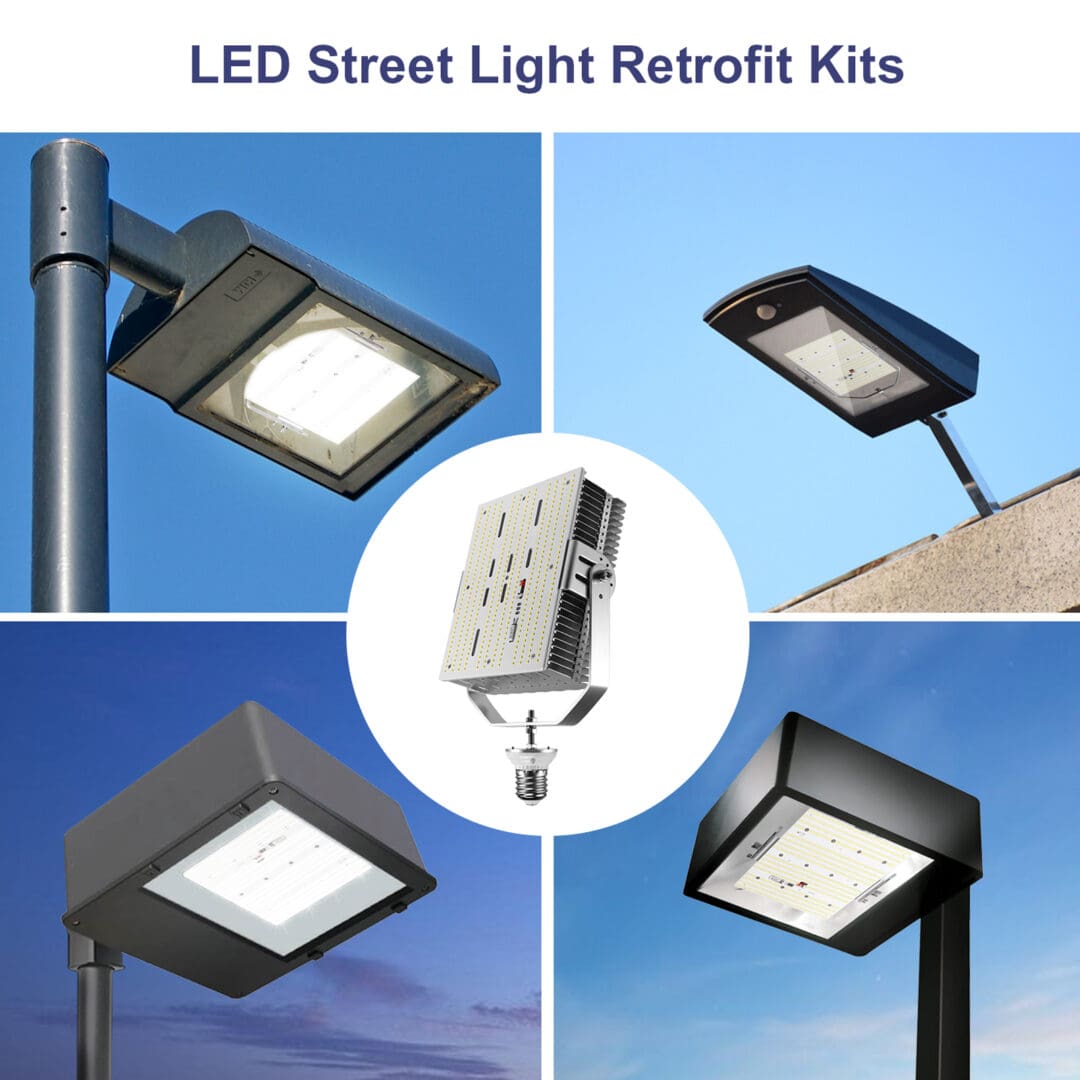

- HIDR kit is ideal for parking lot lighting, shoebox and streetlight retrofitting, wall packs and high bays. These retrofit kits are easy to install and operate and deliver energy-savings with a long service life.

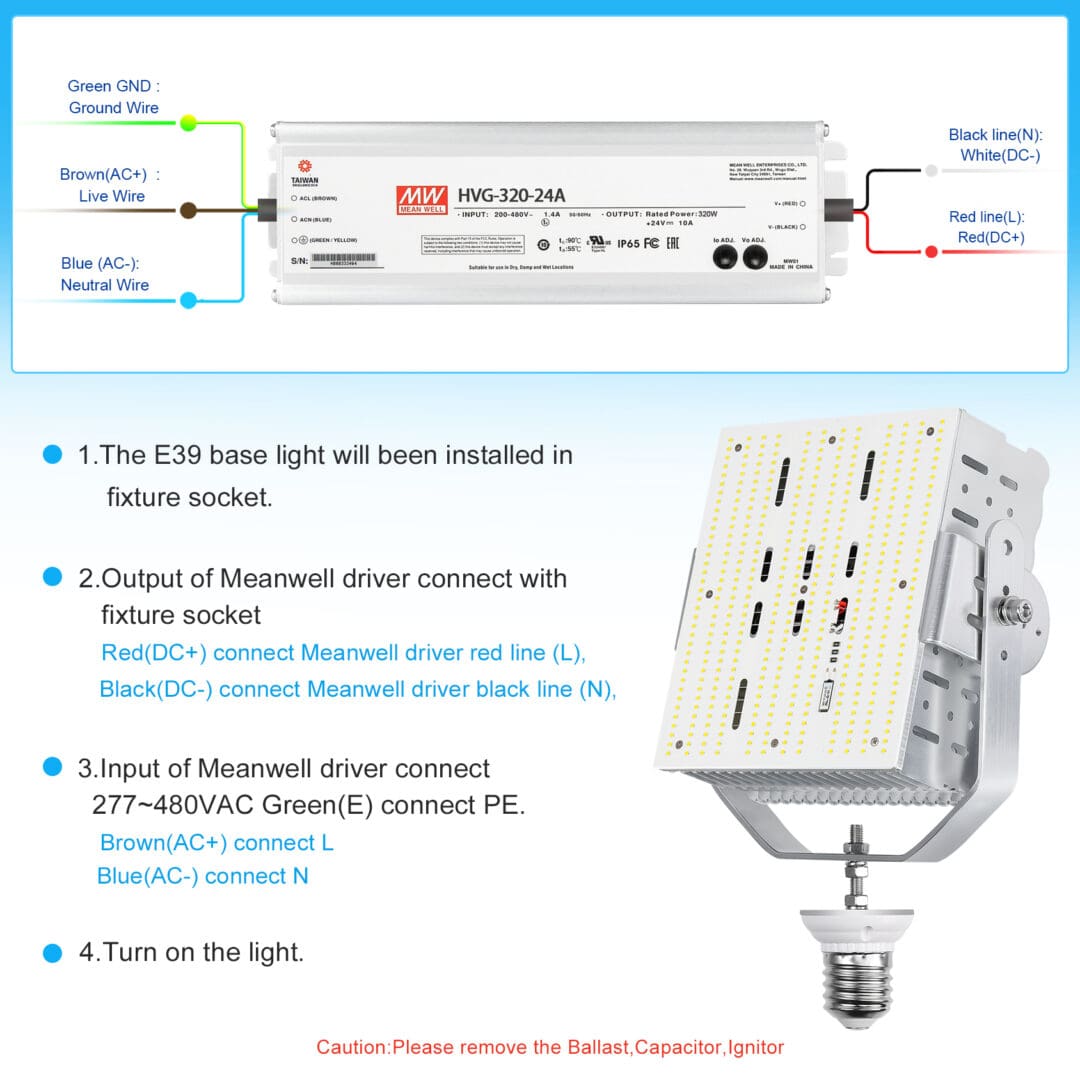

Optional bracket or standard socket installation.
Applications

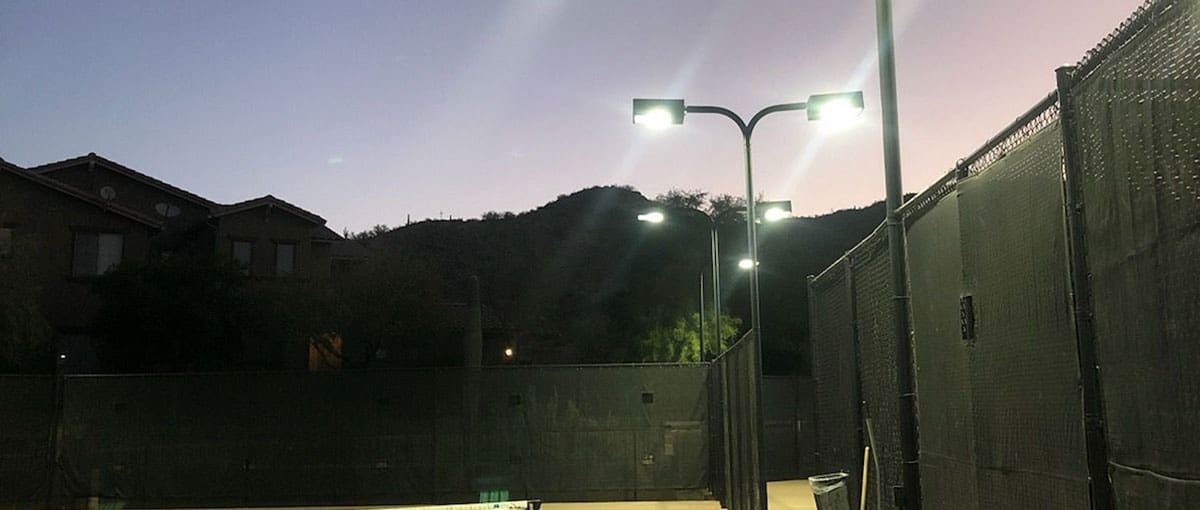

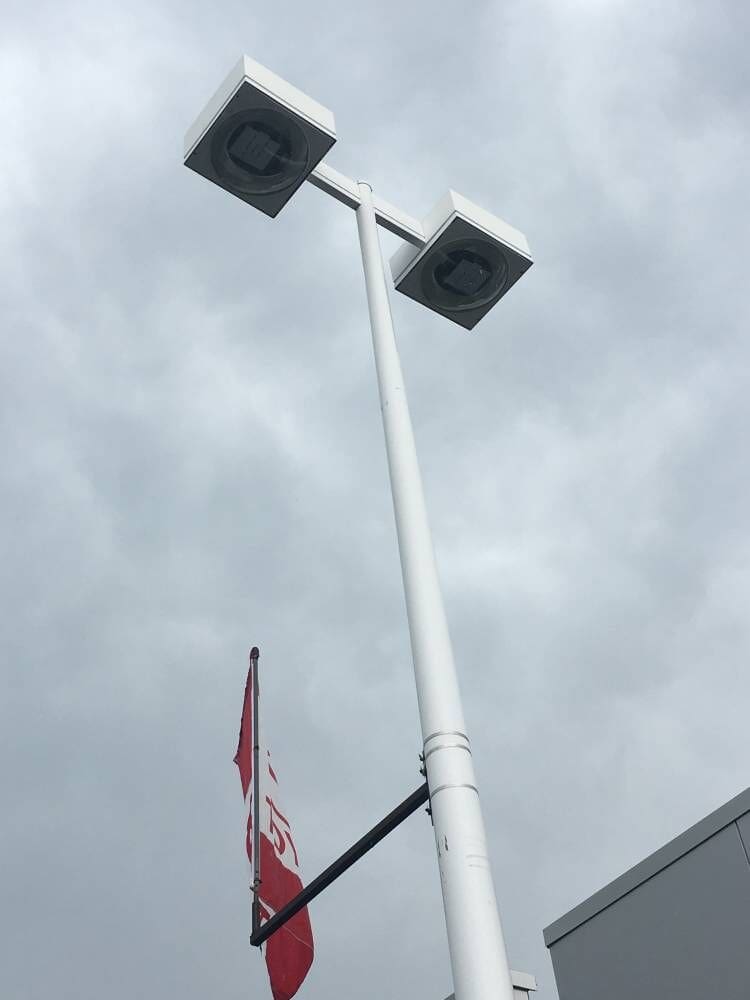

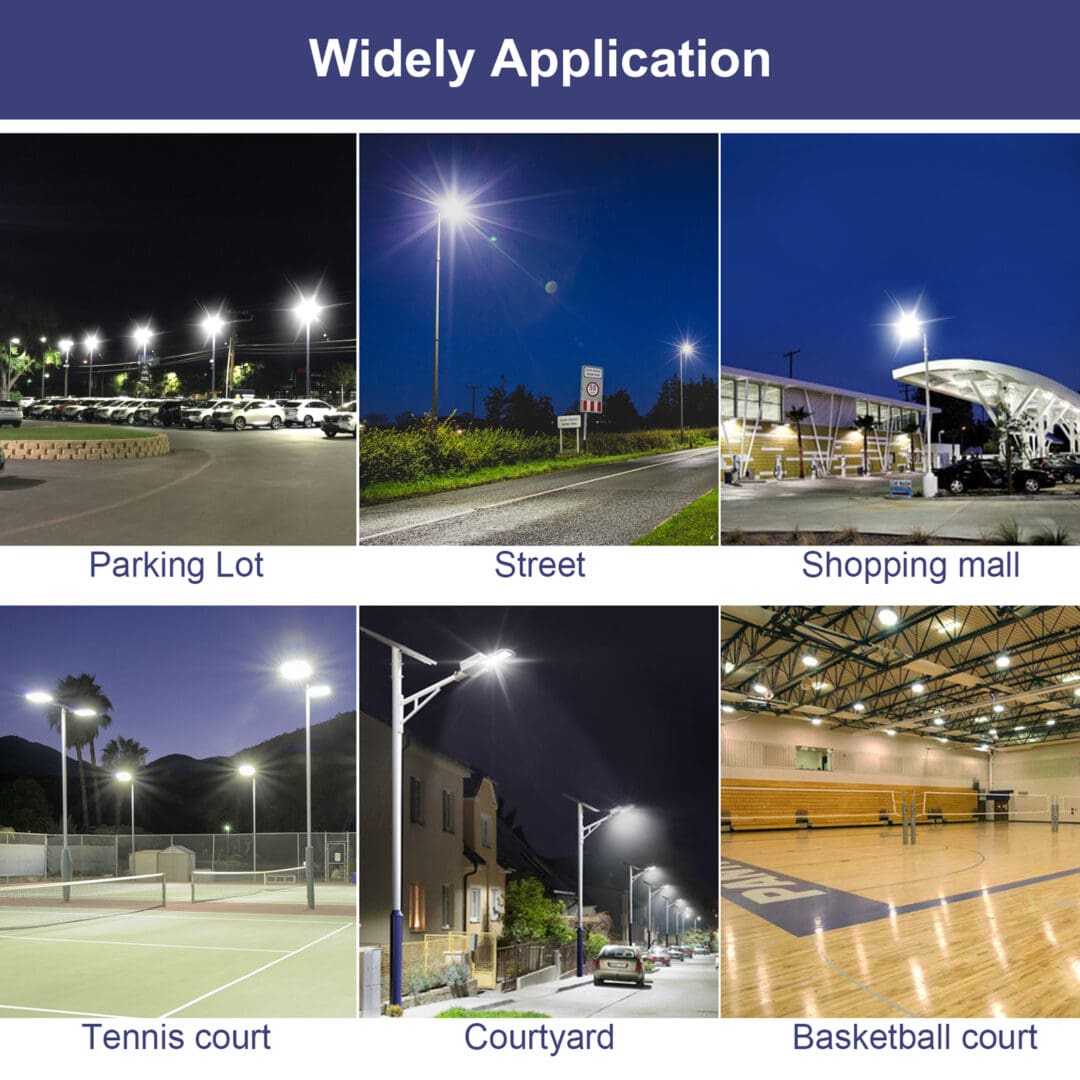

Parking lot, Tennis court, Schools, Gardens and Public Parks
FEATURES
| Wattages |
100W, 120W, 150W,,200W, 240W, 300W
|
| Color Temperatures | 30K, 40K, 50K, 57K |
| Input Voltage | 120/ 277V, 480V |
| Efficacy | 130-140Lm/W |
| Beam Angle | 120 degrees |
| Rated | ETL |
| Dimensions | 100W+120W+150W- 7.01” x 13.19” x 3.62” 200W+240W- 7.01” x 13.78” x 3.74” 300W- 7.01” x 14.80” x 3.93” |
| Warranty | 5 year |
Catalog Number
HIDRP-{100; 120; -150K; 200; 240; 300;}-{50K; (Special Order 30K, 40K, 57K}-NV
HIDRP-{100; 120; -150K; 200; 240; 300;}-{50K; (Special Order 30K, 40K, 57K}-480V-NV
