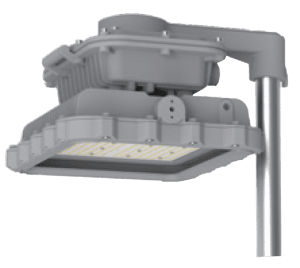

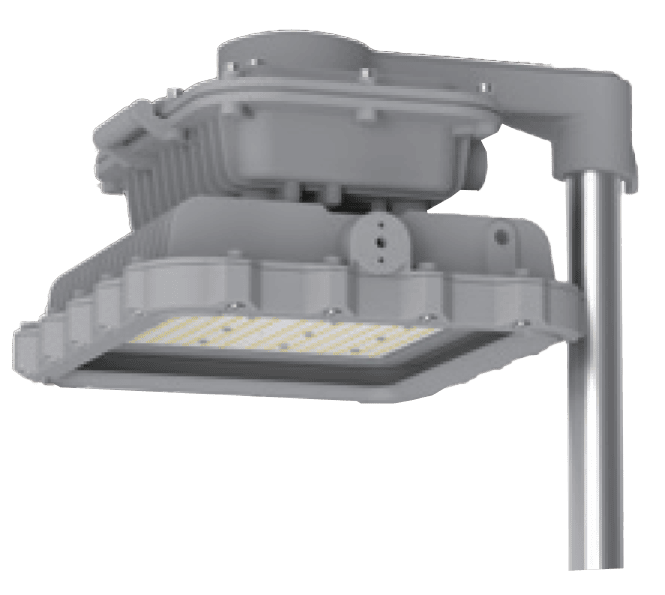

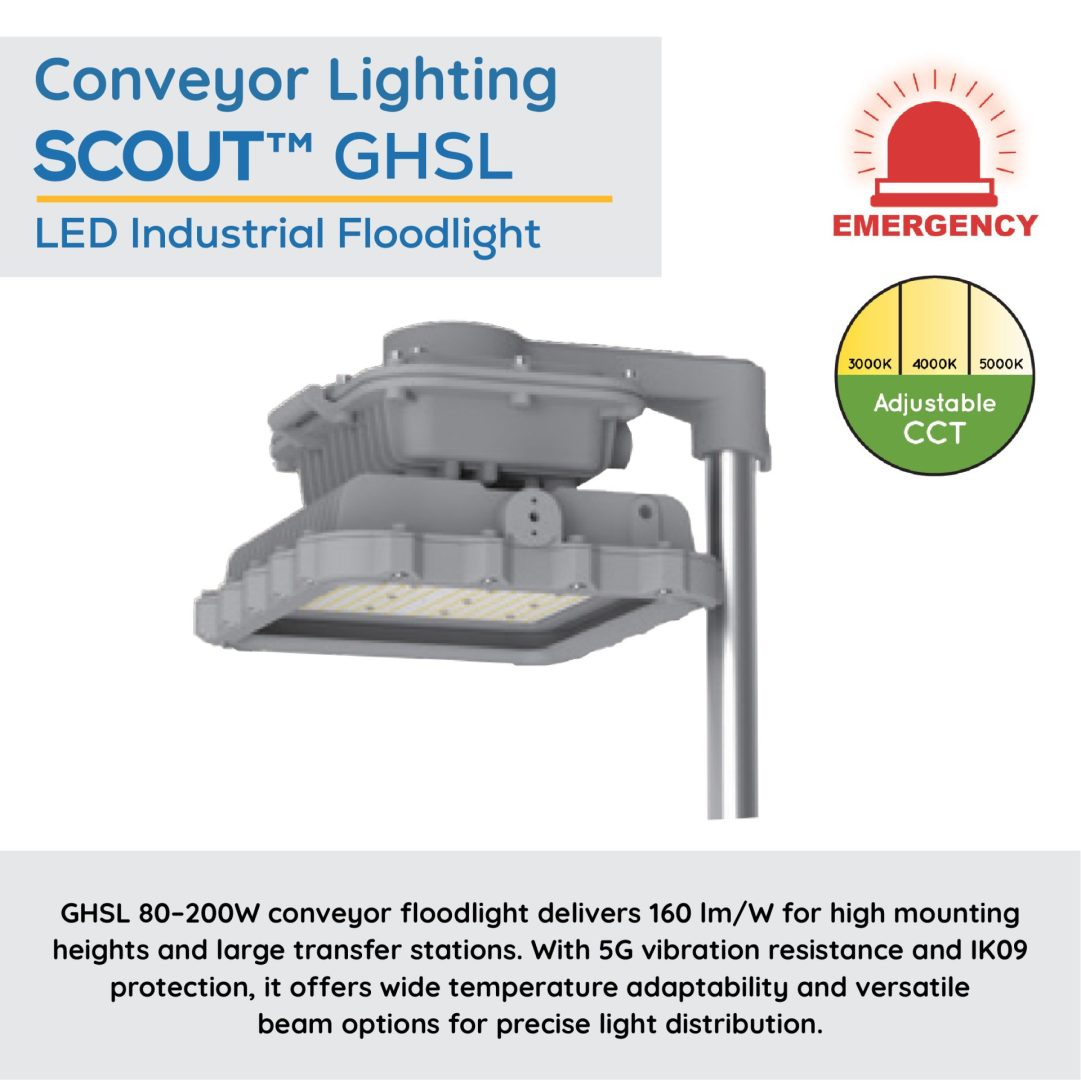

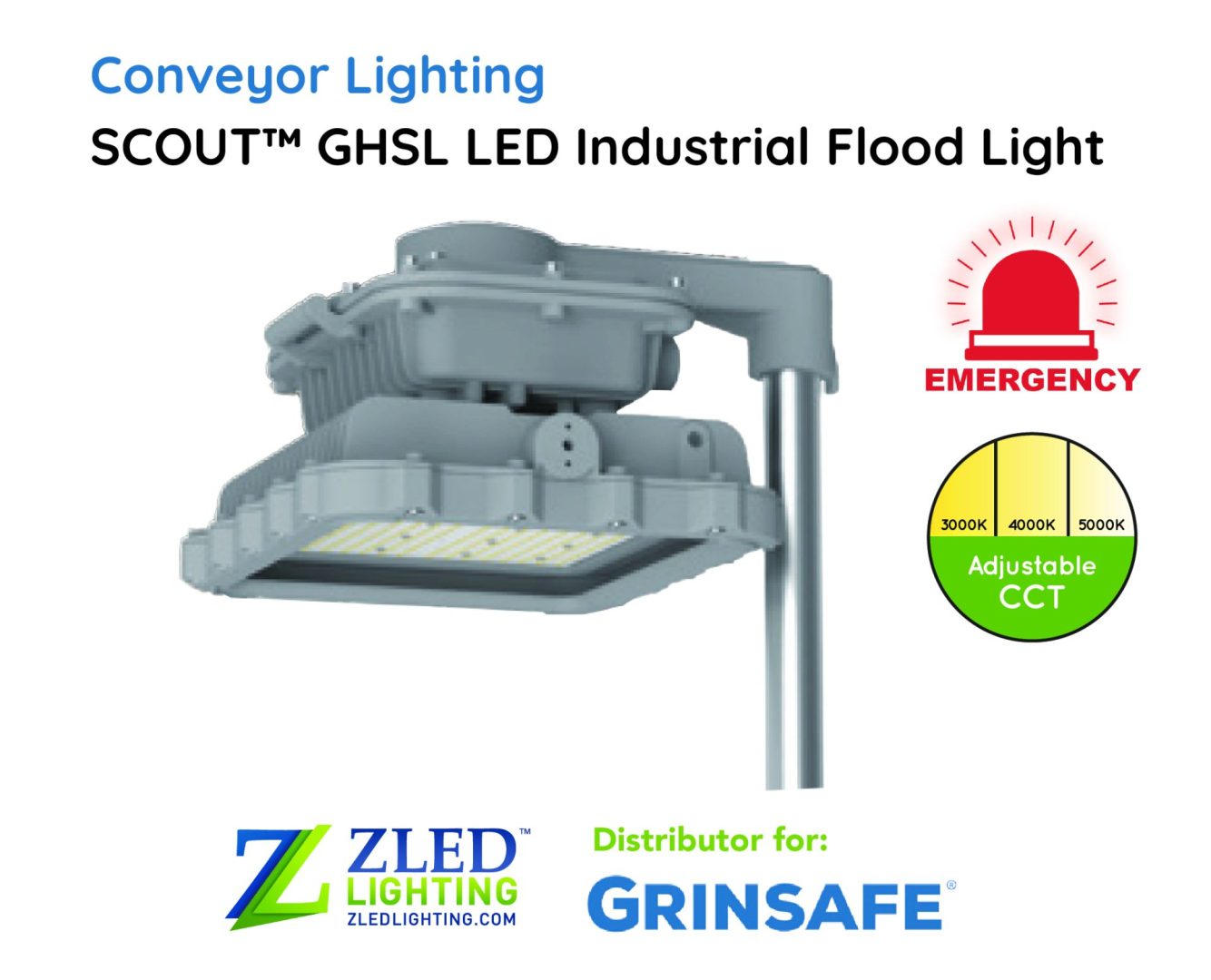

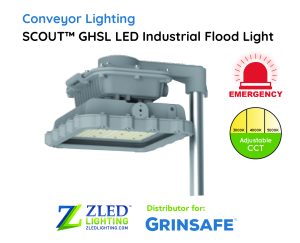

SCOUT™ GHSL LED High Bay, Flood, Area, Low Bay – Conveyor Lighting with Emergency Battery Back-up
SCOUT™ GHSL Conveyor Lighting is designed for open-pit mining conveyor systems, providing powerful and reliable illumination for iron ore, copper, and other material handling applications. Delivering 12,800 to 32,000 lumens, the GHSL Series provides high-output lighting for conveyor belts, transfer points, maintenance areas, and access walkways. Its rugged construction is built to withstand demanding outdoor conditions, including dust, moisture, vibration, and temperature variations, while flexible mounting and beam options support different conveyor configurations.
Features
- Optimized design, 11.5 kg ONLY, balanced well in weight, safety and durability.
- Hinge design makes the installation easier and safer.
- High efficacy LEDs, up to 170lm/w, maintains the same light intensity with less power consumption against the conventional lamps.
- Multiple beam angles provide more choices for various scenarios.
- 360° Adjustable U-Bracket corrosion, vibration, impact and shock resistant, passed 5G, 3-axis vibration test.
- Universal mounting accessories for easy retrofitting
- Terminal blocks fitted as standard for faster installation
| Rated Power | 80W / 100W / 150W / 200W |
|---|---|
| Input Voltage | 120-277V/AC |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 12,800lm ~ 32,000lm |
| Luminous Efficacy | 160~170Lm/W |
| Beam Angle | 30°/60°/90°/110°/T2/T3/T4 |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Ambient Operating Temperature | -40°C~+65°C (80W 100W 150W ) -40°C~+60°C (200W ) |
| Lens Material | Tempered glass |
| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 11.5kg |
| Dimming | Standard 1 – 10VDC |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – SCOUT™ GHSL EM
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms.
