FLINT™ GHSM LED Conveyor Light
Share

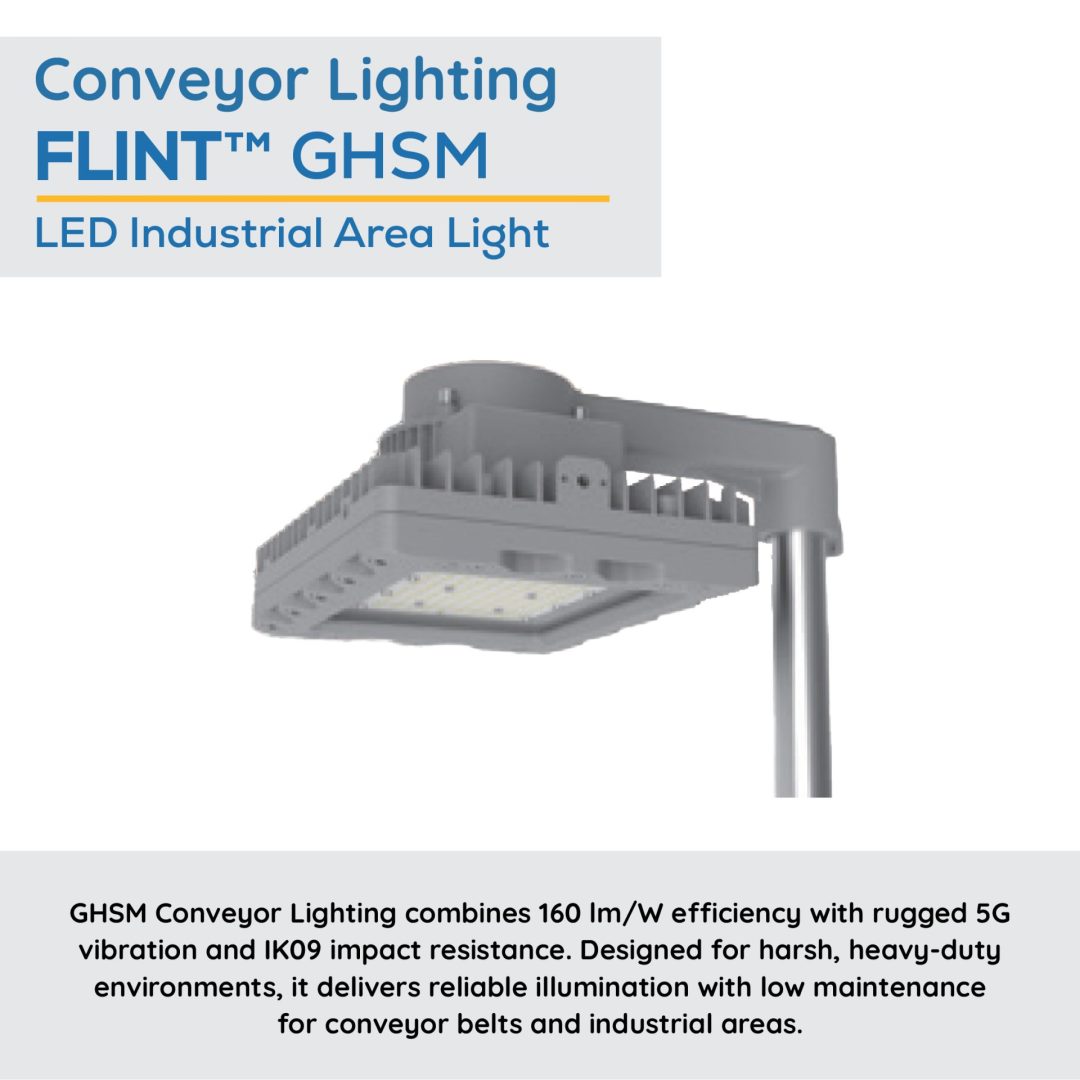

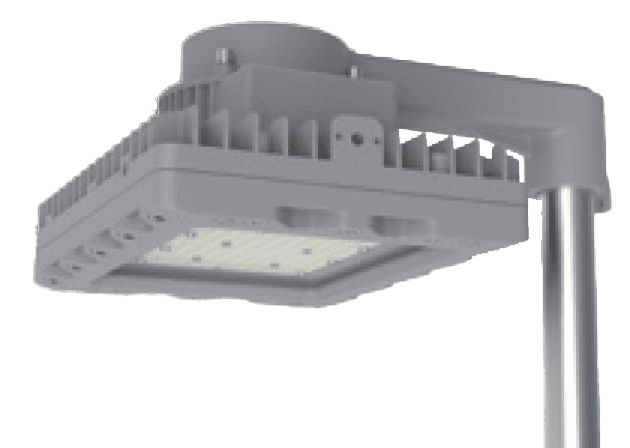

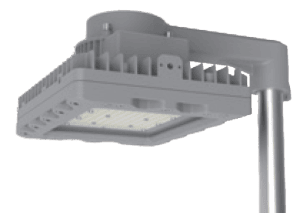

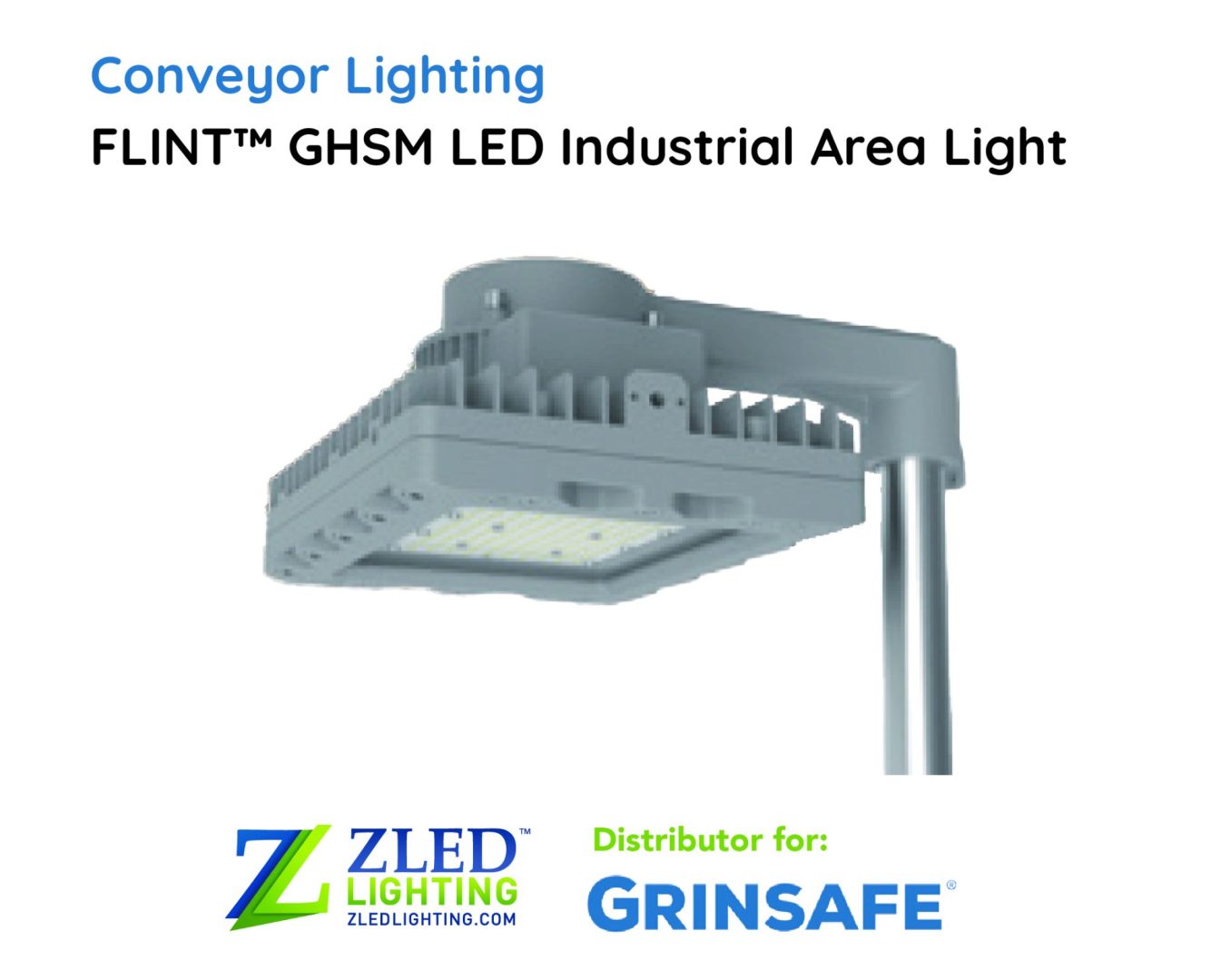

FLINT™ GHSM LED Conveyor Light
The GHSM Series Conveyor Lighting is designed for open-pit mining conveyor systems, providing efficient and reliable illumination for conveyor belts, transfer points, inspection areas, and access walkways. With an output range of 3,200 to 9,600 lumens, the GHSM Series is ideal for low to medium lighting requirements while delivering excellent energy efficiency and long-lasting performance. Its durable construction is suited for demanding outdoor mining environments exposed to dust, moisture, vibration, and temperature variations.
Features
- Lightweight And Compact. Low profile & lightweight with single chamber design. 129mm height is perfect for confined or low height areas.
- High Efficiency. Delivers up to 160 lm/W, utilizes special-treated glass for extreme application, providing high efficacy and long life.
- Multiple Beam Angles. 30°, 60°, 90°, 110°, T2, T3, T4, different lens provide more choices for various scenarios.
- Retrofit Friendly. Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
- Build To Last. Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust.
| Rated Power | 20W / 40W / 60W |
|---|---|
| Input Voltage | AC100-277V, 347-480V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 3,200lm ~ 9,600lm |
| Luminous Efficacy | 160Lm/W |
| Beam Angle | 30°/60°/90°/110°/T2/T3/T4 |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C~+65°C |
| Lens Material | Glass |
| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 6.3kg |
| Dimming | Standard 1 – 10VDC |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms.
