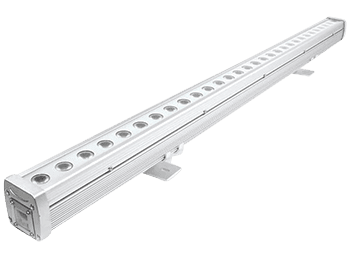

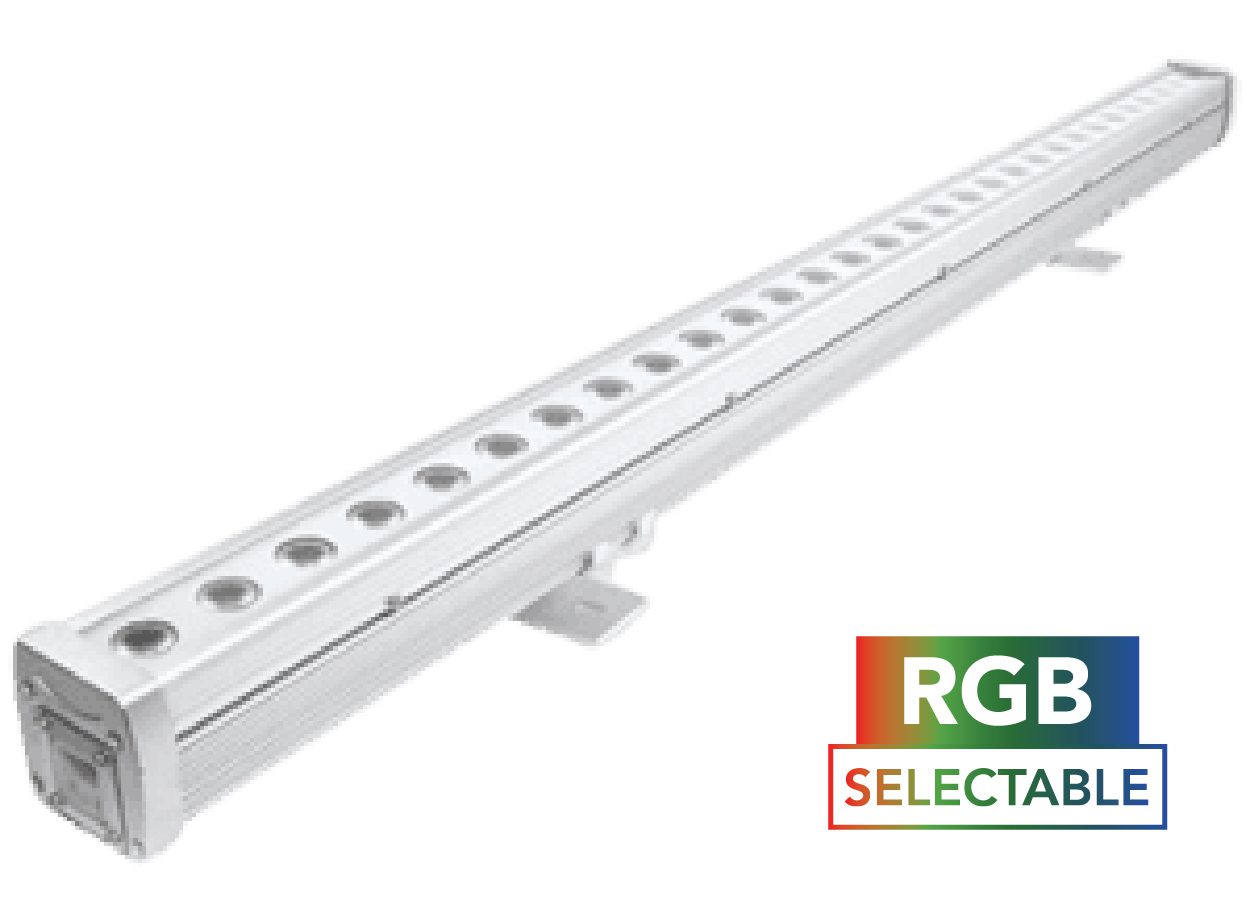

RGB/DMX Linear LED Wall Washer

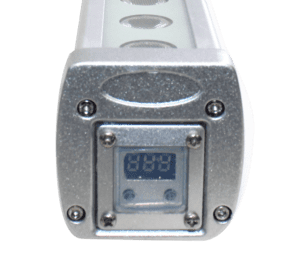

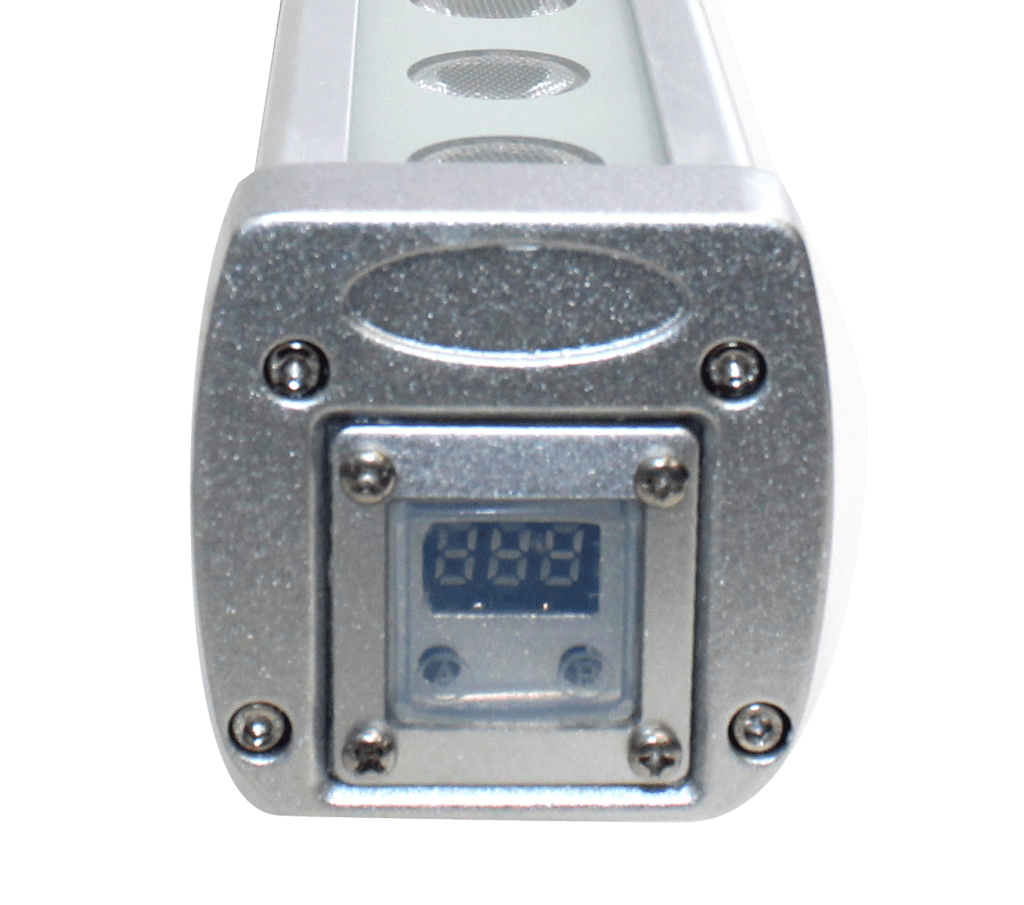

Close-up of a digital display on a light bar.

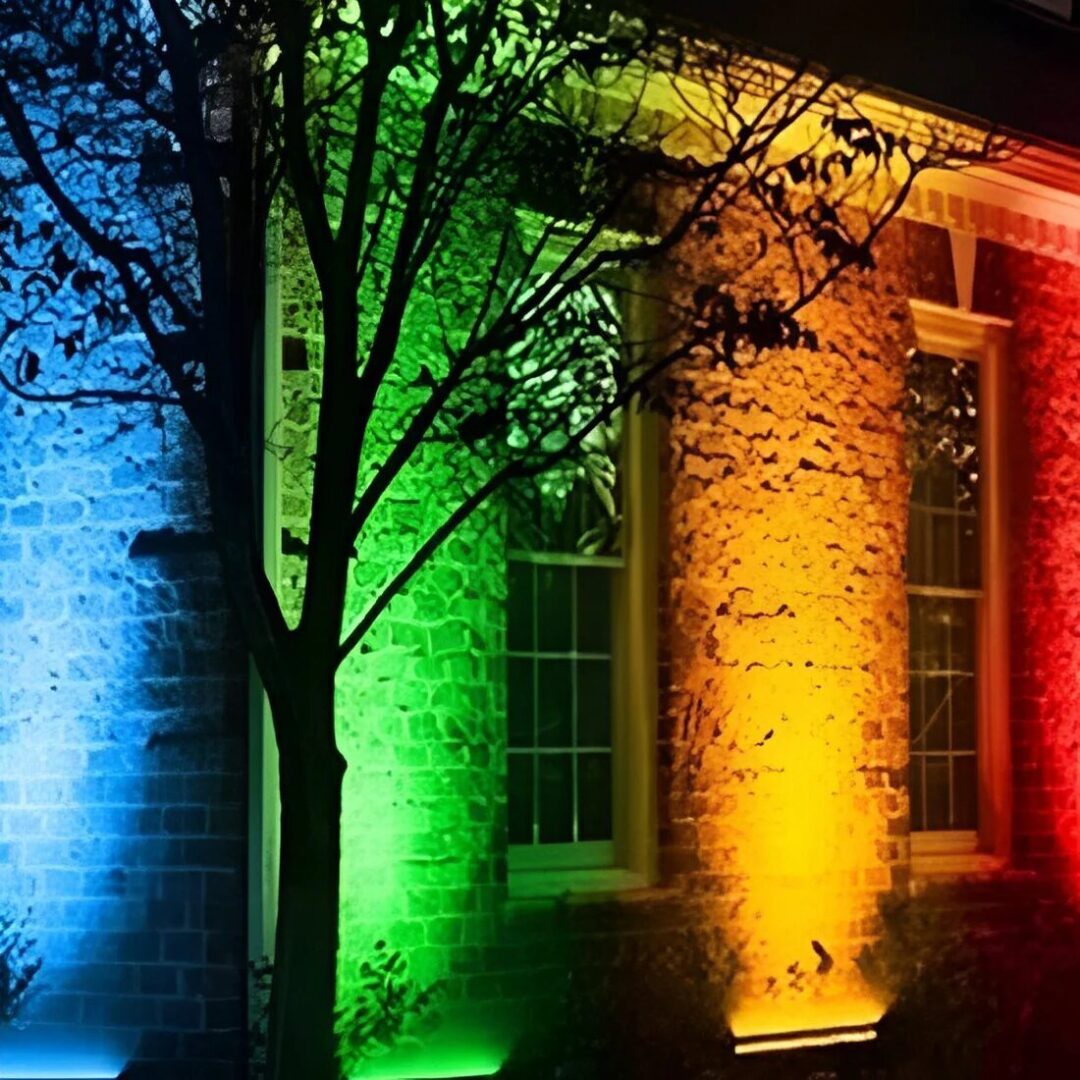

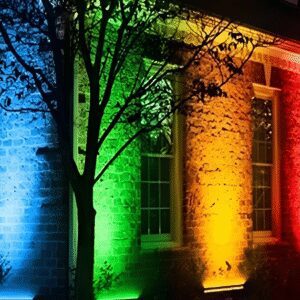

Colorful lights illuminating building at night.

RGB/DMX Linear LED Wall Washers deliver vibrant, dynamic color illumination designed to enhance architectural features and create striking visual effects for both indoor and outdoor environments. These versatile fixtures project uniform light across large surfaces while highlighting textures, structural details, and vertical architectural elements. Ideal for cove lighting, wall washing, and wall grazing, they are typically installed less than a foot from the wall in recessed or concealed mounting locations. Featuring DMX control capabilities for dynamic color effects and a durable, IP65-rated design for protection against dust and water jets, these fixtures provide reliable performance in demanding environments.

Applications

Ideal for hotels, resorts, plazas, museums, commercial buildings, architectural facades, landscape features, amusement parks, entertainment venues, and custom architectural lighting projects.

FEATURES

Wattages	9W, 18W, 30W, 36W {Special Order – 500mm – 12W (19.65 inches) Contact Factory}
Color Temperature	30K, 40K, RGB {Special order – 35K}
Input Voltage	96-256VAC
Rated	IP65
LED Lifespan (L70)	50,000 hrs.
Efficacy	80-100 lm/W
Power Cord	2′
Daisy Chain	Up to 328 feet in length with power cords
Warranty	3 year
Control	Standard DMX512 signal control
Beam Length/Angle	9W- 16-33 ft 18W- 26 ft 30W+36W- 50-65 ft Standard 45º; (Special Order) 15º, 30º, 60º
Single Color	Special Order
Dimensions	300MM – 9W (11.81″) 600MM -18W (23.62”) 1000MM – 30W (39.37”) 1200MM – 36W (47.24”){Special Order – 500mm – 12W (19.65 inches) Contact Factory}
