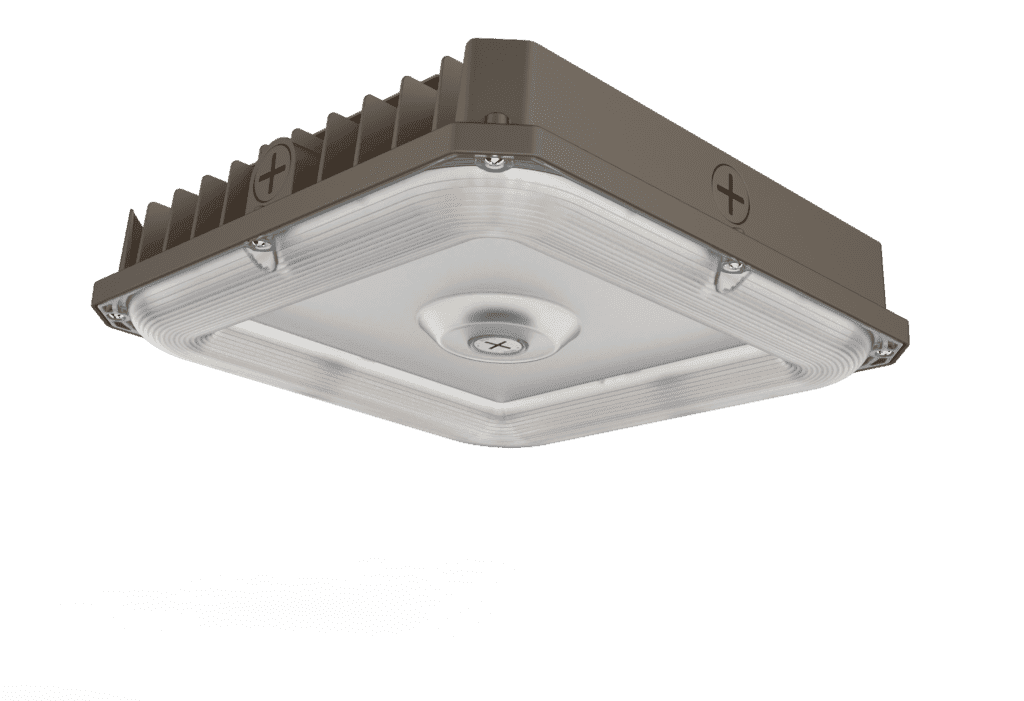

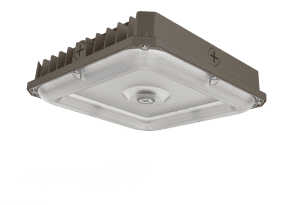

LED Garage Canopy LED Light with Wattage and Color Temperature Selectable
Share
This versatile LED garage canopy fixture features UL Listed certification, selectable wattage (40W/60W/80W), and selectable color temperature (3500K/4000K/5000K), providing flexible lighting solutions for a wide range of commercial and industrial applications. Equipped with a built-in receptacle for an optional motion sensor, it offers added control capabilities and opportunities for increased energy savings.
Designed with a wide beam angle and advanced polycarbonate optics, this fixture delivers bright, uniform light distribution while minimizing shadows. Backed by a 5-year warranty, it is an energy-efficient solution for parking garages, parking decks, workshops, automotive service centers, warehouses, loading docks, storage facilities, commercial buildings, apartment complexes, covered parking areas, and utility spaces.
APPLICATIONS
LED canopy and garage fixtures are ideal for parking garages, parking decks, drive-throughs, auto service centers, vehicle maintenance facilities, loading docks, warehouse entrances, commercial building entrances, covered walkways, building overhangs, exterior corridors, apartment and condominium parking areas, retail storefront canopies, hotel porte-cochères, transit stations, bus terminals, truck stops, industrial facilities, covered storage areas, fleet parking facilities, airport parking structures, self-storage facilities, and EV charging stations.
FEATURES
| Wattage Selectable | 40/60/80W |
| Color Temperature Selectable | 35/40/50K |
| Input Voltage | 120/277V |
| Efficacy | 130 lm/W |
| Operating Temperature | -20° to 45° C; -4o° to 113° F |
| Dimming | 0-10V |
| Fixture Material | Anti-corrosion and rust proof |
| CRI | 80 |
| LED Lifespan (L70) | 50,000 hours |
| Warranty | 5 year |
| Listed | UL |
| Beam Angle | 150° |
| Sensor / Remote Control | Port Ready – Optional / Sold Separately |
| Dimensions (LxWxH) | 10.06” x 10.06“ x 2.73” |
| Lumens | 5200 – 40W, 7800- 60W 10400 – 80W |
Catalog Number
ZL-GLLS-80/60/40-CCT-Y
Sensor
ZL-MS-SENSOR-HD07VR-PH
Remote
ZL-REMOTE-HD05R
