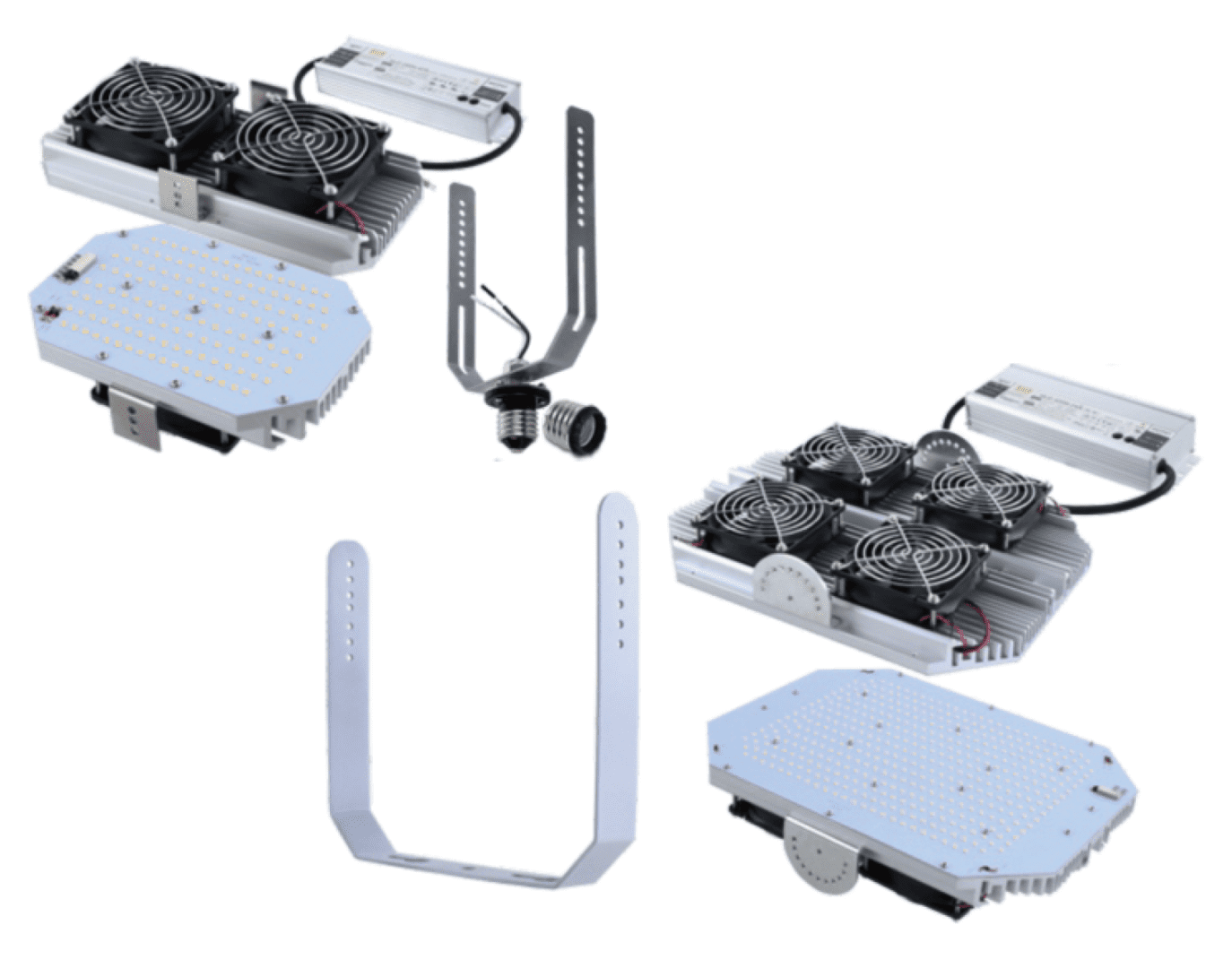

Oval LED Retrofit Kit for HID Fixtures
Share
LED HIDR Retrofit Kits is ideal for parking lot lighting, shoebox and streetlight retrofitting, wall packs and high bays. These retrofit kits are easy to install and operate and deliver energy-savings with a long service life.
FEATURES
| Wattages |
60W, 100W, 150W, 200W, 240W, 300W, 360W
|
| Color Temperatures |
27K, 30K, 40K, 60K, 65K Standard 50K
|
| Efficacy | 140 lm/W |
| Input Voltage |
120/277V; Special Order: -480V
|
| Input Frequency | 50/60HZ |
| Power Factor | ≥0.9 |
| CRI | >80Ra |
| Listed | ETL |
| Rated | IP20 |
| Operating Temp | -4ºF to 113ºF |
| THD | <15% |
| Dimmable | Optional |
| Lumens at 50K | 60W- 8,400 100W- 14,000 150W- 21,000 200W- 28,000 240W- 33,600 300W- 42,000 360W- 50,400 |
| Suggested HID Equiv. | 60W- 300W 100W- 400W 150W- 700-800W 200W- 800-1000W 240W- 1000W 300W- 1500W 360W- 2000W |
| Dimensions | 60W+100W+150W- 7.28” x 4.92” x 2.36” 200W+240W- 10.43” x 4.92” x 2.36” 300W+360W- 13.07” x 4.92” x 2.36” |
| LED Lifespan (L70) | 50,000 Hrs. |
Catalog Number
ZL-RK-{60W; 100W; 150W; 200W; 240W; 300W; 360W}-{50K; (Special Order 27K; 30K; 40K; 60K; 65K)}-{Blank 120/277V; (special order 480V)}-LY
