Magnilumen Plus™ Livestock Agriculture
Share

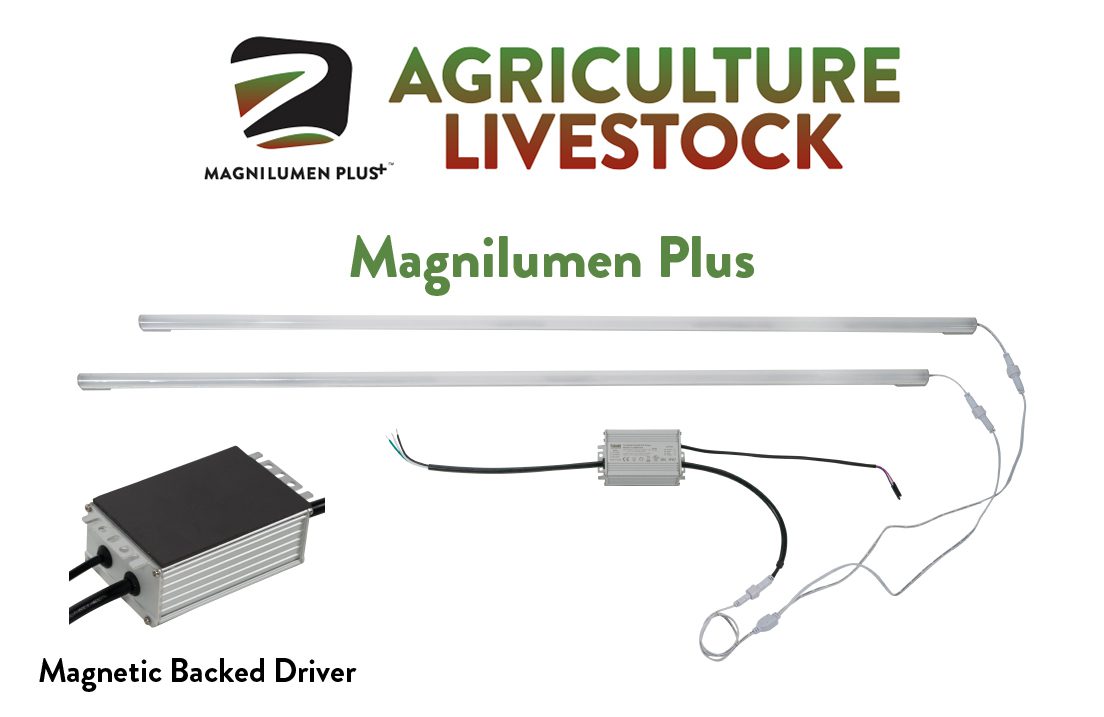

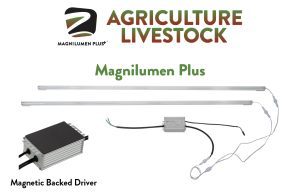

Magnilumen Plus™ Agriculture Livestock retrofit LED lighting solutions are designed for vapor tight fixtures to withstand the harsh environments of agricultural applications. Agricultural and livestock lighting requires specialized fixtures designed to resist corrosion, ammonia, and high-pressure washdowns while optimizing animal health and productivity.
A well-designed agricultural lighting system should provide consistent illumination, reduce shadows and dark areas, provide adequate visibility for animals and workers, operate reliably, provide appropriate periods of light and darkness where required, use energy efficiency, and minimize maintenance requirements. Let’s work together to develop a lighting solution tailored to the specific needs of your operation.
Applications

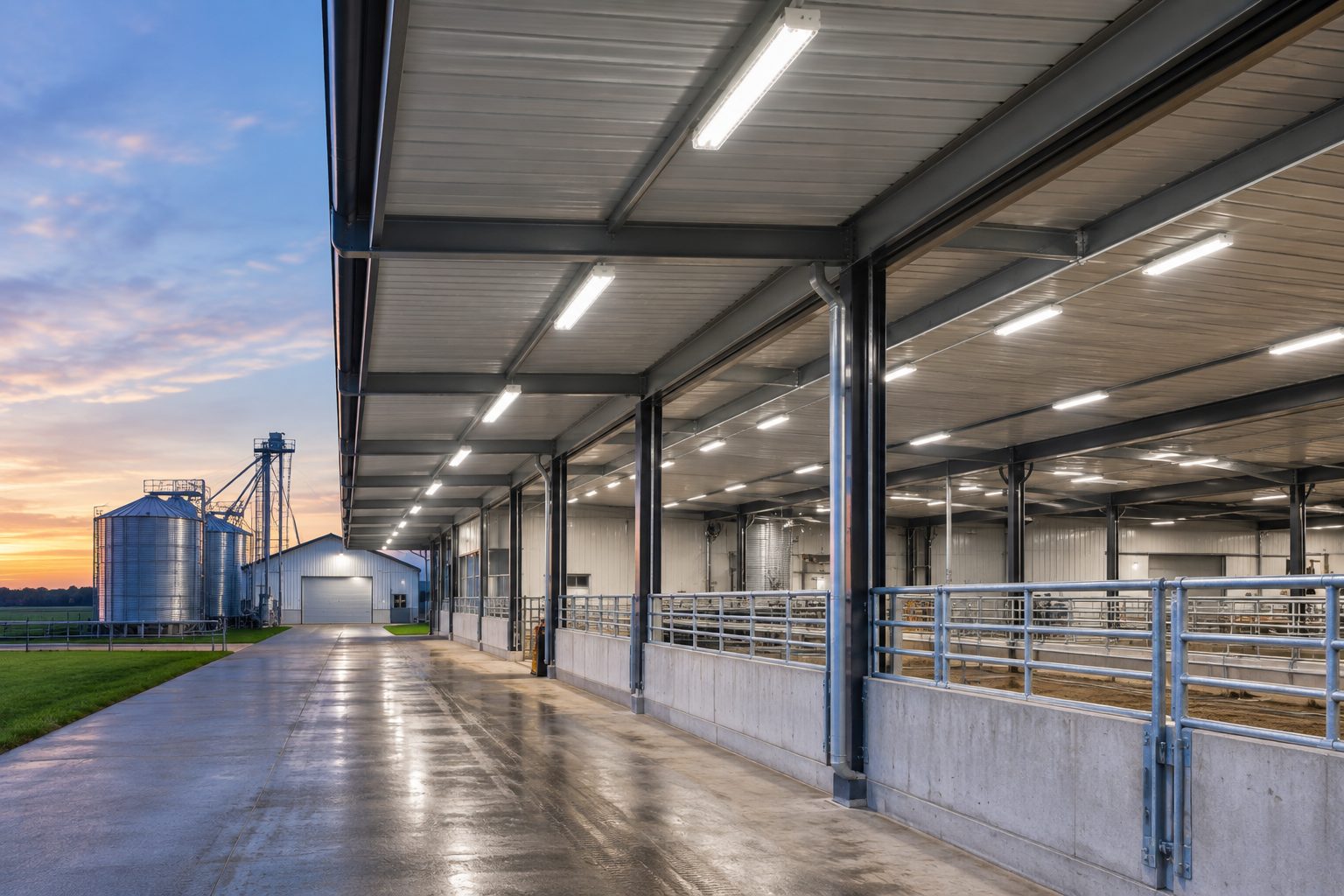

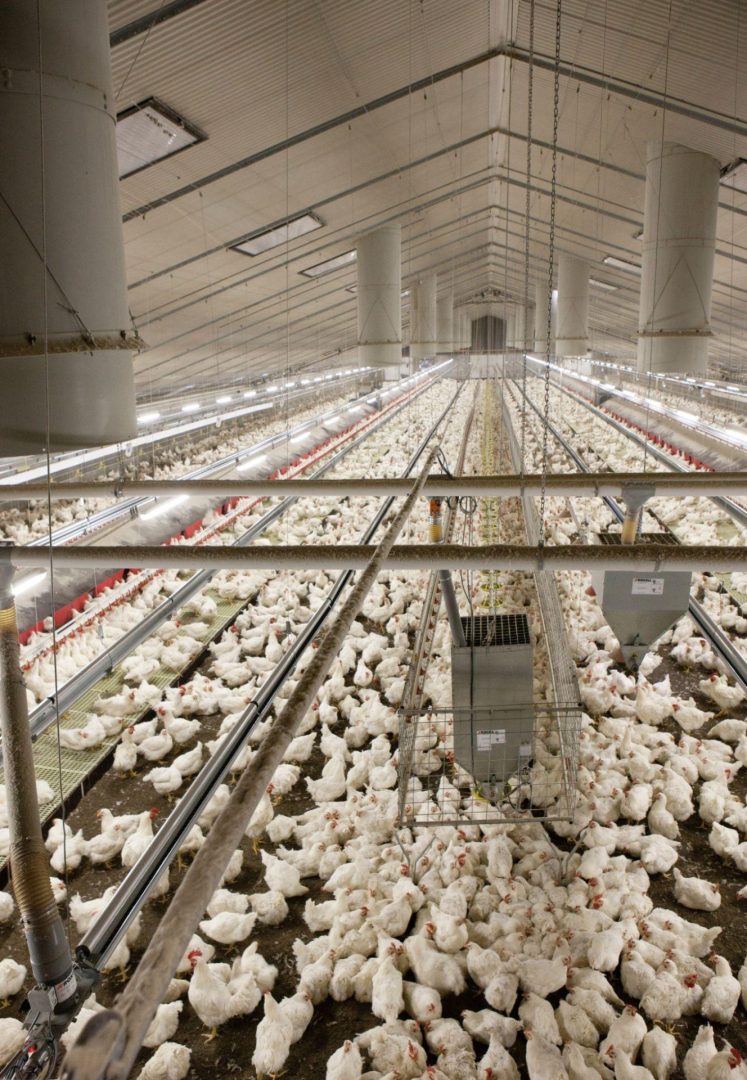

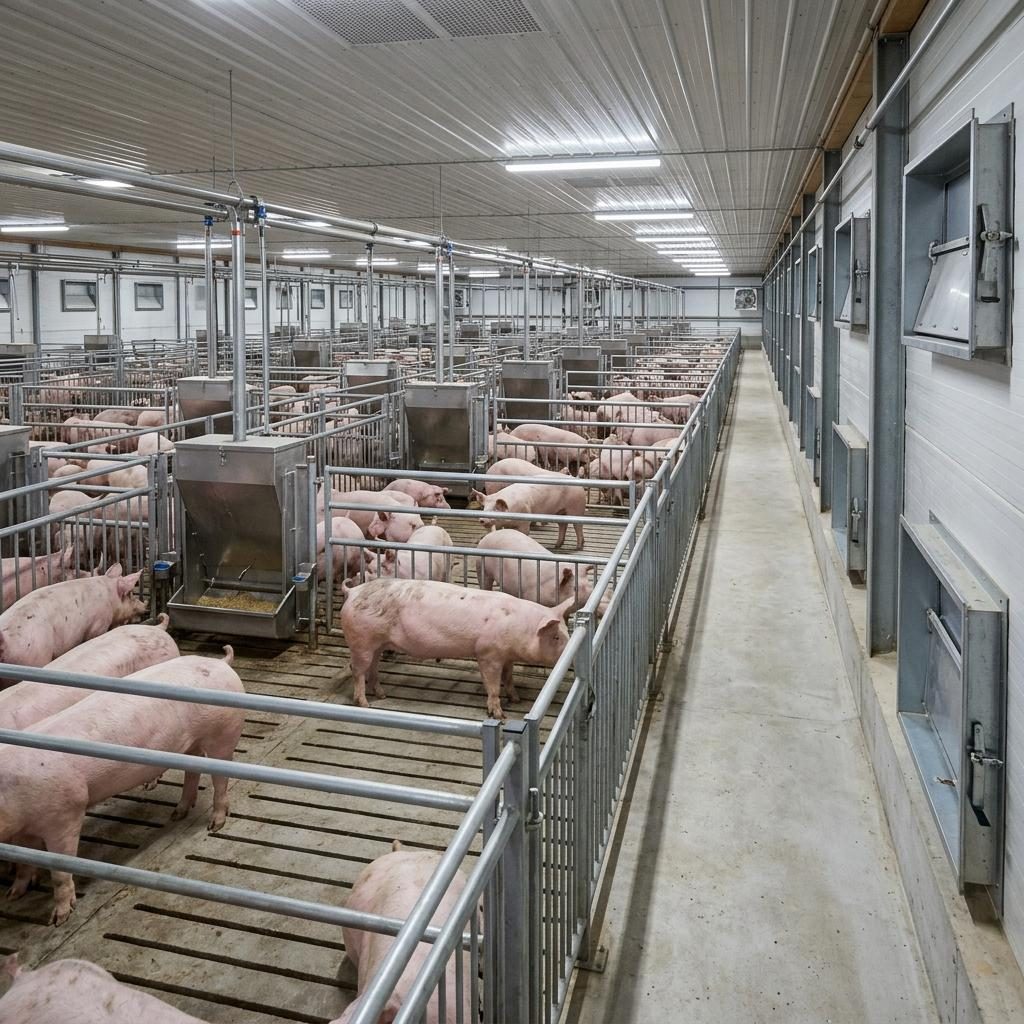

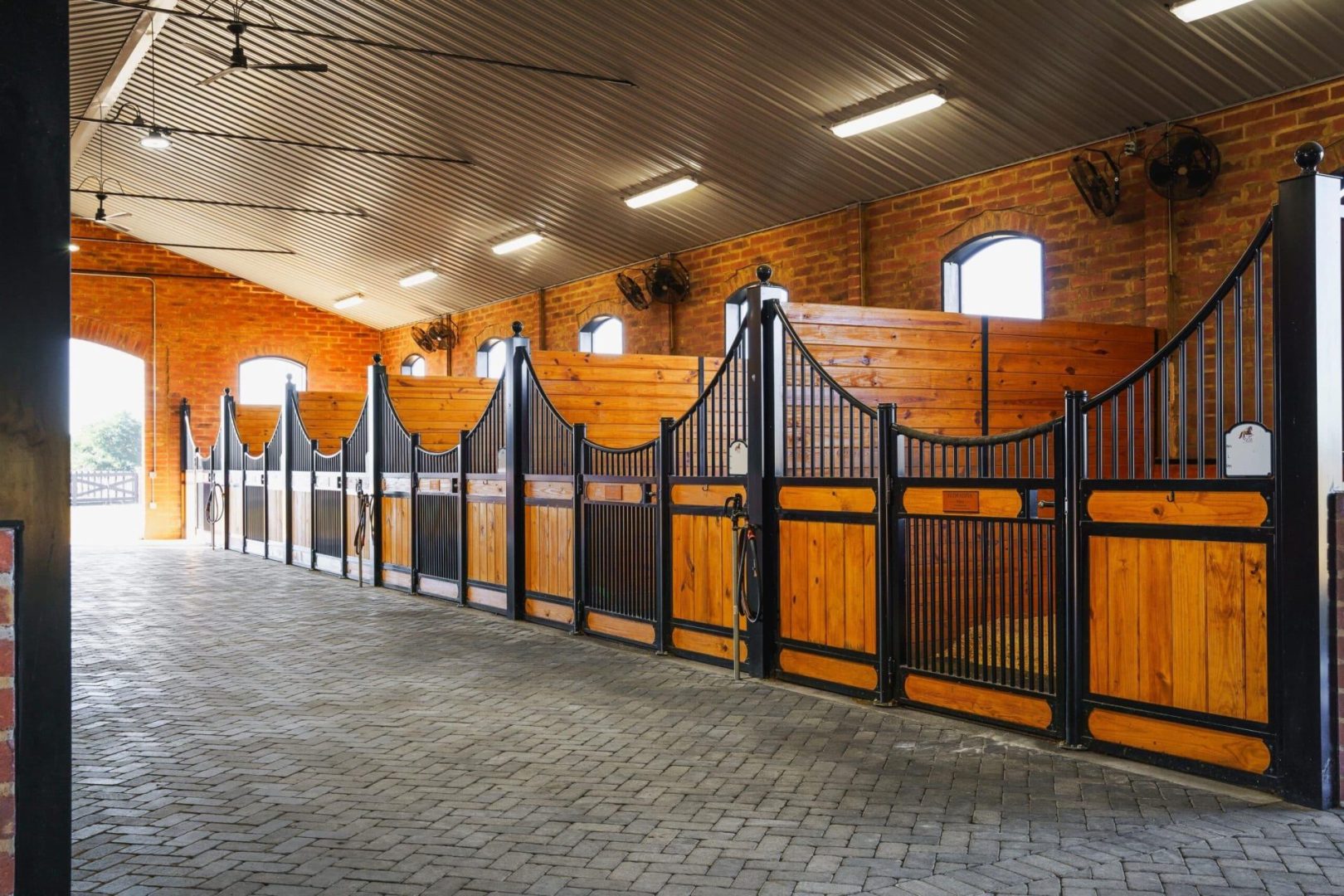

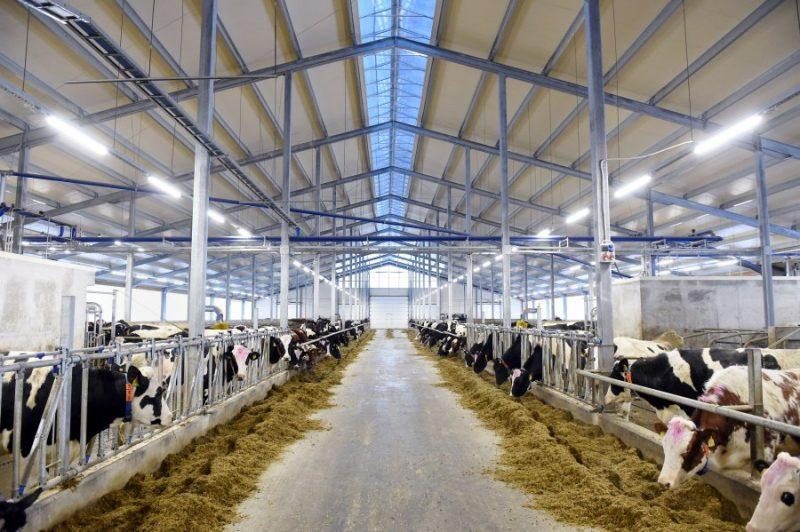

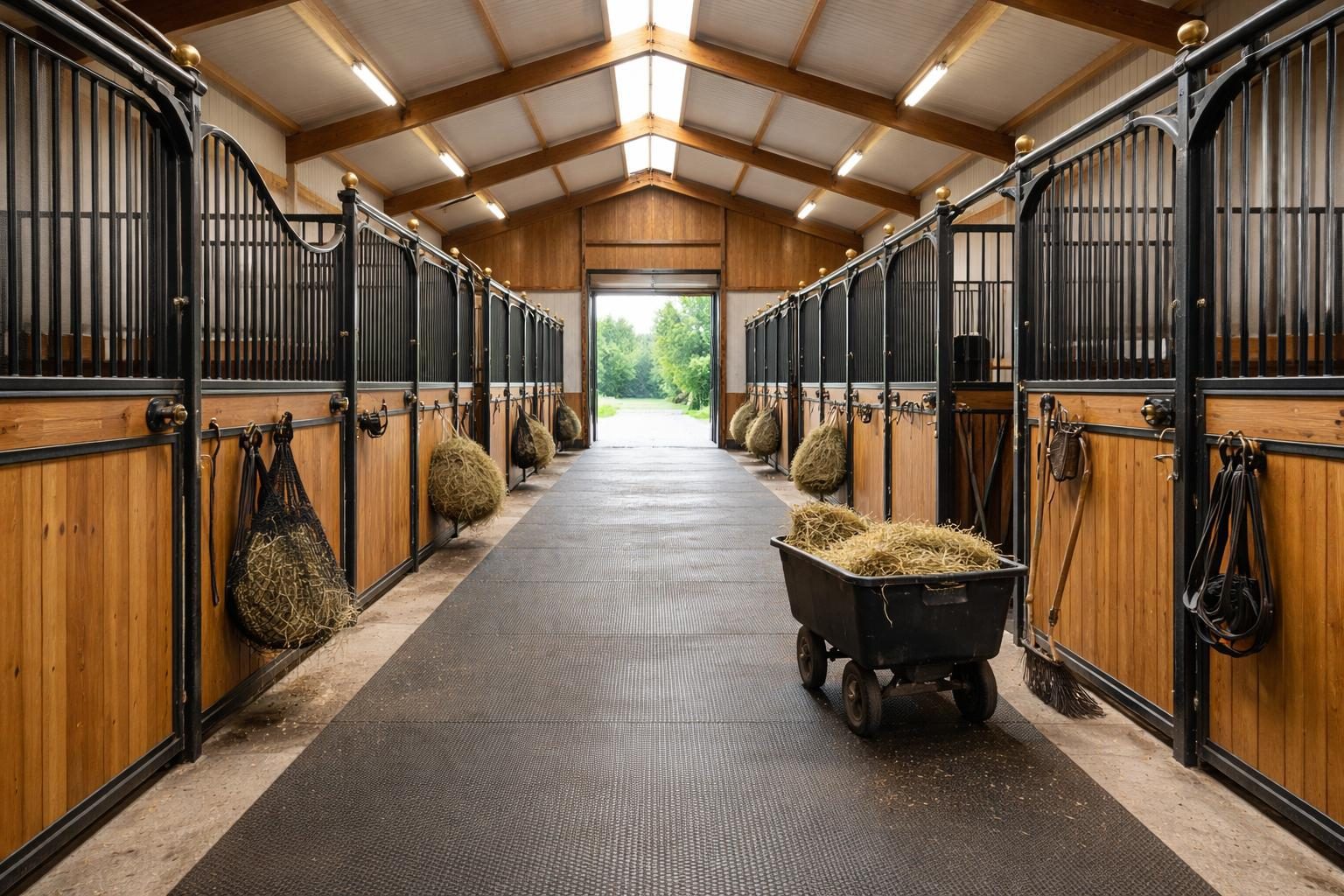

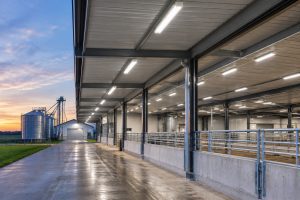

Ideal for agricultural and livestock environments, including dairy barns, poultry houses, swine facilities, horse barns, and other animal housing areas.
FEATURES

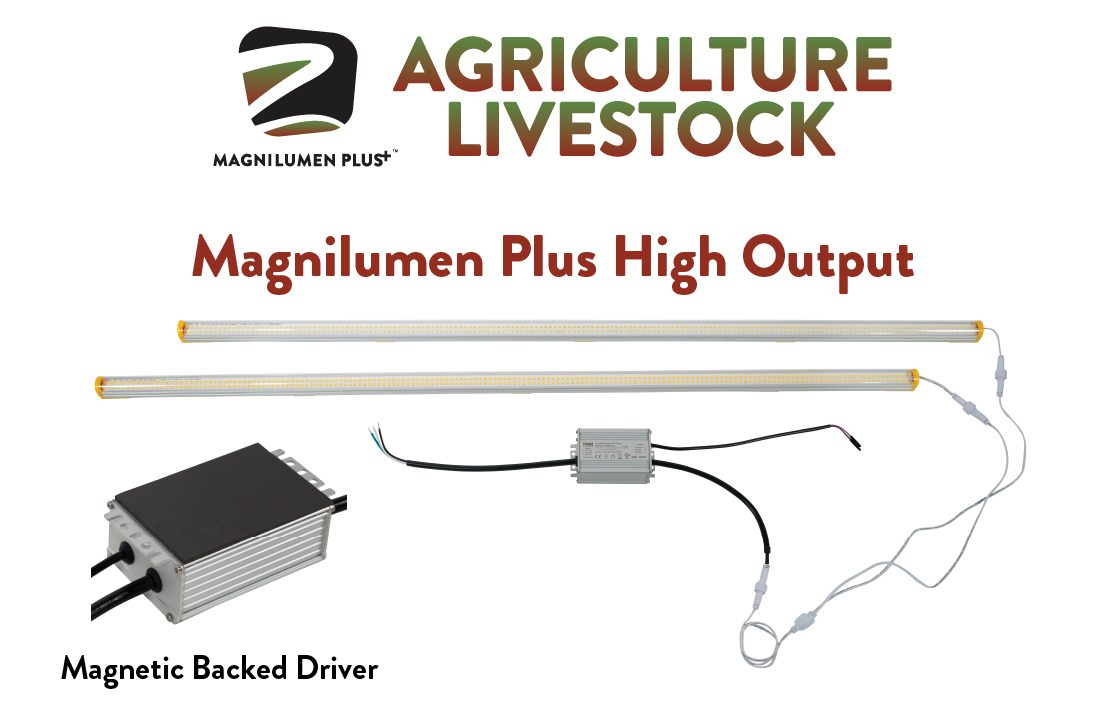

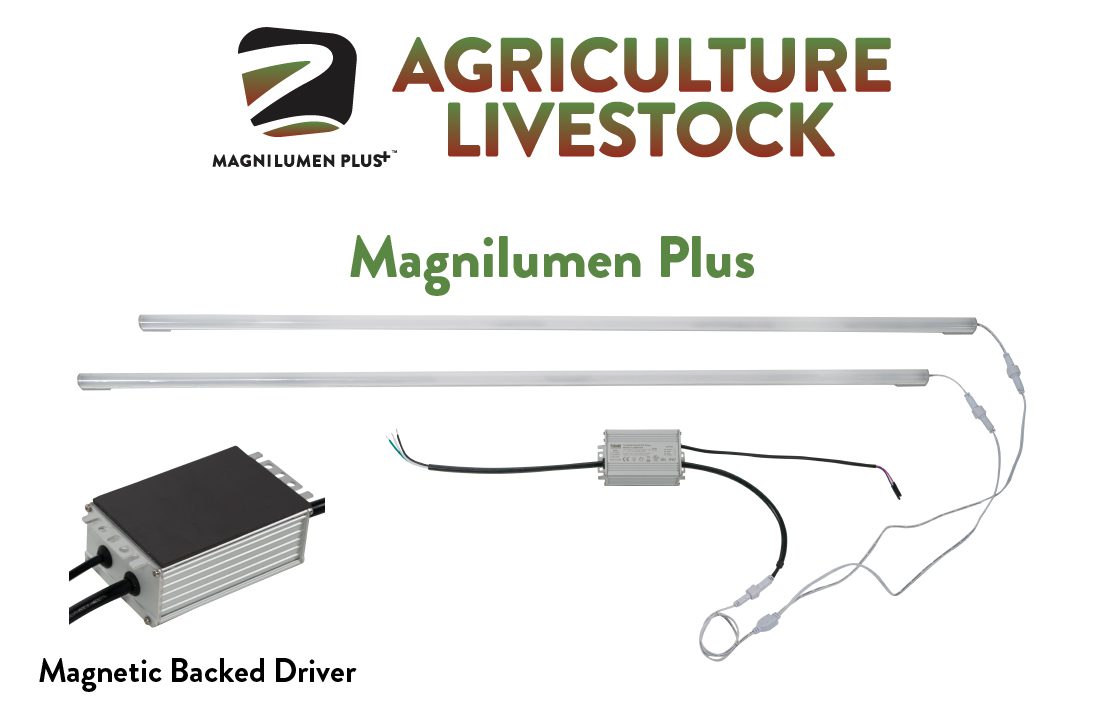

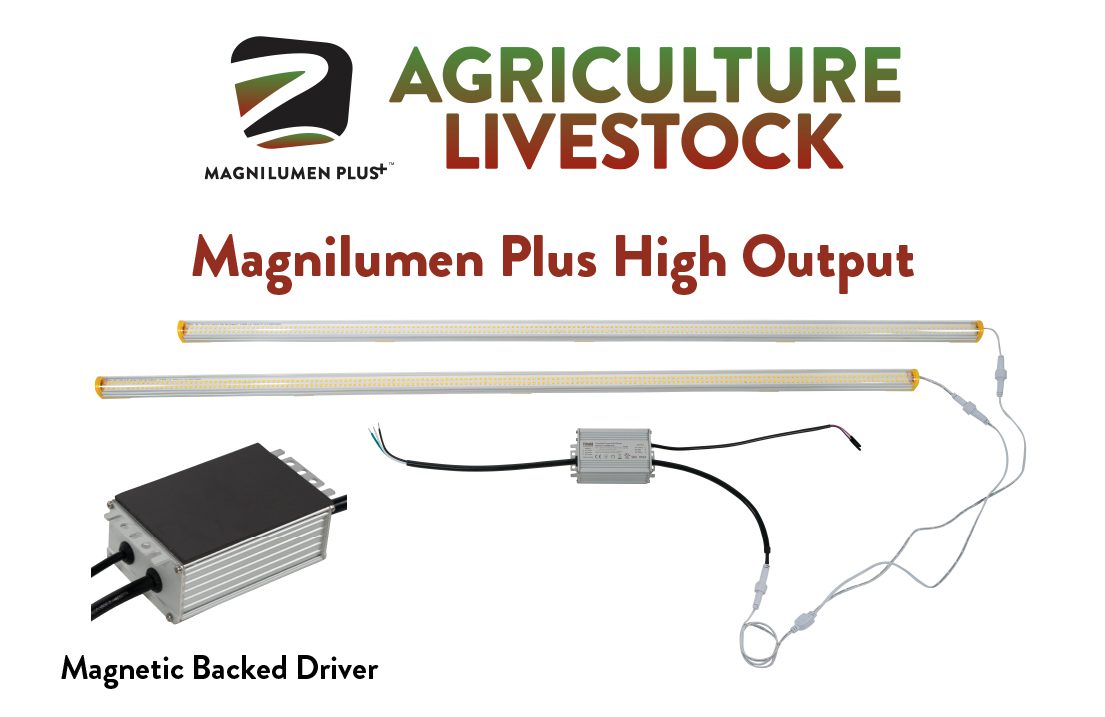

| Wattages – Programmable Driver | Magnilumen Plus™ 40W, 50W, 60W Magnilumen Plus™ High Output 2ft- 30W; 4ft- 60W |
| Color Temperatures | Magnilumen Plus™ 30K, 35K, 40K, 50K, Red, Green, Blue, Amber Magnilumen Plus™ High Output 40K, 50K |
| Nanometers | Magnilumen Plus™ Colors
Red -620-622.5nm Green – 520-522.5nm Blue -450-452.5nm Amber -585nm |
| Efficacy | Magnilumen Plus™ 150 lm/W – Frosted Lens 170 lm/W – Clear Lens 180 lm/W – No Lens Magnilumen Plus™ Colors Amber – 41 lm/W Red – 36 lm/W Blue – 80 lm/W Green – 125 lm/W Magnilumen Plus™ High Output |
| Input Voltage | 100/277V; 120/277V – Color |
| Driver Out Voltage | 27-54VDC |
| Rated | IP67 – Driver IP65 – Bars via silicone encapsulation IP20 – Color |
| Listed | ETL |
| LED Lifespan (L70) | Magnilumen Plus™ 100,000 hours Magnilumen Plus™ High Output 50,000 hours |
| Dimming | 0-10V |
| Ambient Temp Driver | -40º C to 90º C; -40º F to 48.2º F |
| Ambient Temp Bars | -20º C to 50º C; -4º F to 122º F |
| Warranty | Magnilumen Plus™ 5 year 3 year – Color Magnilumen Plus™ High Output 5 year |
| Bar Measurements | Length: 2ft – 21.06”; 4ft – 42.75″ Width: .73″ |
| CRI | 80 |
| Driver Vibration Test | 10- 500Hz X, Y, Z vertical axes vibrate at a constant acceleration of 1.0G (depth 3.5mm) for 1 hour |
| Lens | Clear – Standard (Frosted Lens or No Lens Optional) |
| Surge Protection | 6KV |
| Flicker | Meets Title 24 Flicker Requirements |
| Emergency Battery Backup | Optional |
| Lumens | See Lumens Chart |
Catalog Number
Build Your Own Magnilumen Plus™ Agriculture Livestock
