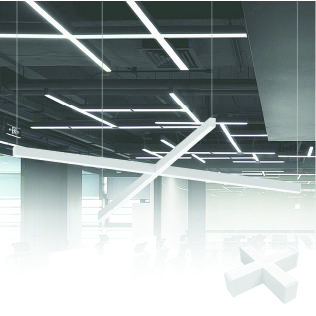

2′, 4′, 8′ Seamless Connecting LED Linear Fixture with Direct and Indirect Illumination 3 Wattage and 4 CCT Selectable Up Down Lighting

Linear Fixture-01

Share

This seamless connecting LED linear fixture provides sleek, modern illumination with both direct and indirect up/down lighting, creating a balanced combination of task and ambient light. Available in 2′, 4′, and 8′ lengths, it features 3 wattage-selectable and 4 CCT-selectable options for customizable light output and color temperature. Choose from a black or white finish, with 0–10V dimming and optional emergency battery backup and motion sensors for added functionality and control. Mounting options include pendant, wall, surface, or recessed installation.

Applications

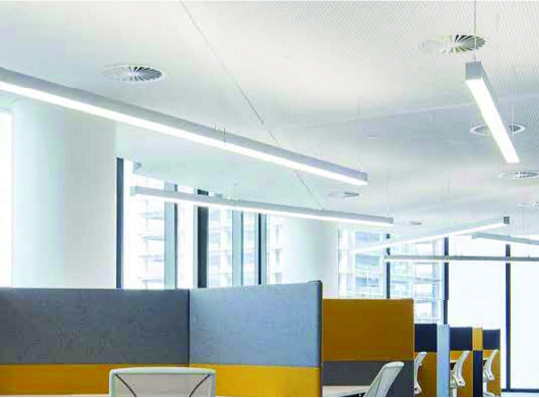

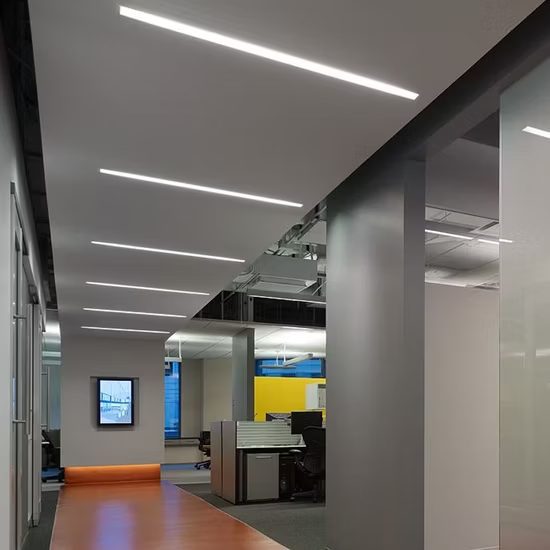

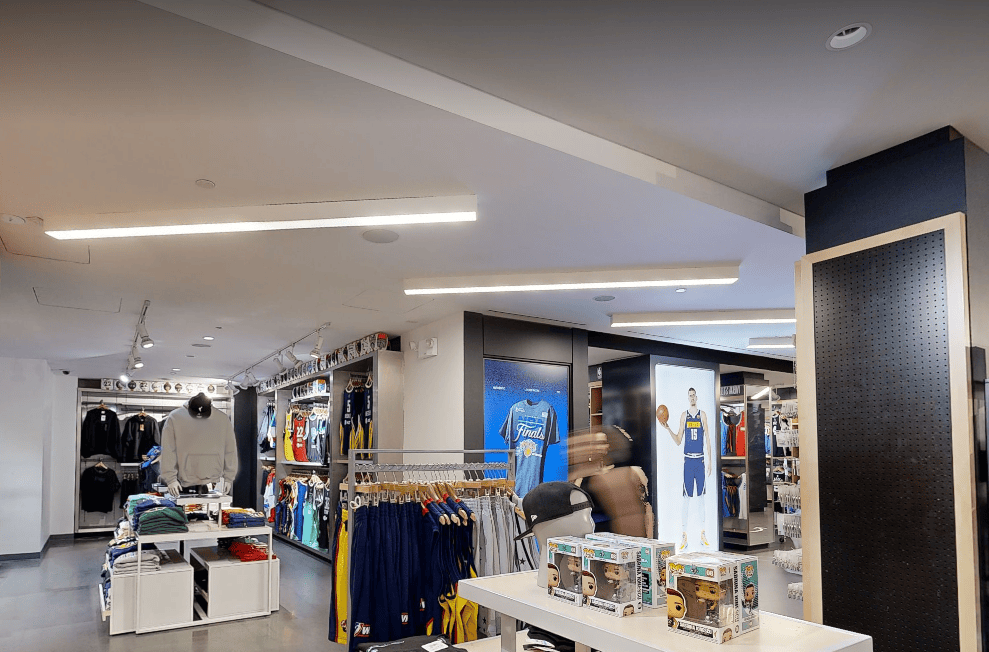

Ideal for offices, retail spaces, schools, hospitality venues, commercial buildings, healthcare facilities, and architectural environments. These versatile architectural fixtures deliver sleek visual appeal with energy-efficient LED performance for both new construction and retrofit projects.

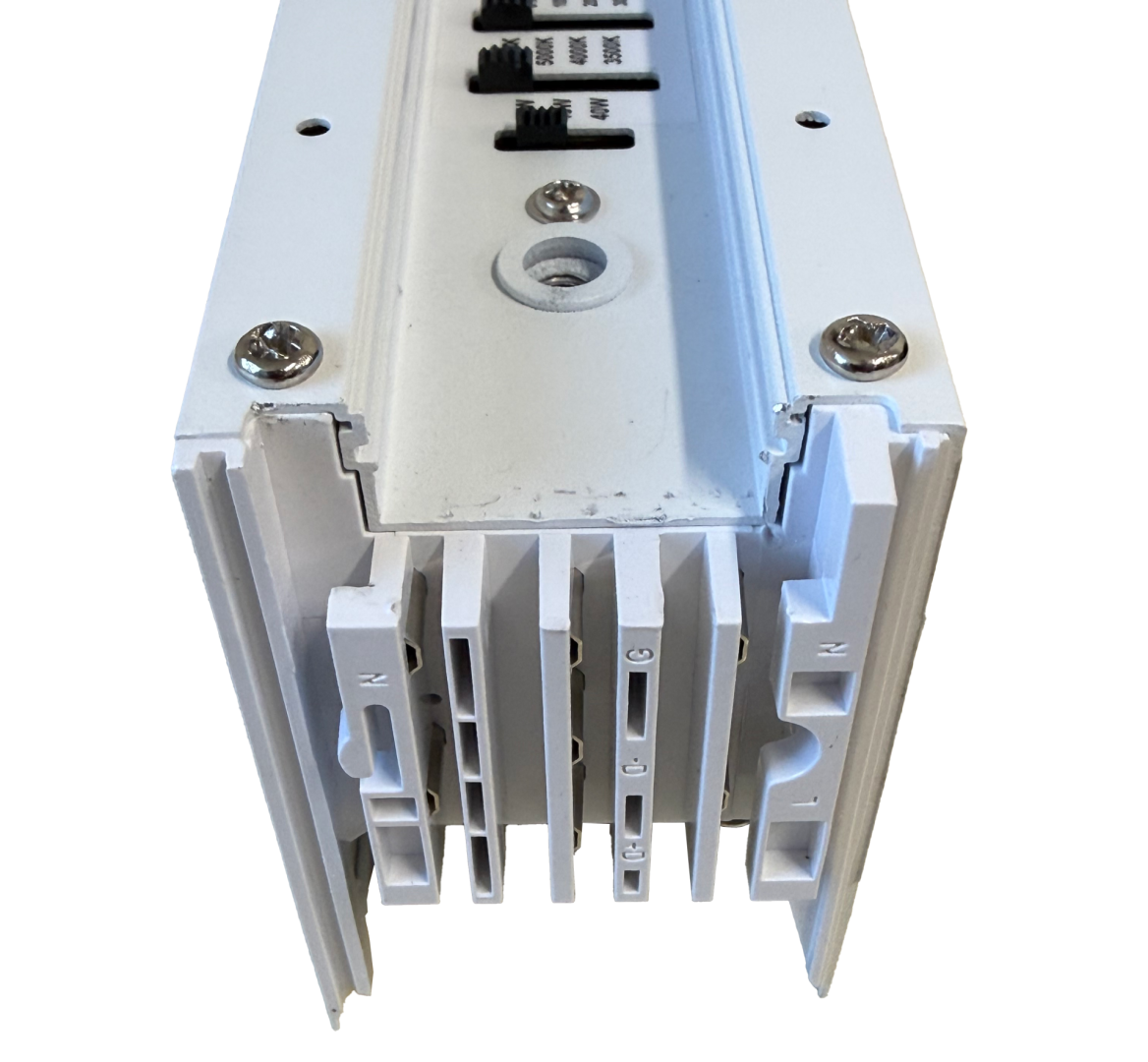

CCT Selectable, directional control.  Selectable wattage power setting.

FEATURES

Wattage Selectable 2ft- 15W/20W/25W
4ft- 40W/45W/50W
8ft- 60W/70W/80W
Color Temperature Selectable 35K, 40K, 50K, 65K
Input Voltage 120/277V
Efficacy 130 lm/W
LED Lifespan (L70) 50,000 hours
CRI >80

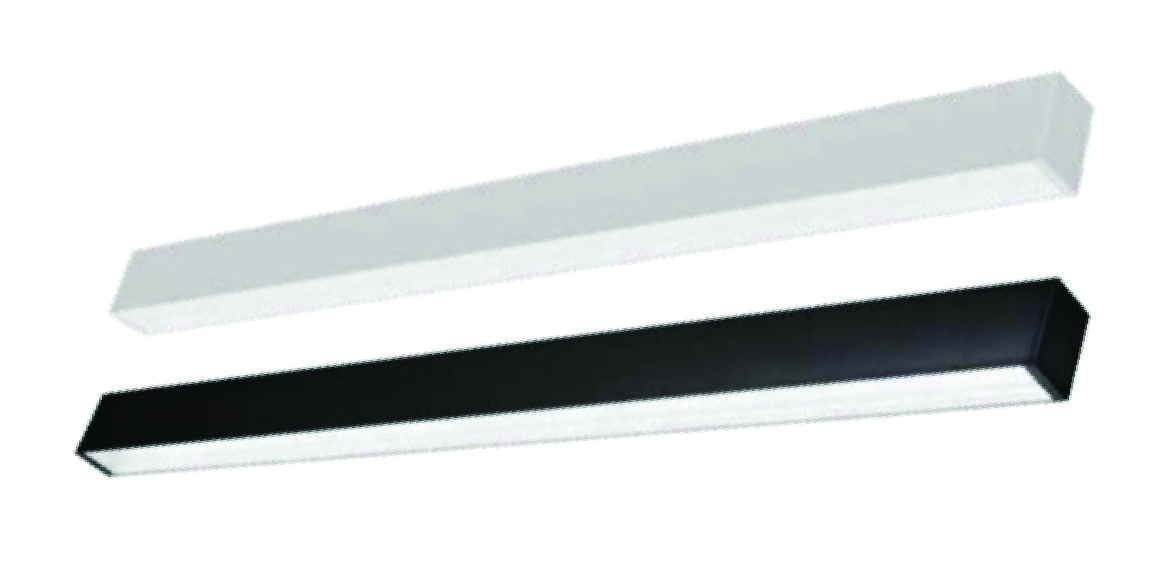

Fixture Color Black or White
Dimming 0-10V
Beam Angle 110°

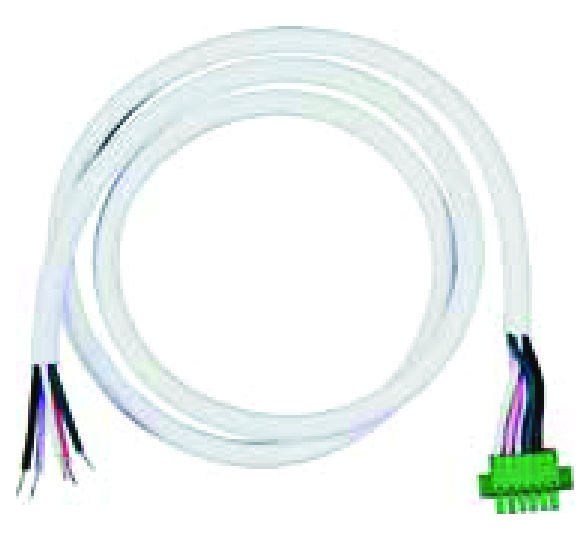

Power Cord 4 ft. Power Cord Standard

6 ft. Special Order
Lens Frosted

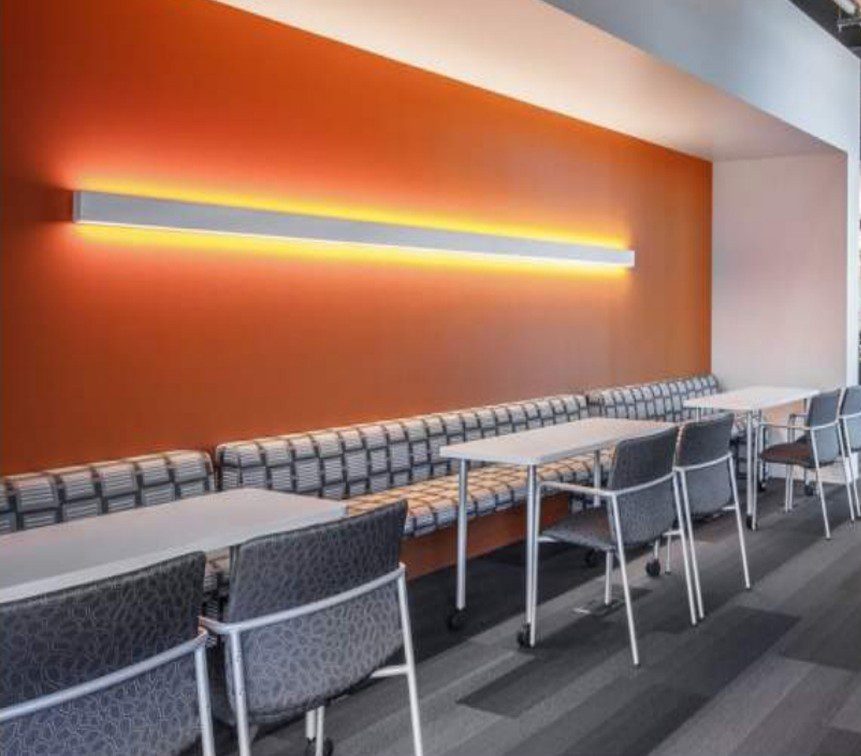

Lighting Direction Up 10-30%; Down 100-70%
Warranty 5 year
Lumens 15W- 1,950; 20W- 2,600;

25W- 3,250; 40W- 5,200;

45W- 5,850; 50W- 6,500;

60W- 7,800; 70W- 9,100;

80W- 10,400

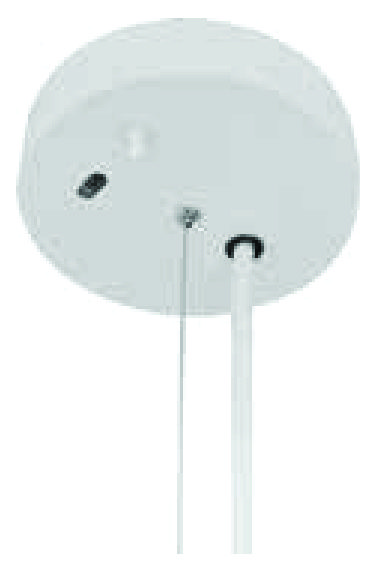

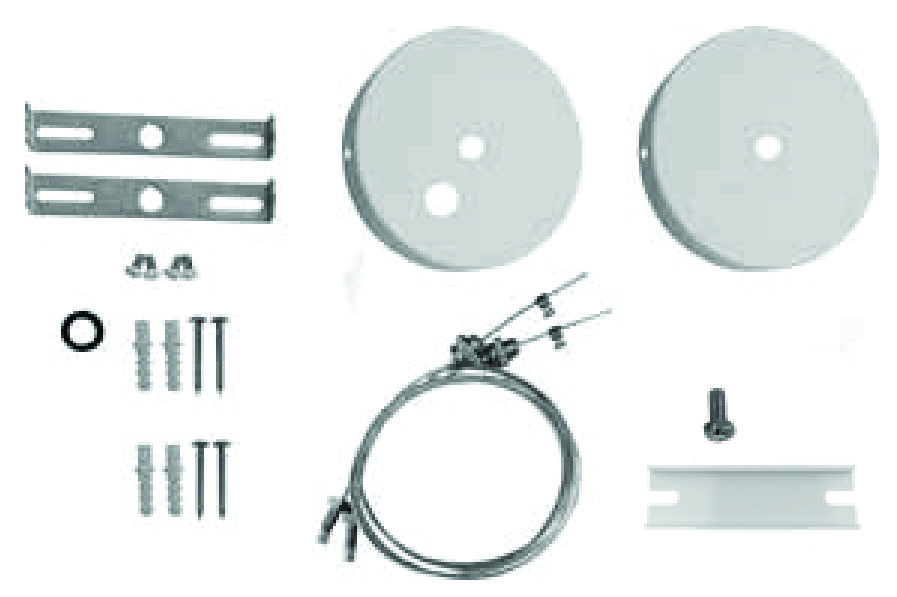

Aircraft Mounting Cable 2 (3) ft. and 2 (5 ft.) Included; Contact Sales for Custom Lengths

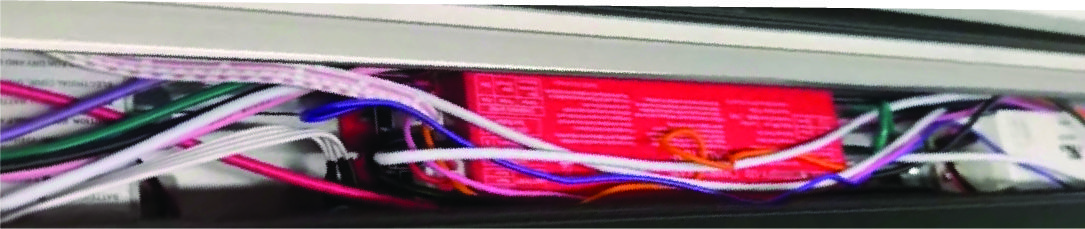

Emergency Battery Optional

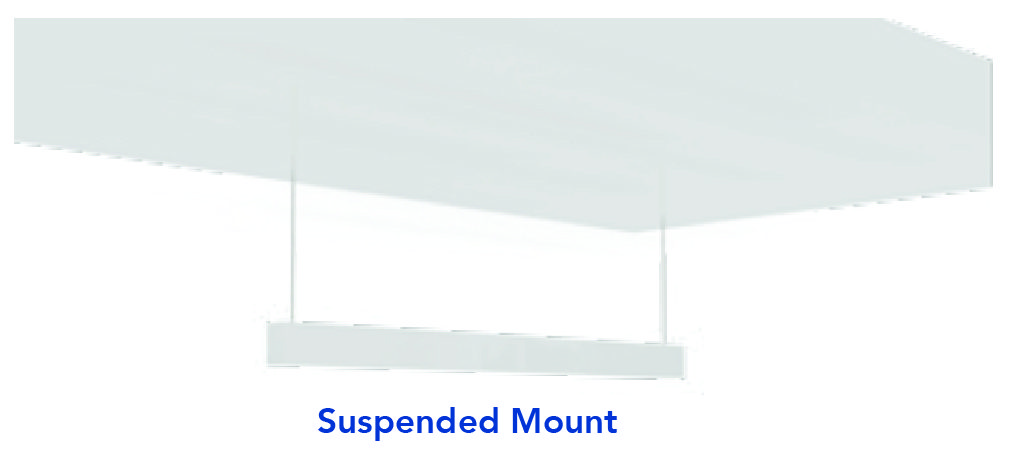

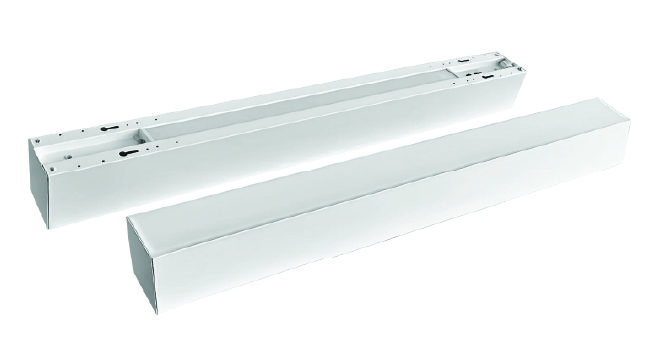

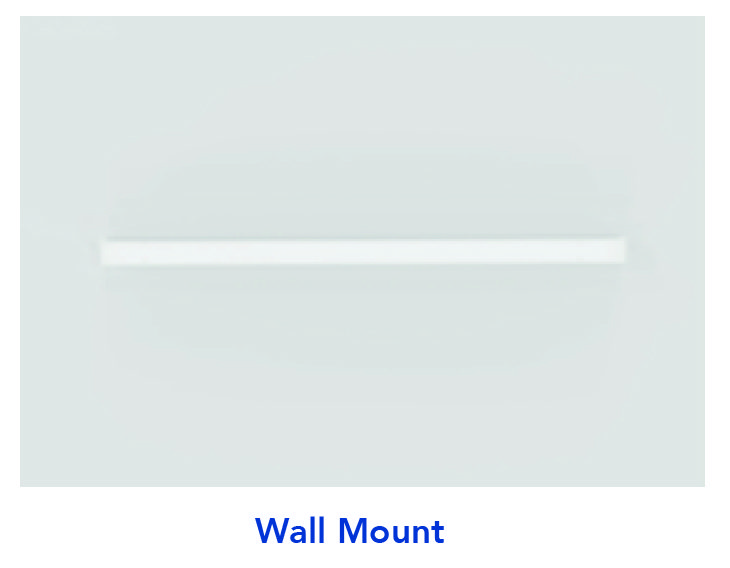

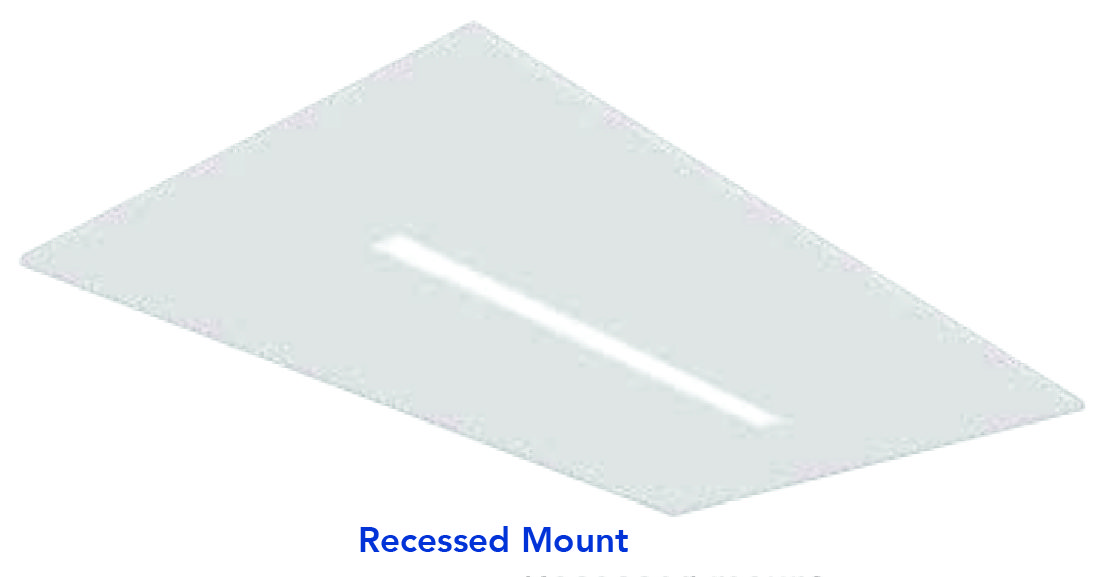

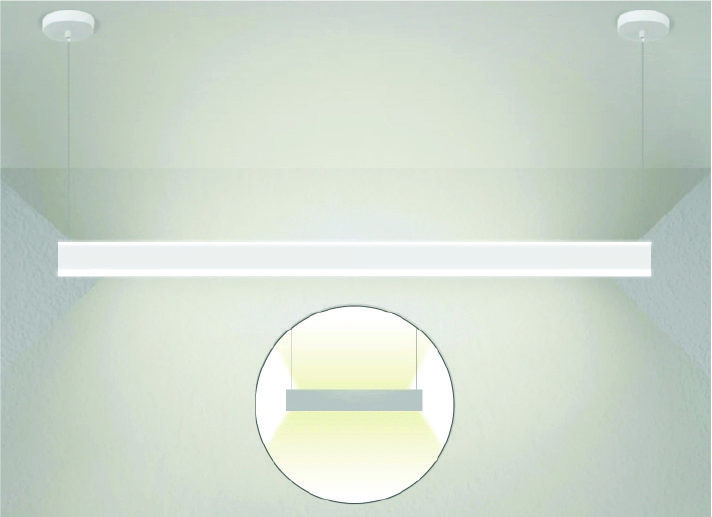

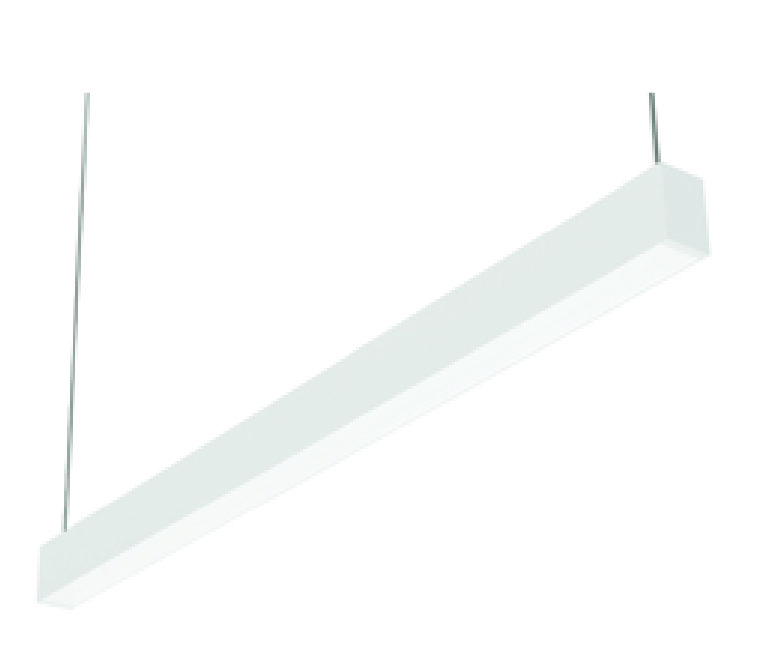

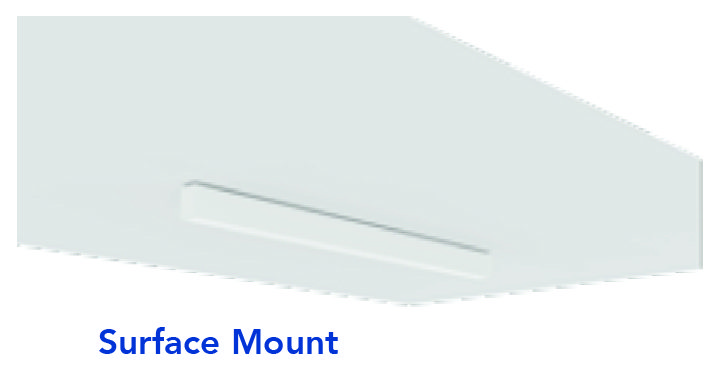

Mounting Options Pendant, Wall, Surface or Recessed
Dimensions
(LxWxH)		 2ft- 24.5” x 2.2“ x 3.2”
4ft- 48.1” x 2.2“ x 3.2”
8ft- 95.7” x 2.2“ x 3.2”

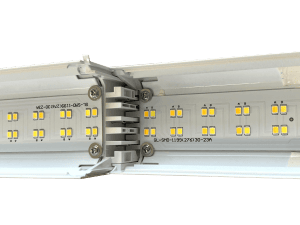

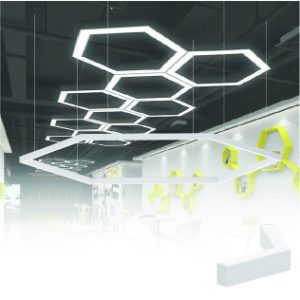

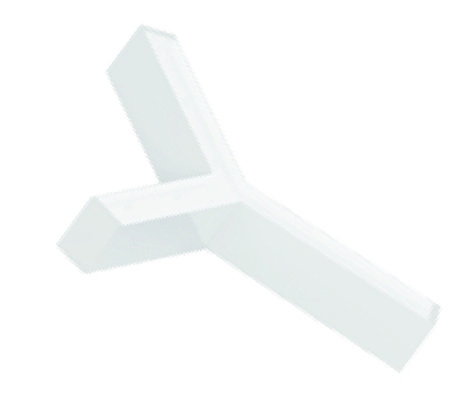

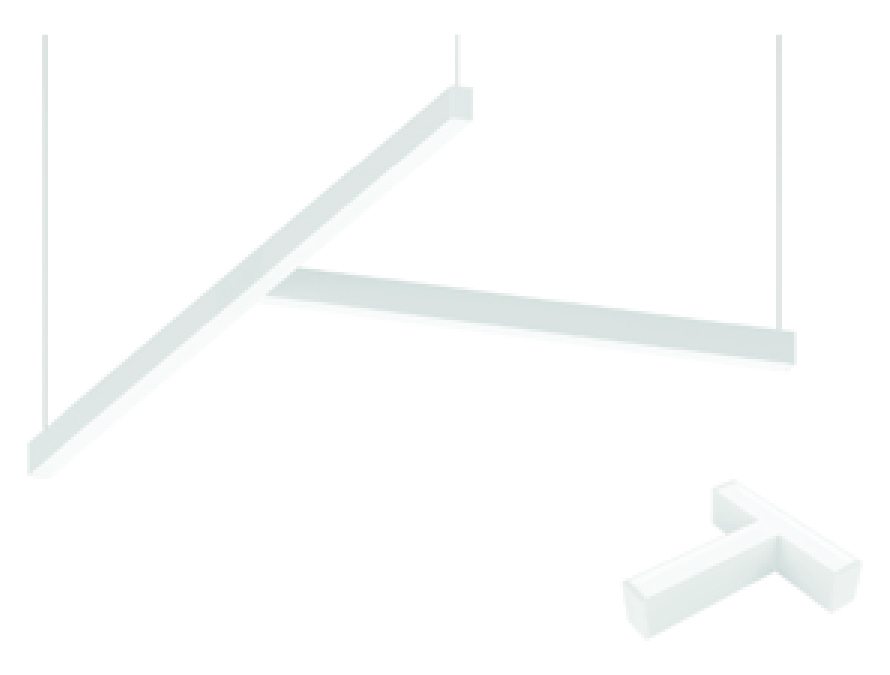

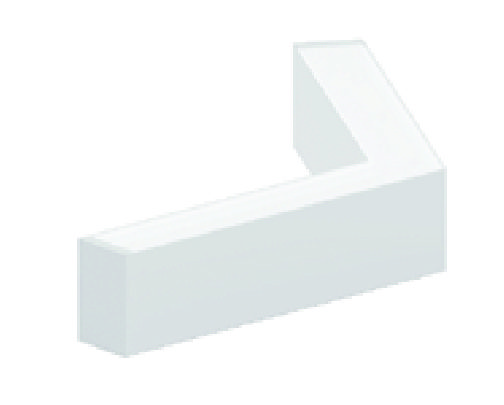

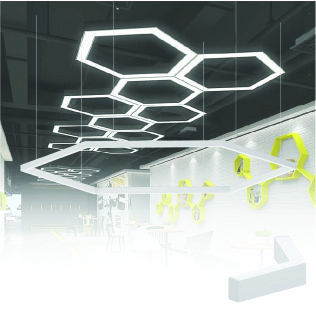

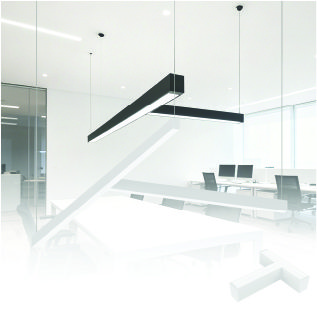

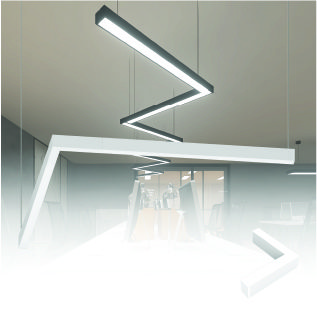

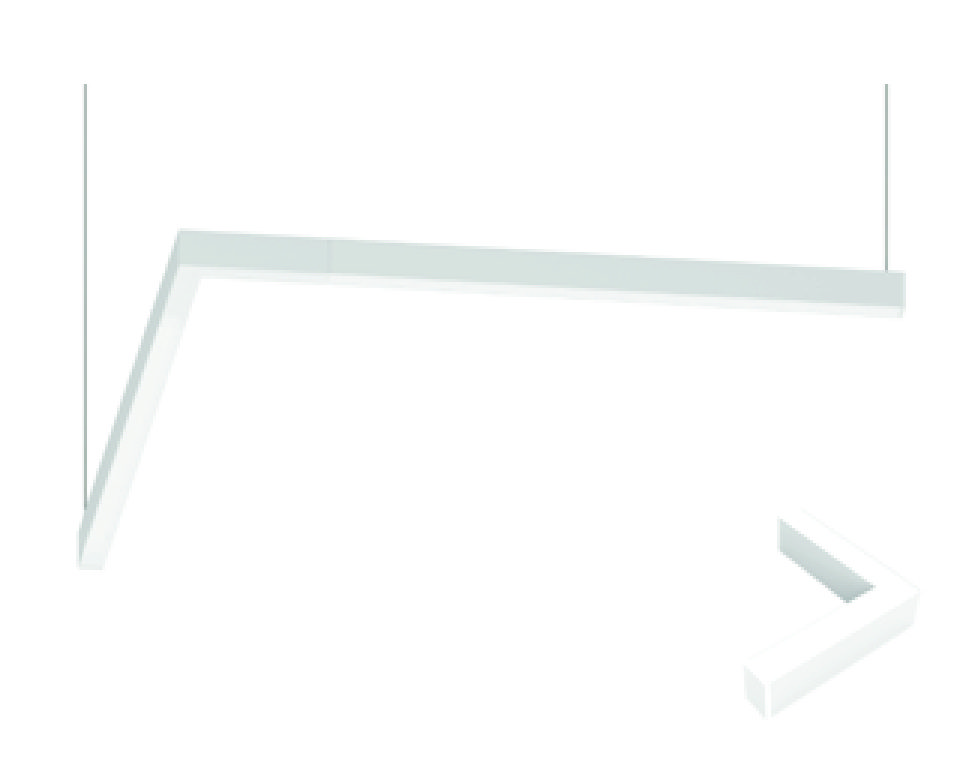

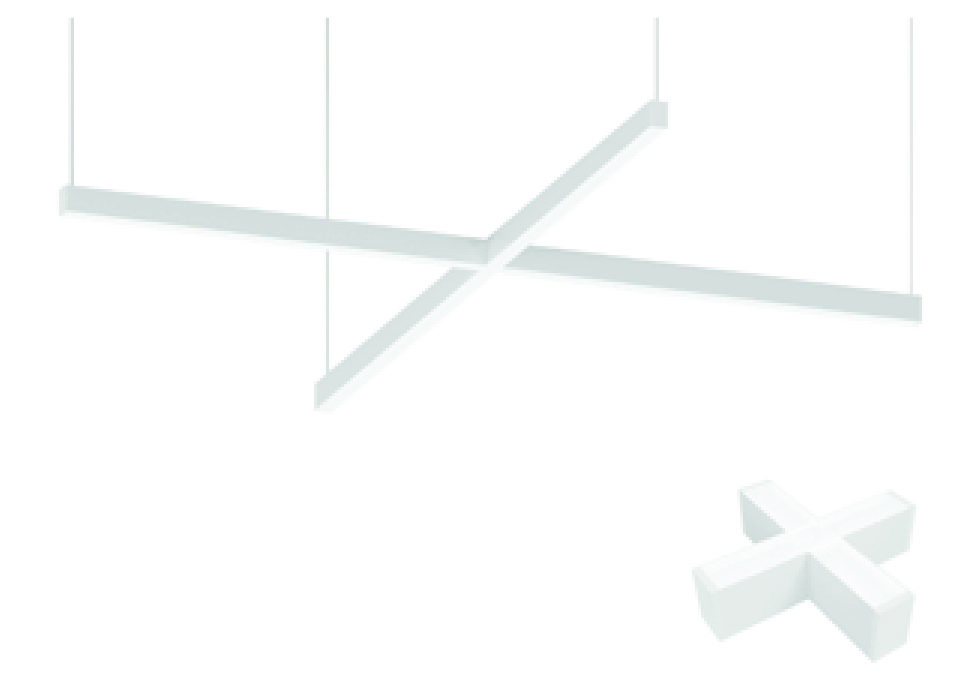

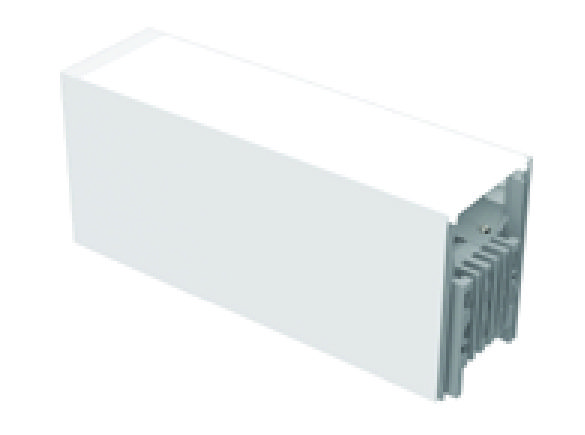

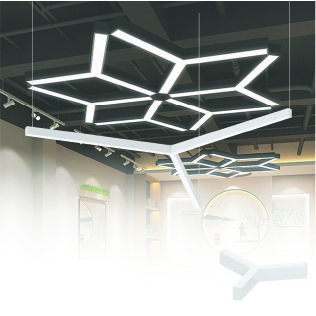

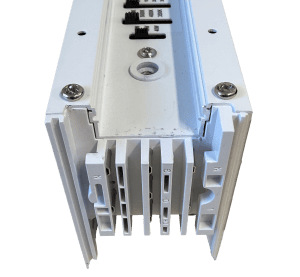

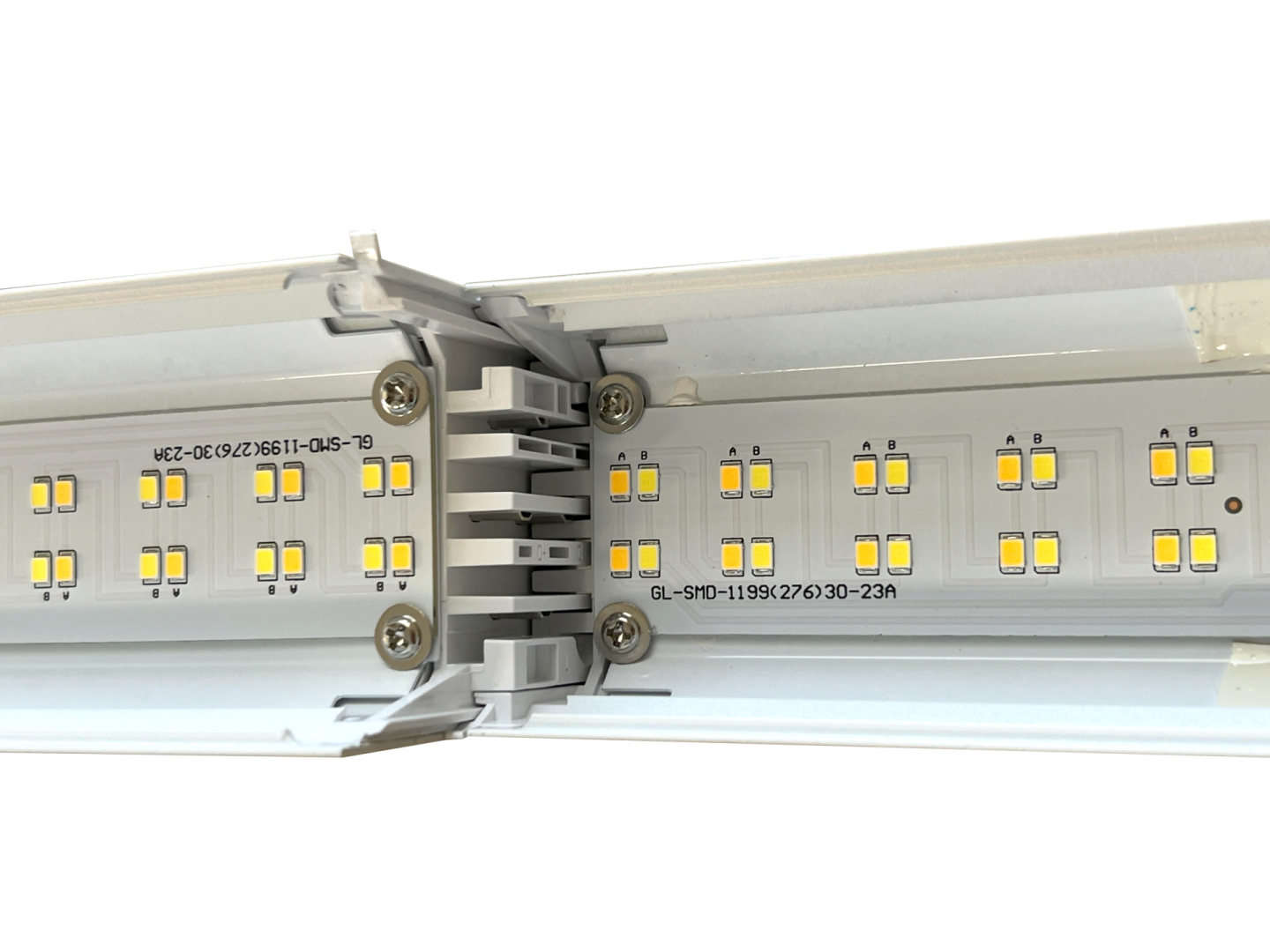

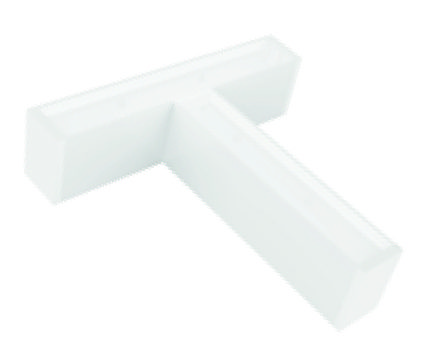

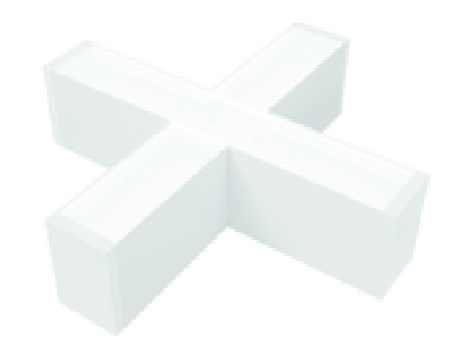

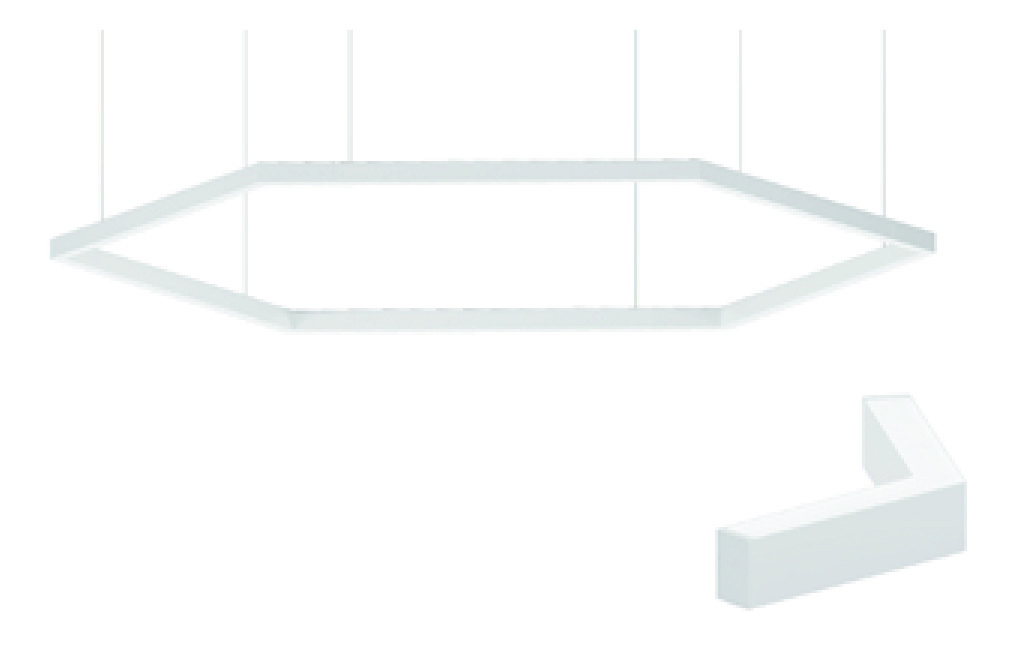

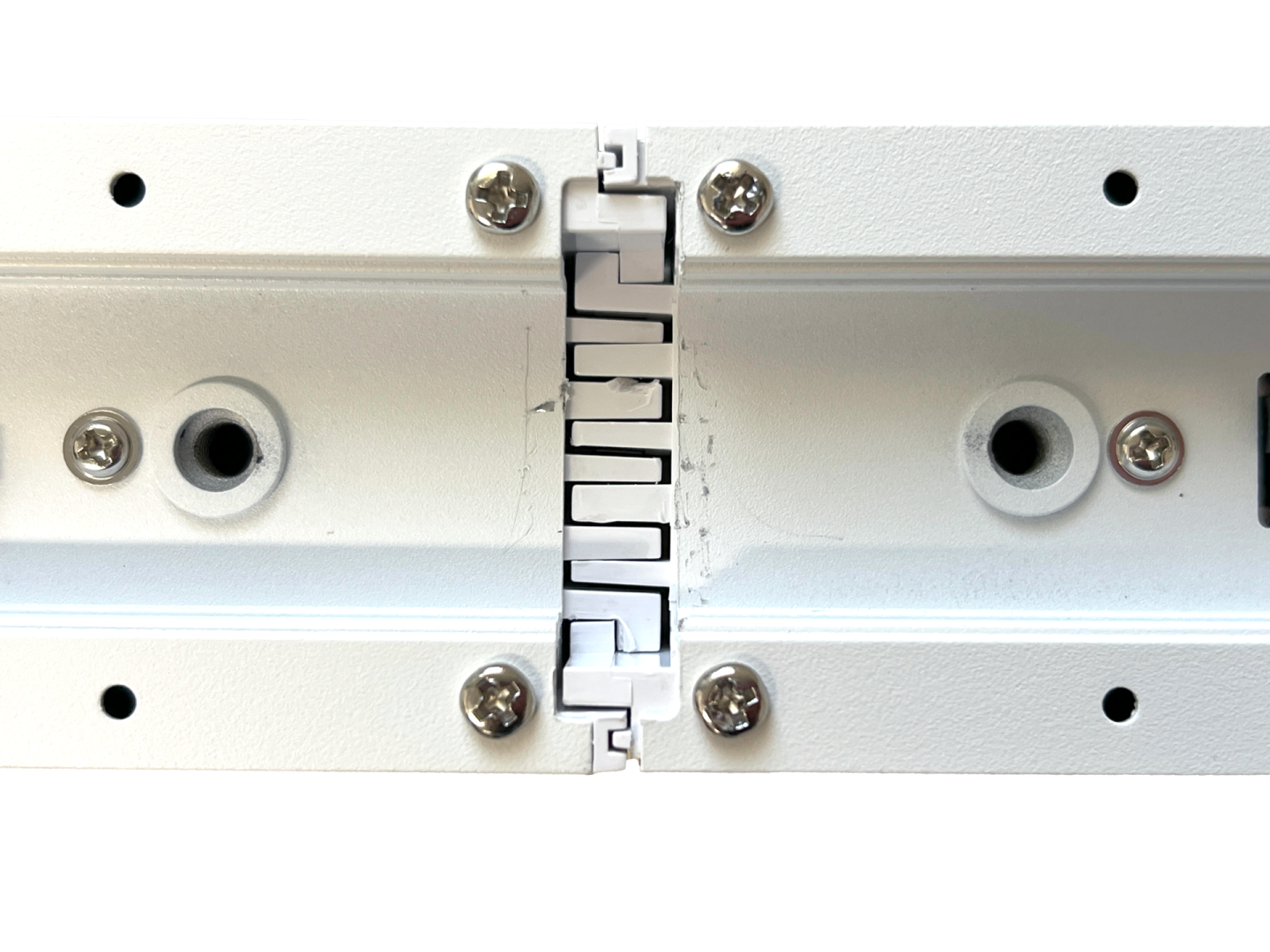

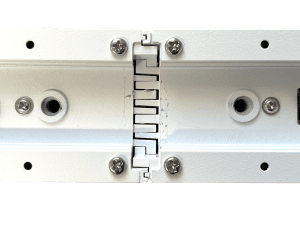

Fixture Connections L/ T/ X/ Y/ 120° connectors available. Interlocking adapter integrated into fixture for linear runs.
Motion Sensor Optional

Catalog Number

See Spec Sheet for product builder
