Magnilumen Plus+™ LED Back-lit Mirror Kit

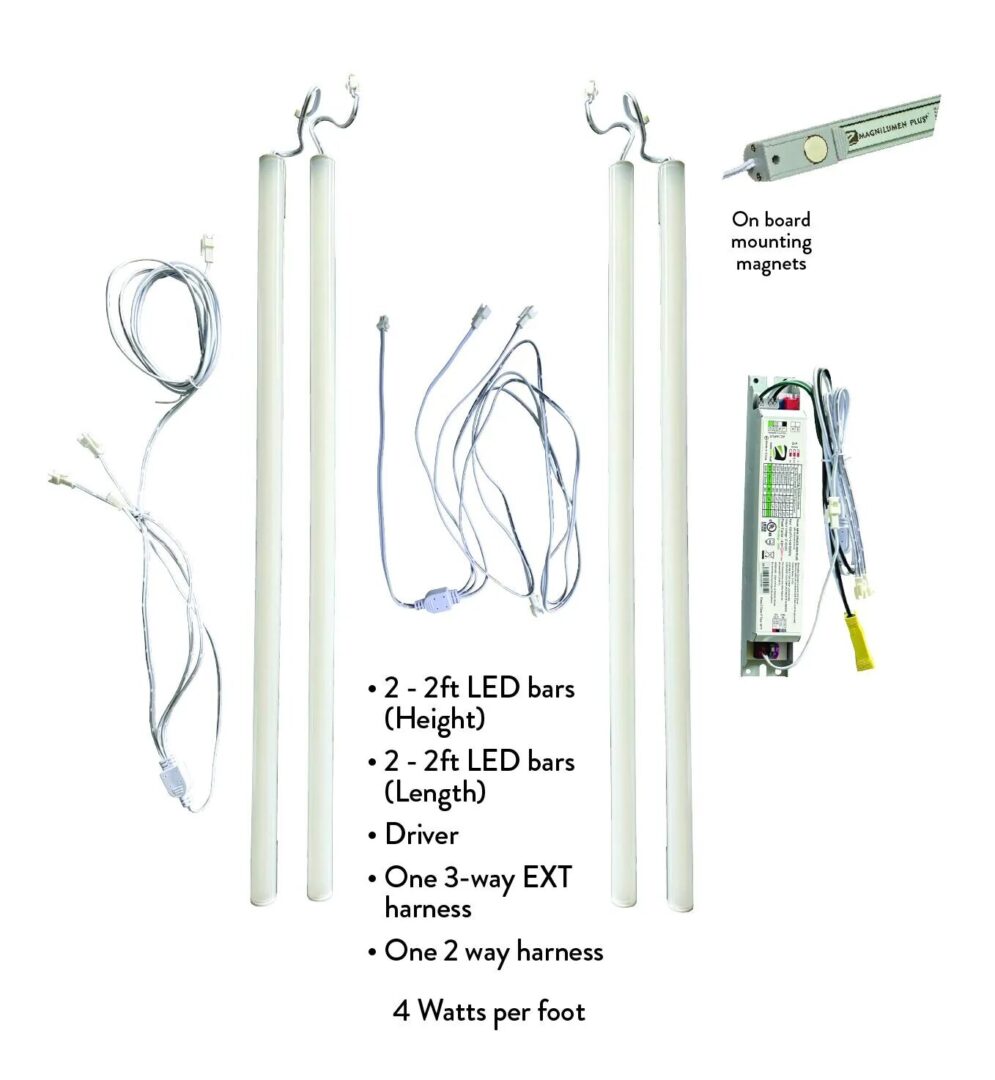

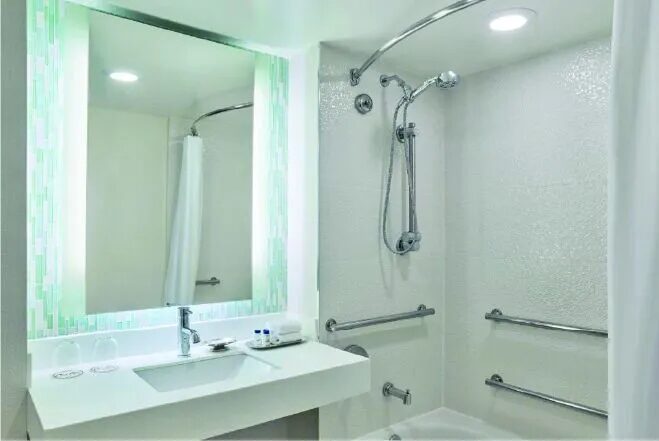

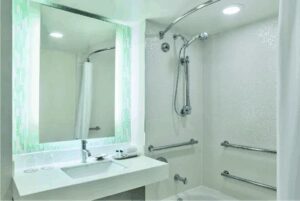

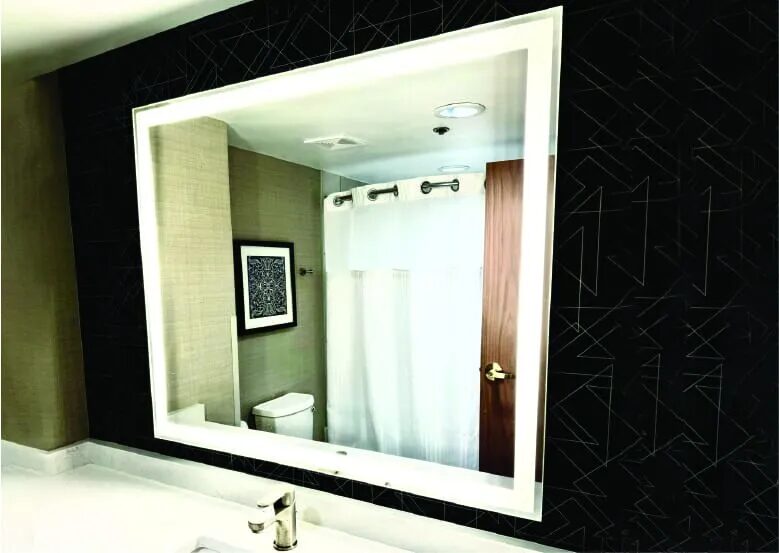

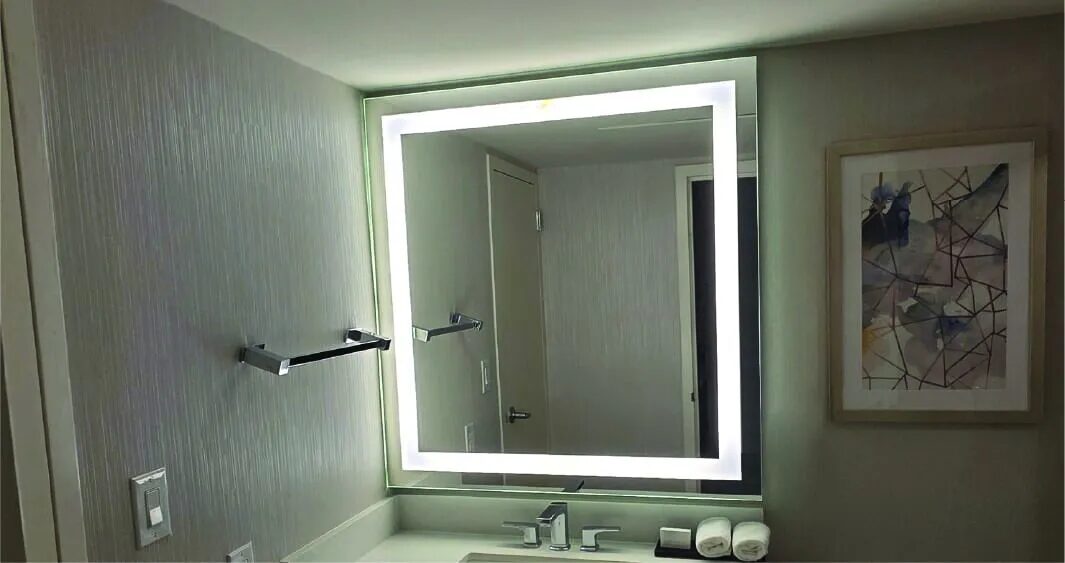

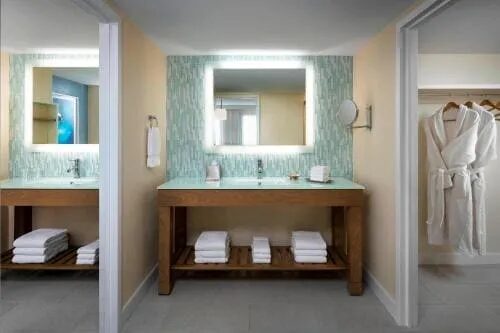

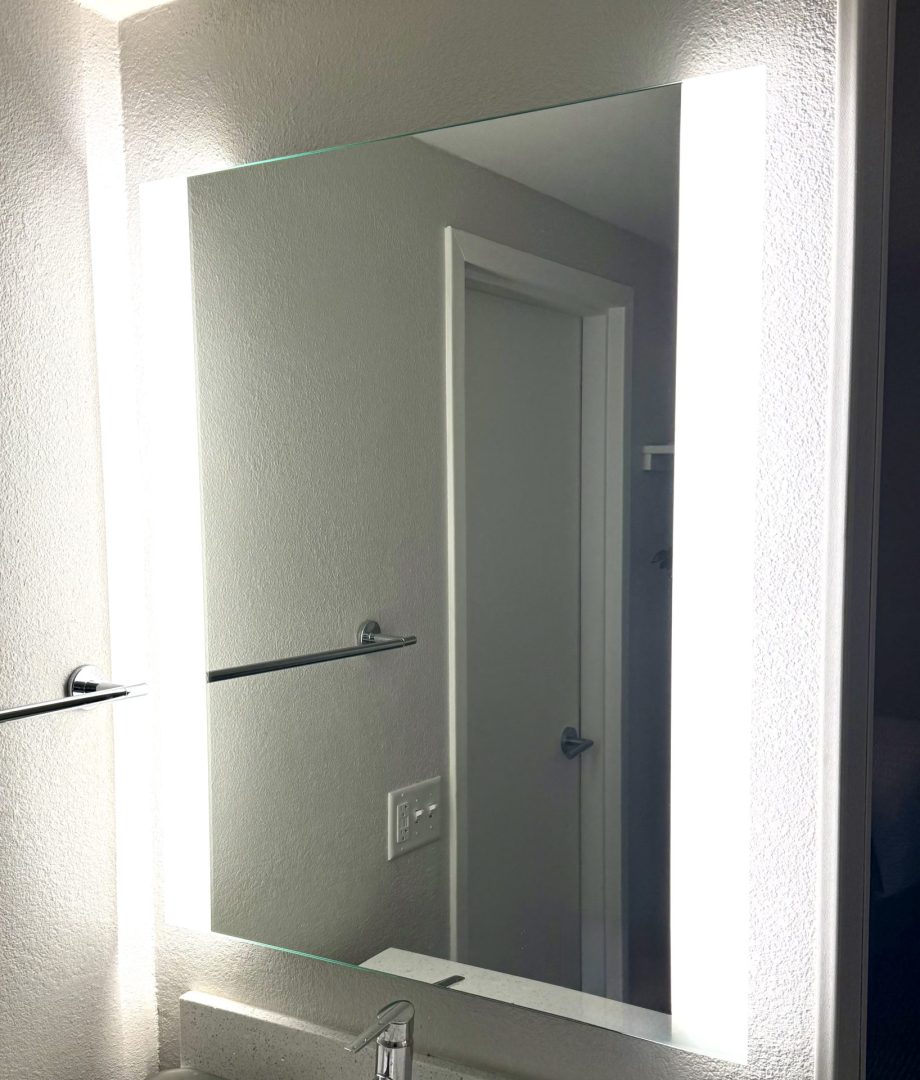

Magnilumen Plus+™ Mirror Back-Lit LED Retrofit Kits provide a versatile solution for converting fluorescent mirror lighting to high-efficiency LED. Available in 16”, 2’, 3’, 4’, and 5’ lengths, the system allows for custom configurations to accommodate non-uniform mirror dimensions. Engineered for uniform, shadow-free illumination, these retrofit bars enhance visibility while reducing energy and maintenance costs. Designed for quick installation without full fixture replacement, Magnilumen Plus+™ is ideal for healthcare, hospitality, and commercial restroom environments.

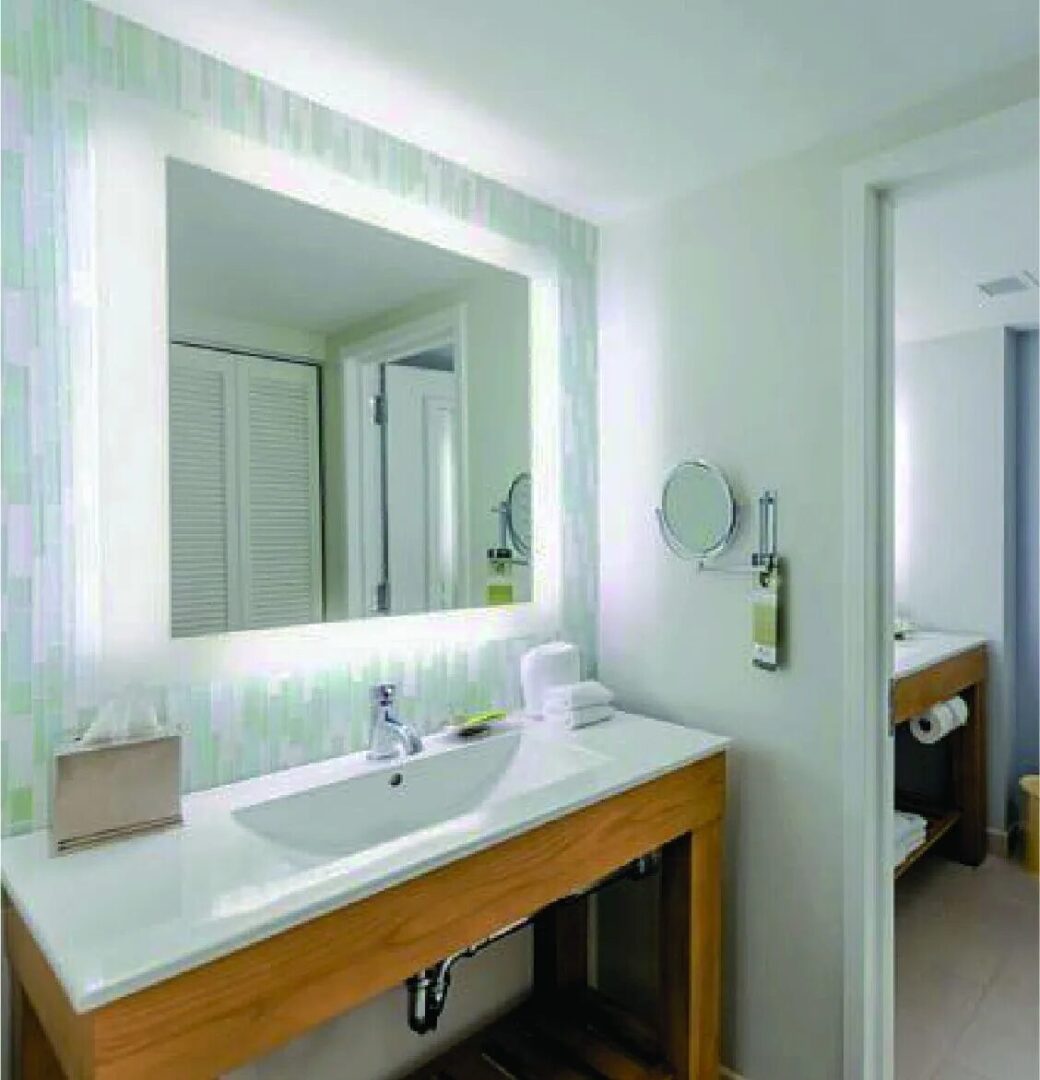

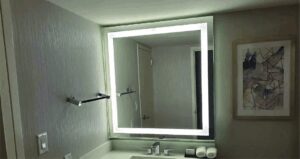

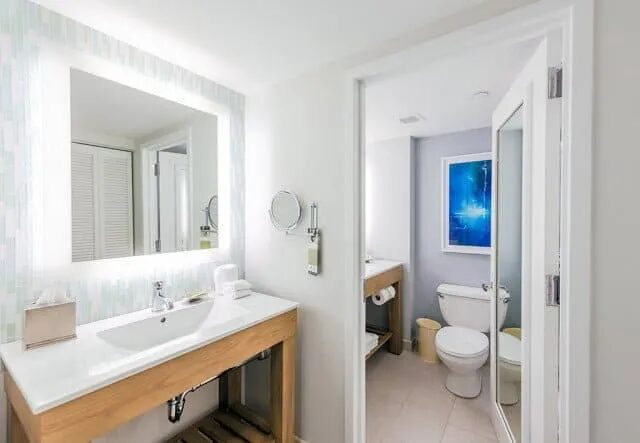

Enhance a mirror’s aesthetics and functionality with the Magnilumen Plus+™ LED Lighting Retrofit Bars. These high quality, energy-efficient LED retrofit bars are specifically designed to provide stunning backlighting for mirrors, creating a sleek and modern ambiance to any space. Whether upgrading a bathroom, dressing room, or any area with mirrors, these retrofit bars deliver an even, crisp, and vibrant light that complements any décor style.
FEATURES
| Wattages | 20W, 30W, 40W, 50W | ||
| Color Temperature | 30K, 35K, 40K, 50K | ||
| Input Voltage | 120/277V | ||
| CRI | 80+ (standard) | ||
| Efficacy | 150 lm/W with frosted lens, 180 lm/W without lens | ||
| Lengths | 16 = 16 inches 2 = 2 feet (21.06 inches) 3 = 3 feet (30.91 inches) 4 = 4 feet (42.91 inches) 5 = 5 feet (58 inches) |
||

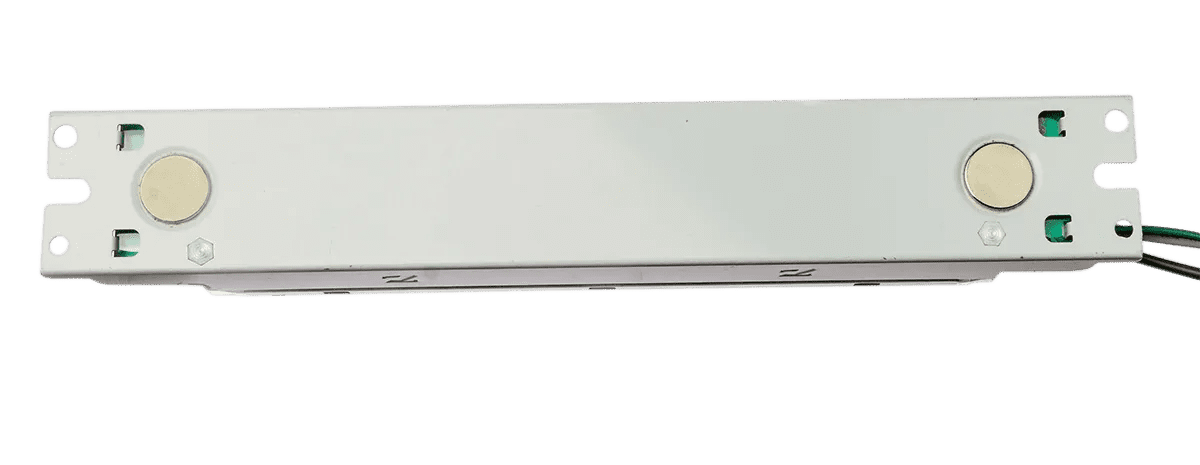

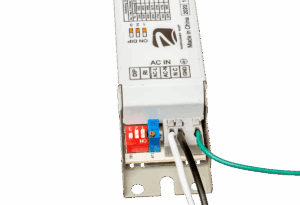

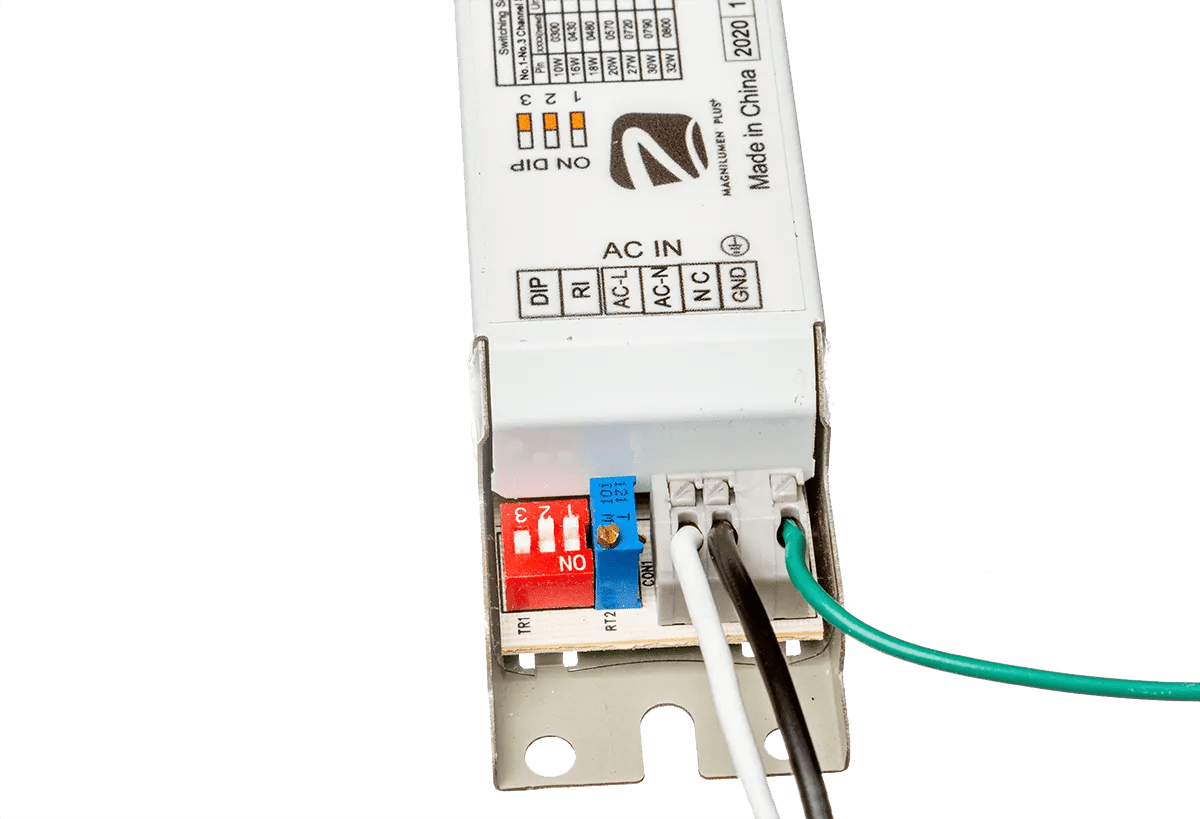

| Driver Out Voltage | 27-42VDC | ||
| Width/Height | .72” W / .75” H | ||
| Dimming | 0-10VDC, (optional: TRIAC, DALI, LUTRON ECOSYSTEM) | ||
| Surge Protection | 2KV | ||
| Ambient Temperature | -20 to 50C; -40 to 122F | ||
| LED Lifespan (L70) | 100,000 hours | ||
| Rated | IP20 | ||
| Warranty | 7 Year |
Catalog Number
Build Your Own Magnilumen Plus+™ Back-lit Mirror Kit Retrofit System – See spec sheet.
