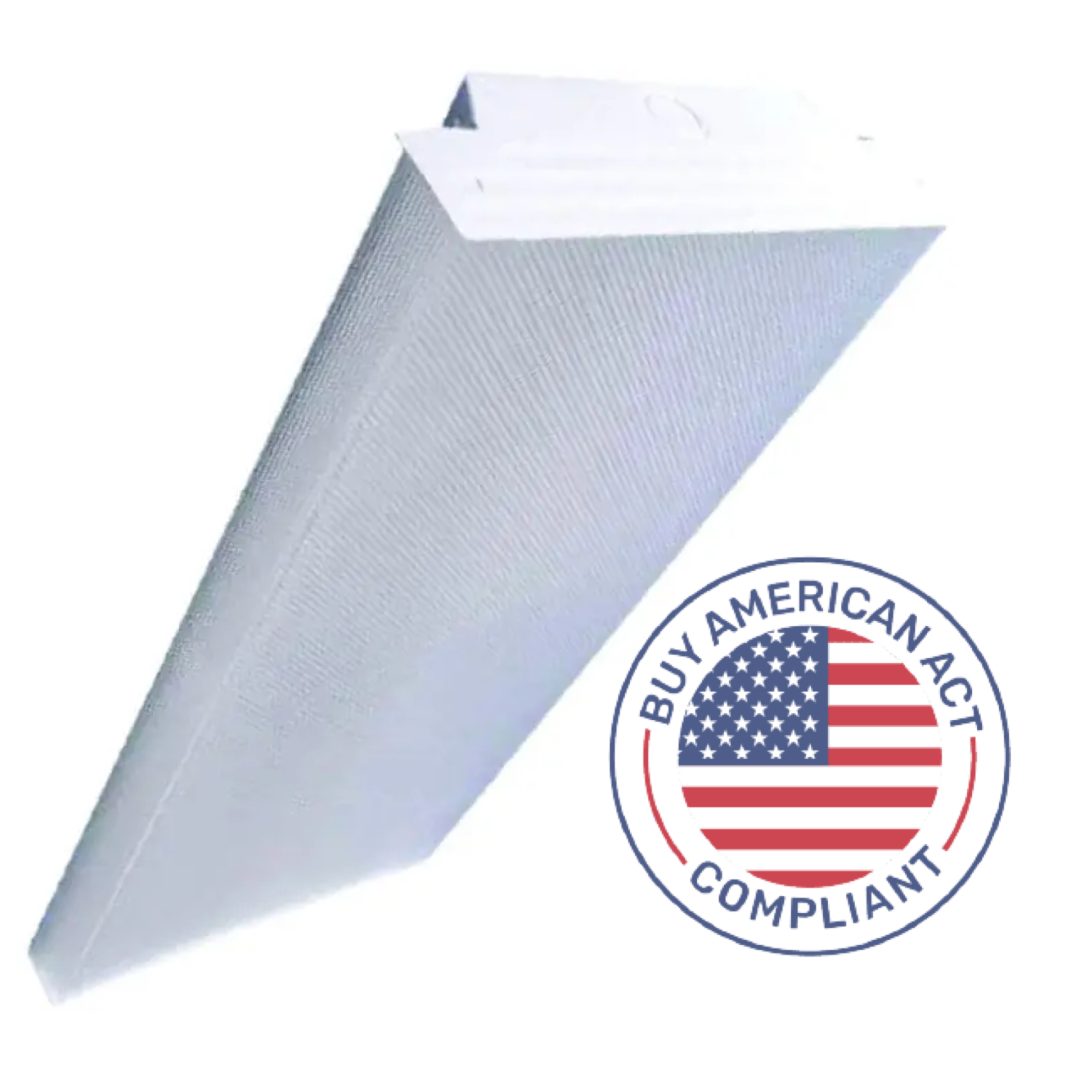

Made in America – Customizable Wraparound with
Magnilumen Plus™ Light Engine
The Made in America Customizable Wraparound with Magnilumen Plus™ Light Engine offers a fully customizable lighting solution designed for reliability, efficiency, and durability. Available in 2 ft, 4 ft, and 8 ft size and 2 body styles, it’s ideal for commercial, residential, and institutional spaces.
Tailor the fixture with a range of Build-Your-Own options and Buy America Act Compliant, including:
Wattages, Color Temperatures, Lenses, Mounting Options & Accessories.
Engineered for exceptional performance and flexibility, this troffer wraparound provides high-quality illumination to fit specific lighting needs.
Applications
Offices, schools, hospitals and healthcare facilities, retail stores, warehouses, hallways and corridors, stairwells, parking garages, utility rooms, storage areas, workshops, and institutional buildings where consistent, uniform ambient lighting is required.
FEATURES
| Wattages | Magnilumen Plus™ : 2ft- 20W, 30W 4ft- 40W, 50W, 60W 8ft- 80W, 100W, 120W Magnilumen Plus™ High Output: 2ft- 30W 4ft- 60W 8ft- 100W, 120W |
| Color Temperatures | Magnilumen Plus™ : 30K, 35K, 40K, 50K, 65K, Green, Blue, Orange, Yellow, Red, Amber, Black Light Magnilumen Plus™ High Output: 40K, 50K Special Order: 30K, 35K |
| Operating Frequency | 50/60Hz |
| Ambient Temp | -4oF – 123oF |
| Size | 2ft, 4ft, 8ft |
| Input Voltage | 120/277V |
| Listed | ETL |
| LED Lifespan (L70) | Magnilumen Plus™ : 100,000 hours Magnilumen Plus™ High Output: 50,000 hours |
| Dimming | 0-10V |
| Mounting | 7/8” knockouts in top, sides and end plates. Unit is equipped with knockouts and holes for pendant or surface mounting. This fixture can be mounted individually or continuous run. |
| Warranty | 7 year Magnilumen Standard; 5 year High Output, Color; 3 year Black Light |
| CRI | 83 |
| Housing | Die formed from heavy gauge steel and is finished in a baked white enamel. |
| Number of Bars | Magnilumen Plus™ : 2ft- 1, 2, or 3 bars 4ft- 1, 2, or 3 bars 8ft- 2, 4, or 6 bars Magnilumen Plus™ High Output: 2ft- Max 2 bars 4ft- Max 2 bars 8ft- Max 2 or 4 bars |
| Lumens | See Lumens Chart |
Catalog Number
See Build Your Own on Spec Sheet
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms. Buy America Act Compliant.
