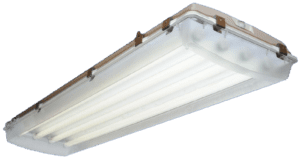

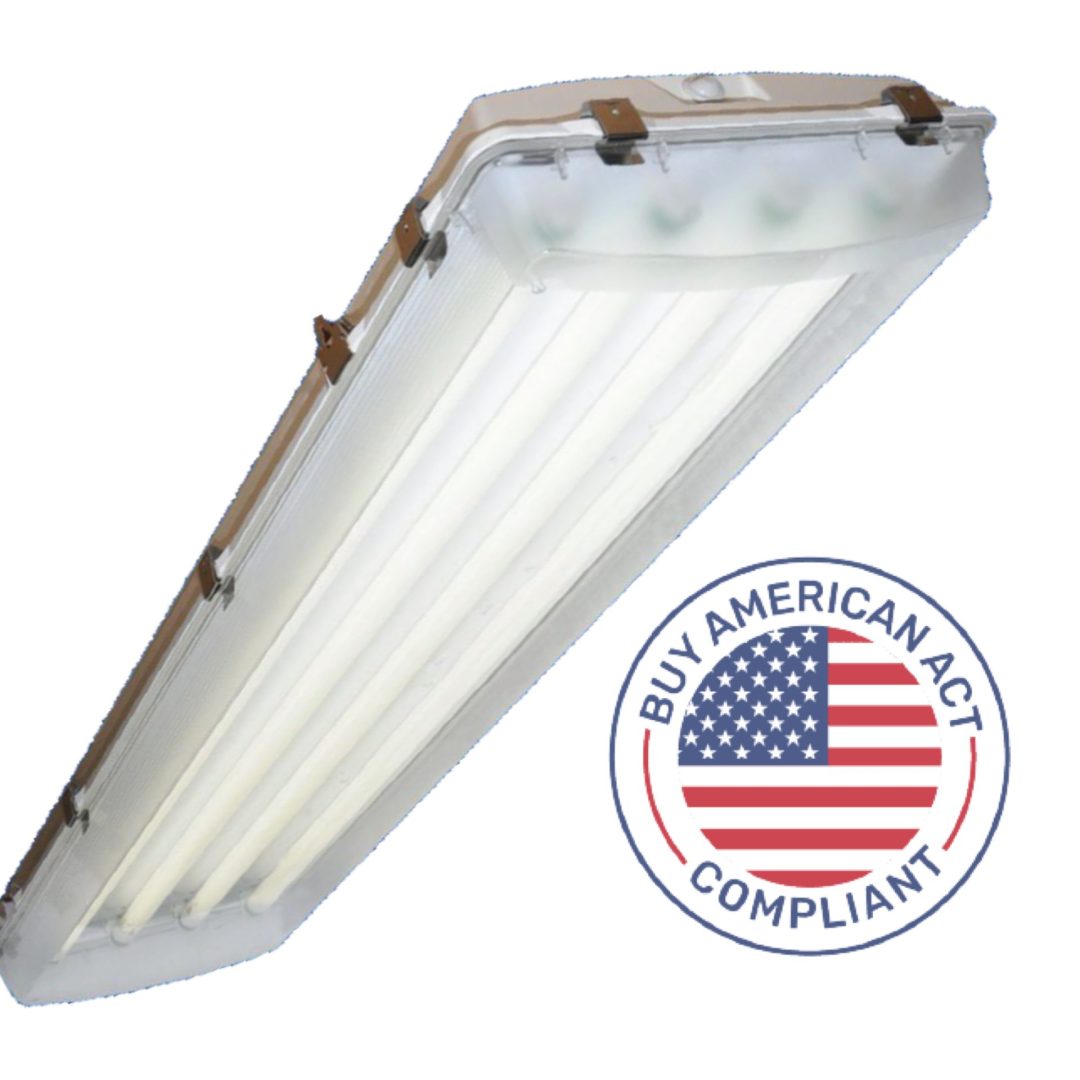

Made in America – Build Your Own Wide Body Vapor Tight
Share
Create a custom LED lighting solution with Made in America- Build Your Own Wide Body Vapor Tight with Magnilumen Plus+™ High Output Light Engine, designed for maximum durability and performance.
This LED unit is engineered for performance. The Build Your Own Wide Body Vapor Tight fixtures are available in 4 ft,(total 50″ in length), with complete build your own Magnilumen Plus+™ High Output options for light engines, wattages, color temps, lens, and a variety of mounting and accessories.
Applications
Perfect for demanding environments, it’s ideal for demanding applications such as industrial facilities, manufacturing, and warehouses.
FEATURES
| Wattages | Magnilumen Plus+™ High Output: 60W, 120W, 180W, 240W |
| Color Temps | Magnilumen Plus+™ High Output: 40K, 50K; Special Order: 30K, 35K |
| Latches | Stainless Steel (included) |
| Input Voltage | 120/277V |
| Mounting | Stainless steel external hanging bracket. Must be drilled and sealed for each surface mounting or chain hanging application. |
| Listed | UL – Body Only |
| LED Lifespan (L70) | Magnilumen Plus+™ High Output: 50,000 hours |
| Dimensions | 14.61” x 5.95” |
| Lumens | See Lumens Chart |
| Warranty | 5 Year Magnilumen Plus+™ High Output |
| Number of Bars | Magnilumen Plus+™ High Output: 2, 3, 4 |
| Construction | Single piece injection molded fiberglass/plastic combination blend. Neoprene gasket and stainless steel pressure locks ensure waterproof seal. Interior gear tray- heavy gauge die formed steel which hinges |
| Options | EM + Emergency MS – Motion Sensing Sensors – Optional External PIR Sensor Internal Microwave Sensor Motion Sensor include AO Drivers |
| Lens | Clear or Frosted |
Catalog Number
See Build Your Own on Spec Sheet
