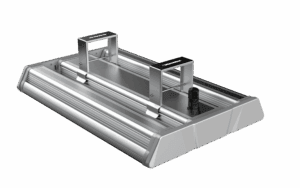

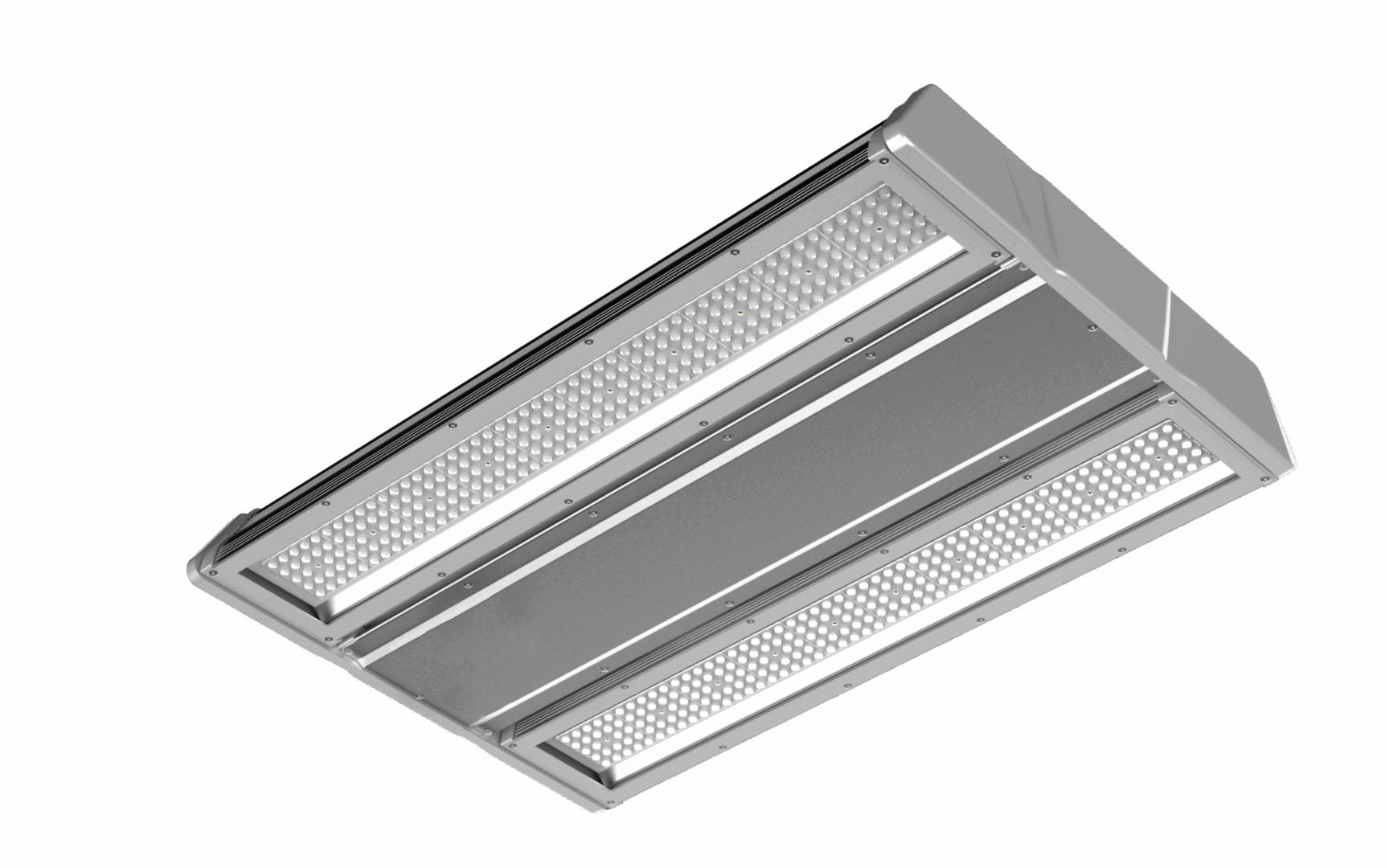

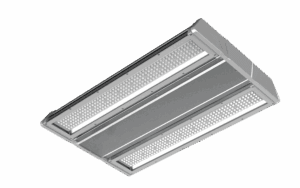

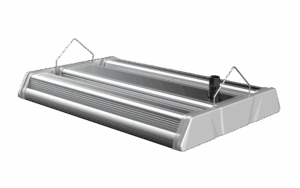

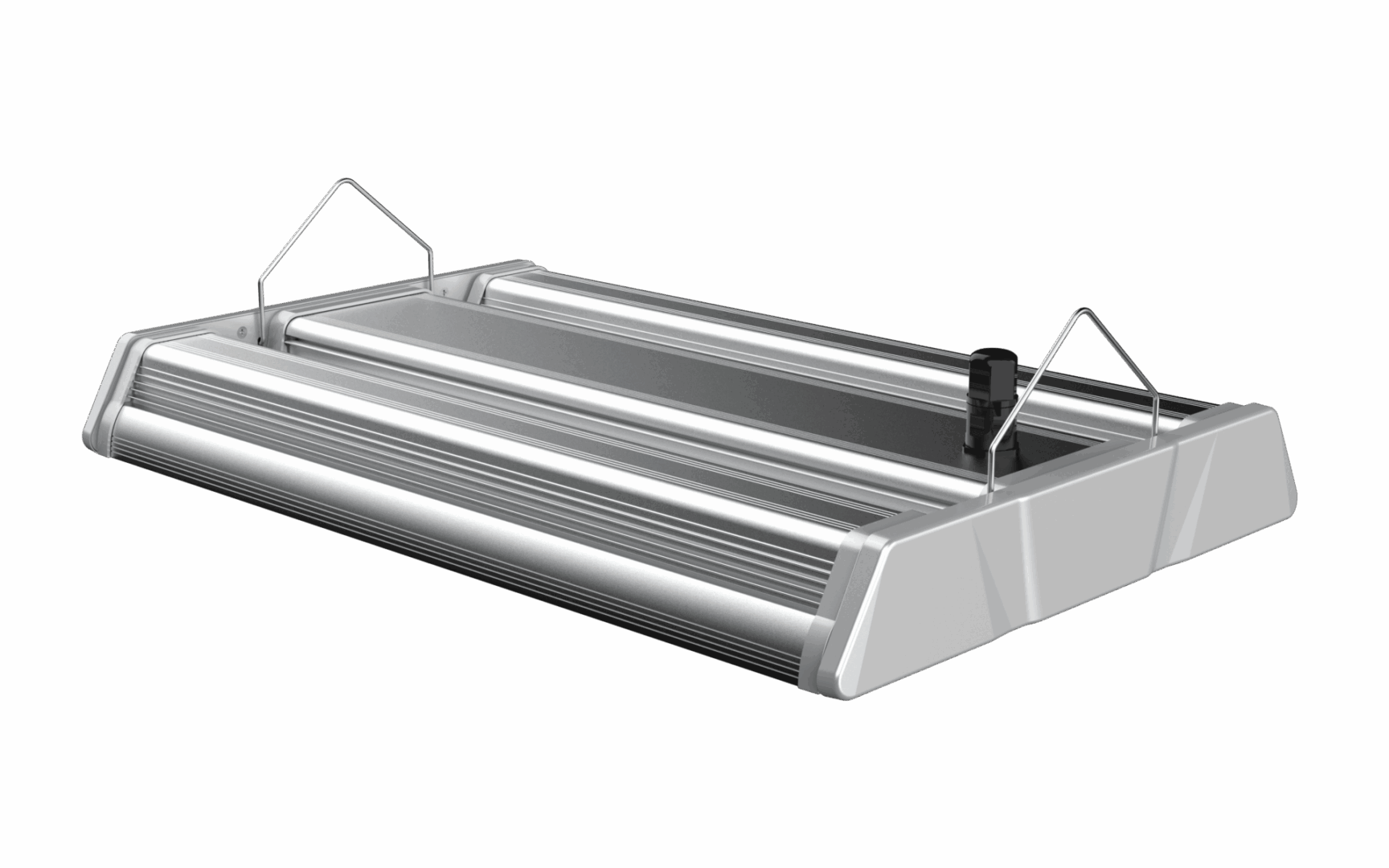

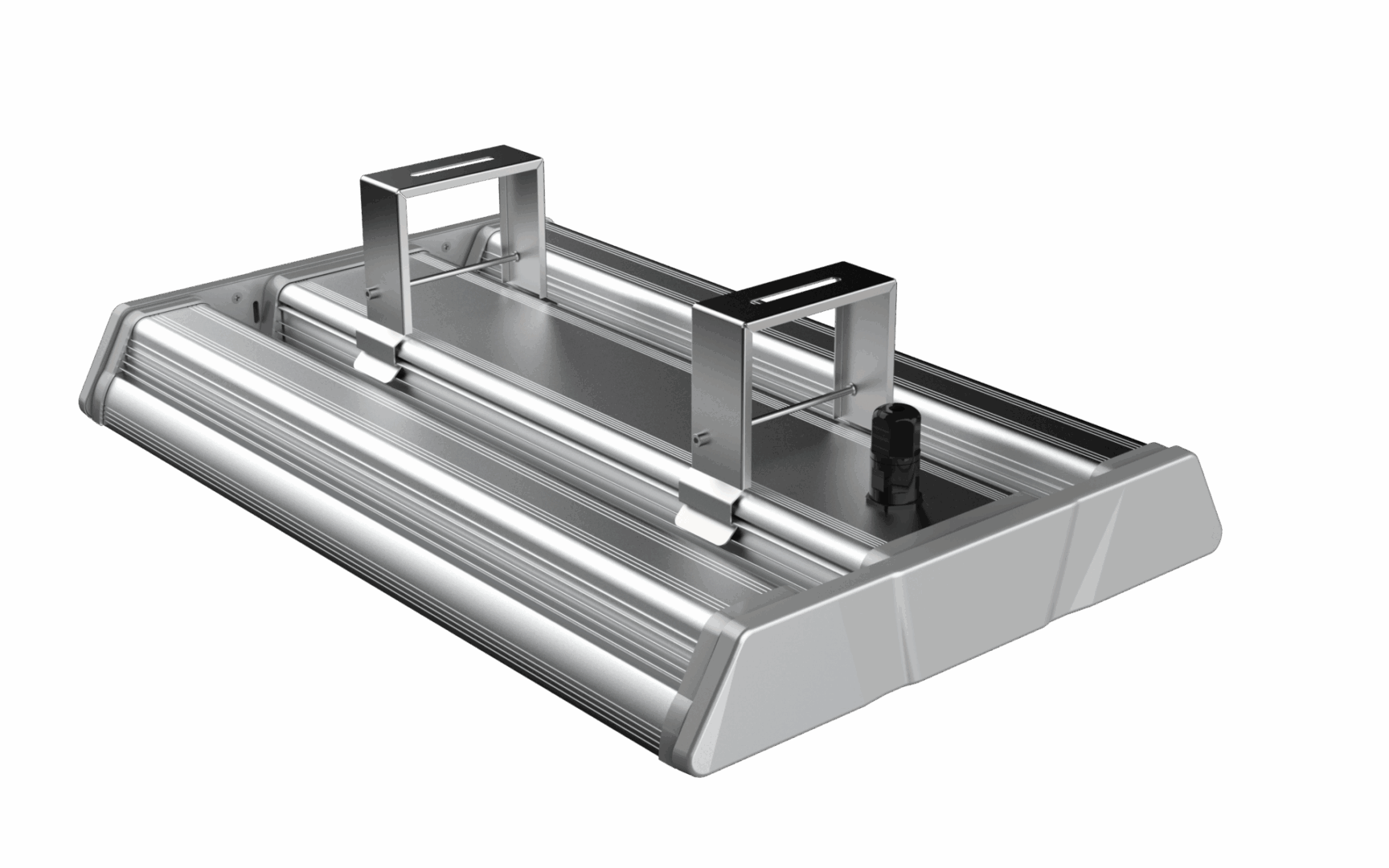

HI Heat Linear LED High Bay
Share
A high-heat linear LED high bay is ideal for steel mills and foundries, glass manufacturing facilities, power plants, smelting plants, heavy industrial kitchens, chemical processing plants, and waste treatment facilities. Engineered to perform in extreme temperatures, it delivers reliable, long-lasting illumination where other fixtures fail.
FEATURES
| Wattage Selectable | 100W, 150W, 200W |
| Color Temperature | 50K (30K, 40K, 60K optional) |
| Input Voltage | 120/277V, 480V special order |
| Efficacy | 150 lm/W |
| Dimming | 0-10V |
| CRI | Ra70 (Ra80 optional) |
| Beam Angle | 60/90/120o |
| LED Lifespan (L70) | 100,000 hours |
| Warranty | 3 year |
| Operating Temperature | -40oC (-40oF) to 80oC (176oF) |
| Rated | IP65 |
| Mounting | Hanging mount, Ceiling mount |
| Fixture Color | Choice of silver, black, white |
| Material | Housing- Aluminum alloy Polycarbonate optical Lens |
| Lumens | 100W- 15,000; 150W- 22,500; 200W-30,000 |
Catalog Number
See Spec Sheet for Build your own options
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms.
