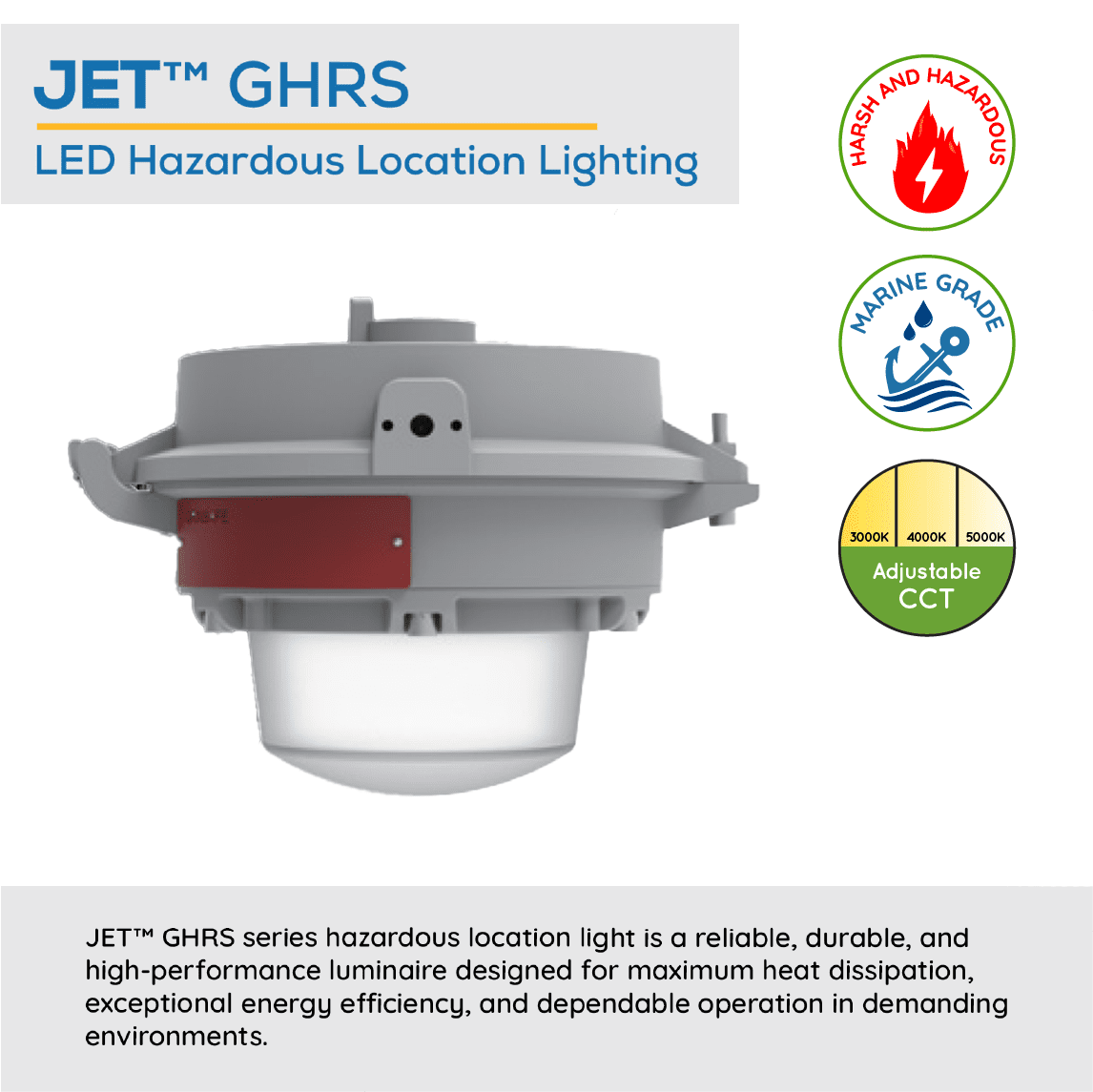

JET™ GHRS LED Hazardous Location Jelly Jar Light
The JET™ series series LED luminaires are designed to provide durable and energy efficient lighting in various applications. Wide range of certification and integrated structure design enable it to be installed in the environments where flammable vapors, gases, ignitable dusts, or fibers are present. Its vibrant silhouette also can be found in the places where extremely corrosive, wet, dusty, hot and/or cold conditions exist.
Features
- Easy Installation. Single barrel nut and hinge design, one-hand operation for quick and easy installation
- High Efficiency. Delivers up to 150 lm/W, reducing energy costs.

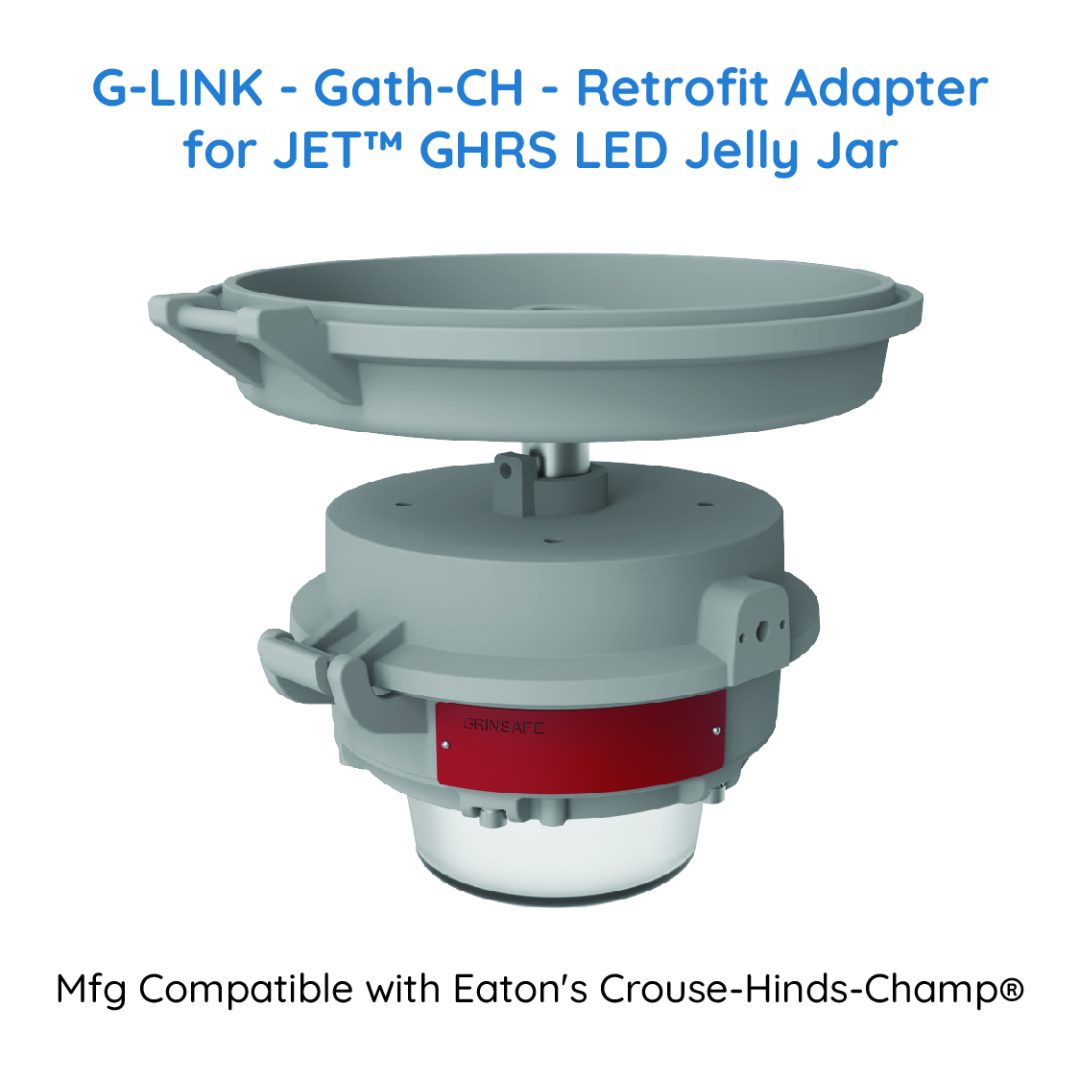

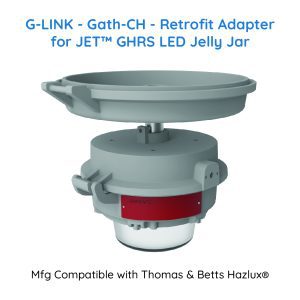

- Retrofit Friendly. Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
- Build To Last. Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust. Terminal blocks fitted as standard for faster installation
| Rated Power | 10W / 20W / 30W |
|---|---|
| Input Voltage | AC100-277V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 1,500lm / 3,000lm / 4,500lm |
| Luminous Efficacy | 150Lm/W |
| Beam Angle | 110° |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C~+65°C |
| Lens Material | Frosted drop lens |

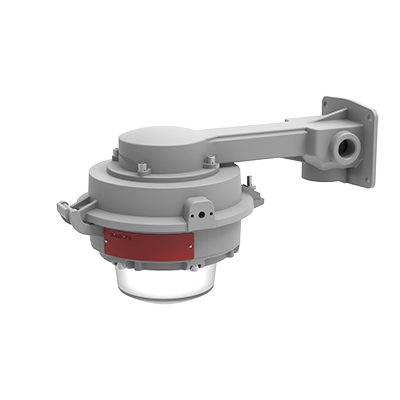

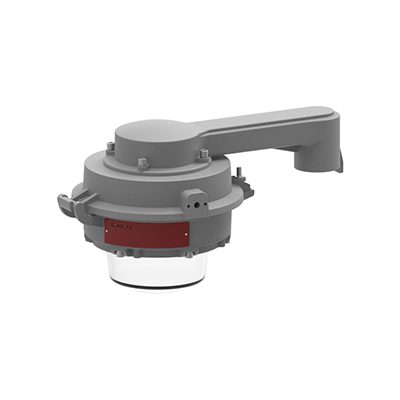

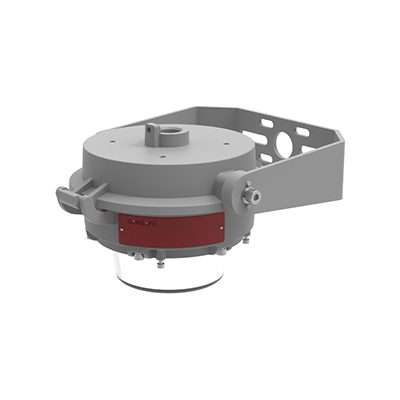

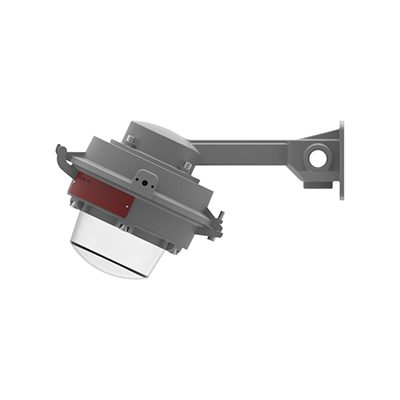

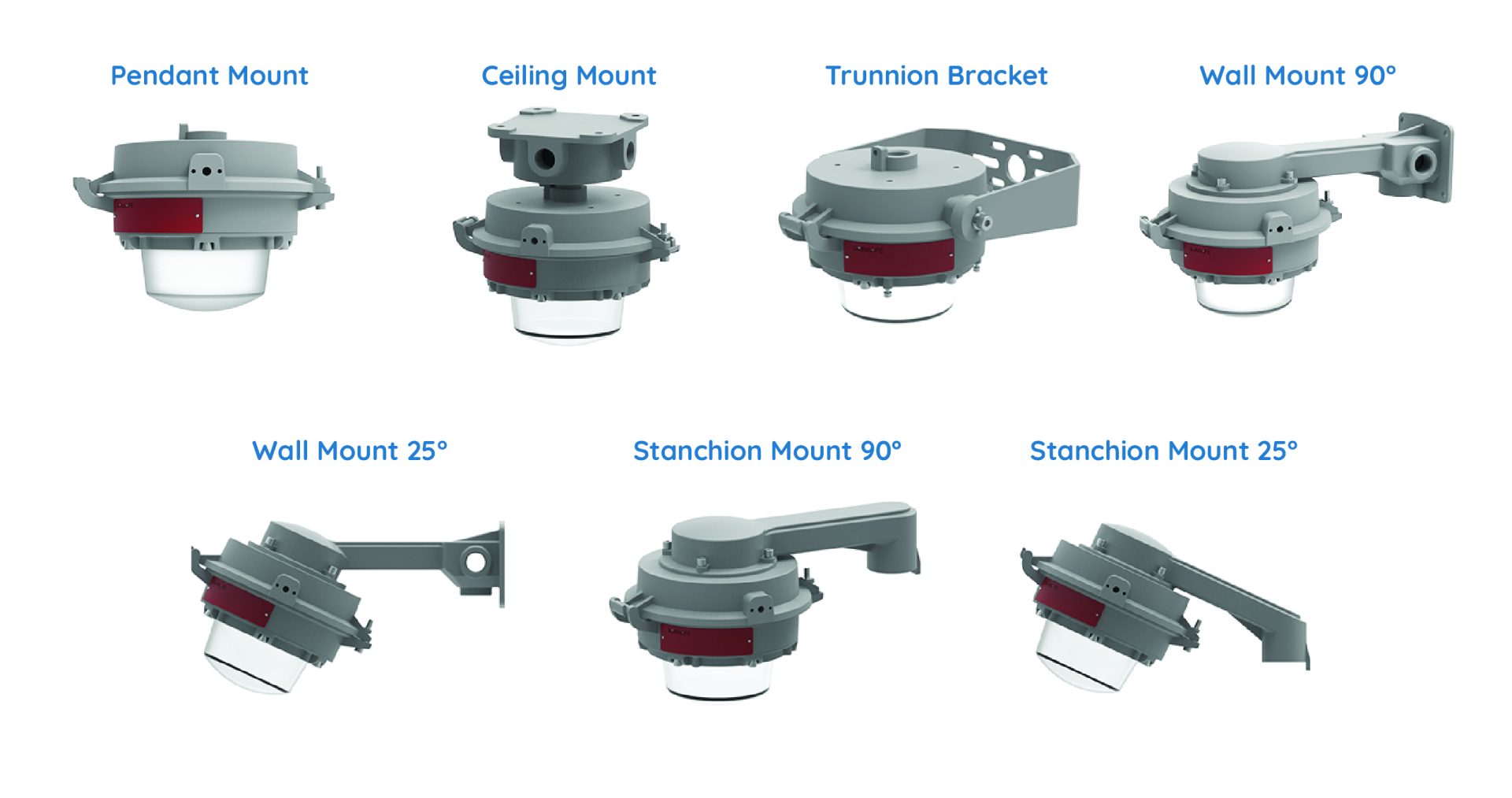

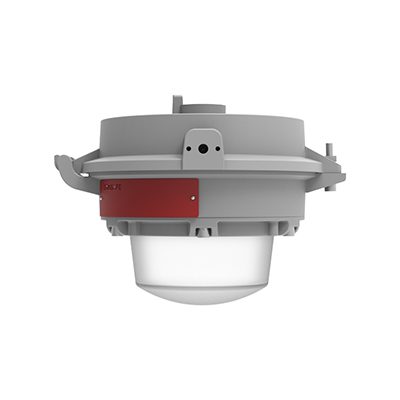

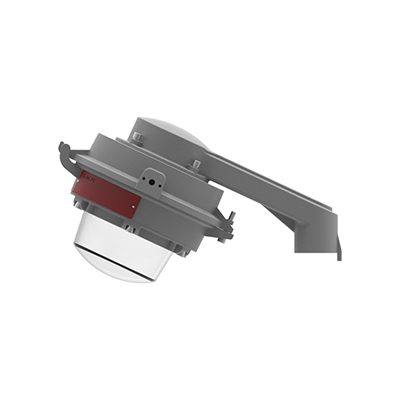

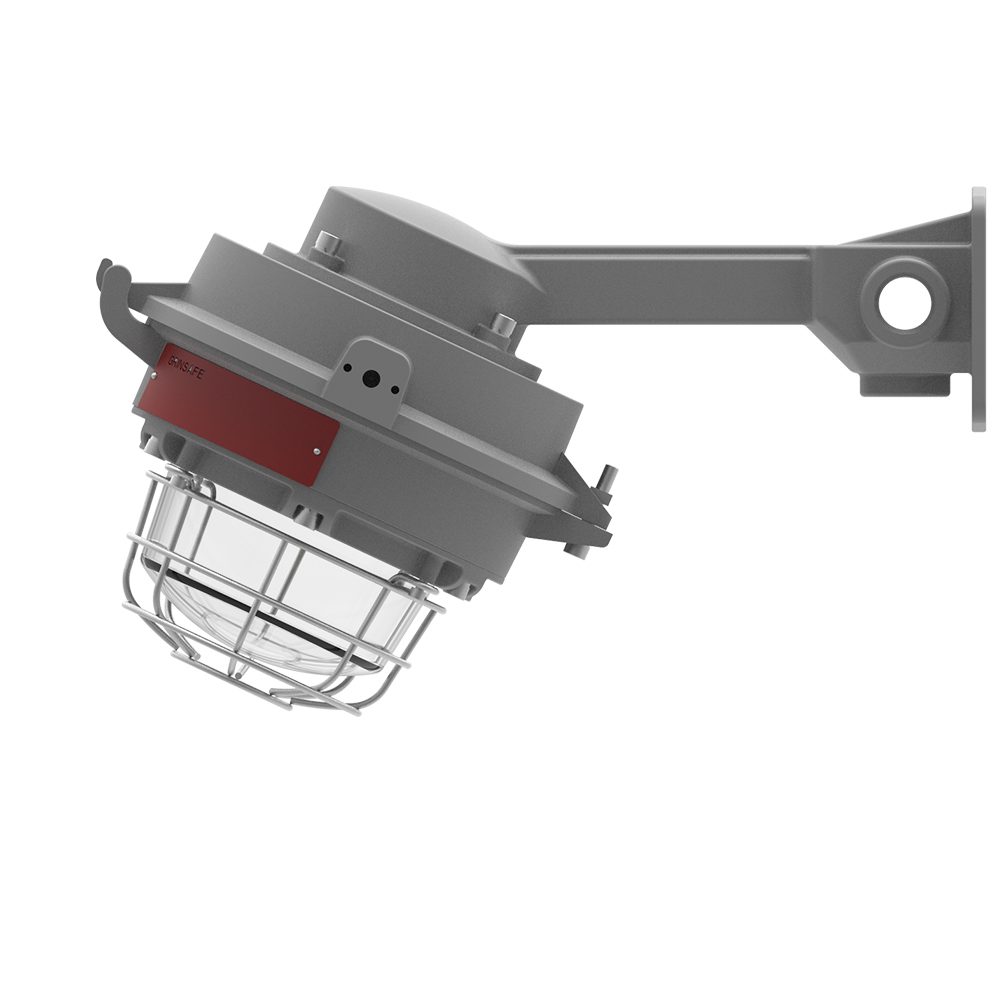

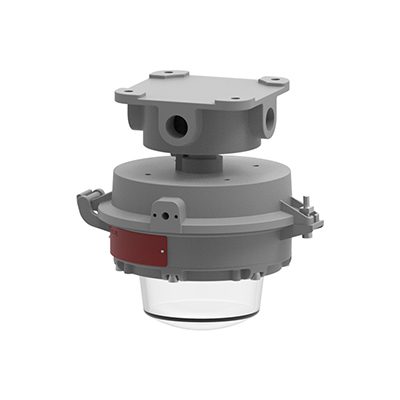

| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 2.6kg |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – JET™ GHRS
