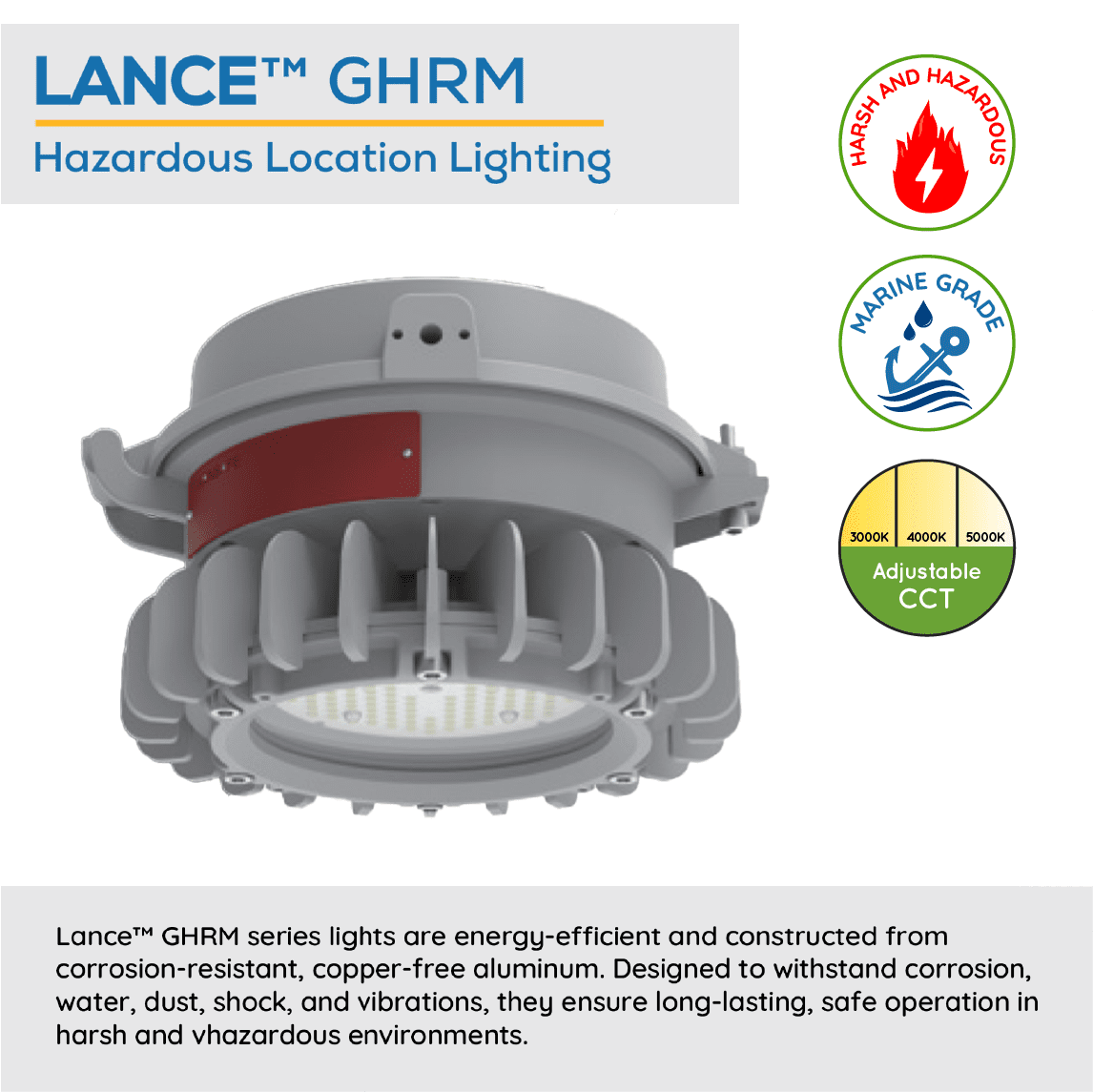

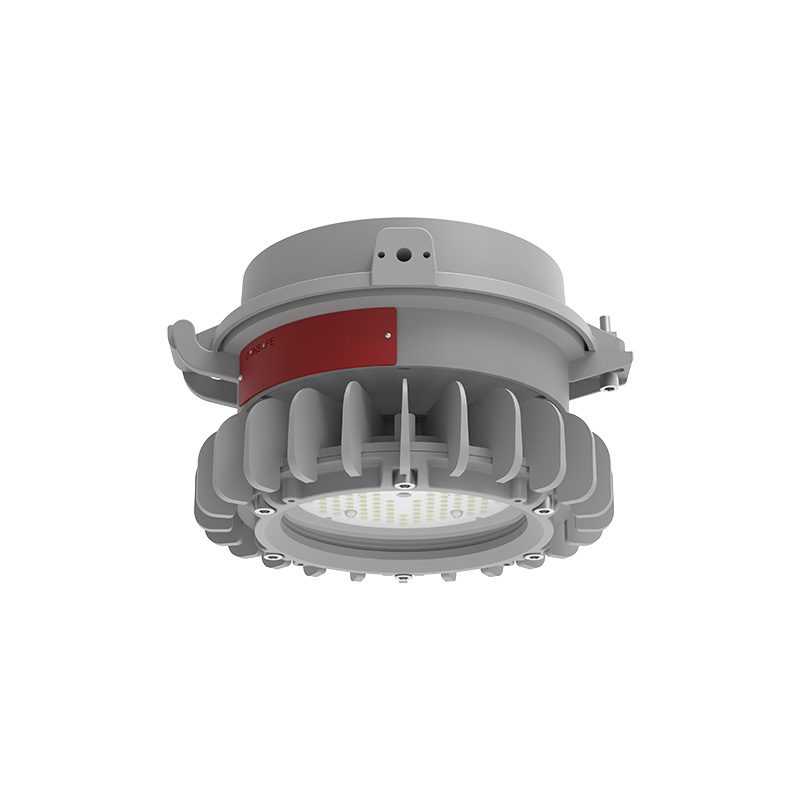

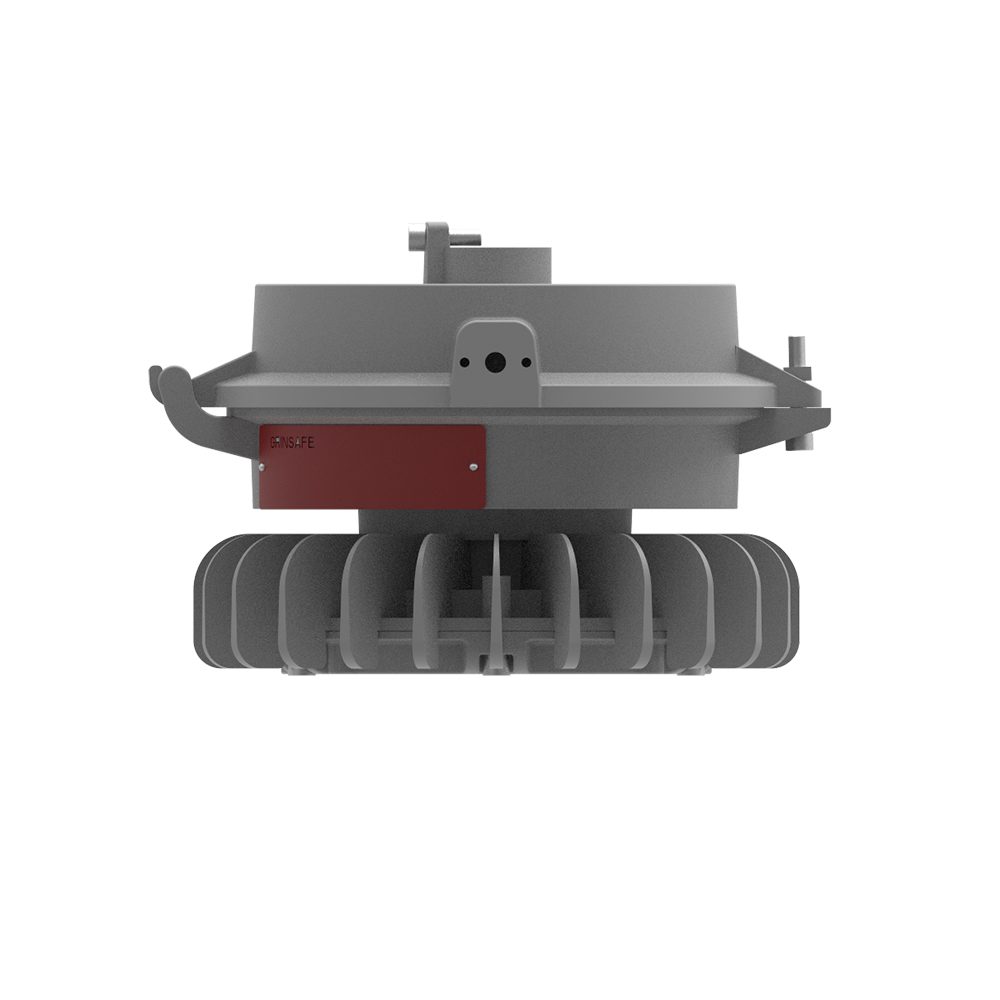

LANCE™ GHRM LED Hazardous Location Area Light
The LANCE™ series is an extremely robust LED area light fixture that has superior performance due to its tempered glass lens and cold-forged pure aluminum body. Its compact housing, well-arranged heat-producing components result in more efficient heat dissipation for cooler, safer and longer fixture operation within the most hazardous areas. LANCE™ is lightweight and versatile to fit many applications.
Features
- Easy Installation. Single barrel nut and hinge design, one-hand operation for quick and easy installation
- Lightweight & Compact. 3.5kg fixture weight only, design for low mounting heights and confined spaces.
- High Efficacy. Delivers up to 160 lm/W reducing energy costs by up to 75% over conventional lamps.

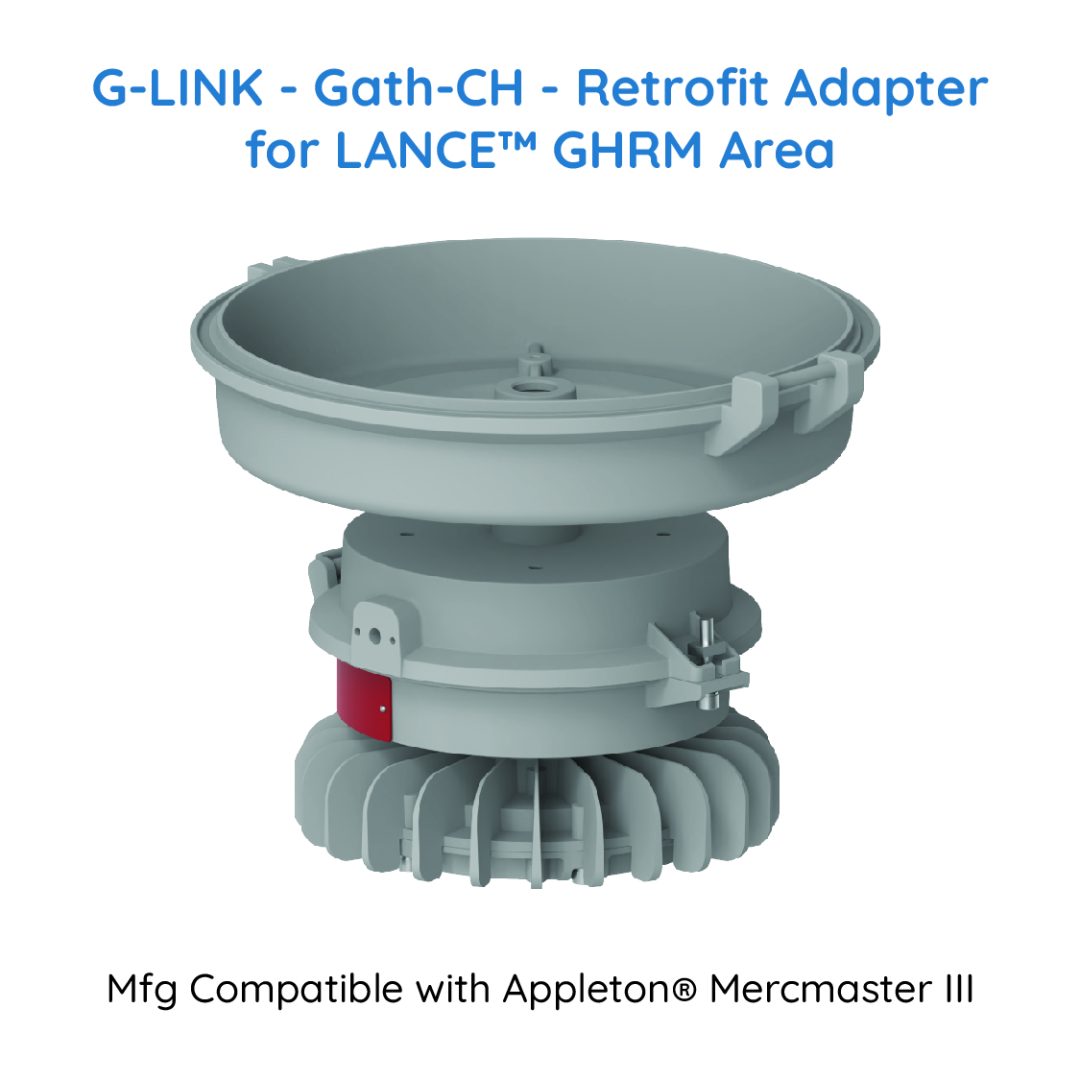

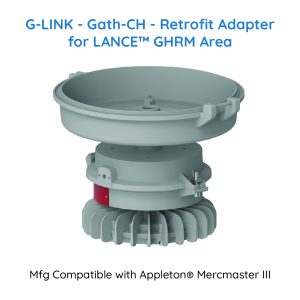

- Retrofit Friendly. Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
- Build To Last. Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust.
- Terminal blocks fitted as standard for faster installation
| Rated Power | 40W / 60W |
|---|---|
| Input Voltage | AC100-277V, 347-480V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 6,000lm / 9,600lm |
| Luminous Efficacy | 160Lm/W |
| Beam Angle | T1 / T3 / 110° |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C~+65°C |

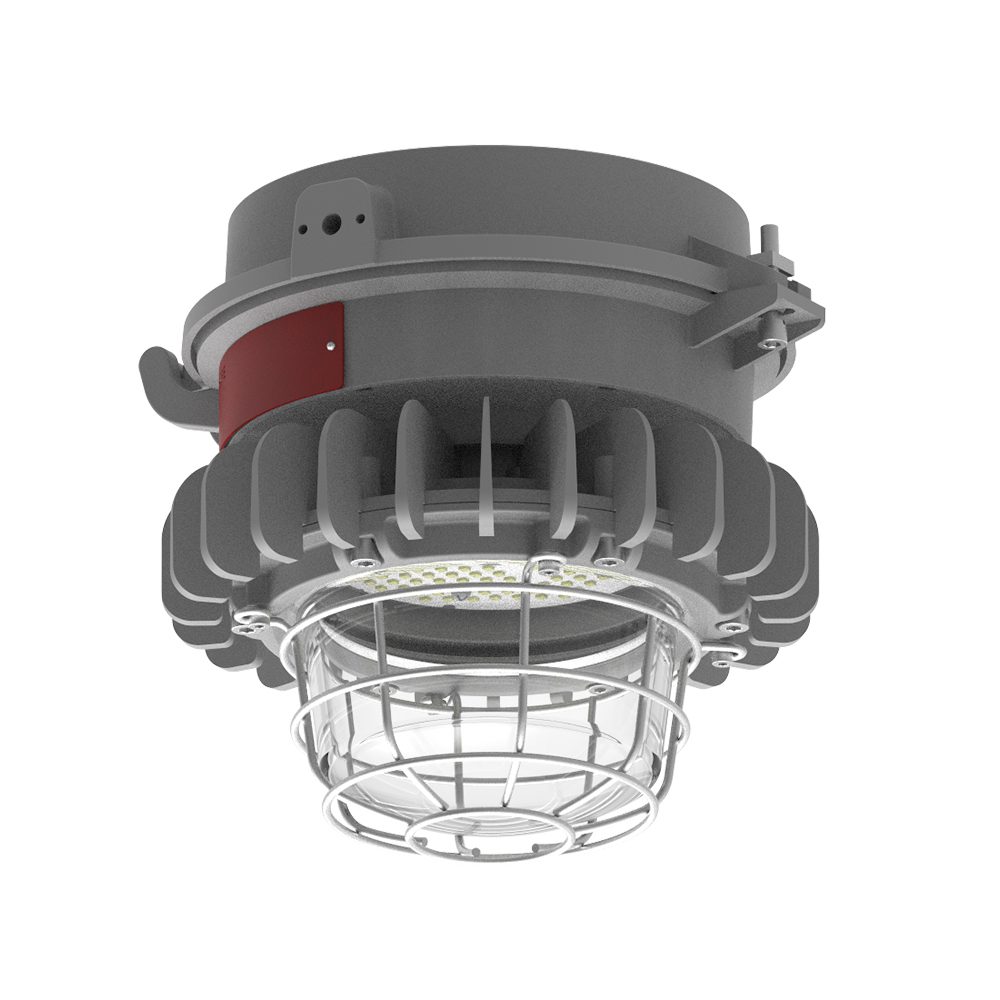

| Lens Material | Glass / PC / Drop lens |

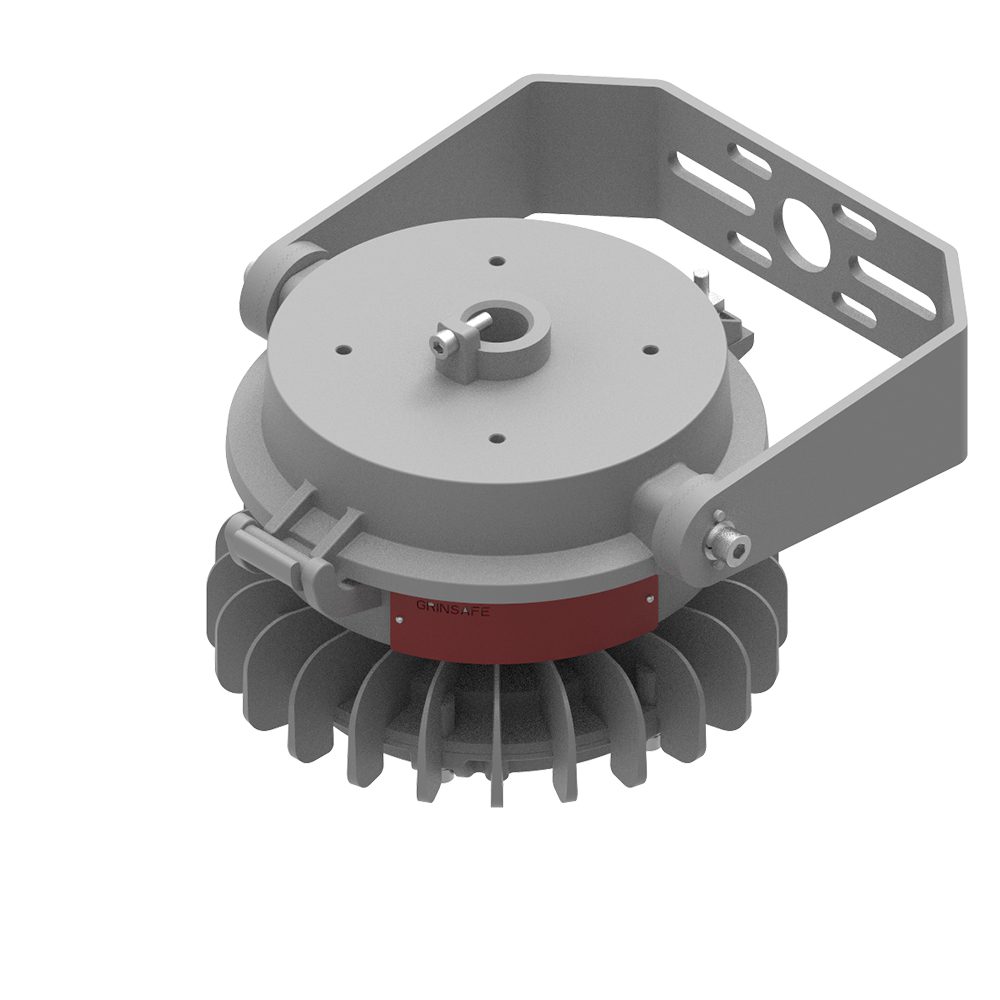

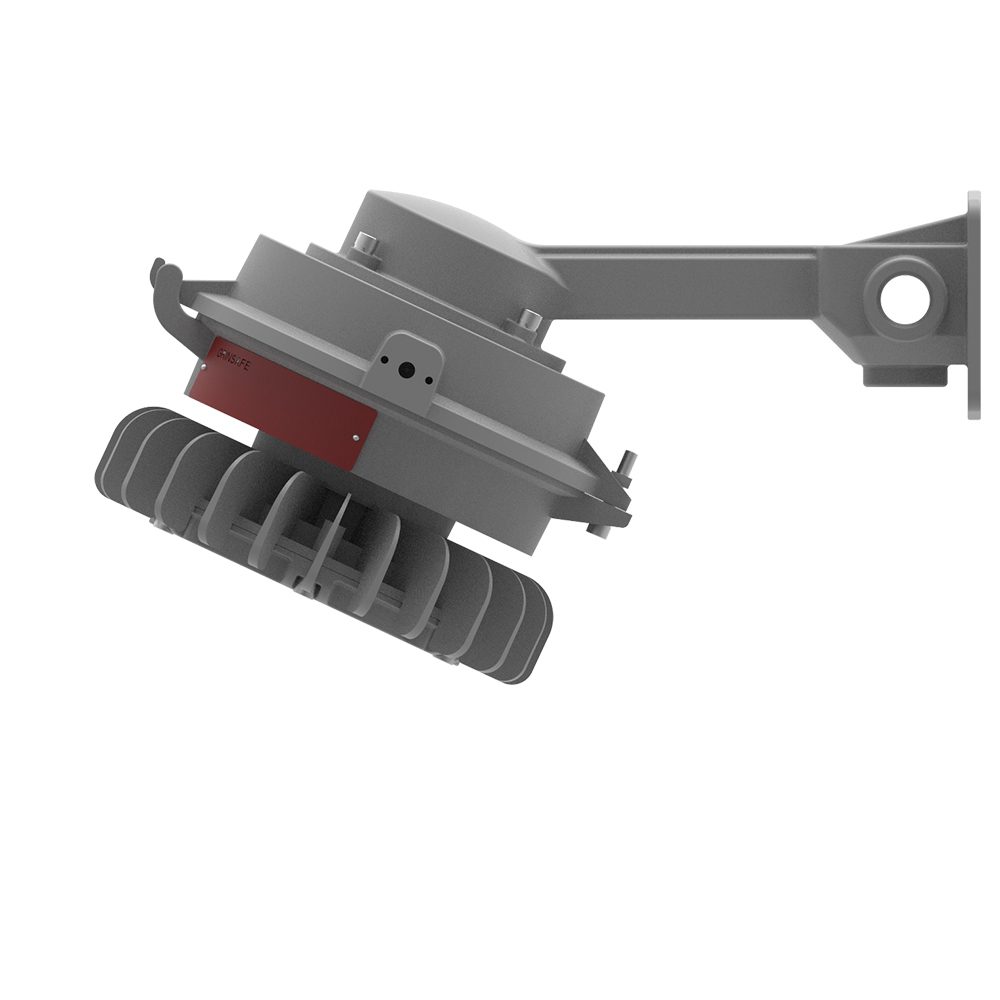

| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 3.5kg |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – LANCE™ GHRM
