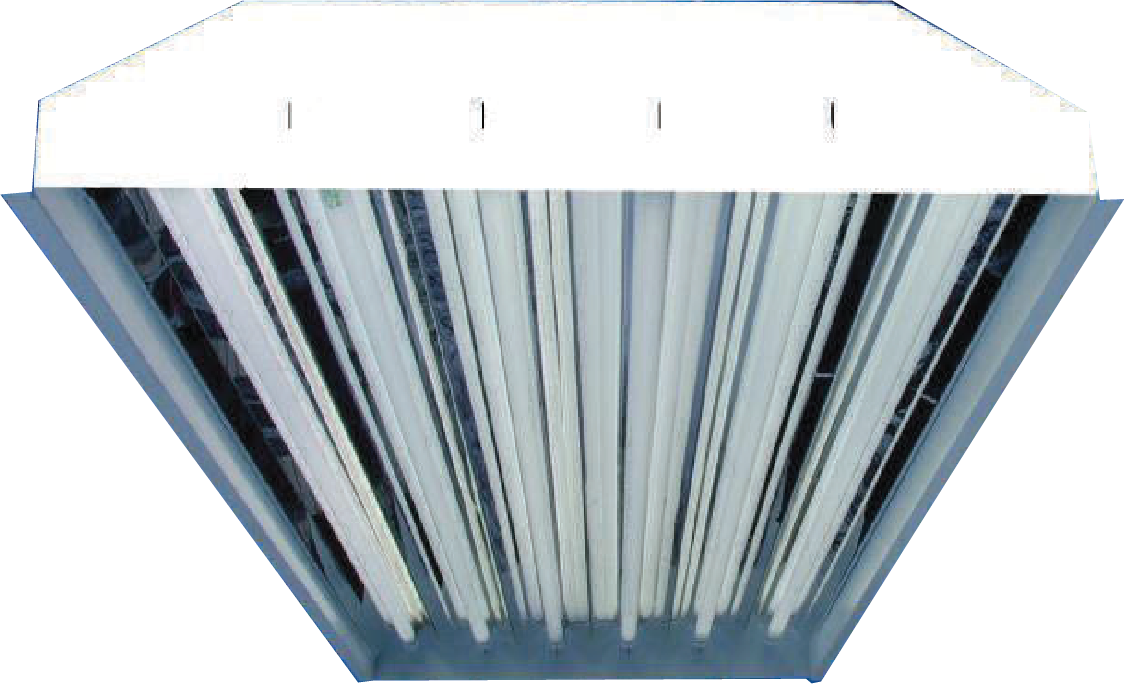

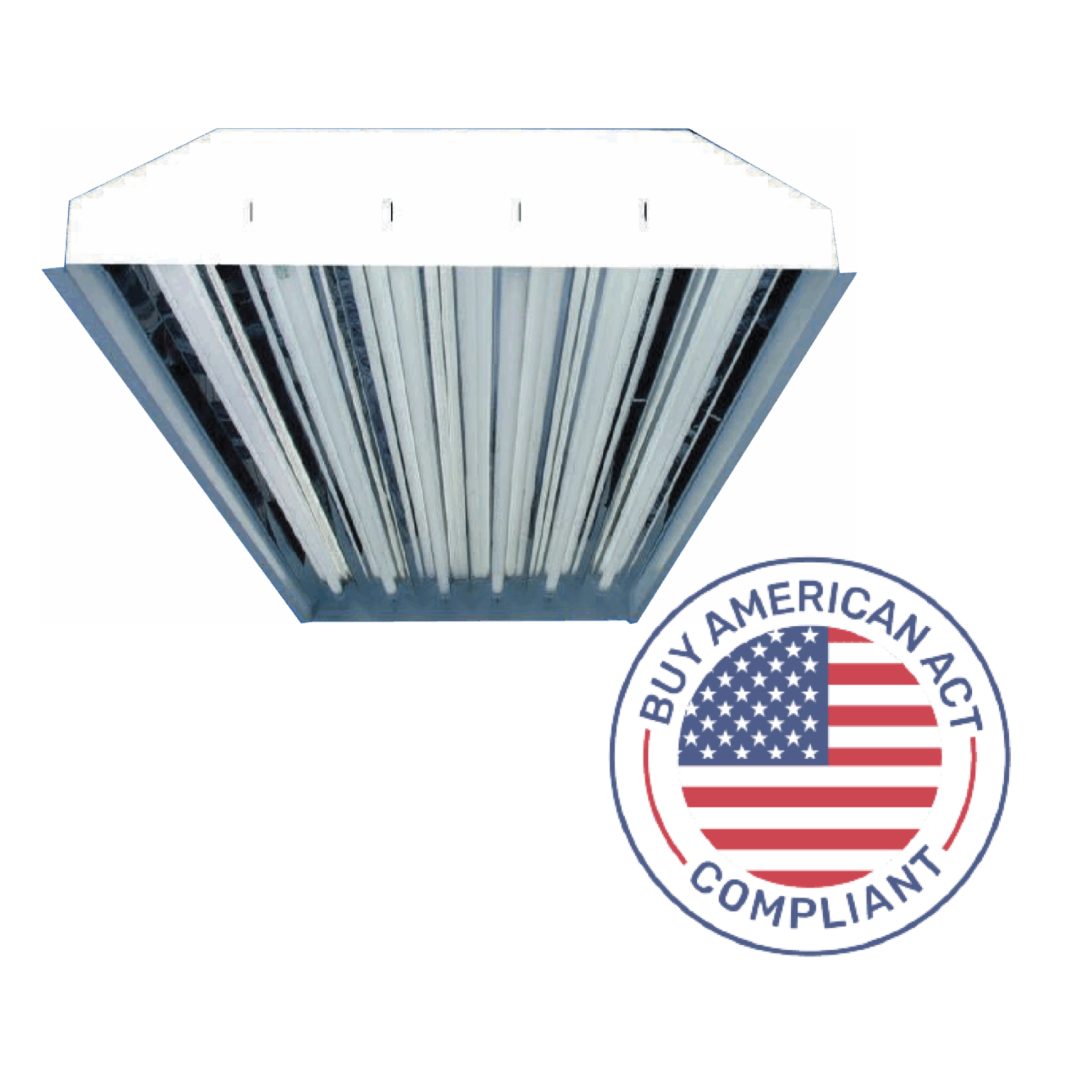

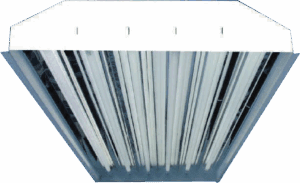

Made in America- Build Your Own High Bay
Create a custom LED lighting solution with Made in America- Build Your Own High Bay with Magnilumen Plus Light Engine, designed for maximum durability and performance.
This fully weatherproof LED unit is engineered for wet location use, capable of withstanding direct contact with water and high-pressure washdowns, thanks to its corrosion-resistant and waterproof construction. This Build Your Own High Bay fixtures are available in with complete build your own options for light engines, wattages, color temps, lens, and a variety of mounting and accessories.
Made in America- Build Your Own High Bay delivers dependable performance wherever rugged, weather-resistant lighting is required.
Applications
Perfect for demanding environments, it’s ideal for applications such as industrial facilities, commercial and manufacturing and warehouses.
FEATURES
| Wattages | Magnilumen Plus High Output: 2 bars- 120W; 4 bars- 240W 6 bars- 360W; 8 bars- 480W |
| Color Temps | Magnilumen Plus High Output: 40K, 50K; Special Order: 30K, 35K |
| Latches | Stainless Steel (included) |
| Input Voltage | 120/277V |
| Mounting | Stainless steel external hanging bracket. Must be drilled and sealed for each surface mounting or chain hanging application. |
| Listed | UL – Body Only |
| LED Lifespan (L70) | Magnilumen Plus High Output: 50,000 hours |
| Emergency Battery | Optional 20W |
| Lumens | See Lumens Chart |
| Warranty | 5 Year Magnilumen High Output |
| Number of Bars | 12 5/8”- 2, 4 19 7/8”- 4, 6, 8 |
| Construction | Designed from heavy gauge die formed aluminum for reduced weight and maximum heat dissipation. Heat removal vents are included to reduce heat buildup in electrical raceway. End Plates are designed from heavy gauge die formed steel for strength durability. Units are finished in a white polyester powder coating for maximum reflectivity. Reflector is designed from multifaceted 95% specular reflective aluminum designed to maximize efficiency and increase performance. |
| Options | EM + Emergency MS – Motion Sensing Sensors – Optional External PIR Sensor Internal Microwave Sensor Motion Sensor include AO Drivers |
Catalog Number
See Build Your Own on Spec Sheet
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms.
