CANNON™ GHRL LED Hazardous Location High Bay Light
The CANNON™ series High Bay light provides the most wide range of hazardous certifications, and tolerates the most hazardous conditions. It is designed for petro-chemical, oil and gas (including offshore), mining, metal processing and other environments with flammable and ignitable elements. Sturdy and compact housing with superior thermal design makes it operating longer and safer with outstanding performance. In addition, universal accessories, extreme-light-weight but heavy-duty structure, and 170 LPW efficacy are the highlights.
Features
- Easy installation. Single barrel nut and hinge design, one-hand operation for quick and easy installation
- LOW PROFILE. 196mm in height with maximum 34,000 lumen output fits perfectly for mounting in confined areas.
- High efficacy. Lumens efficacy up to 170Lm/W, reducing energy costs by up to 75% over conventional lamps.
- Retrofit friendly. Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
- Build to last. Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust.
- Expandability. Sensor can be attached on the light to realize the intelligent application.
| Rated Power | 80W / 100W / 150W / 200W |
|---|---|
| Input Voltage | AC100-277V, 347-480V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 13,600lm ~ 34,000lm |
| Luminous Efficacy | 170Lm/W |
| Beam Angle | T1 / T3 / 110° |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C~+65°C (80W 100W 150W ) -40°C~+60°C (200W ) |
| Lens Material | Glass / PC / Drop lens |

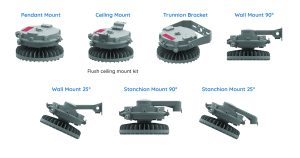

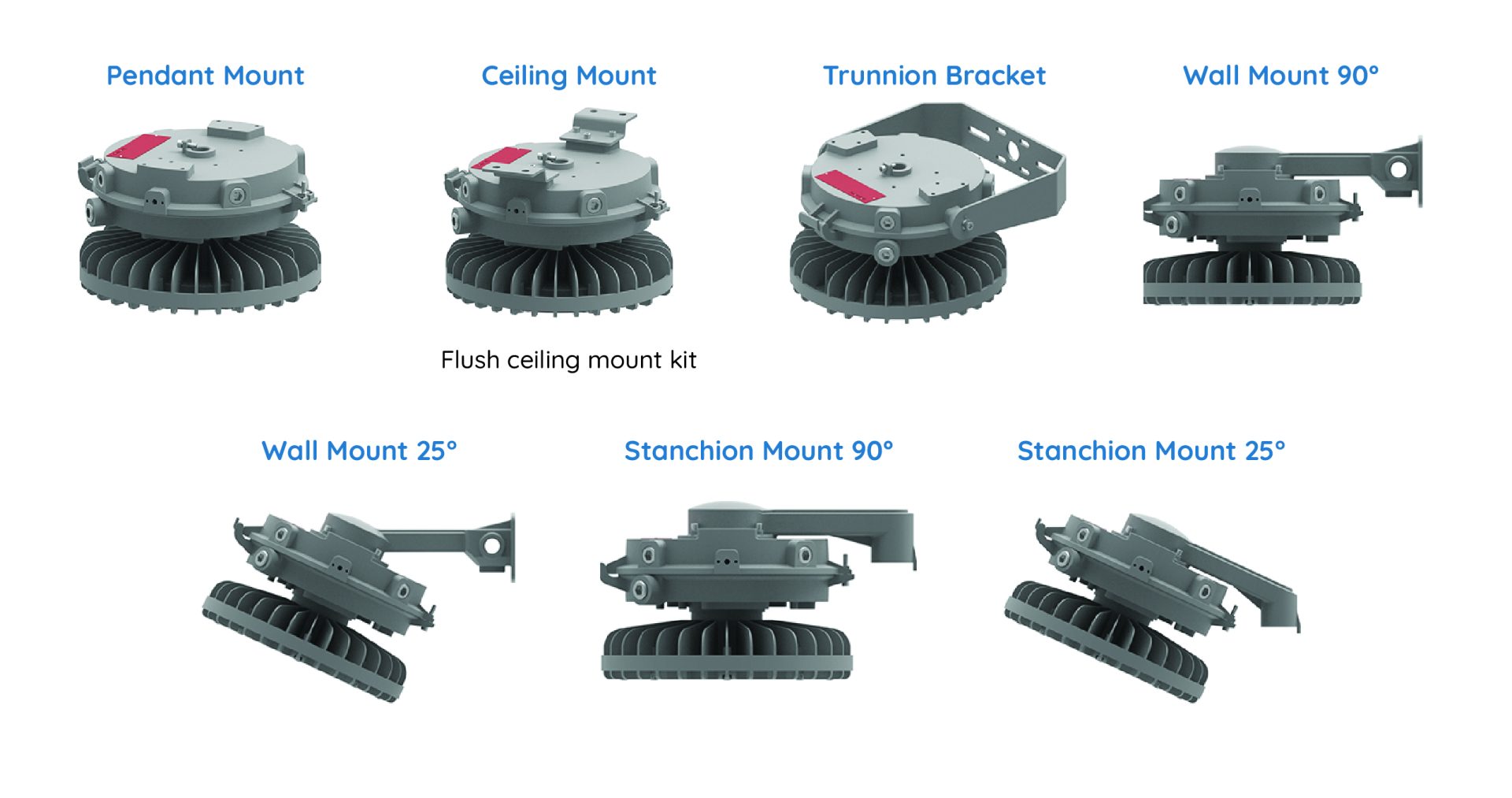

| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 8kg |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – CANNON™ GHRL High Bay
