SCOUT™ GHSL Combined Design LED Explosion Proof High Bay, Flood, Area, Low Bay or General Lighting
Share
SCOUT™ GHSL Combined Design LED Explosion Proof High Bay, Flood, Area, Low Bay or General Lighting

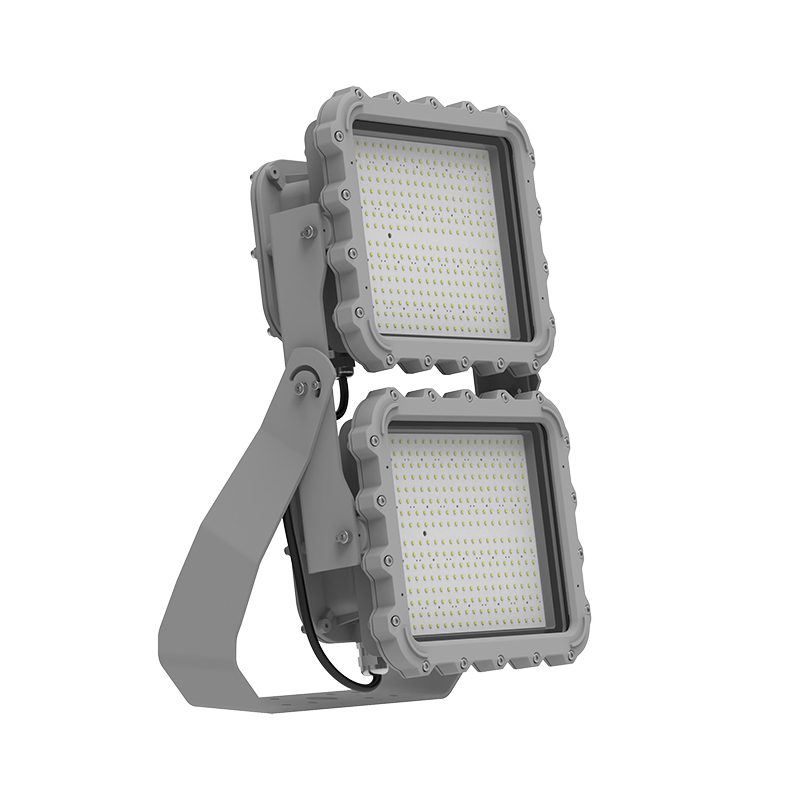

The SCOUT™ GHSL series Combined Design LED explosion proof flood lights are designed with a copper-free aluminum housing and high efficacy high output LEDs. UL844 class I division 1 certified for use in the most hazardous areas.

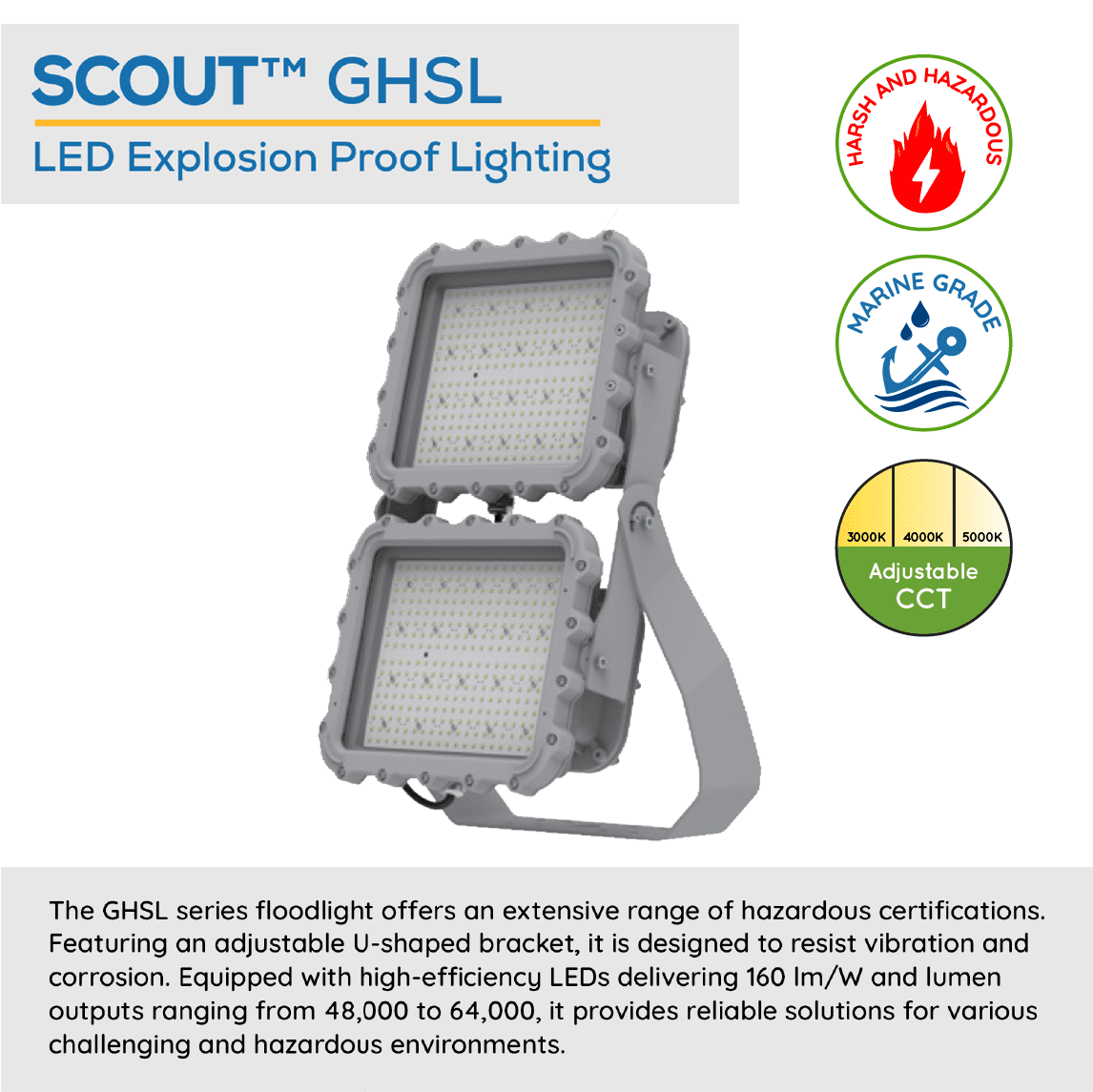

GHSL series combined design flood light provides the most wide range of hazardous location certifications. Adjustable U-shape bracket , vibration and corrosion-resistant, High efficiency LEDs 160lm/W, from 48,000 to 64,000 lumens, providing ideal solutions for a wide range of harsh and hazardous applications.
Features
- Combined design. Wattage ranges from 300W to 400W, lumen output up to 64,000lm.
- High Efficacy. It provides up to 160 lm/W reducing energy costs by up to 70% over conventional lamps.
- Multiple Optics. 30°, 60°, 90°, 110°, T2, T3, T4, different lens provide more choices for various scenarios.

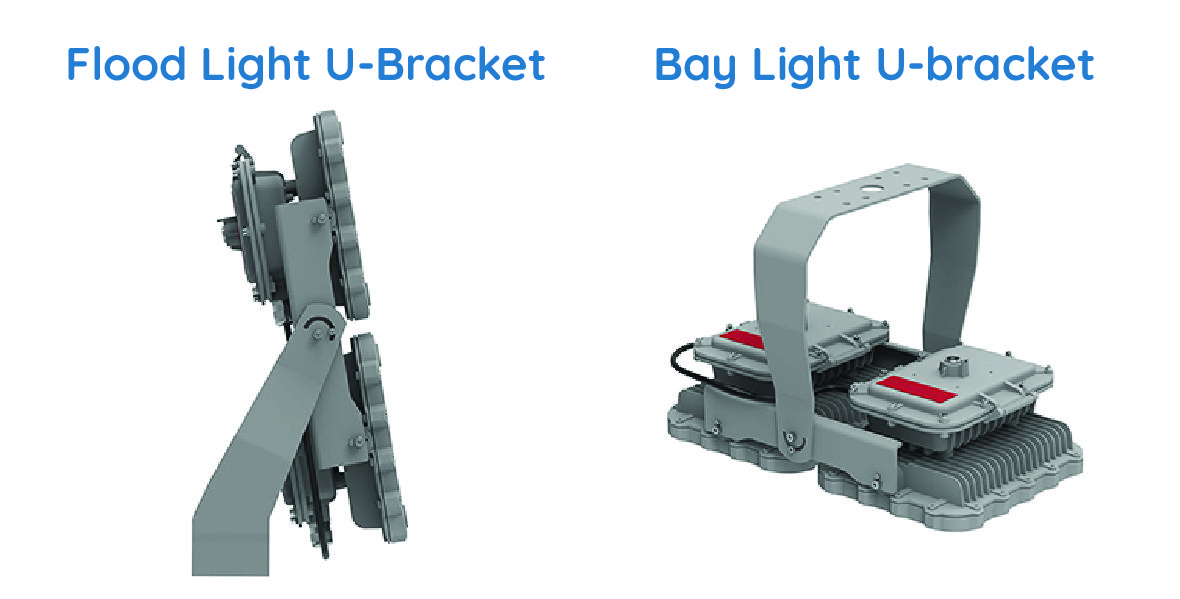

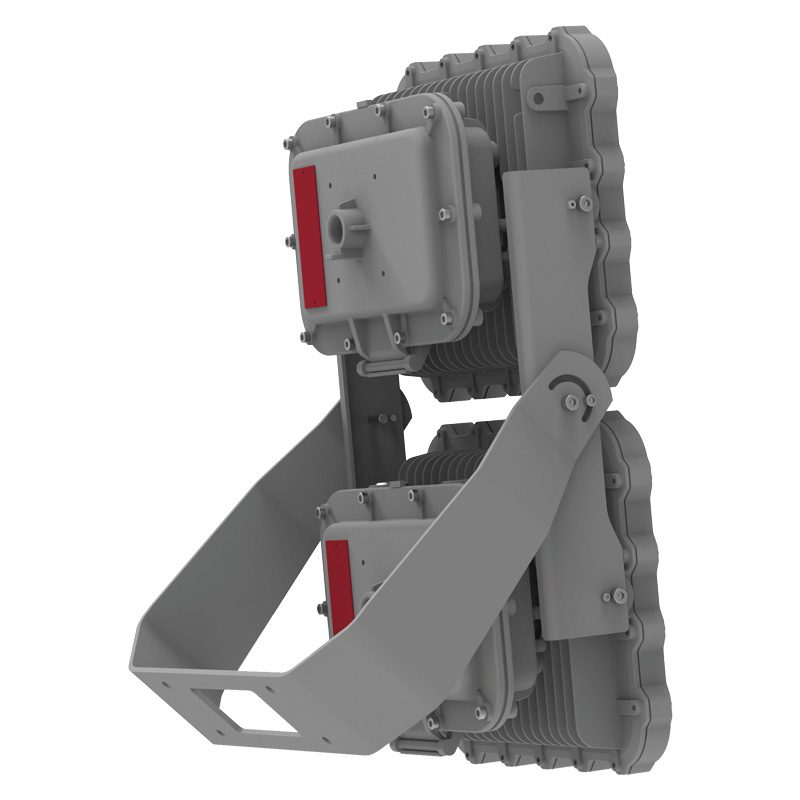

- Build to Last. U-shape bracket provides flexibility in angle adjustment, 360° rotated. vibration. Corrosion, impact and shock resistant,
- Terminal blocks fitted as standard for faster installation
| Rated Power | 300W / 400W |
|---|---|
| Input Voltage | AC100-277V, 347-480V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 48000lm / 64,000lm |
| Luminous Efficacy | 160Lm/W |
| Beam Angle | 30°/60°/90°/110°/T2/T3/T4 |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Ambient Operating Temperature |
-40°C~+60°C |
| Lens Material | Glass |
| Mounting Options | Angled bracket / Straight bracket |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 24kg |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – SCOUT™ GHSL Combined Design
