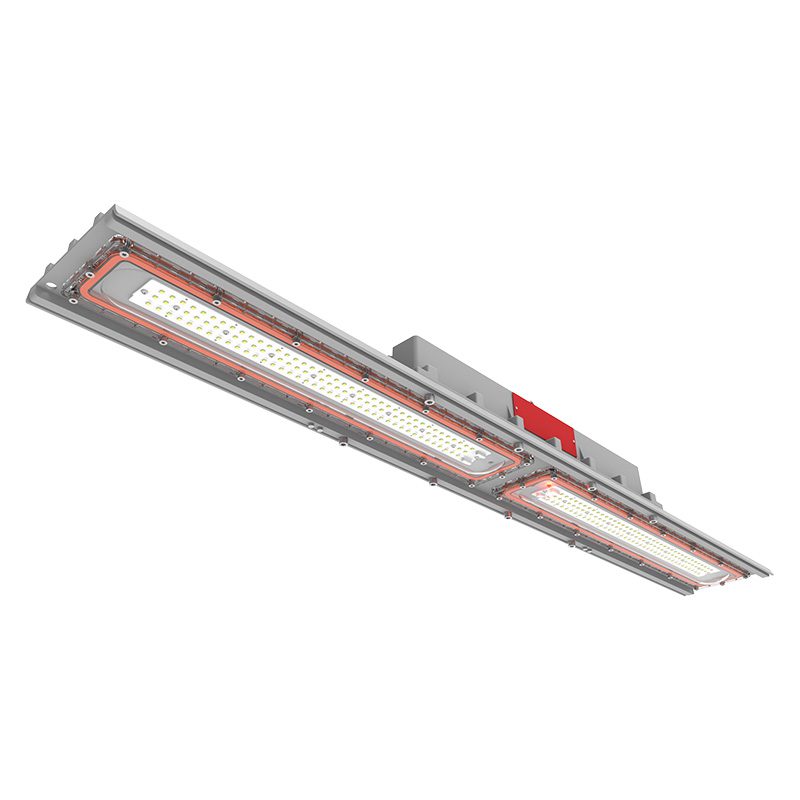

ARROW™ GHLV LED Hazardous Location Linear Light with Emergency Battery Back-up
The ARROW™ GHLV series Linear, unique hinge-design of driver housing LED, features the industry’s most versatile and flexible mounting options. The Arrow is the ideal solution for many harsh, high vibration, and corrosive environments. Reliable and long-lifetime LiFePO4 battery providing 90-minute runtime for emergency applications.
Features

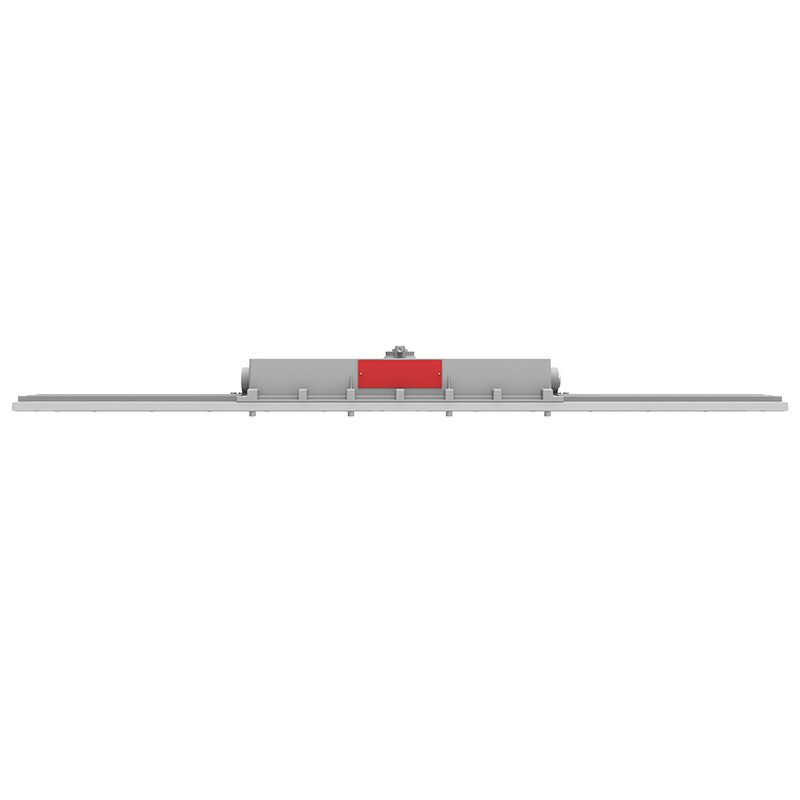

- Low Profile and Lighter. 100mm fixture height, perfect for mounting in confined or low height areas.

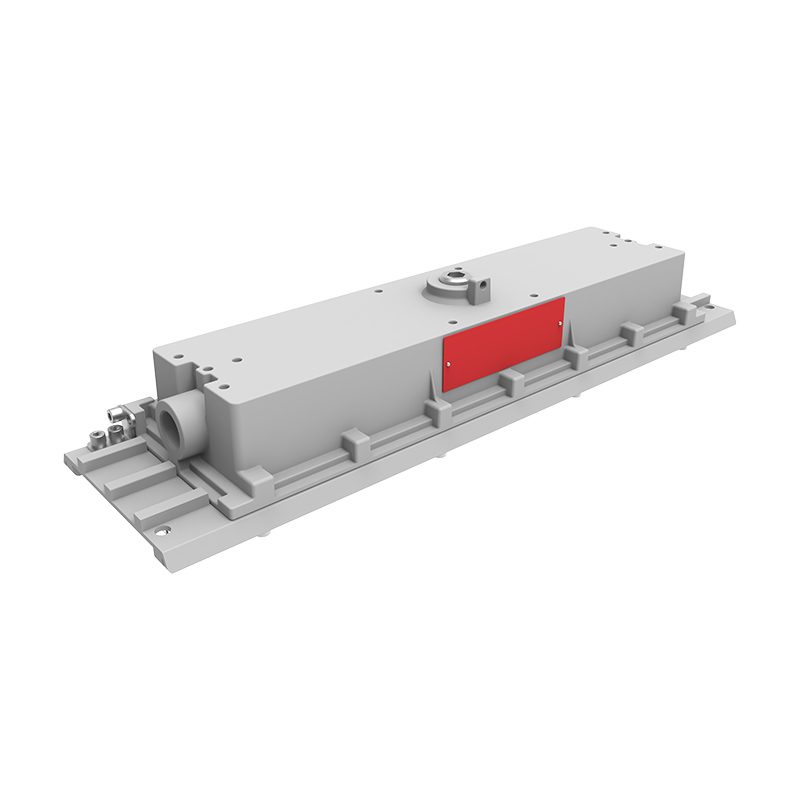

- Simple Installation. Clamshell design easy access to drivers and multiple entries standard for easy through wiring.
- High Output. 2 models from 5,100 to 13,600 lumens with up to 170Lm/W.
- Terminal blocks fitted as standard for faster installation
| Rated Power | 30W / 40W / 45W / 60W / 80W |
|---|---|
| Input Voltage | AC120-277V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Emergency Power | 9W / 15W |
| Emergency Lumen Output | 9W, ≥ 1,400lm / 15W, ≥ 2,400lm |
| Rated autonomy | ≥ 90 mins |
| Lumen Output | 5,100lm ~ 13,600lm |
| Luminous Efficacy | 170Lm/W |
| Beam Angle | 30° / 60° / 90° / 110° / T2 / T3 / T4 |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -20°C ~ +50°C (9w) / 0°C ~ +50°C (15W) |
| Lens Material | Polycarbonate |

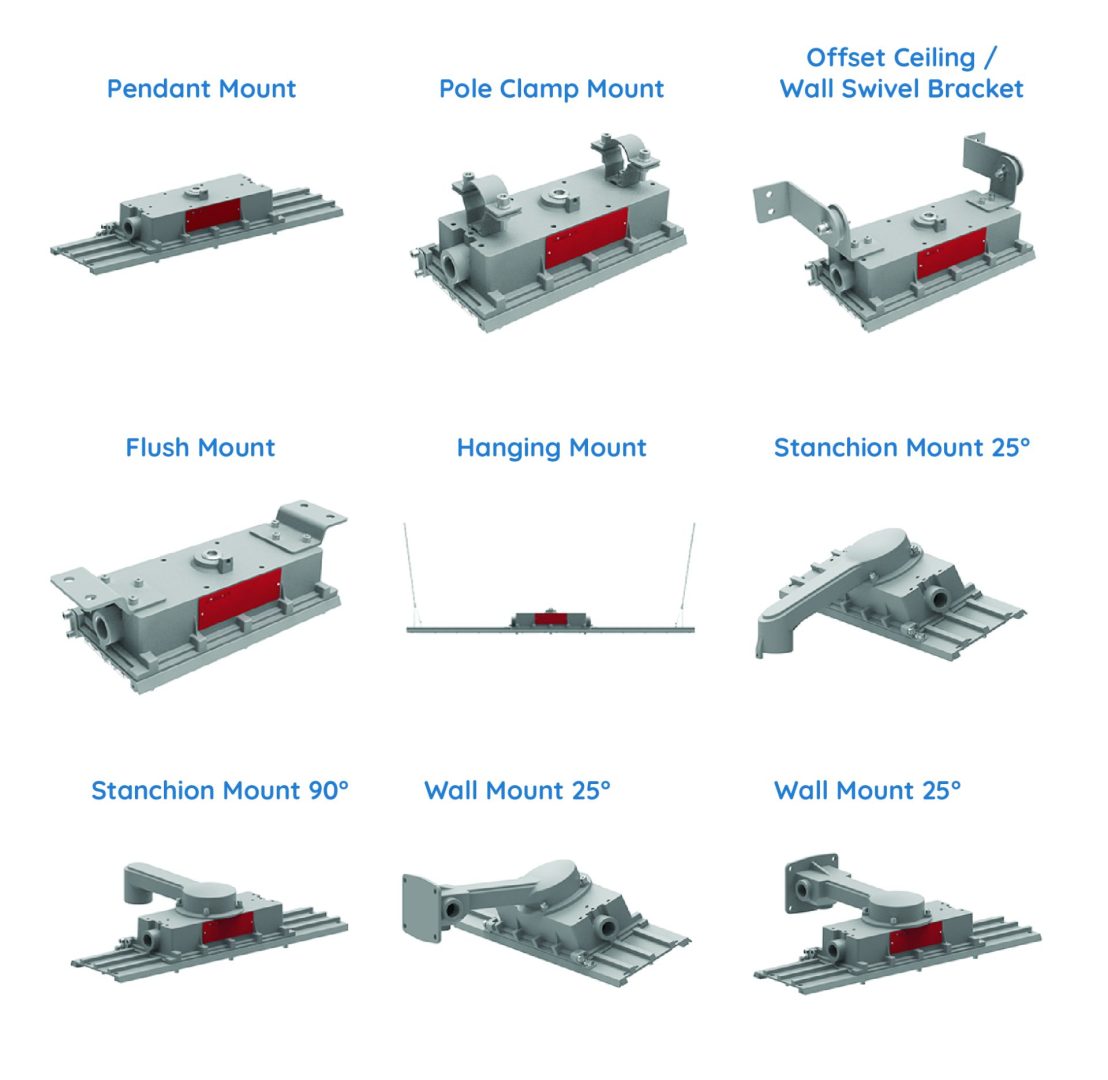

| Mounting Options | Pendant / Ceiling / Wall / Hanging / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 4.6kg (2 Ft) / 6.2 kg (4 Ft) |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – ARROW™ GHLV with Emergency Battery Back-up
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable,
and non-refundable once the order has been placed and confirmed. We encourage you to carefully review all product specifications,
dimensions, and details prior to placing your order. If you have any questions, our team is happy to assist before the order is finalized.
By completing your purchase, you acknowledge and accept these terms.
