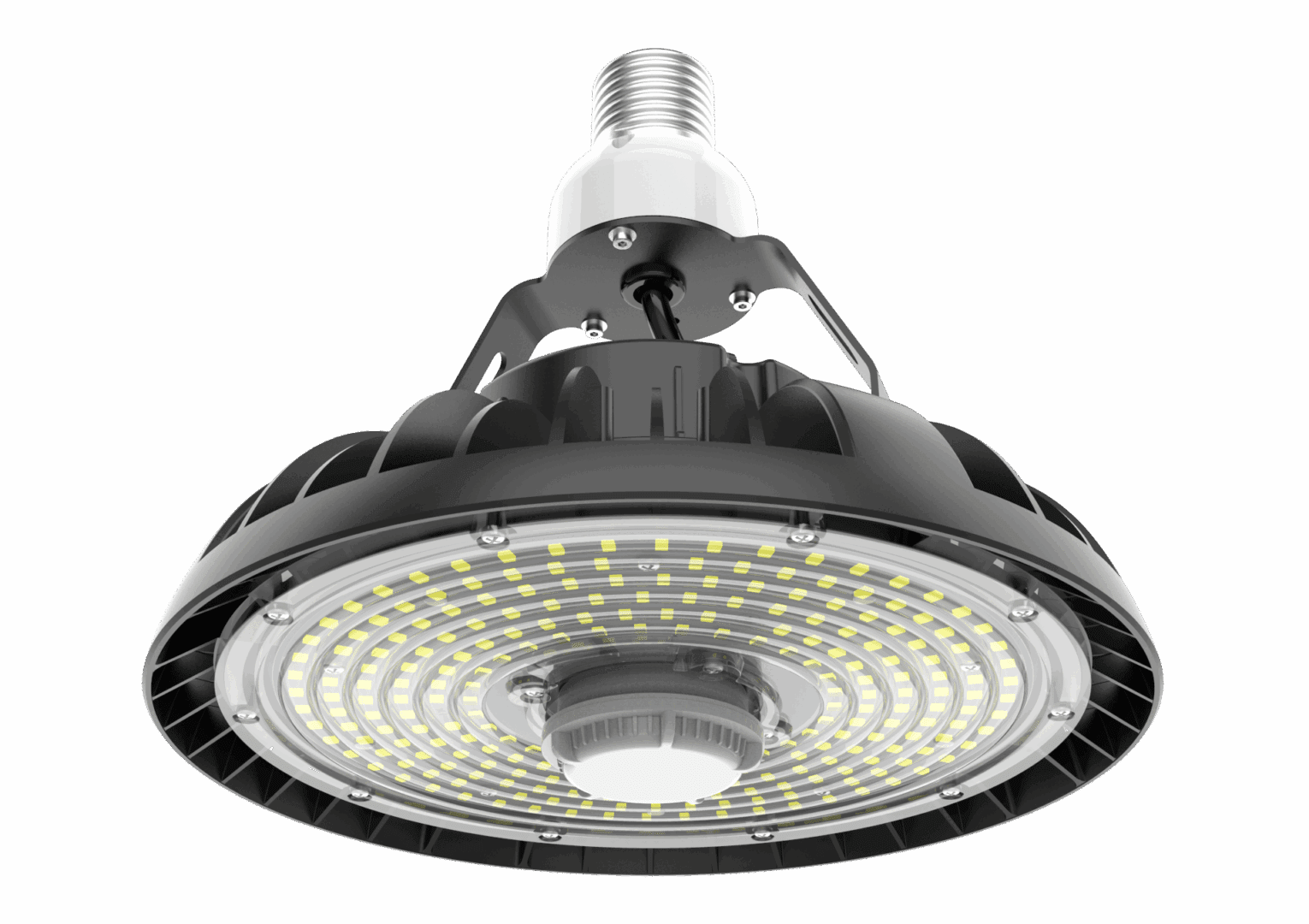

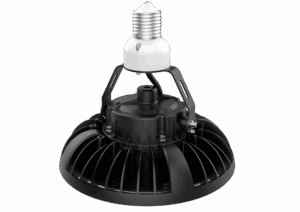

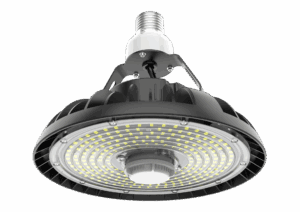

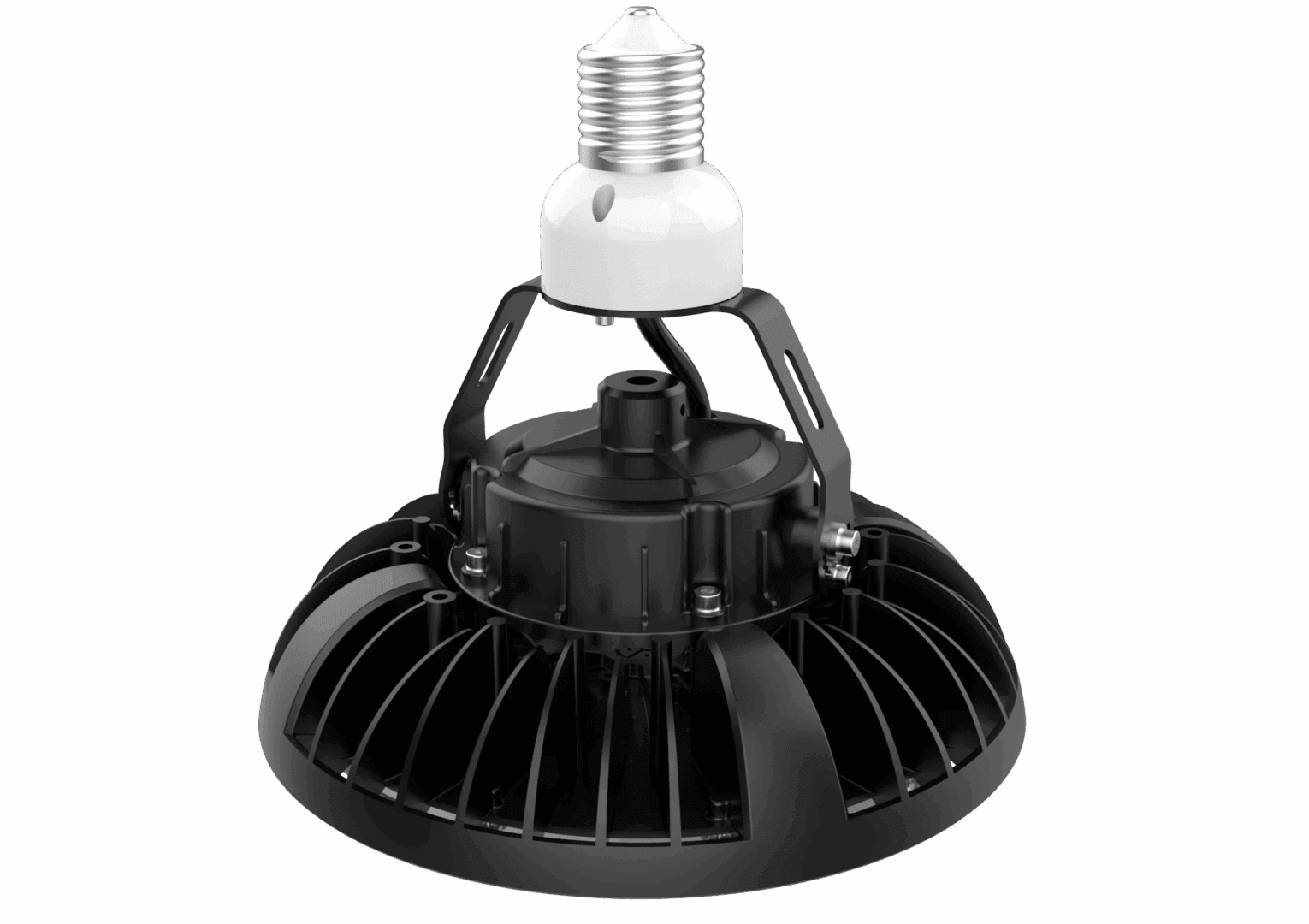

Retrofit UFO Socket Based E39 High Bay
Share

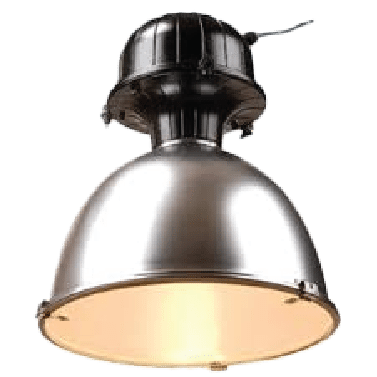

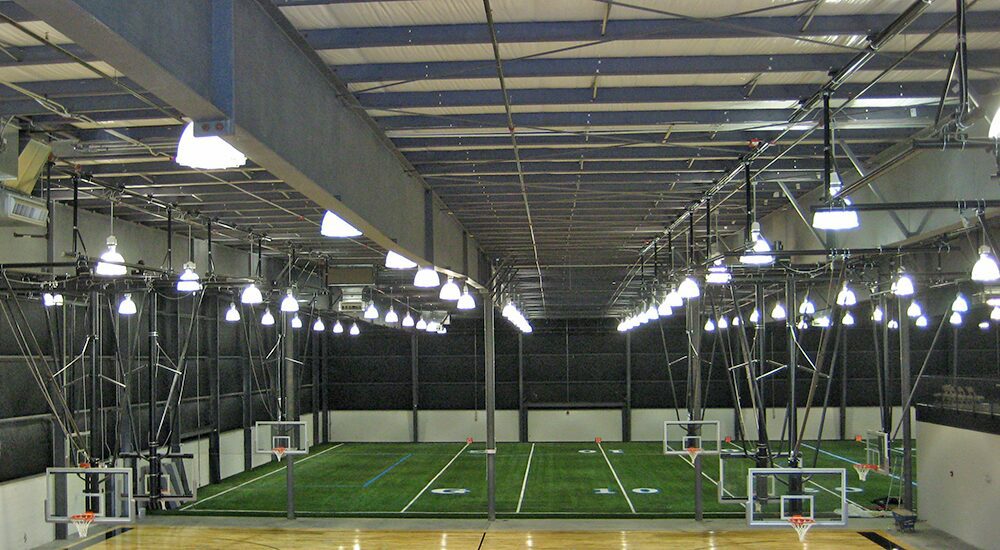

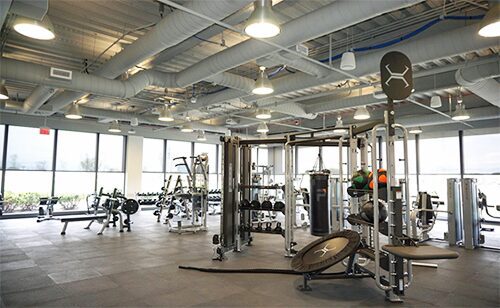

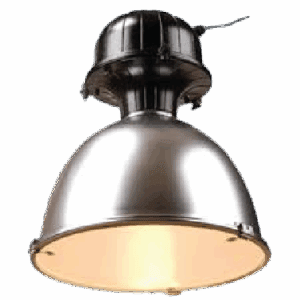

The newest lighting solution for sports facilities, commercial retail spaces, and warehouses is here. The Retrofit UFO Socket Based E39 High Bay features field-selectable wattage and color temperature, allowing it to adapt precisely to each application. Turn an existing HID Hi Bay into a New UFO retrofit
Installers can choose from multiple wattage and CCT options during installation, making the fixture fully adjustable for different ceiling heights, task requirements, and lighting conditions throughout the facility.
Note: Ballast Must be Bypassed for installation.
Features
| Wattages | 100W- 100/80/60W selectable 150W- 150/120/100W selectable 240W- 240/200/150W selectable |
| Color Temperatures | 3000K, 4000K, 5000K selectable |
| Input Voltage | 120/277V, 120/347V, 277/480V |
| Efficacy | 190 lm/W |
| CRI | 70 |
| Surge Protection | 3kV driver |
| Beam Angle | 120 degrees |
| Dimming | 0-10V |
| Emergency Back up | 40W – EM |
| Warranty | 5 year |
| Listed | ETL |
| Lumens | 60W- 11,400; 100W- 19,000; 120W- 22,800; 150W- 28,500; 200W- 38,000; 240W- 45,600 |
| Operating Temperature | -30o to 45oC; -22o to 121oF |
| Base Type | E39 |
Catalog Number
See Spec Sheet for Build Your Own
Special Order Item Disclaimer
Special order items are custom-ordered specifically to meet your requirements. As such, these items are non-cancelable, non-returnable, and non-refundable
once the order has been placed and confirmed. We encourage you to carefully review all product specifications, dimensions, and details prior to placing your order.
If you have any questions, our team is happy to assist before the order is finalized. By completing your purchase, you acknowledge and accept these terms.
