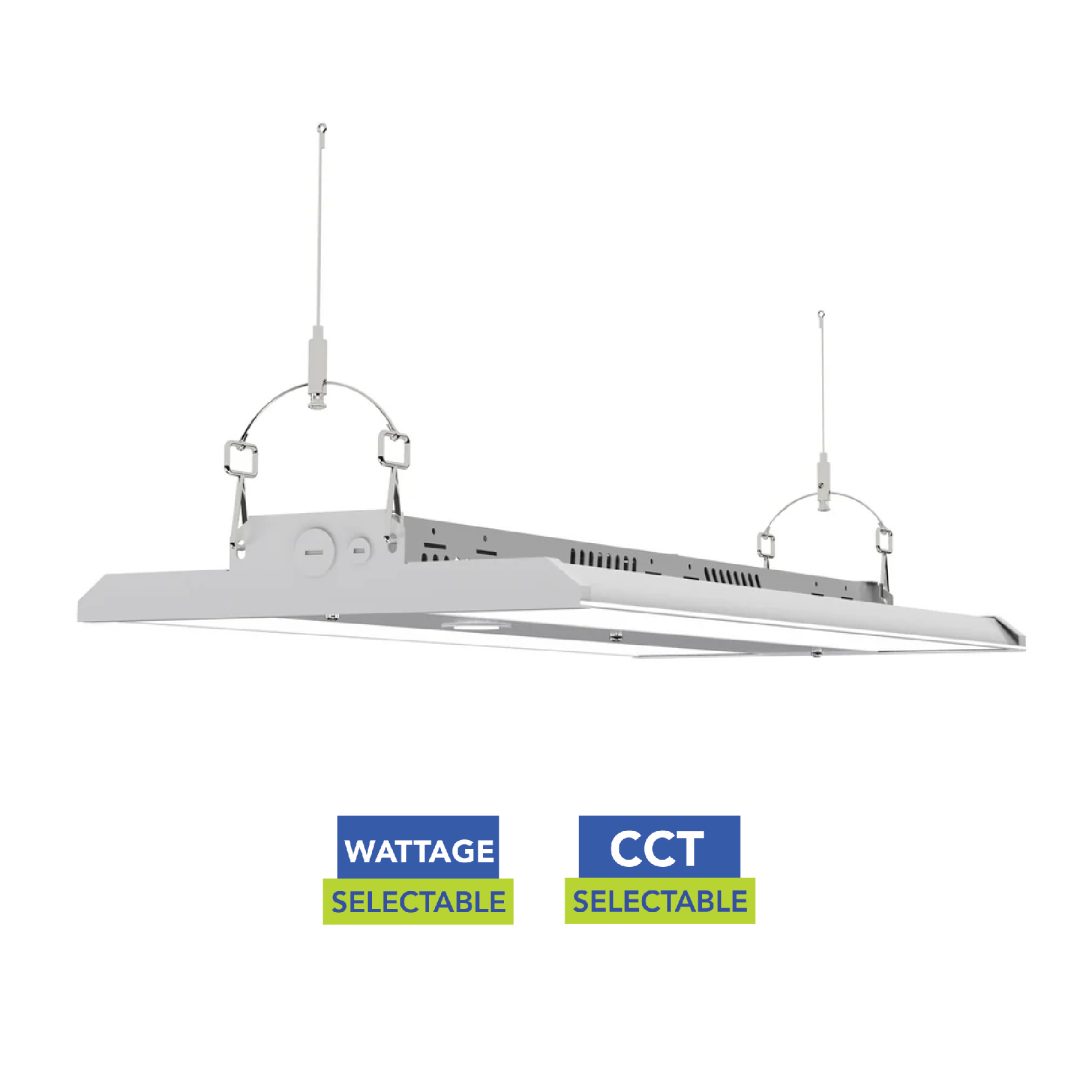

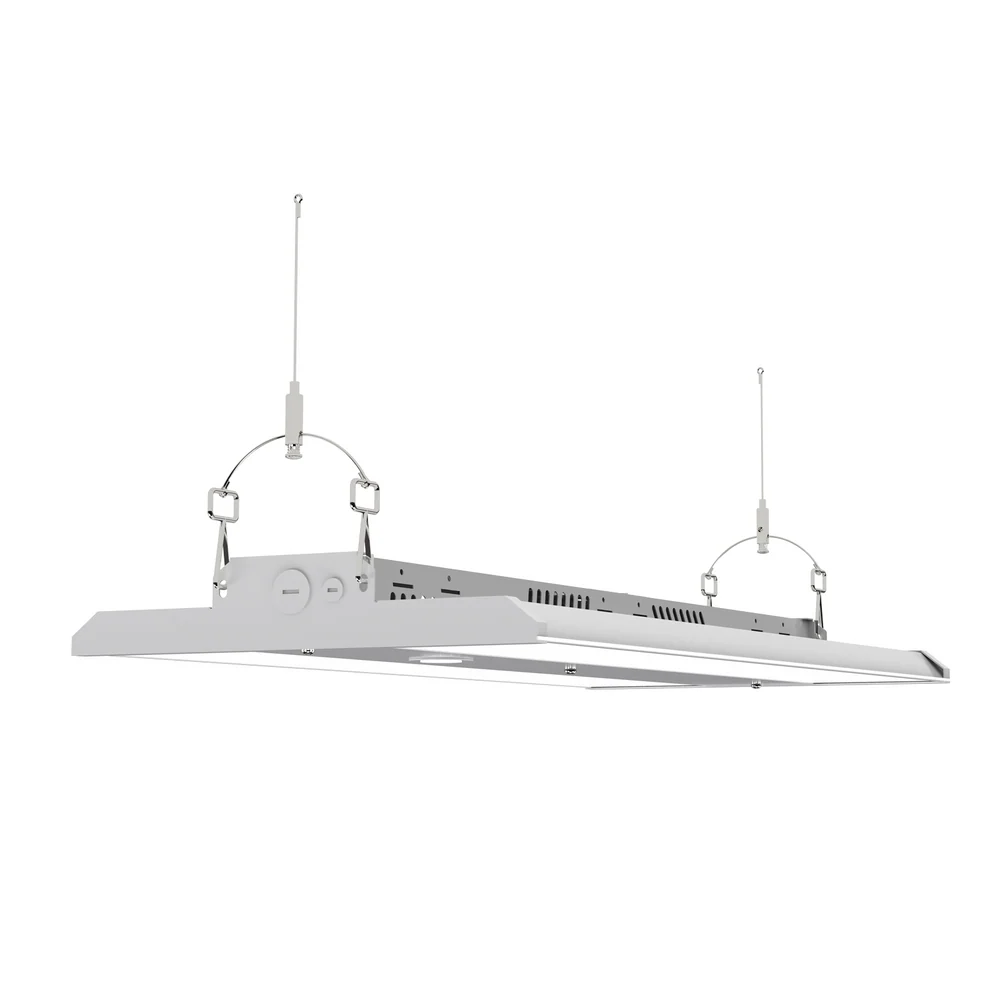

LED LINEAR HIGH BAY – SENSOR READY – 3 WATTAGE + 2 CCT SELECTABLE
Share

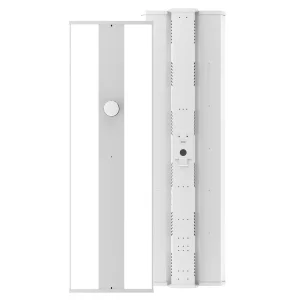

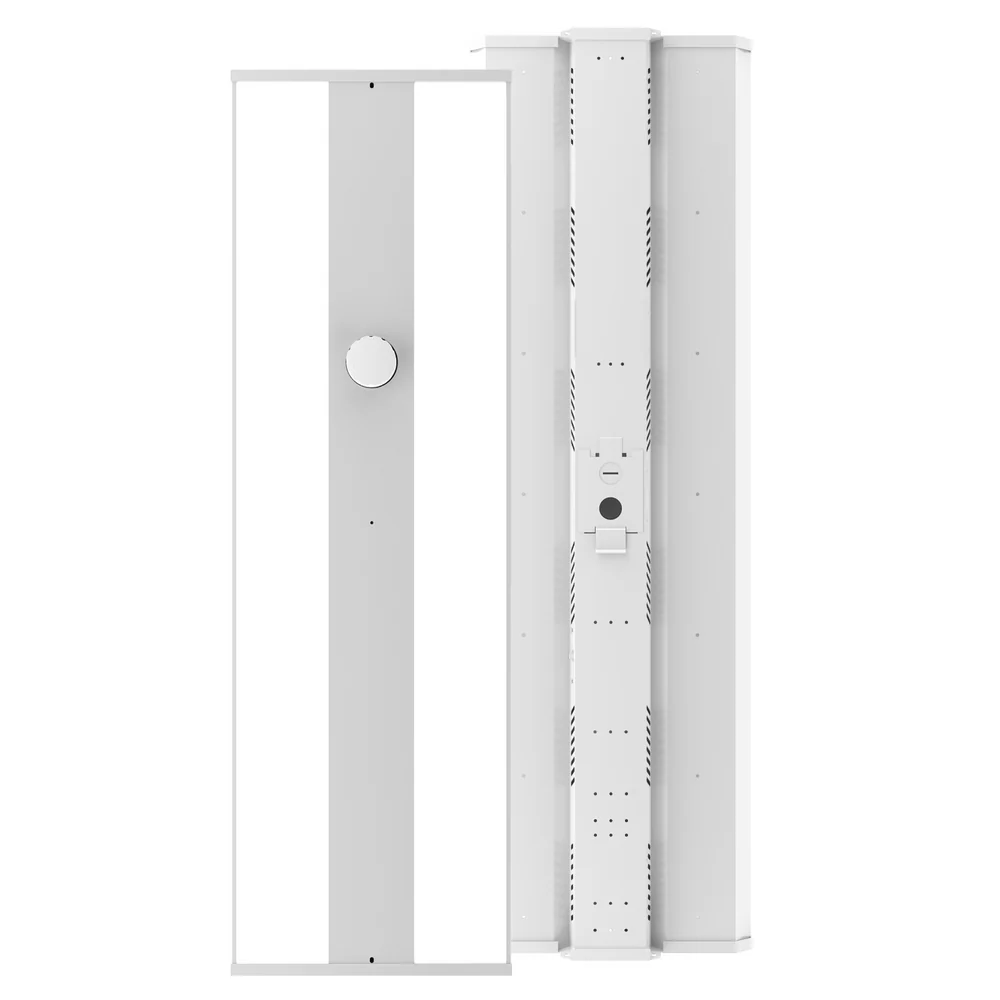

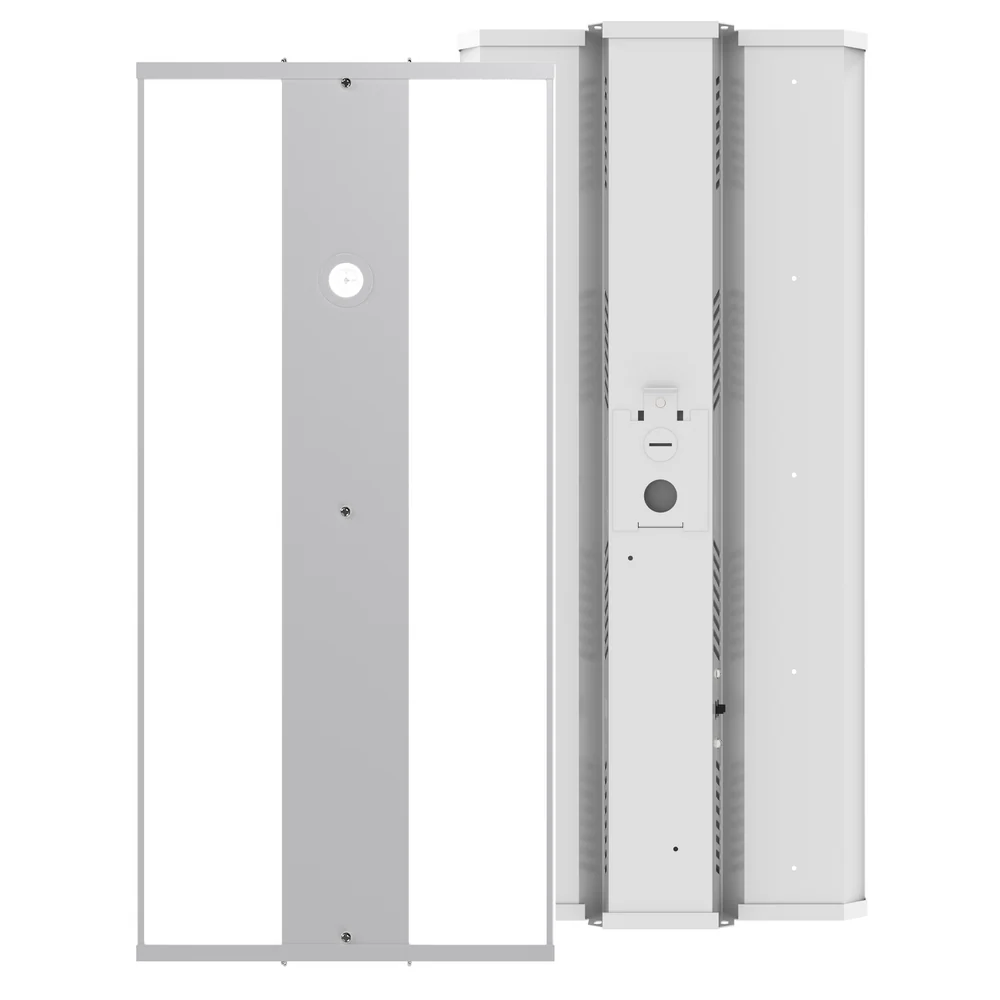

The IG Series LED Linear High Bay delivers powerful, energy-efficient illumination with 3 wattage and 2 color temperature selectable technology, providing flexibility for a wide range of commercial and industrial applications. Available in 1×2-foot models with selectable wattages of 120W/165W/220W and 1×4-foot models with selectable wattages of 165W/225W/325W, both configurations feature selectable color temperatures of 4000K and 5000K. ETL Listed and sensor-ready, the IG Series offers enhanced lighting control flexibility while delivering reliable, uniform illumination for demanding high-ceiling environments. Designed for performance and versatility, these fixtures are an excellent solution for both new construction and LED retrofit projects.
Applications
Ideal for warehouses, manufacturing facilities, distribution centers, gymnasiums, large retail spaces, and industrial facilities.
FEATURES
| Wattage Selectable | 1×2- 220/165/120W 1×4- 325/225/165W |
| Color Temperature Selectable | 40K, 50K |
| Input Voltage | 120/277V |
| Efficacy | 140 lm/W |
| Dimming | 0-10V |
| CRI | 80 |
| Lumens | 120W- 16,800; 165W- 23,100; 220W- 30,800; 225W- 31,500; 325W- 45,500 |
| LED Lifespan (L70) | 50,000 hours |
| Warranty | 5 year |
| Listed | ETL |
| Mounting | Hanging |
| Sensor Ready | Microwave Sensor, PIR Sensor, Bluetooth PIR Sensor Bi-Level DIM Dusk/Dawn |
| Sensor Remote | Sold Separately |
| Dimensions | 1×2- 23.74” x 11.02” x 1.89” 1×4- 47.76” x 11.02” x 1.89” |
Catalog Number
See Build Your Part Builder on Spec Sheet
