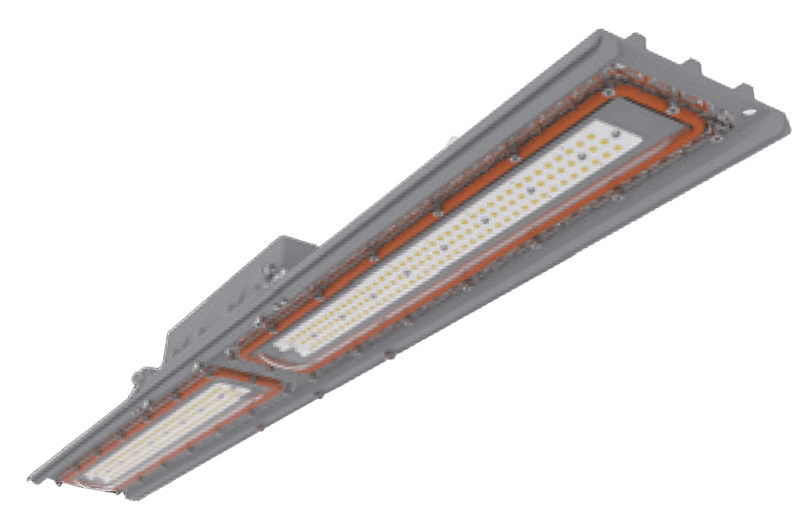

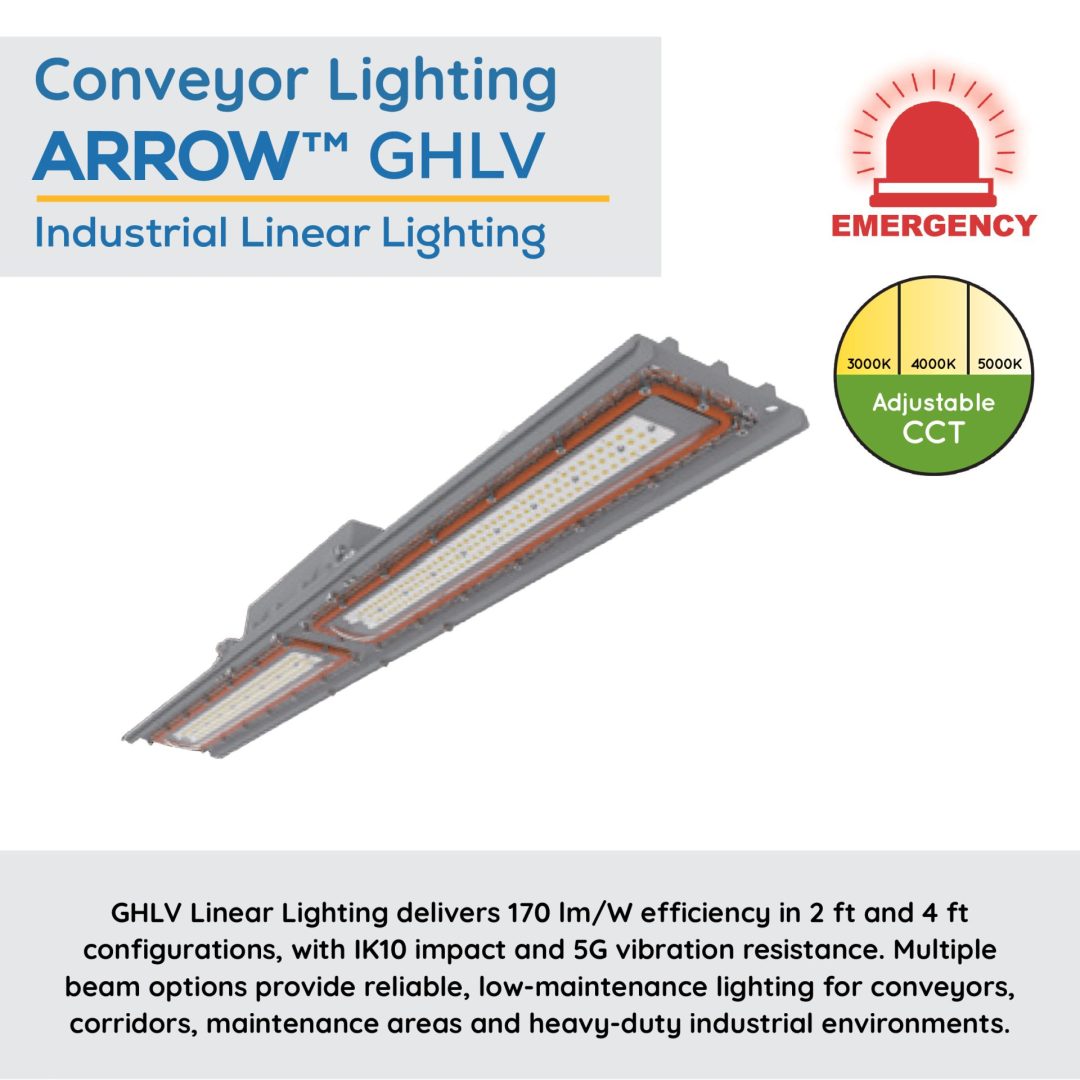

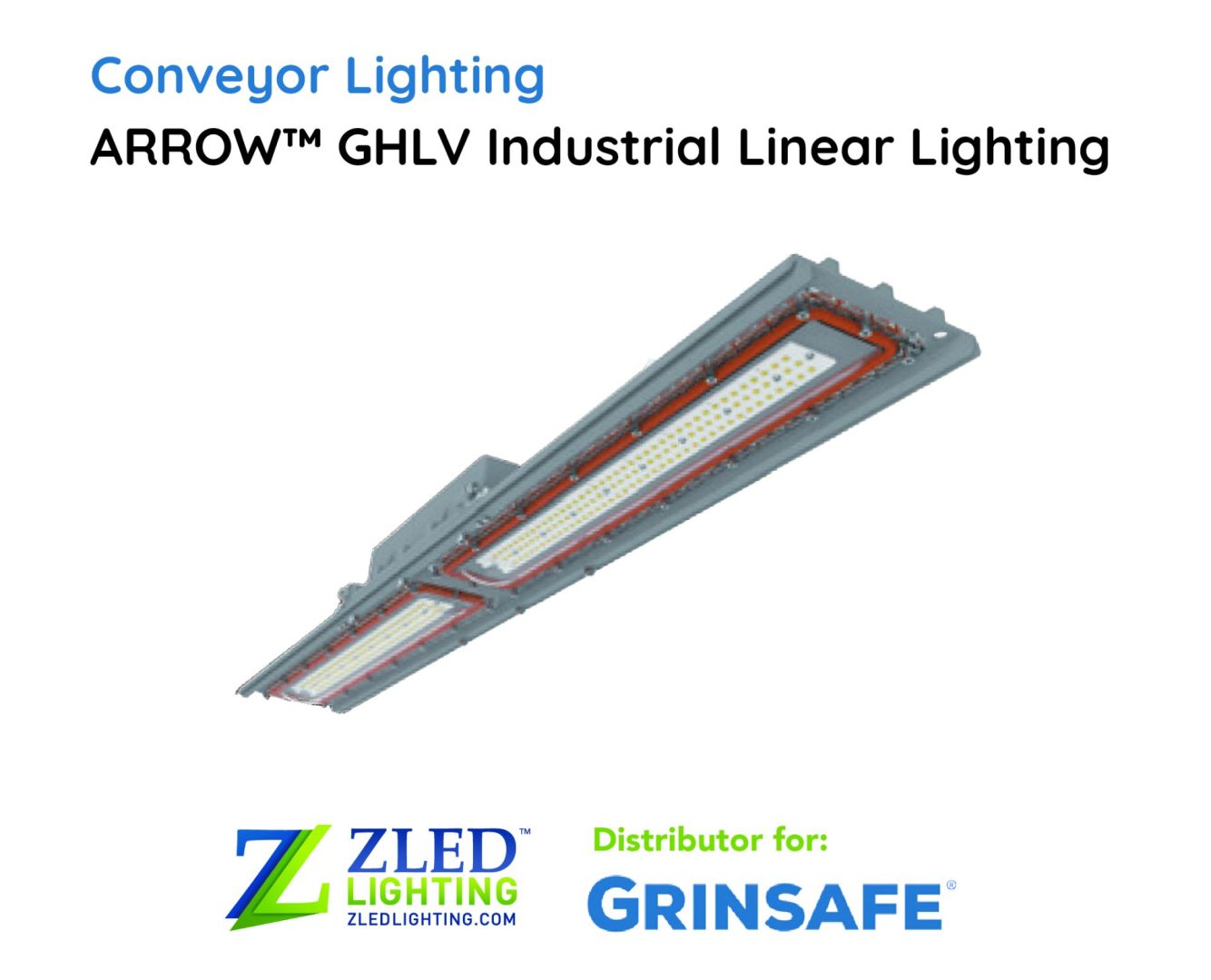

ARROW™ GHLV Industrial Linear Conveyor Lighting with Emergency Battery Back-up
The ARROW™ GHLV series Linear Lighting delivers 170 lm/W efficiency in 2 ft and 4 ft configurations, with IK10 impact and 5G vibration resistance. Multiple beam options provide reliable, low-maintenance lighting for
conveyors, corridors, maintenance areas and heavy-duty industrial environments.
Features
- Clamshell design easy access to drivers and multiple entries standard for easy through wiring.
- Low profile, 100mm fixture height only
- Rugged die-cast aluminum housing
- Durable baked epoxy/polyester powder coating
- Heat, shock, impact and UV resistant polycarbonate lens
- Universal voltage: AC100–277V / 347–480V, 50/60Hz
- High efficacy up to 170 lm/W; output up to 34,000 lm
- Multiple beam angles options for flexible light distribution
- Selectable CCT: 3000K / 4000K / 5000K
- Optional wildlife-friendly amber light
- 10kV surge protection standard; 20kV optional
- 1–10VDC dimming standard
- Optional self-testing emergency battery backup
- IP67, IK10, 5G vibration and NEMA 4X rated
- Withstands hose-directed water pressure up to 2,000 PSI
- 1,000-hour salt spray tested in accordance with ASTM B117-11
- 5-year limited system warranty
- L70 > 150,000 hours at 25°C
| Rated Power | 2ft – 30W / 40W; 4ft – 45W / 60W /80W |
|---|---|
| Input Voltage | AC120-277V |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Emergency Power | 9W / 15W |
| Emergency Lumen Output | 15W , ≥2,420lm
9W , ≥1,350lm (cold weather) |
| Rated autonomy | ≥ 90 mins |
| Lumen Output | 5100lm ~ 13,600lm |
| Luminous Efficacy | 170Lm/W |
| Beam Angle | 30° / 60° / 90° / 110° / T2 / T3 / T4 |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Operating Temperature | -40°C ~ +70°C |
| Lens Material | Polycarbonate |
| Mounting Options | Pendant / Ceiling / Wall / Hanging / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 4.6kg (2 Ft) / 6.2 kg (4 Ft) |
| Dimming | Standard 1 – 10VDC |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – ARROW™ GHLV with Emergency Battery Back-up
