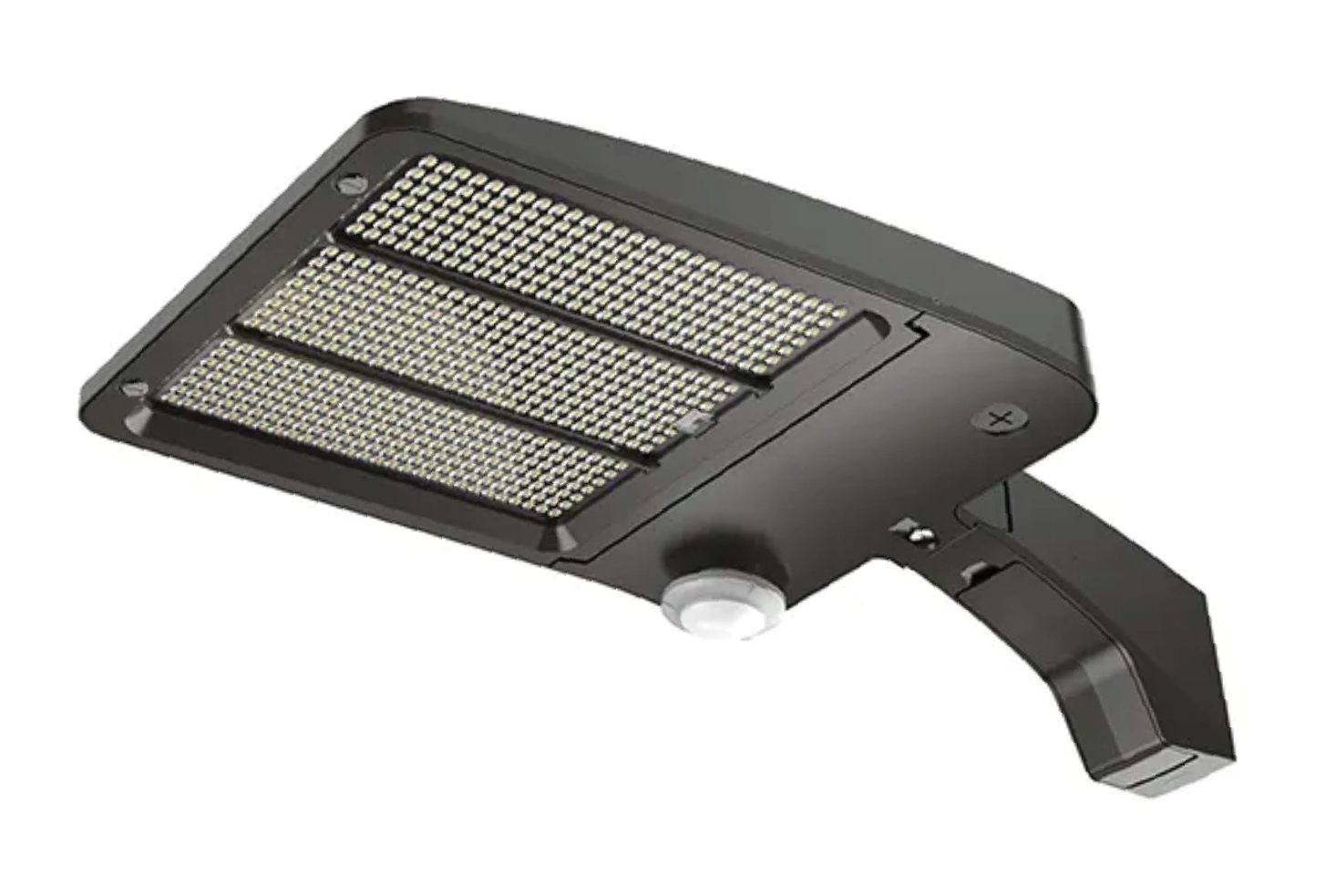

LED Area Light Wattage and CCT Selectable – Changeable Lenses – MK Series
Share

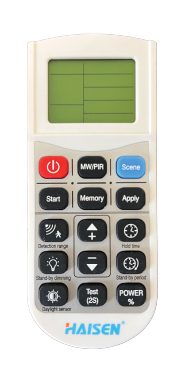

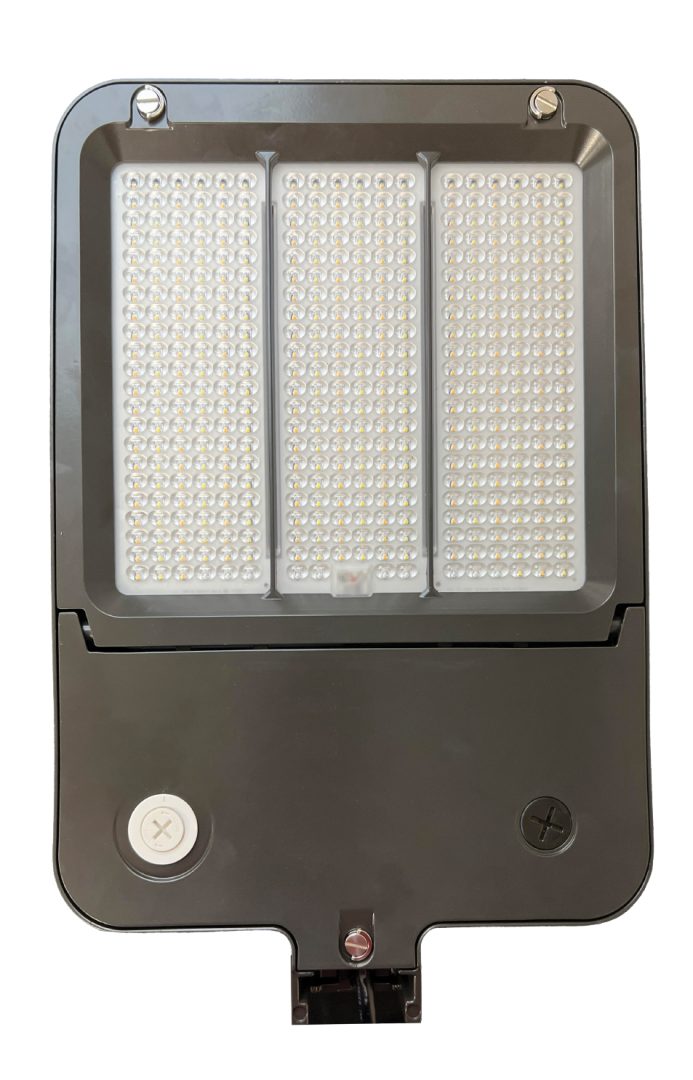

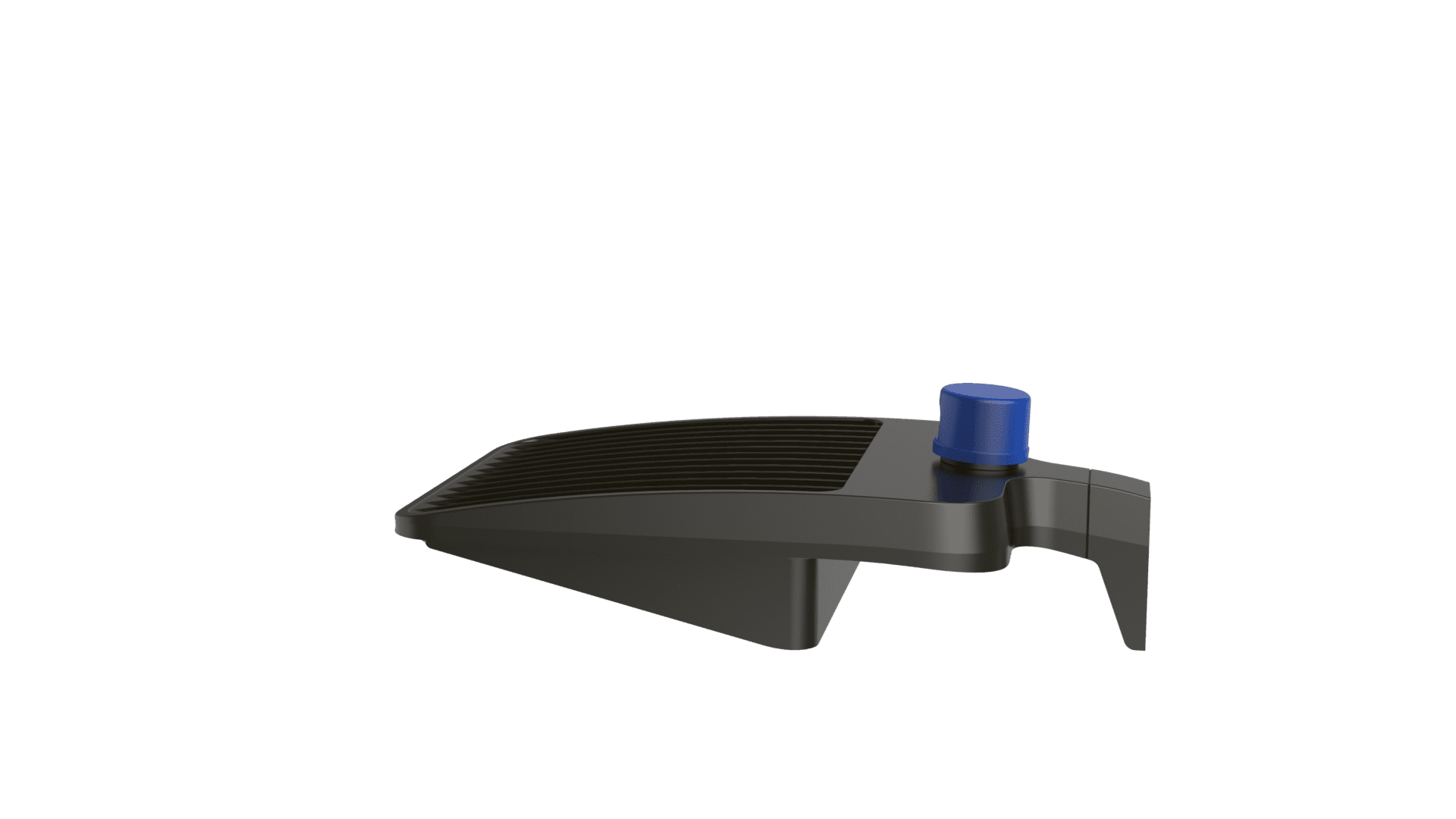

The MK Area Light is a versatile, high-performance outdoor lighting solution designed for maximum flexibility and efficiency. Featuring wattage and CCT selectable settings, it allows you to customize light output and color temperature to suit a wide range of applications, including parking lots, walkways, and commercial exteriors. The fixture offers multiple configuration options such as an optional photocell for automatic dusk-to-dawn operation, a shorting cap for manual control, and lens options for tailored light distribution. For advanced energy savings and smart control, a microwave motion sensor can be added (remote sold separately), PIR sensor, or Bluetooth sensor to provide responsive, occupancy-based illumination. UL listed for safety and reliability, the MK Area Light is IP65 rated for outdoor durability and backed by a 5-year warranty, ensuring long-lasting performance in demanding environments.
Applications

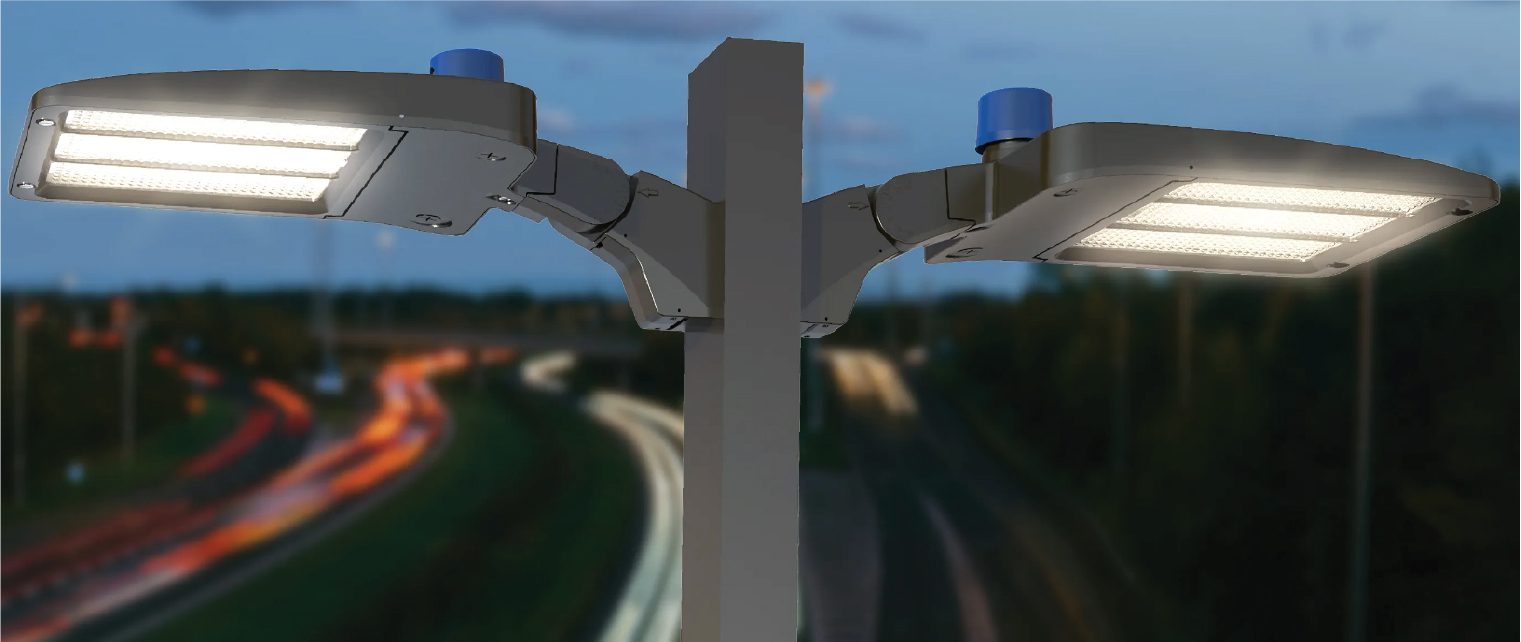

Ideal for entryways, athletic facilities, shopping areas, parking lots and structures, storage areas, and walkways, this area light delivers reliable, uniform illumination for enhanced safety, visibility, and security in high-traffic outdoor environments.
FEATURES
| Wattage Selectable | 100W, 150W, 200W 250W, 280W, 320W |
| Color Temperature | 30K, 40K, 50K |
| Input Voltage | 120/277V |
| Working Temp | -4 to 104F |
| Efficacy | 30K- 130 lm/W 40K- 150 lm/W 50K- 140 lm/W |
| LED Lifespan (L70) | 50,000 hours |
| CRI | >70 |
| Rated | IP65 |
| Listed | UL |
| Dimming | 0-10V |
| Photo Control | Choice Included –
Photo Cell or Shorting Cap |

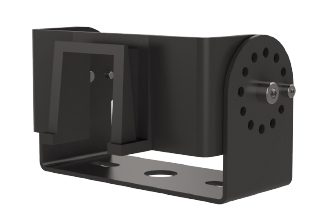

| Mounting Options | Choice Included –
Slip Fitter |
| Lumens at 40K | 100/150/200W- 28,937 250/280/320W- 47,120 |
| Dimensions | 100-150-200W: 16” x1 1.8“ x 2.7” 250-280-320W: 23.63” x 17.13“ x 5.32” |
| Efficacy | 30K- 130 lm/W
40K- 150 lm/W 50K- 140 lm/W |
| Warranty | 5 year |

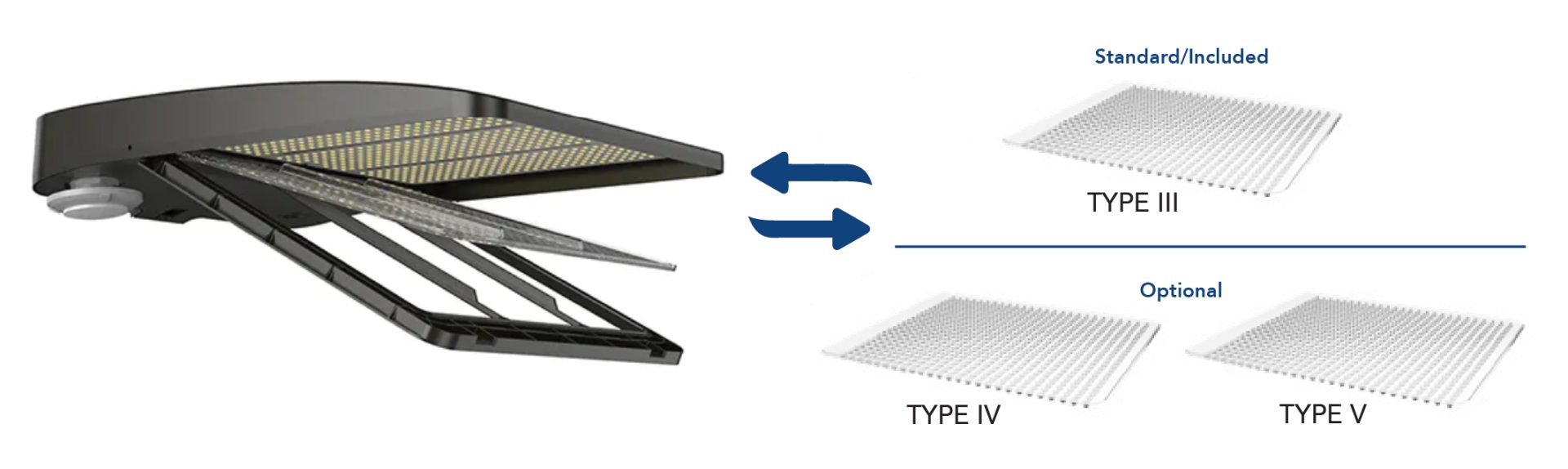

| Lenses | (Standard)
T3=IES Type III(Optional) T4=IES Type IV T5=IES Type V |

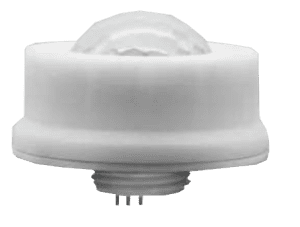

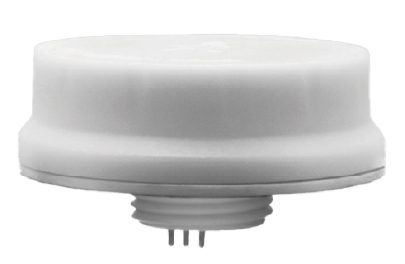

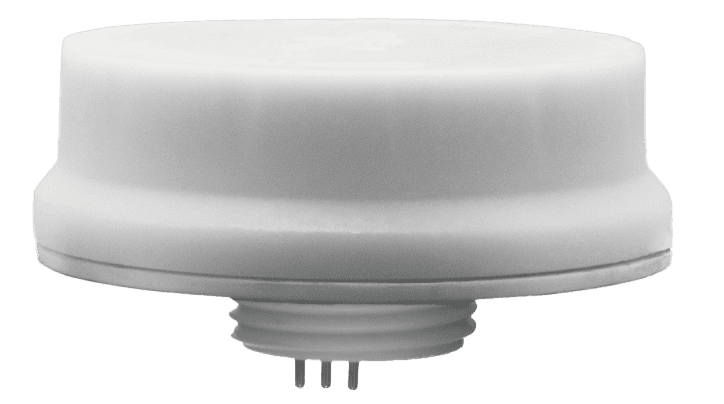

| Motion Sensor | Optional – Microwave Motion Sensor, PIR Sensor or Bi-Level Dim Dusk/Dawn, both (w/ Remote Sold Separately), or Microwave Sensor (Bluetooth) |
Catalog Number
ZL-AREA-{100-150-200; 250-280-320}-CCT-120/277V-{SC; PC}-BR-{T3; T4: T5}-{A; B; C}-MK
