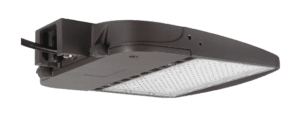

LED Area Light Fixtures – 150W – TS Series
Share
The TS Series LED Area Lighting Fixture is designed to replace Metal Halide and High Pressure Sodium lights in parking lots and other public spaces.
LED area lighting solutions may qualify for utility rebate eligibility. Area lighting is a cost effective and energy efficient way to illuminate large areas with installation ease.
Proper fixture placement, and the right optics, can offer widespread coverage of lighting that provide effective illumination. Parking structures, industrial areas, sidewalks, universities, schools, commercial lots, public parks and play spaces.
Optional accessories available. Horizontal Mount, Slip Fitter, Yoke Mount, Twist Lock Photocell, Shorting Cap, and Distribution lens.
FEATURES
| Wattages | 150W |
| Color Temperature | 50K |
| Efficacy | 130 lm/W |
| Input Voltage | 120/277V |
| Photocell Options | Shorting Cap or Photocell |
| Dimensions (without mounting) | 150W: 13.14″ x 12.40″ x 2.42″ |
| LED Lifespan (L70) | 50,000 hours |
| Distribution Lens | Type 3 or Type 4 |
| Mounting Options | Slip Fitter, Direct Mount, Yoke |
| Dimming | 0-10V |
| Warranty | 5 year |
| Listed | UL |
| Rated | IP65 |
| Lumens | 19500 |
| CRI | >80 |
Catalog Number
ZL-AREA-150-50K-120/277V-{PC; SC}-SOCKET-BR-{A; B; C}-TS
Mounting Options
Slip Fitter: ZL-BRACKET-TYPE-A-TS
Direct: ZL-BRACKET-TYPE-B-TS
Yoke: ZL-BRACKET-TYPE-C-TS
Optional Accessories: Twist lock photo sensor or shorting cap
Lens Type 4 – ZL-AREA-LENS-4-DISTRIBUTION
