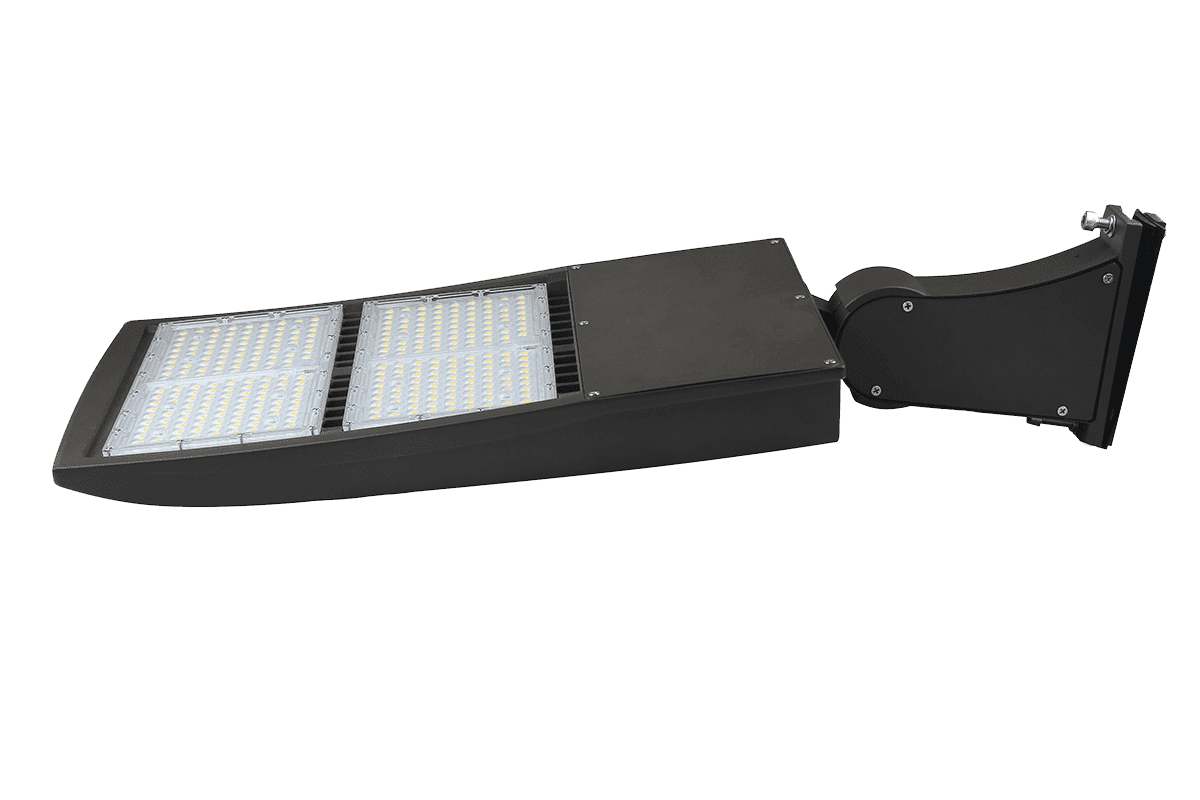

LED Area Light Fixture – 100/150/200/300W – LS Series
Share
The LS Series LED Area Lighting Fixtures are designed to replace Metal Halide and High Pressure Sodium lights in parking lots and other public spaces.
LED area lighting solutions may qualify for utility rebate eligibility. Area lighting is a cost effective and energy efficient way to illuminate large areas with installation ease.
Proper fixture placement, and the right optics, can offer widespread coverage of lighting that provide effective illumination. Parking structures, industrial areas, sidewalks, universities, schools, commercial lots, public parks and play spaces.
Optional accessories available. Direct Mount, Slip Fitter, Yoke Mount, Twist Lock Photocell, Shorting Cap, and Distribution lens.
FEATURES
| Wattage | 100W, 150W, 200W, 300W |
| Color Temperature | (standard) 50K, (special order) 40K, 45K, 57K |
| Efficacy | 145 lm/W |
| Input Voltage | 120/277V, 480V (optional) |
| LED Lifespan (L70) | 50,000 hours |
| Warranty | 5 year |
| Listed | UL |
| Rated | IP65 |
| CRI | >70 |
| Mounting Options | Direct Mount, Slip Fitter, Yoke Mount |
| Fixture Color | Bronze |
| Suggested HID Equiv. | 100W- 175-200W; 150W- 250-400W; 200W- 400-700W; 300W- 700-1,000W |
| Lumens | 13250 – 100W, 19900 – 150W, 26500 – 200W, 39750 -300W |
Catalog Number
ZL8-LDS-{100; 150; 200; 300}-50K-{120-277;480}-BR-{A; B; C}-{PC; SC}
Special Order : 40K, 45K, 57K
Mounting Options
Slip Fitter: A
Direct Mount LS Square and Round poles. B
Yoke: C
Accessories
100W, 150W
Photocell – PC
Shorting Cap- SC
SPECIAL ORDER: 200W, 300W
