IP65 LED Sign Modules – White, Red, Blue, Green and RGB
Share
IP65 LED Sign Modules are designed to deliver bright, reliable illumination for a wide range of signage applications while providing protection against dust and water. Ideal for outdoor billboards, channel letters, lightboxes, and custom signage, these modules offer excellent brightness, flexibility, and long-lasting performance. Choose from Red, Green, Blue, RGB, 3000K, or 6500K color options with either 5730 or 5050 LED chips to create the right lighting effect and visibility.
RGB Color Options
RGB modules offer full-spectrum color control, allowing you to create eye-catching displays that enhance brand visibility day or night. Easily adjust colors and lighting effects to fit any occasion or aesthetic.
Key Features:
-
Weather-Resistant: IP65-rated for protection against dust and water.
-
RGB Color Control: Customize colors and effects for maximum visual impact.
-
Energy Efficient: Low power consumption with high luminous efficacy.
-
Easy Installation: Compact, lightweight design for quick setup.
-
Long Lifespan: Designed for durability, reducing maintenance costs.
Perfect for:
Channel Letters, Billboards & Commercial Signs, Architectural Lighting, and Retail & Event Displays. Upgrade signage with reliable, vibrant lighting that stands out.
FEATURES

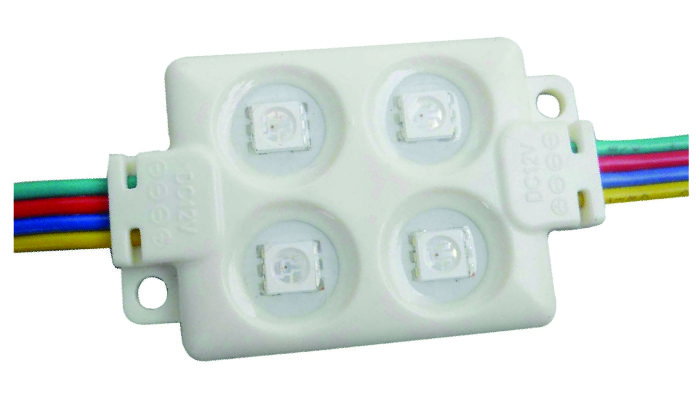

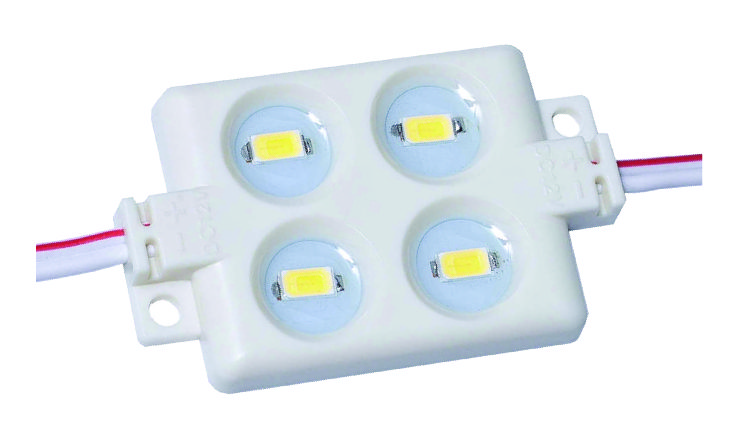

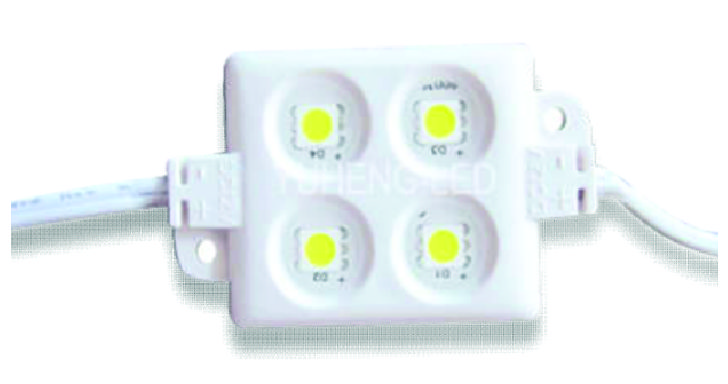

Square Module
| LED Chip | 5730 | 5050 | 5050 RGB |
| Wattages | 1.6W | 0.96W | |
| Color Temperatures | 30K, 65K | 30K, 65K | RGB |
| Efficacy per Module | 160-180 lm | 80-88 lm | 20-25 lm |
| Dimensions | 2.17” x 1.38“ x 0.24” | ||
| LED per Module | 4 | ||
| Casing | S=Square | ||
| Input Voltage | 12V | ||
| CRI | 80 | ||
| LED Lifespan (L70) | 50,000 hours | ||
| Beam Angle | 120° | ||
| Warranty | 2 year | ||
| Listed | UL | ||
| Modules per string | 20 | ||
| Rated | IP65 | ||
| Working Temperature | -20º-50ºC; -4º-122ºF | ||
| Power Supply 12V | Sold separately | ||
| Remote | Sold separately | ||
| Total Length | 8’ 8” | ||
| Mounting Adhesive | 3M tape backing |

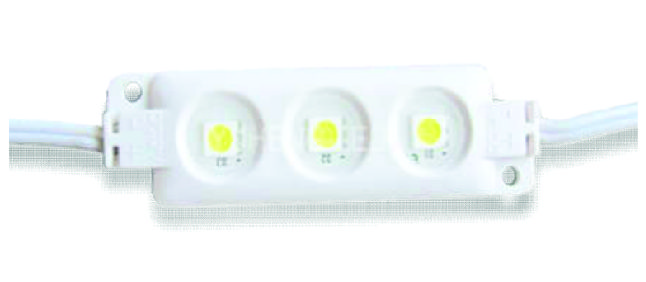

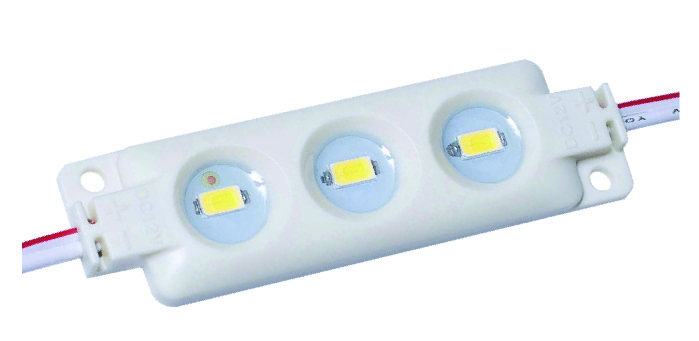

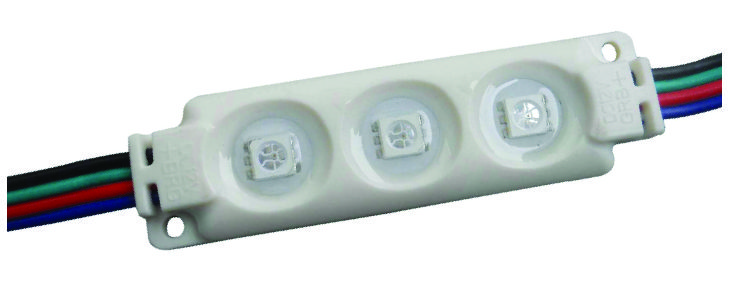

Rectangle Module
| LED Chip | 5730 | 5050 RGB | 5050 | 5050 R/B/G |
| Color Temperatures | 30K, 65K **** | RGB | 30K, 65K | Red, Blue, Green |
| Wattages | 1.08W | 0.72W | ||
| Efficacy per Module | 100 lm | 15-20 lm | 60-66 lm | |
| Dimensions | 2.68” x | 0.79“ x 0.24” | ||
| LED per Module | 3 | |||
| Casing | R=Rectangle | |||
| Input Voltage | 12V | |||
| CRI | 80 | |||
| LED Lifespan (L70) | 50,000 hours | |||
| Beam Angle | 120° | |||
| Warranty | 2 year | |||
| Listed | UL | |||
| Modules per string | 20 | |||
| Rated | IP65 | |||
| Working Temperature | -20º-50ºC; -4º-122ºF |
|||
| Power Supply 12V | Sold separately | |||
| Remote | Sold separately | |||
| Total Length | 9’ 8” | |||
| Mounting Adhesive | 3M tape backing |
Catalog Number
Square Module
MOD-S-5730-30K
MOD-S-5730-65K
MOD-S-5050-65K
MOD-S-5050-RGB
Rectangle Module
MOD-R-5730-30K
MOD-R-5730-65K
MOD-R-5050-30K
MOD-R-5050-65K
MOD-R-5050-RED
MOD-R-5050-GREEN
MOD-R-5050-BLUE
MOD-R-5050-RGB
Minimum order quantity may apply.
