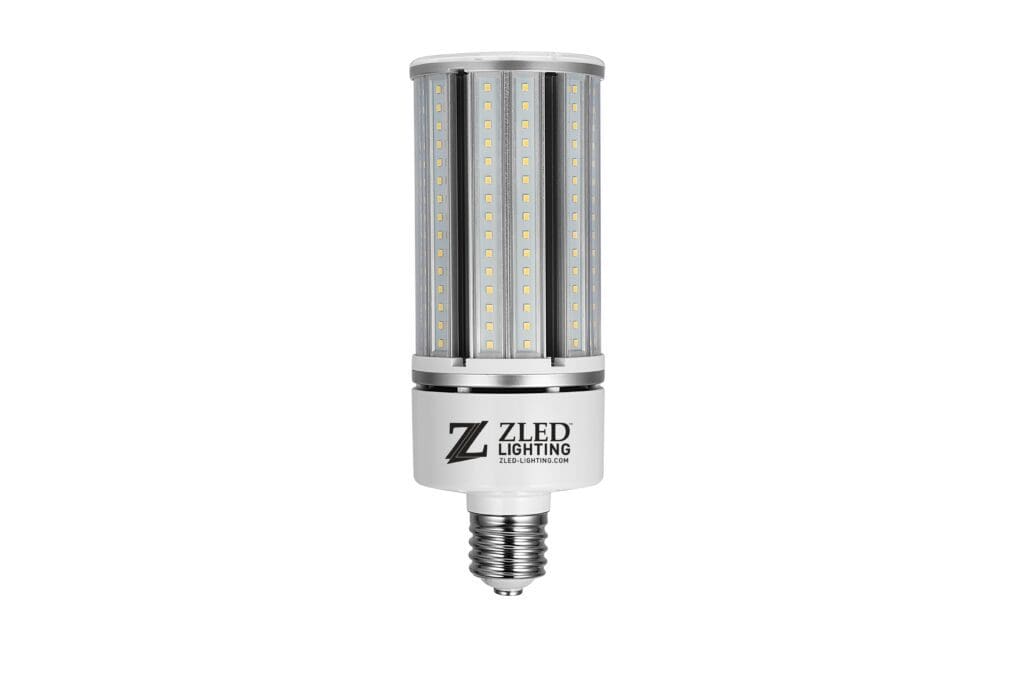

IP65 LED Corn Lamps – G3
Share
The IP65 HID LED Replacement Corn Lamp G3 is specifically designed for lighting fixtures that are located outdoors, within limited spaces, and fixtures with minimal ventilation. These LED lamps are engineered with a fixed wattage and fixed CCT to ensure consistent lumen output, color accuracy, and dependable long-term performance. Ballast MUST be bypassed with this product.
Applications
Ideal for enclosed outdoor fixtures, including post tops, shoebox lights, and wall pack fixtures.
FEATURES
| Wattages | 45W, 54W, 100W, 120W |
| Color Temperature | 50K (standard), 27K, 30K, 40K, 60K (special order) |
| Input Voltage | 120/277V |
| Efficacy | 150 lm/W |
| Base Type | E26, EX39 |
| Operating Temp | -4º to 122ºF |
| Warranty | 5 year |
| Listed | UL |
| Rated | IP65 |
| Built-In Surge Protection | 6KV |
| CRI | >80 |
| Operating Temp | 50K |
| Lumens | 45W- 6,750; 54W- 8,100; 63W- 9,450; 80W- 12,000; 100W- 15,000; 120W- 18,000 |
| Suggested HID Equiv. | 45W+54W- 150-250W 63W+80W+100W+120W – 250-325W |
| Dimensions | 45W+54W- 3.42” x 9.53” 63W- 3.42” x 10.16” 80W+100W- 4.84” x 9.68” 120W- 4.84” x 11.61” |
Catalog Number
C-E26-45W-50K-IP65-G3
C-E26-54W-50K-IP65-G3
C-EX39-80W-50K-IP65-G3
C-E39-100W-50K-IP65-G3
C-EX39-120W-50K-IP65-G3
