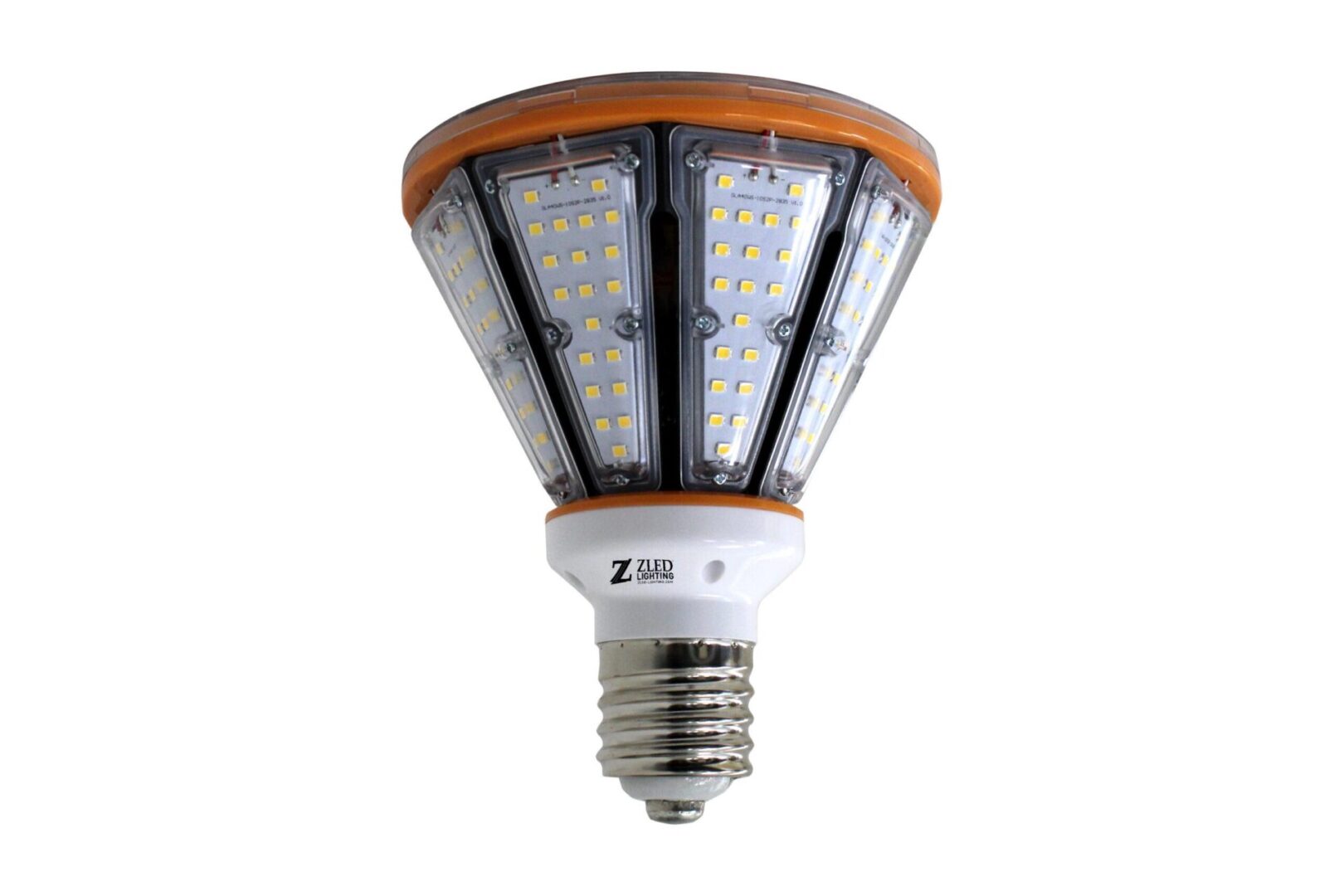

IP64 LED Post Top Corn Lamp

The IP64 LED HID Replacement Post Top Corn Lamp is  full of light, as their conical surface design directs light down to the ground, instead up where it dissipates and becomes lost. This lamp is designed to perform in both damp and wet location environments. Ballast MUST be bypassed with this product.



FEATURES

Wattages 30W, 40W, 50W, 60W, 75W
Color Temperature 40K: Special Order: 30K, 35K, 50K
Lumens 140-150 lm/W
Input Voltage 120/277V
Base Type E26, EX39
Rated  IP64
Listed UL
LED Lifespan (L70) 50,000 hours
 Operating Temp -40o – 104oF
Suggested HID Equivalent 30W- 75-150W; 40W- 175W;
50W- 175-250W; 60W- 250W;
75W- 250-400W
CRI >80Ra
Dimensions E26- 6.54” x 5.56”; Ex39- 7.01” x 5.56”
Warranty  5 year

Notes: Ballast must be bypassed

Catalog Number

C-PST-{E26:EX39}-{30; 40; 50; 60; 75}-{40K; (special order) 30K; 35K; 50K}-IP64-NS

Spec Sheet

Installation Sheet

IES
