24V Flexible Tape Light
Share

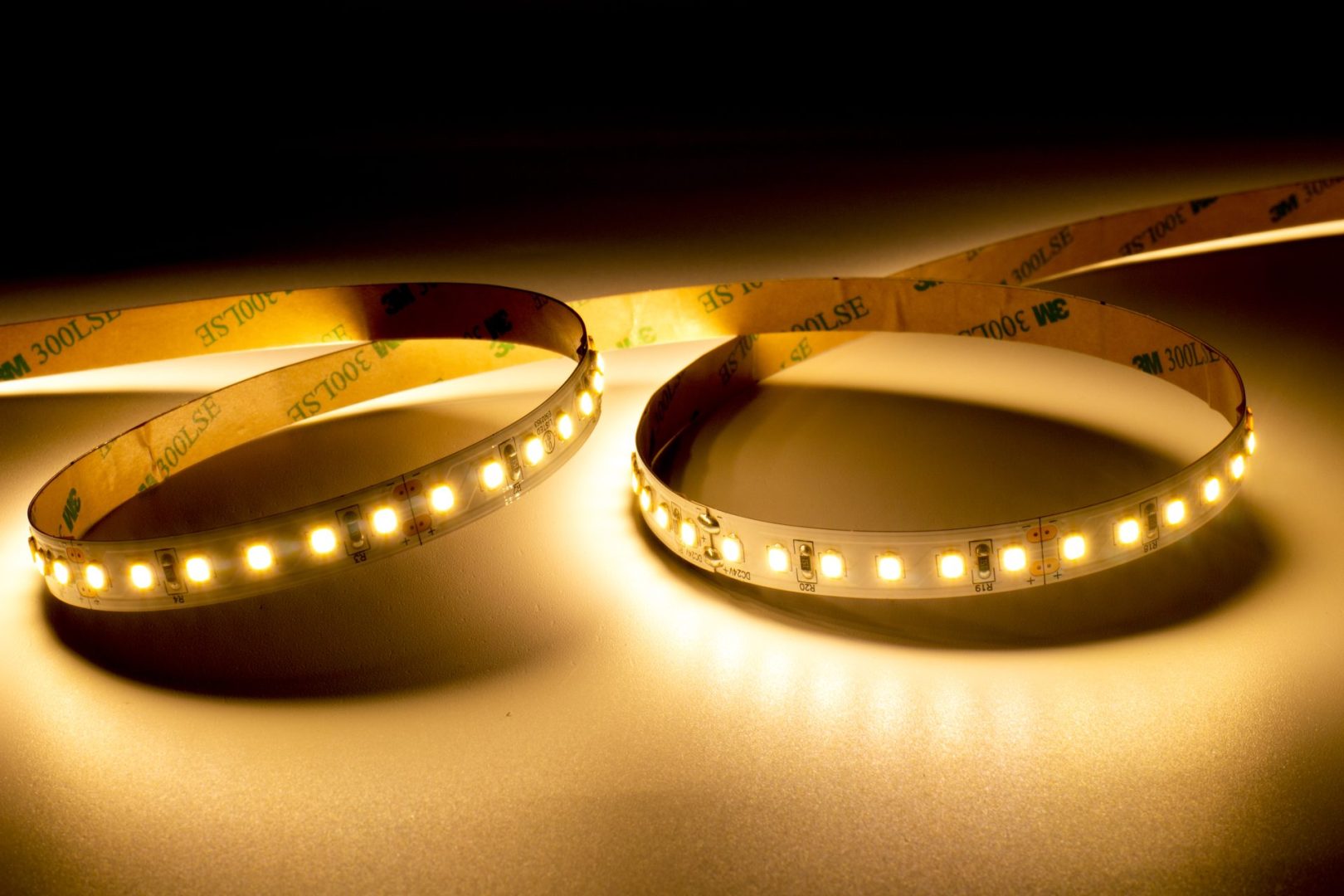

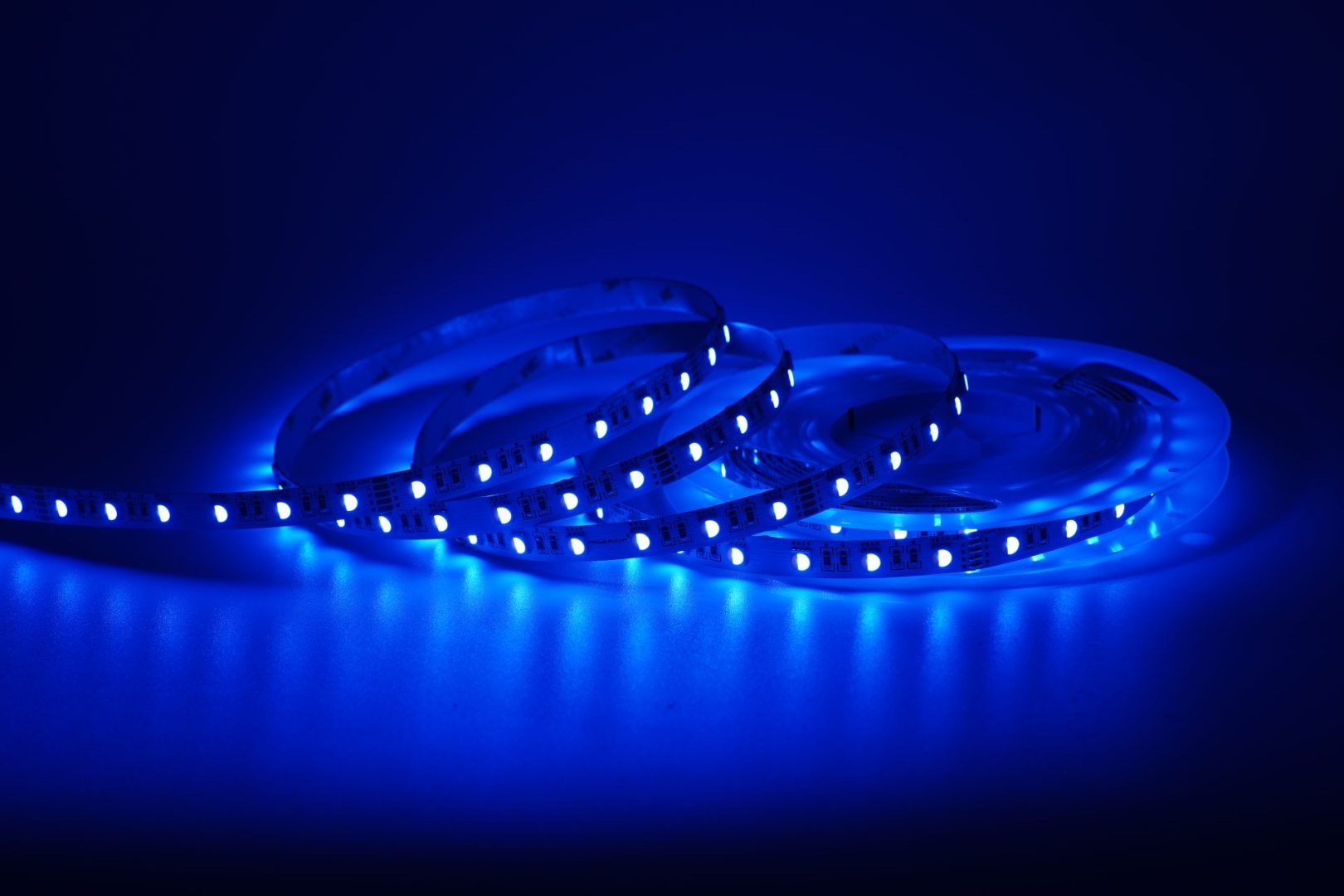

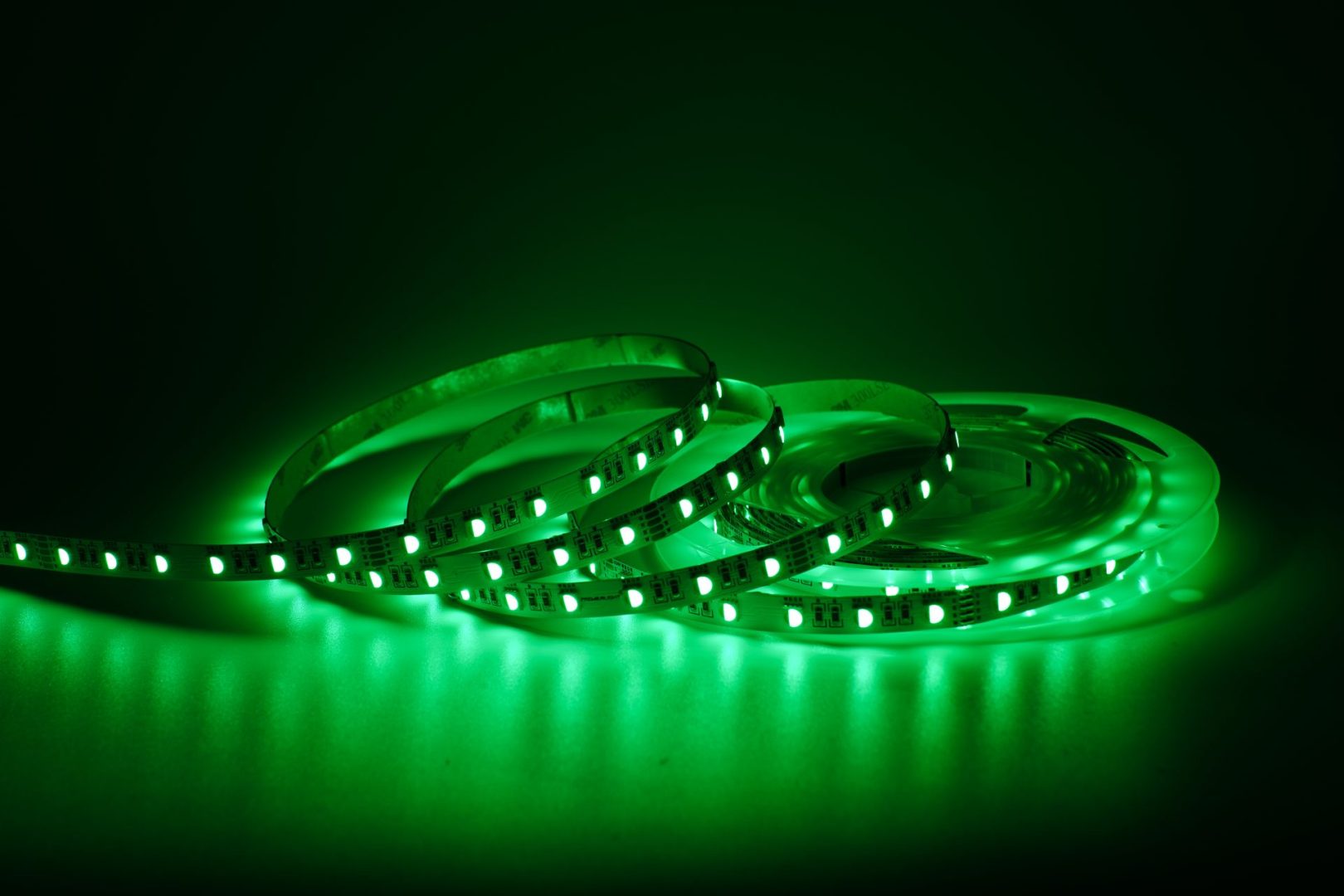

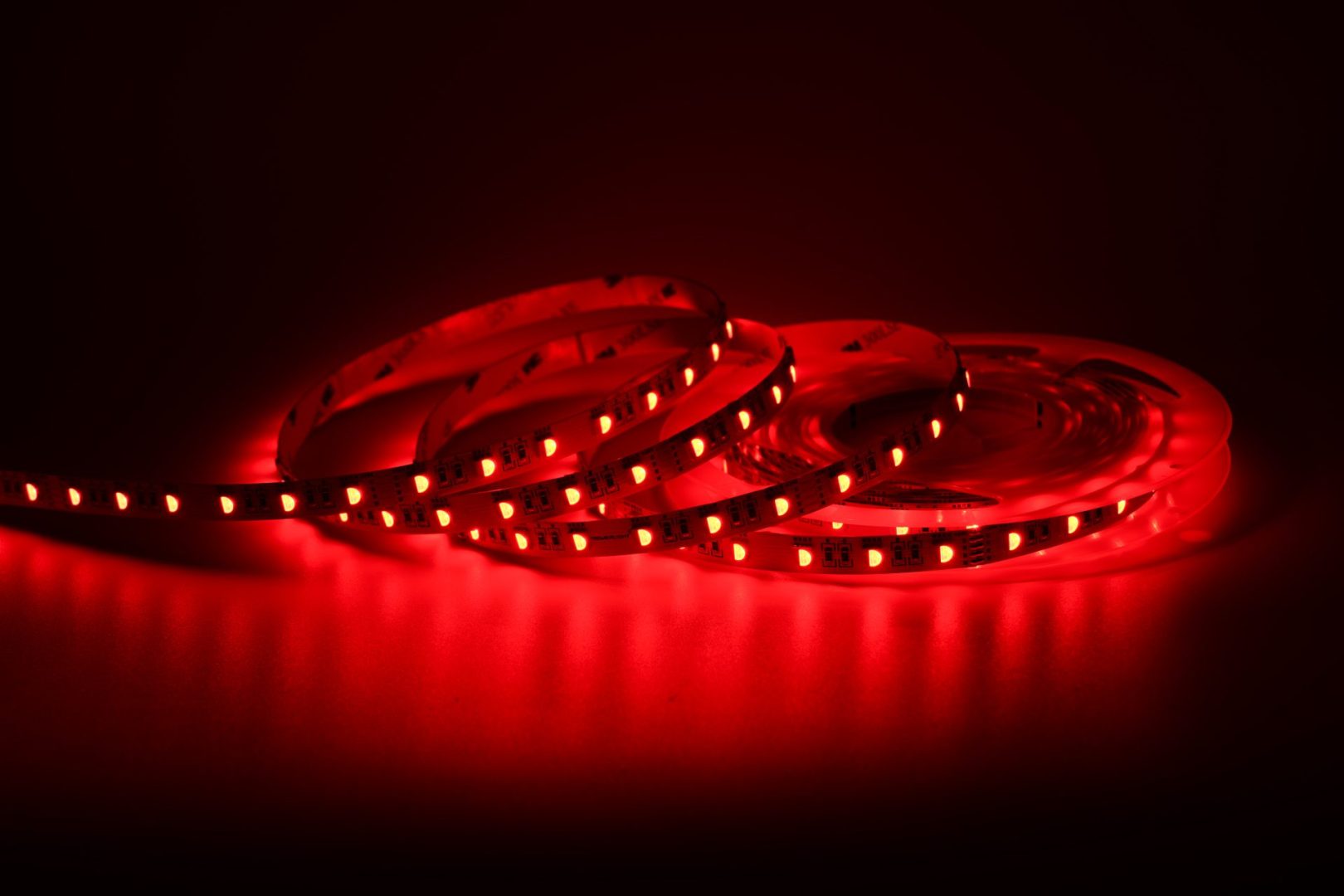

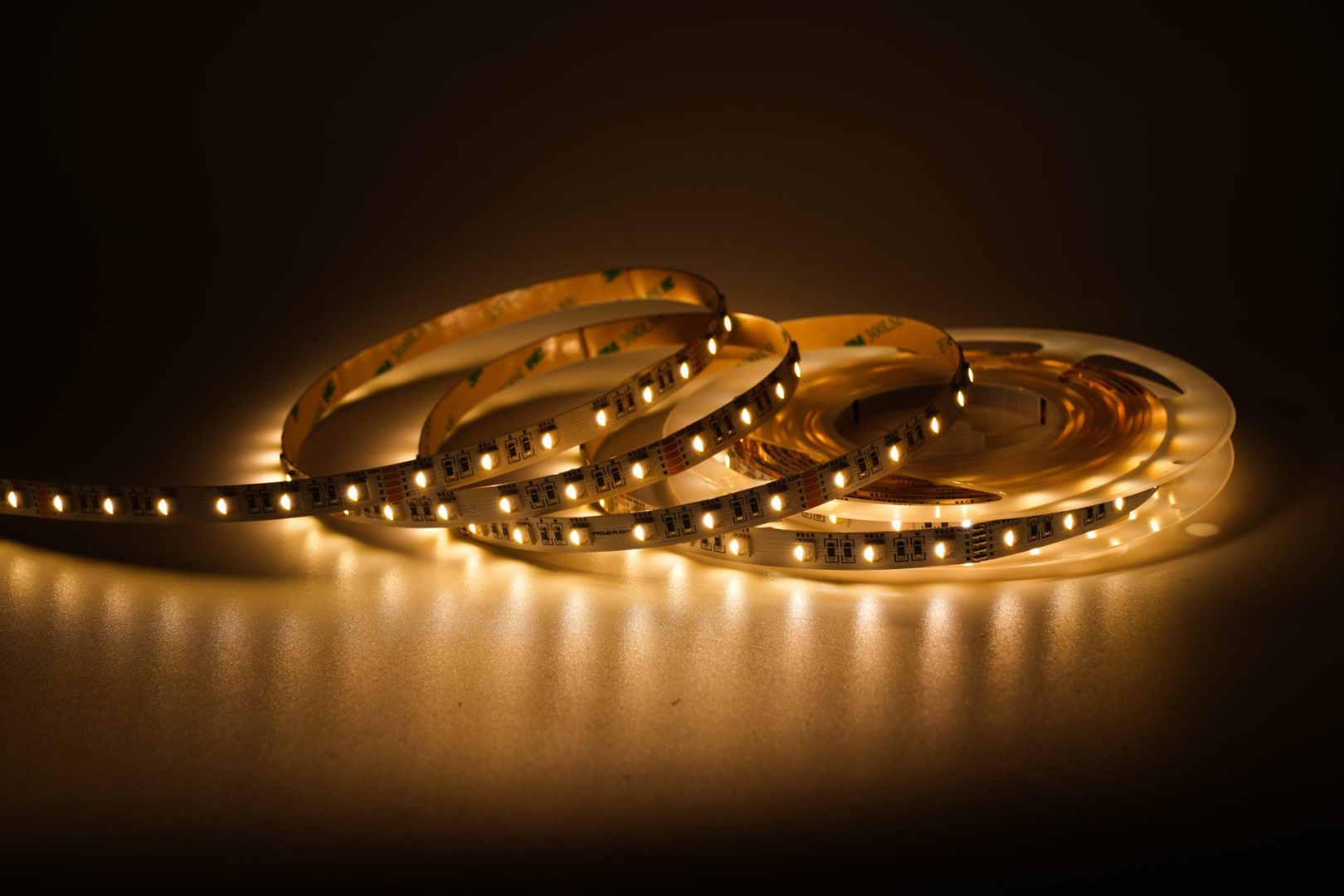

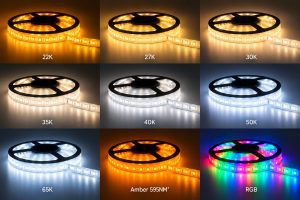

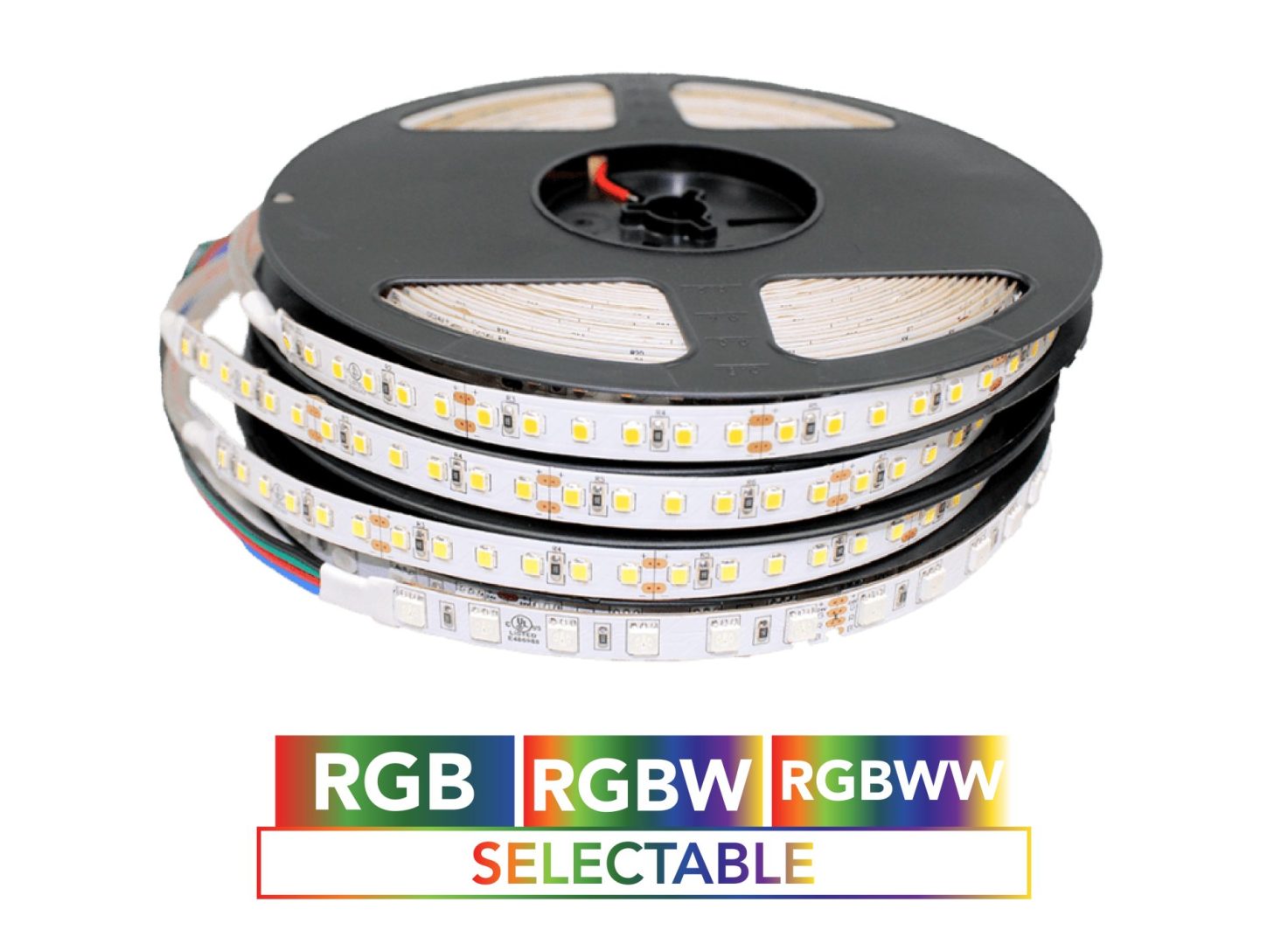

24V LED Tape Light offers versatile, energy-efficient illumination for residential, commercial, and architectural applications. Available in a wide range of color temperatures, including 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, and 6500K, as well as Amber 595nm, RGB, RGBW, and RGBWW configurations, these flexible LED strips provide options for everything from warm accent lighting to vibrant color-changing effects. RGBW options feature selectable white light in 3000K, 4000K, or 6000K, while RGBWW combines RGB color with warm white (3000K–3200K) or pure white (6000K–6500K). Designed for convenient installation, the tape light features an adhesive backing for secure mounting on compatible, clean surfaces and can be cut at designated intervals to accommodate specific lengths and layouts. Ideal for under-cabinet lighting, cove lighting, shelving, display cases, retail environments, hospitality spaces, and architectural accents, 24V LED Tape Light delivers flexible design possibilities, consistent illumination, and customized lighting for virtually any space.
Applications
Highlighting features of under-cabinet and under-shelf lighting, cove and architectural accent lighting, interior cabinetry, closets and wardrobes, display cases, retail shelving, product displays, hospitality environments, restaurants, bars, stairways, corridors, vanity and mirror illumination, backlighting, and decorative lighting in residential, commercial, and institutional spaces.
FEATURES
Tape Style |
27K- 50K |
RGB |
| Power | SO-3W/FT;
HO4.5W/FT |
SO-3W/FT;
HO4.5W/FT |
| Color Temperatures | 27K, 30K, 35K, 40K, 50K, Amber 595NM | RGB |
| Lumens | SO 3W/FT; 1200LM/m 366 lm/ft. HO 4.5W/FT; 1500LM/m 457 lm/ft. |
R-59, G-138, B-40 |
| CRI | 80-Standard; 90-Special Order |
80 |
| Rated | IP65-Stock; IP20-Special Order |
IP20 |
| Operating Temperatures | -25° to 45° C; -13º to 113ºF | -20° to 50°C; -4º to 122ºF |
| Cutting | 1.97 in | 3.25 in |
| LED Type | 120LED SMD2835 | 120LED SMD2835 |
| Length per reel | 32.8 ft | 16.4 ft Per Roll |
| LED Lifespan (L70) | 50,000 hours | 50,000 hours |
| Beam Angle | 120° | 120° |
| Input Voltage | 24VDC | 24VDC |
| Listed | UL | UL |
| PCB Width | 10mm | 10mm |
| Mounting | Adhesive Backing | Adhesive Backing |
| Warranty | 3 year | 3 year |
Tape Style |
RGBW |
RGBWW |
| Power | 5.5W/FT | 5.5W/FT |

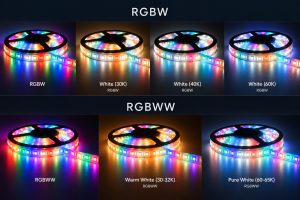

| Color Temperatures | RGBW- W=30K, 40K, 60K | RGBWW- WW=30-32K; PW=60-65K |
| Lumens | R-59, G-138, B-40, W-240 | R-59, G-138, B-40 WW-30-32K- 82 PW-60-65K- 85 |
| CRI | 80-Standard; 90-Special Order |
80-Standard; 90-Special Order |
| Rated | IP65-Stock; IP20-Special Order |
IP65-Stock; IP20-Special Orderer |
| Operating Temperatures |
-25° to 45° C; -13º to 113ºF |
-25° to 45° C; -13º to 113ºF |
| Cutting | 3.94 in | 3.94 in |
| LED Type | 60LED SMD5050 | 60LED SMD5050 |
| Length per reel | 16.4 ft | 16.4 ft |
| LED Lifespan (L70) | 50,000 hours | 50,000 hours |
| Beam Angle | 120° | 120° |
| Input Voltage | 24VDC | 24VDC |
| Listed | UL | UL |
| PCB Width | 10mm | 10mm |
| Mounting | Adhesive Backing | Adhesive Backing |
| Warranty | 3 year | 3 year |
Catalog Number
TAPE-24V-22K-(HO/SO)
TAPE-24V-27K-(HO/SO)
TAPE-24V-30K-(HO/SO)
TAPE-24V-35K-(HO/SO)
TAPE-24V-40K-(HO/SO)
TAPE-24V-50K-(HO/SO)
TAPE-24V-65K-(HO/SO)
TAPE-24V-RGB-(HO/SO)
TAPE-24V-RGBW-(HO/SO)
TAPE-24V-RGBWW-(HO/SO)
TAPE-24V-AMBER-(SO)
NOTE: ZLEDLighting is not responsible for any RF interference on our controllers.
