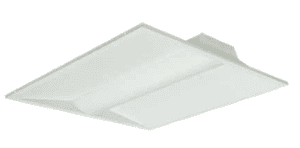

Wattage and CCT Selectable LED Troffer Door Retrofit- TRK Series

image - 2026-01-19T141526.908

Share

The TRK Series Center Basket LED Troffer Door Retrofit Kit is designed for quick installation.  An integrated, easy-to-install door retrofit that turns an old troffer into a brand-new looking fixture—without the hassle of removing the original.  Available in 2×2 and  2×4 design incudes wattage and color selectable making it an easy first choice.  Troffer units are designed for use in all office, commercial, and institutional areas and is available in a variety of options to suit the lighting needs.

 Troffer Door Retrofits are ideal for a wide range of applications, including offices, educational facilities, retail spaces, healthcare environments, and commercial or institutional buildings, delivering efficient, modern lighting without replacing existing fixtures.

Here's an alt tag for the image: `UL Listed safety certification mark`

FEATURES

Wattages 2×2’- 20W/25W/30W selectable
2×4’- 25W/30W/35W selectable
Color Temperatures 35K/40K/50K  selectable
Input Voltage 120/277V
Warranty 5 year
Listed UL
Efficacy 140 lm/W
CRI >80
Dimmable 0-10V
Operating Temp 22 to 104 Degrees F
Fixture Size 2×2; 2×4
Lumens 20W- 2,800; 25W- 3,500; 30W- 3,500; 35W- 4,900

Catalog Number

ZL-22-30W-L-H-TRK
ZL-24-35W-L-H-TRK

Spec Sheet

IES
