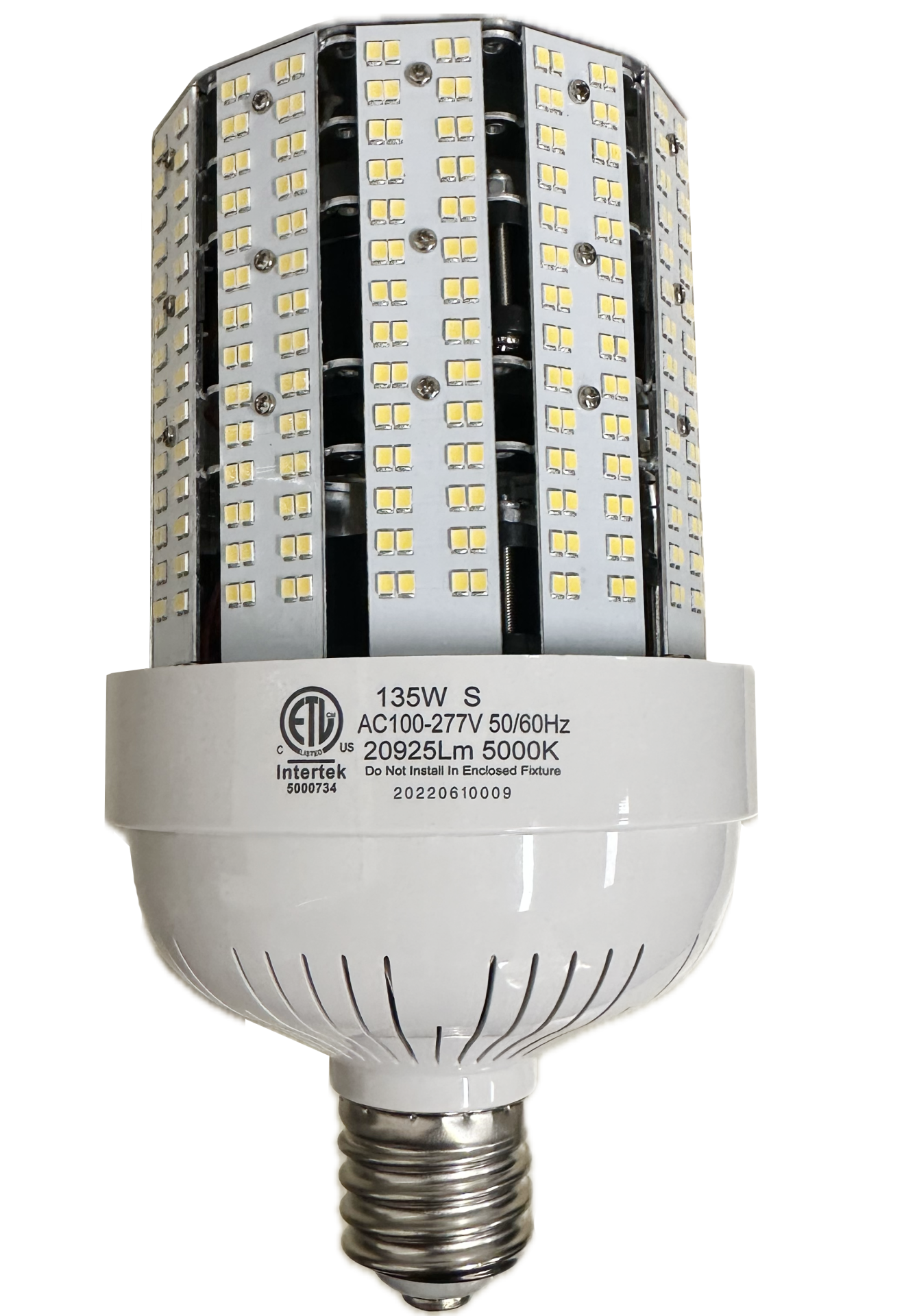

Stubby 135W Corn Lamp E39
Share
Stubby LED HID Replacement Corn Lamp is great for a variety of retrofit applications including Area light, Wall pack, Barn light, and Post tops. The perfect solution for post tops, area lights and wall packs. Easy to install, replace outdated HID lamps with High-Performance LED Corn Lamp. Upgrade from metal halide (MH), high-pressure sodium (HPS), or mercury vapor (MV) lamps to energy-efficient LED corn lamps. LED corn lamps are designed to replace traditional HID (High-Intensity Discharge) lamps in many commercial and industrial lighting applications, providing significant energy savings, longer life, and reduced maintenance.
- Perfect for when high lumen output is needed in small dimension fixtures.
- Aluminum PCB & core heat sink.
- LED chips are exposed to air for active cooling.
- Driver has internal fan for active cooling.
- Note: 1″ minimum space required from reflector.
Applications
Area light, Wall pack, Barn lights, Post top
FEATURES
| Wattage | 135W |
| Color Temperatures | (standard) 50K, (special order) 22K, 30K, 40K, 60K |
| Efficacy | 165 lm/W; 180 lm/W (480V only) |
| Input Voltage | 120/277V, 480V – High Lumen |
| Base Type | E39 |
| LED Lifespan (L70) | 50,000 hours |
| Warranty | 5 year |
| Listed | ETL (480V only) |
| Rated | IP20 |
| Built -in Surge Protection | 2KV |
| CRI | >80Ra |
| Lumens |
22,275 at 50K
|
| Operating Temperature | -20o to 50oC; -4o to 122oF |
| Beam Angle | 360 Degrees |
| Dimensions and Weight | 5″ x 9.5″ ; 3 lbs. |
| Suggested HID Equiv. | 400-700W |
Catalog Number
C-E39-135-50K-STUB
C-E39-135-50K-STUB-480V-HL
Special Order
22K, 30K, 40K, 60K: 480V
