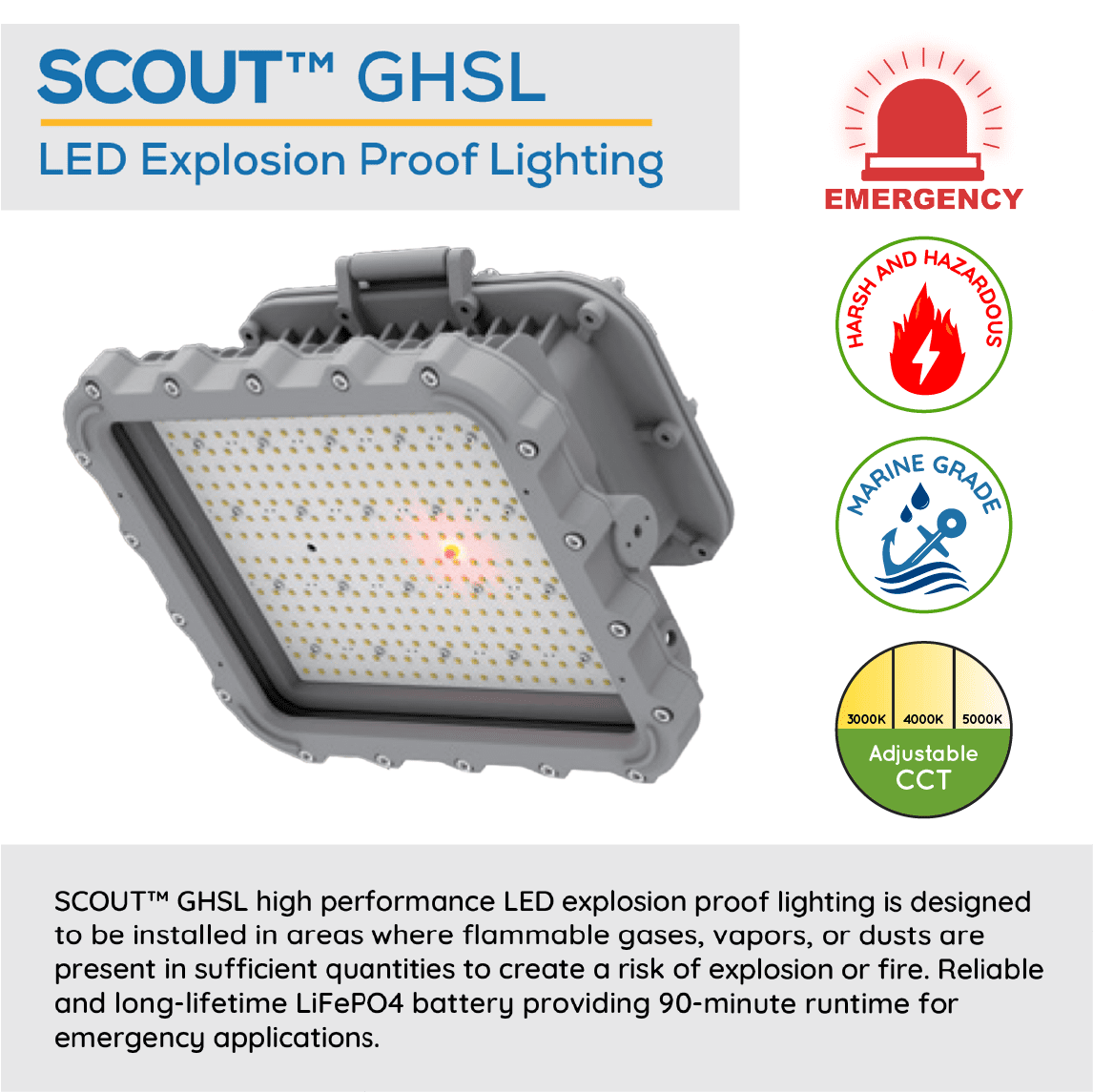

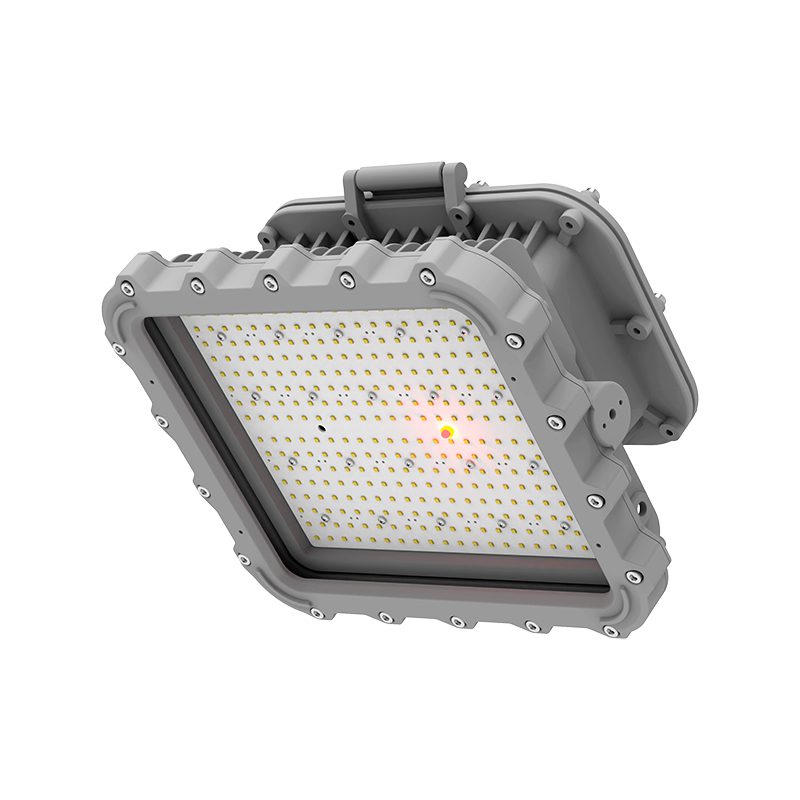

SCOUT™ GHSL LED Explosion Proof High Bay, Flood, Area, Low Bay or General Lighting with Emergency Battery Back-up
SCOUT™ GHSL high performance LED explosion proof lighting is designed to be installed in areas where flammable gases, vapors, or dusts are present in sufficient quantities to create a risk of explosion or fire. Reliable and long-lifetime LiFePO4 battery providing 90-minute runtime for emergency applications.
Features
- Optimized design, 11.5 kg ONLY, balanced well in weight, safety and durability.
- Hinge design makes the installation easier and safer.
- High efficacy LEDs, up to 160lm/w, maintains the same light intensity with less power consumption against the conventional lamps.
- Multiple beam angles provide more choices for various scenarios.
- 360° Adjustable U-Bracket corrosion, vibration, impact and shock resistant, passed 5G, 3-axis vibration test.
- Universal mounting accessories for easy retrofitting.
- Terminal blocks fitted as standard for faster installation.
| Rated Power | 80W / 100W |
|---|---|
| Input Voltage | 120-277V/AC |
| Input Frequency | 50/60Hz |
| Driver Efficiency | ≥ 90% |
| Lumen Output | 13,500lm ~ 16,500lm |
| Luminous Efficacy | 165Lm/W |
| Beam Angle | 30°/60°/90°/110°/T2/T3/T4 |
| CCT | Amber / 2700K / 3000K / 4000K / 5000K |
| CRI | Ra>70 |
| Ambient Operating Temperature | 0°C ~ +50°C -20°C ~ +50°C (cold weather) |
| Lens Material | Tempered glass |
| Mounting Options | Pendant / Ceiling / Wall mount / Stanchion / U-Bracket |
| Cable Entries | 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT |
| Net Weight | 11.5kg |
Catalog Number
See Build Your Own on Spec/Install/IES Sheet
Spec – Install – IES – SCOUT™ GHSL EM Flood Light
