Magnilumen Plus+™ LED Retrofit Lighting Solutions
Retrofitting existing fluorescent fixtures has never been easier with these magnetic, quick connecting LED Magnetic Retrofit Lighting Solutions. Magnilumen Plus+™ is the GAME CHANGER in LED retrofitting. –
EASY-TO-INSTALL MAGNETIC LED BAR RETROFIT KITS FOR TRADITIONAL FLUORESCENT LAMP
Upgrade to LED lighting with confidence. Magnilumen Plus+™ delivers a powerful, high-efficiency retrofit solution designed to modernize existing fixtures without costly replacements. Engineered for performance, versatility, and simplicity, Magnilumen Plus+™ transforms outdated lighting into sleek, energy-saving LED systems that last.
Why Choose Magnilumen Plus+™?
-
Fast, Hassle-Free Retrofits
Easily integrate into decorative, commercial, and architectural fixtures with plug-and-play simplicity. -
Enhanced Light Quality
High CRI, consistent color temperatures, and smooth dimming options—including Triac, 5-in-1, and AO driver technologies. -
Smart Power Control

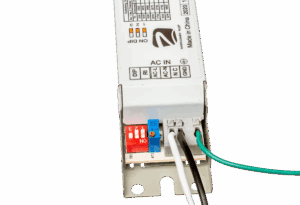

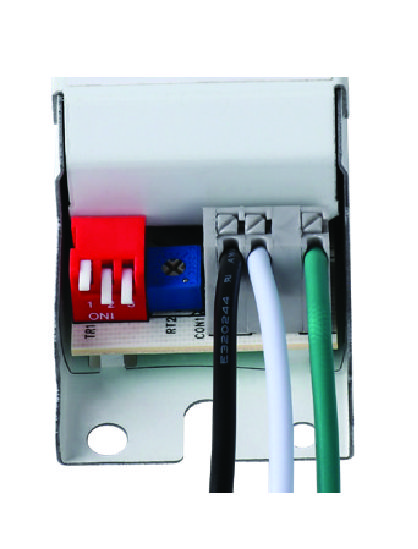

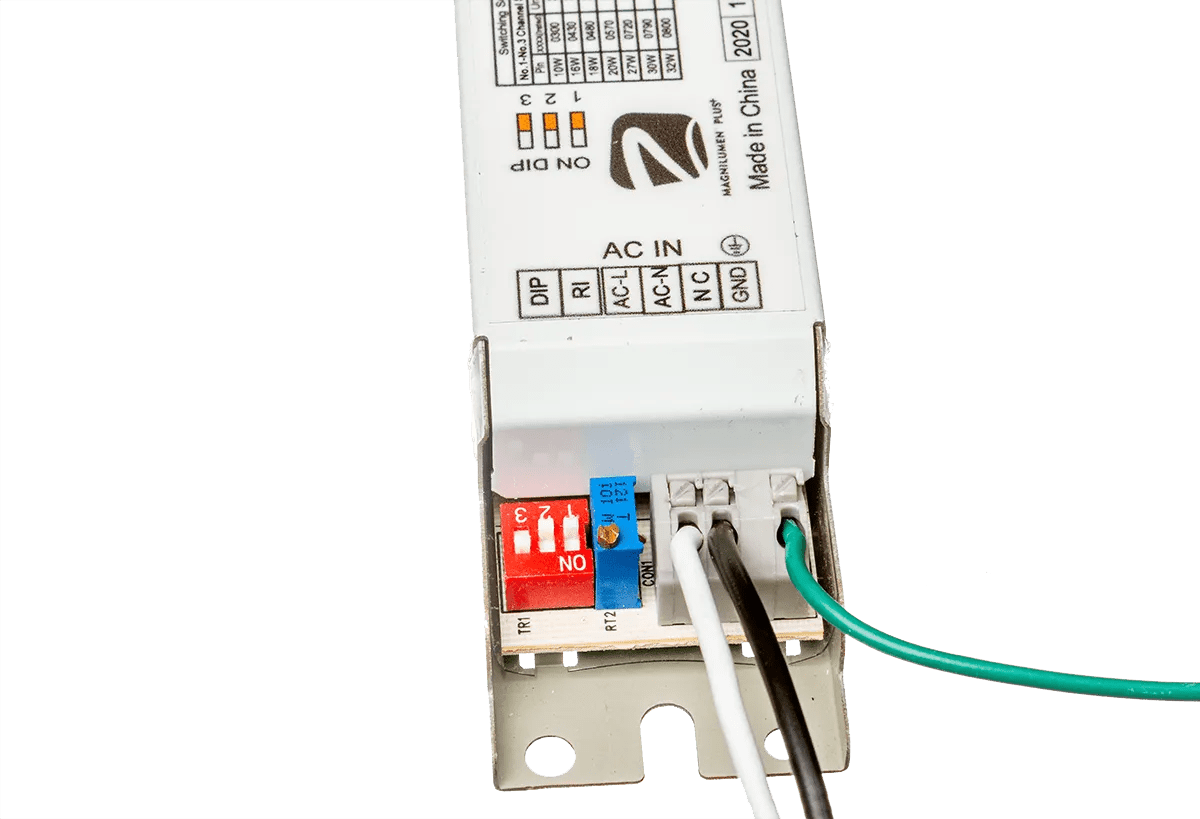

Dip-switch adjustable wattage and lumen outputs allow precise tuning for any space. -
Emergency-Ready

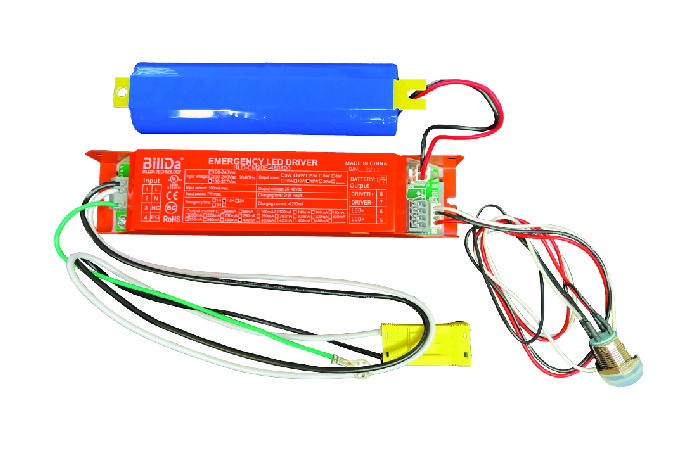

Optional Magnilumen Plus+™ Emergency Battery Back-Up ensure continued illumination when it matters most. -
Energy Savings Up to 80%
Replace inefficient fluorescent, HID, or CFL sources while reducing maintenance and operating costs. -
Slim, Versatile Design
Fits tight housing spaces, decorative fixtures, sconces, pendants, wall mounts, and more.
Where Magnilumen Plus+™ Excels

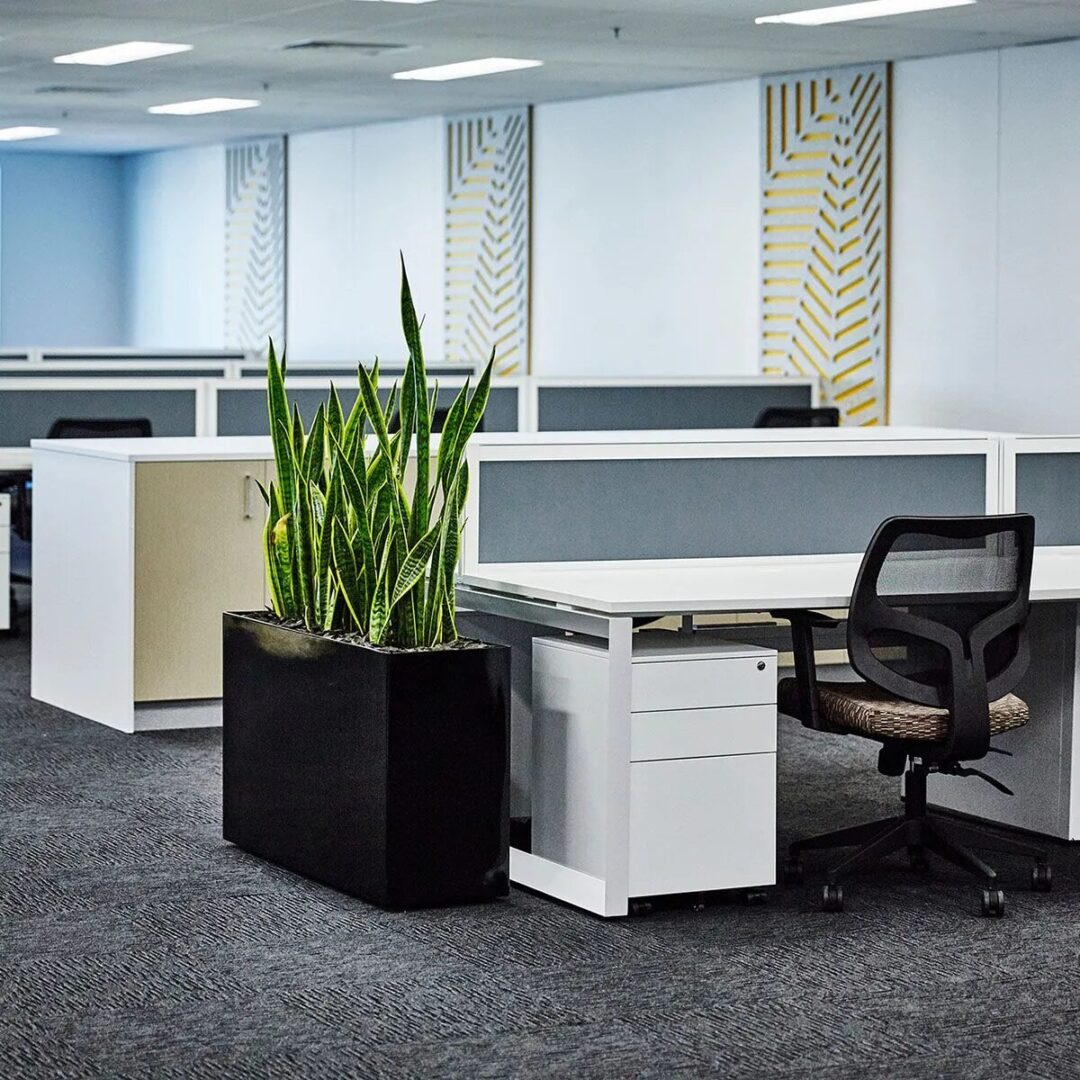

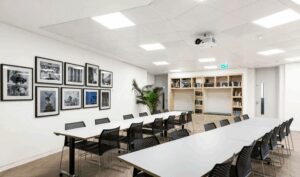

Perfect for commercial buildings, retail, airports, hospitality, schools, office environments, and any space needing a reliable, high-performance LED upgrade.
Features:
FEATURES
| Wattages | Wattage selectable drivers |
| Color Temperature | 27K, 30K, 35K, 40K, 50K, 65K, Green, Blue, Orange, Yellow, Red, Amber, Black Light, Hot Pink |
| Input Voltage | 120/277V, Special order, 100-347V |
| Driver Output | 27-42 VDC |
| Efficacy |
150 lm/W with Frosted Lens 170 lm/W with Clear Lens 180 lm/W with No Lens |
| Dimming | 0-10VDC, (optional: TRIAC, DALI, LUTRON ECOSYSTEM) |
| Bar Dimensions | Length:
16 = 16 inches 2 = 2 feet (21.06 inches) 3 = 3 feet (30.91 inches) 4 = 4 feet (42.91 inches) 5 = 5 feet (58 inches) Width: .72” Height: .75” |
| Lumens | See Lumens Chart |
| LED Lifespan (L70) | 100,000 hours Magnilumen Standard 50,000 hours Colors |
| Surge Protection | 2KV |
| Ambient Temperature | -20 to 50C;-4 to 122F |
| CRI | 80+ (standard); 90+ (special order |
| Rated | IP20 |
| Listed | ETL, DLC |
| Warranty |
7 year Magnilumen Standard 5 year Color 3 year Black Light |
Catalog Number
Build Your Own Magnilumen Plus+™ Retrofit Kit System – See Spec Sheet

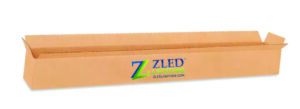

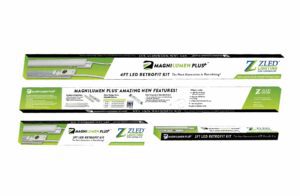

Job Packs

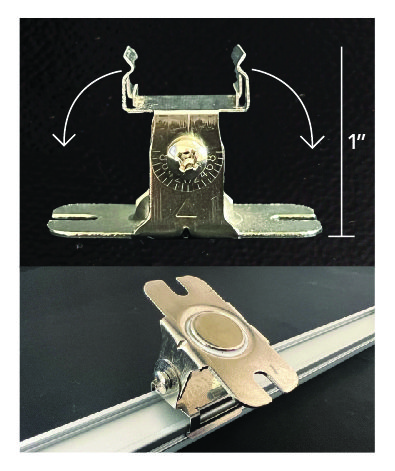

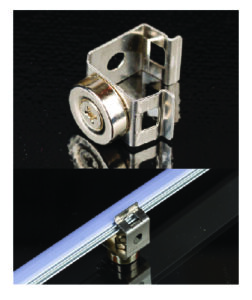

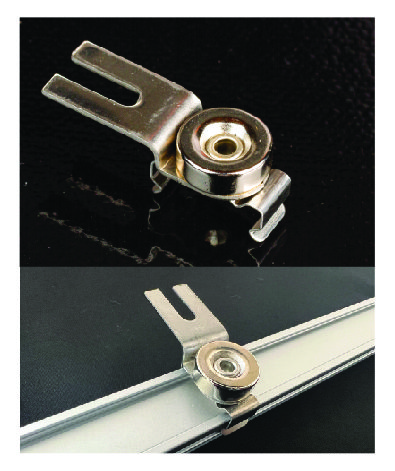

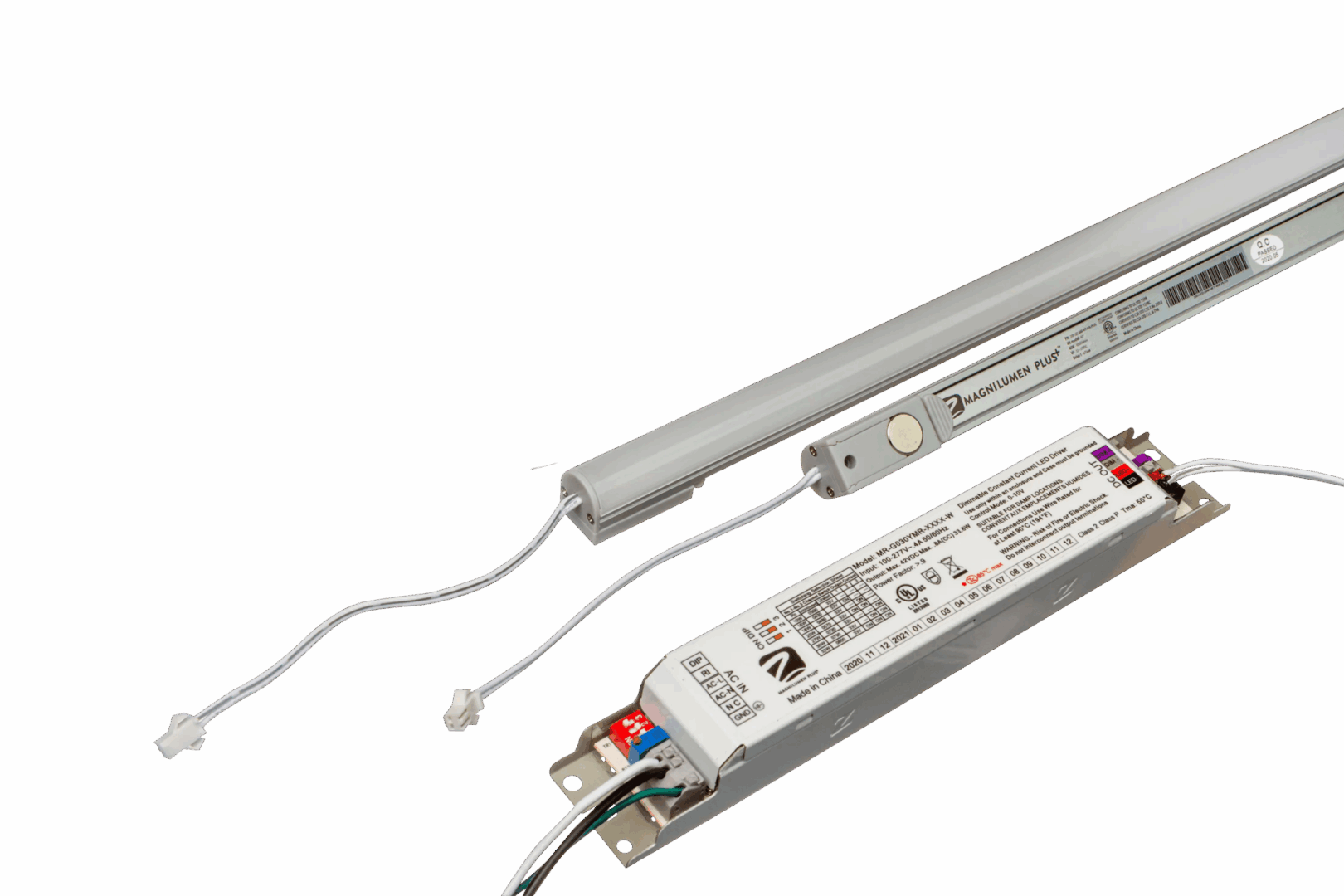

Available to retrofit 16″, 2′, 3′, 4′, and 5′ fluorescent fixtures with standard 0-10 volt dimming. Kits are easy to install and fit into almost any existing linear fluorescent fixture with onboard magnets. This makes it a perfect upgrade option where energy savings and lighting efficiency is key like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene.

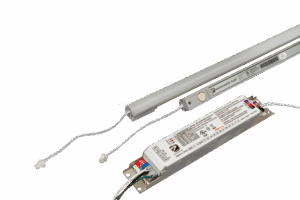

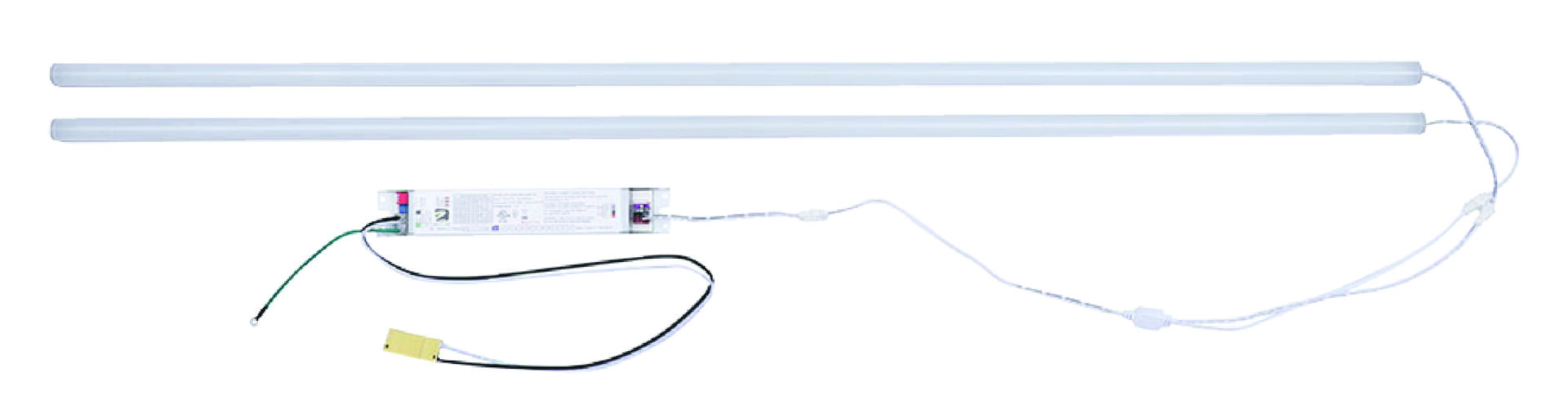

Job Pack Includes:

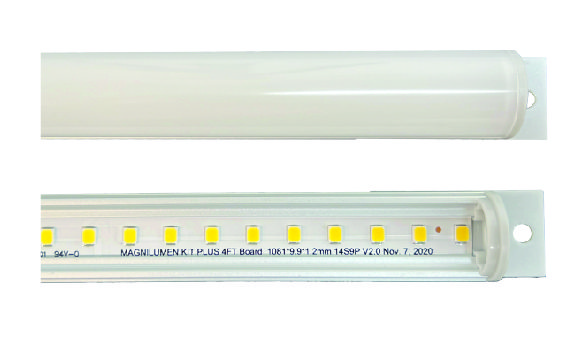

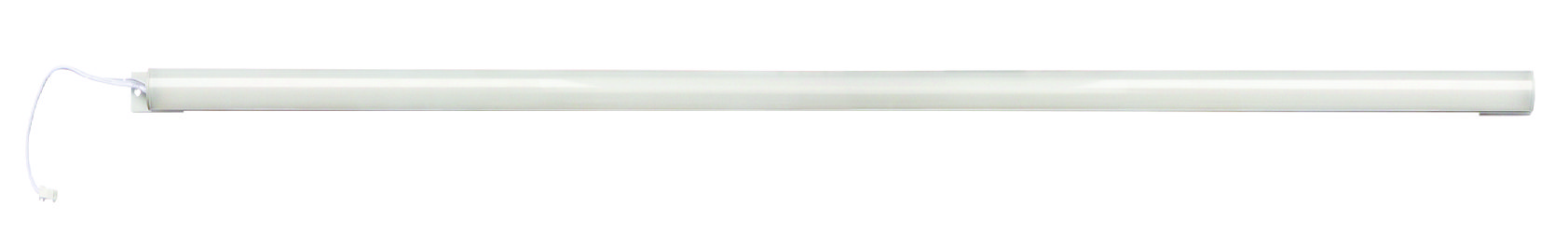

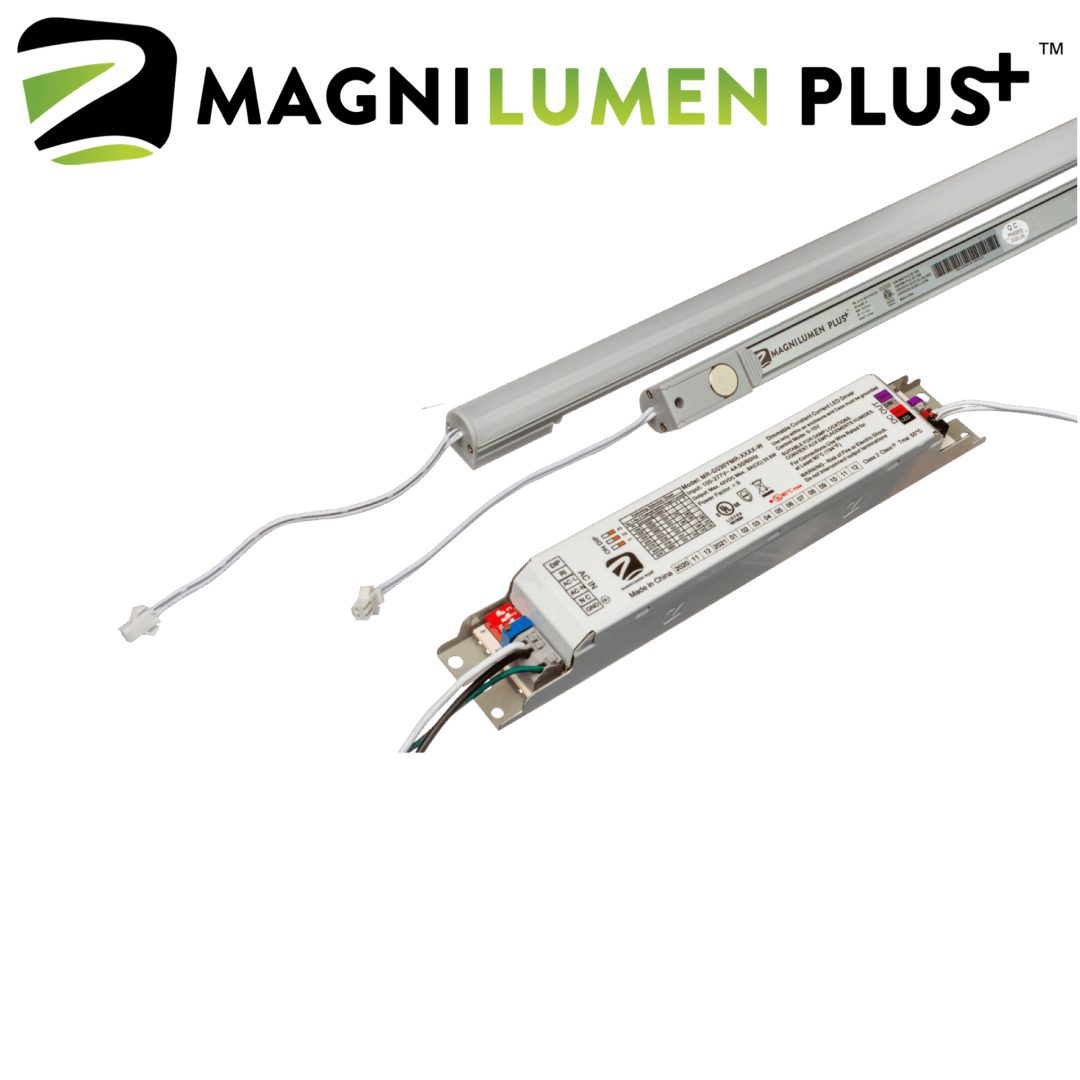

- Magnilumen LED Bars in choice of length and Color Temp

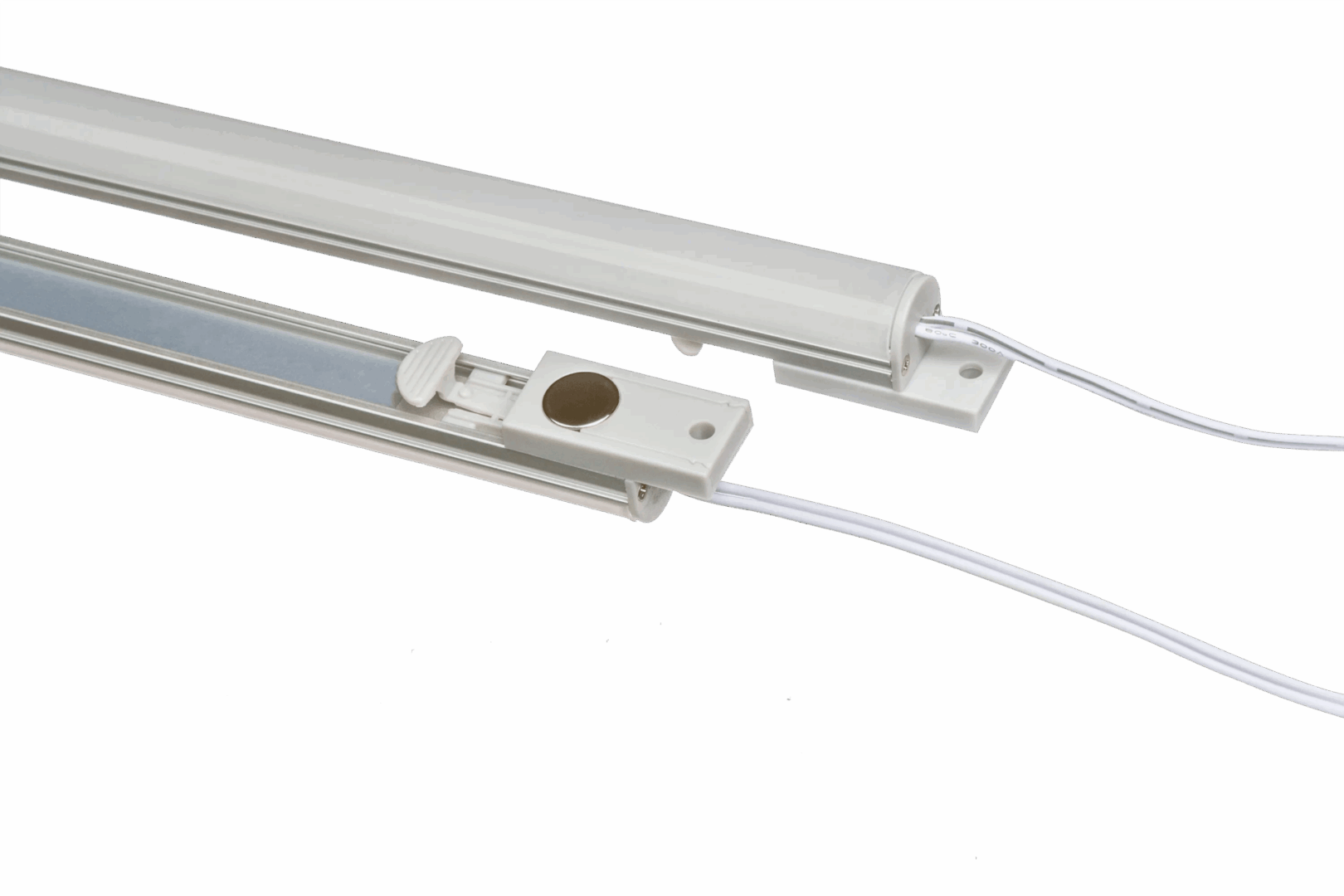

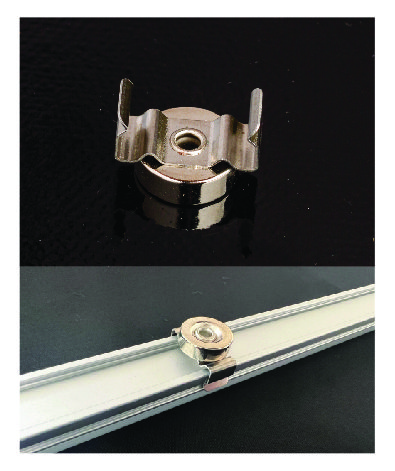

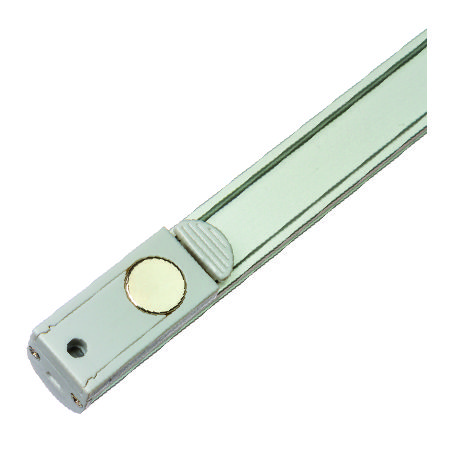

- Magnetic LED retrofit bars

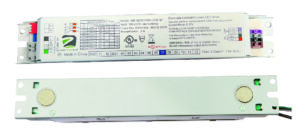

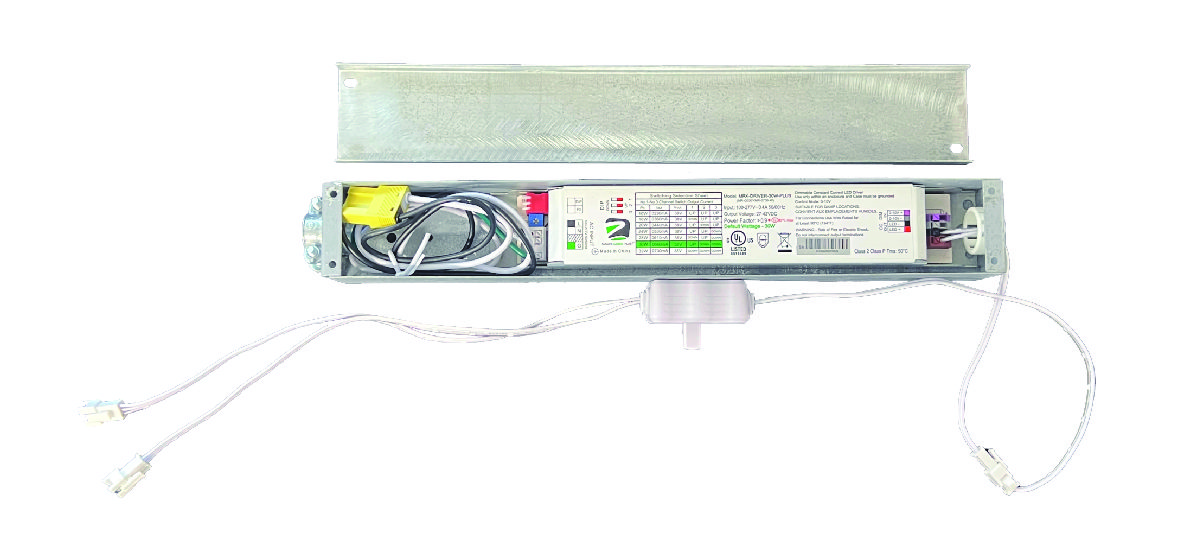

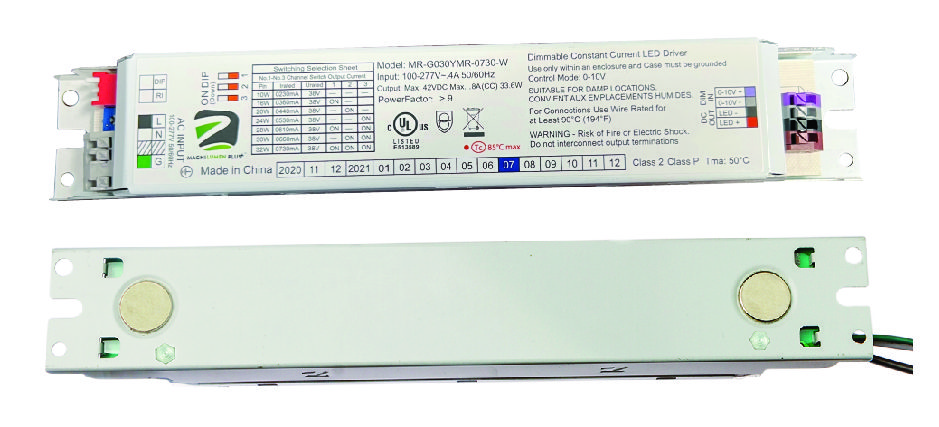

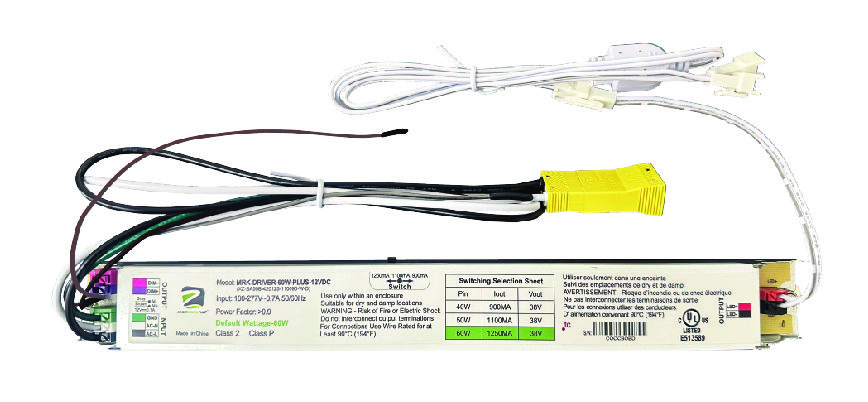

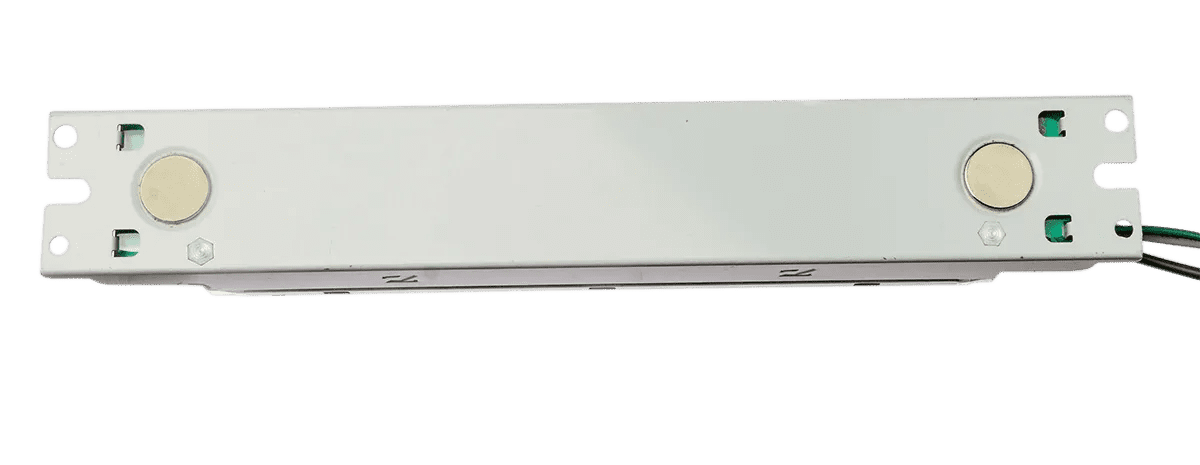

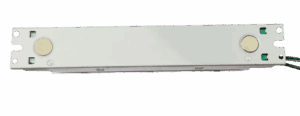

- Selectable Magnetic LED driver (power supply)

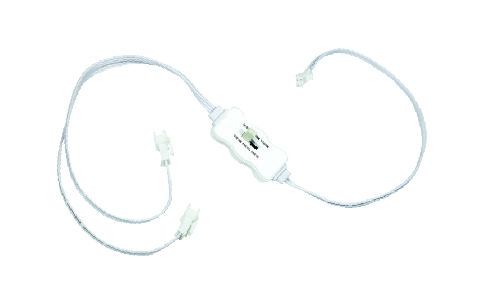

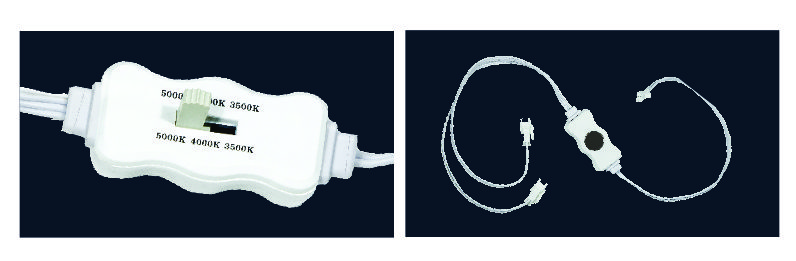

- 24” 2-way harness

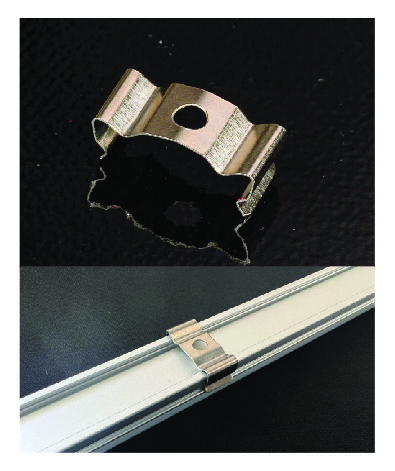

- Mounting Screws
Upgrade F15 T8 XXK fluorescent to energy-efficient LED lighting 16″ Retrofit Bar with 10W Driver—ideal for seamless retrofits,. – Contact Sales Rep for ordering
Retrofit LED Linear Lighting Kits for 2 and 4′ fluorescent fixtures.
