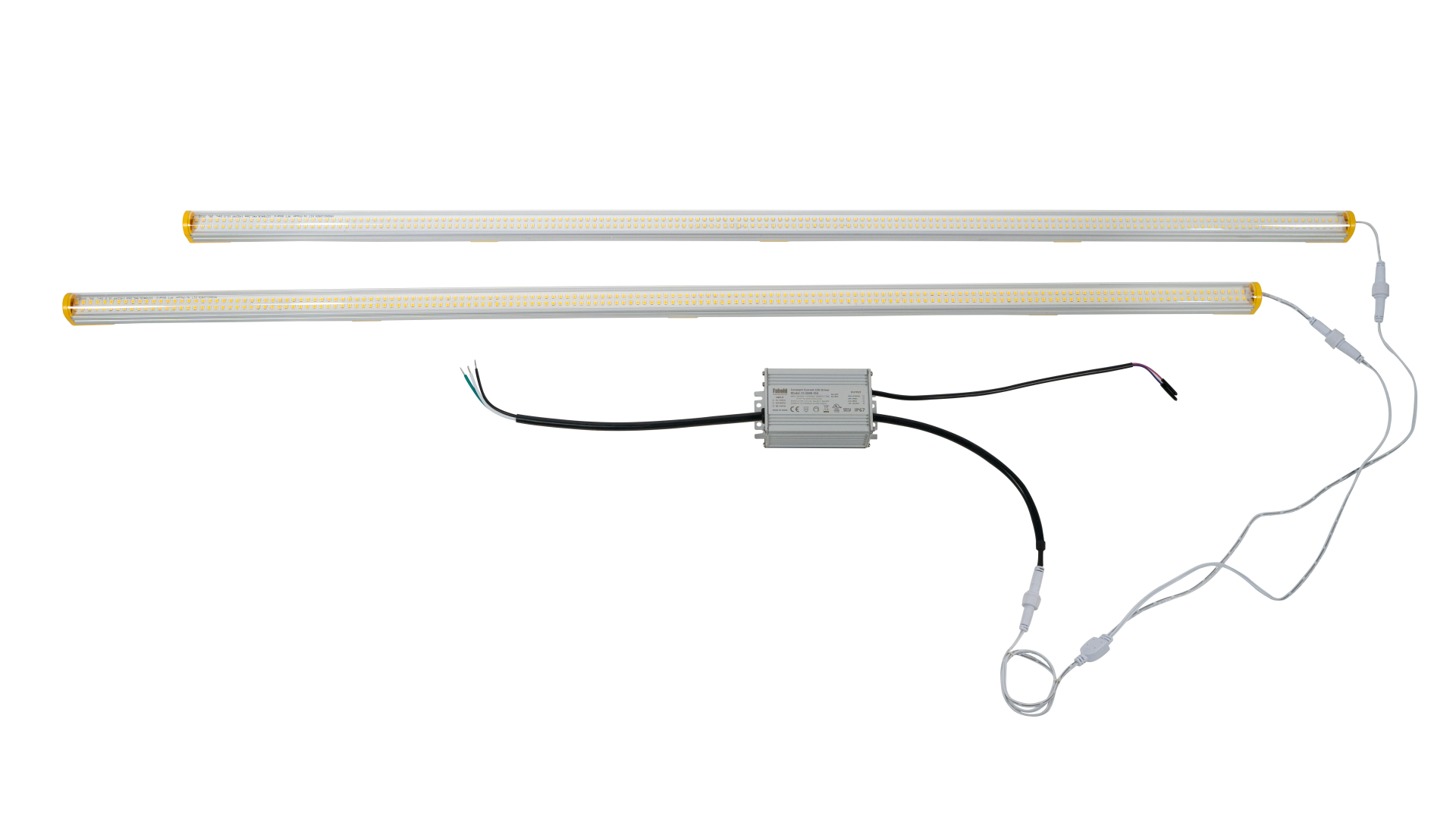

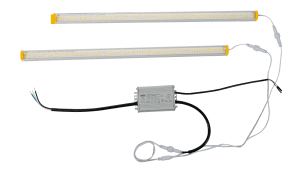

Magnilumen Plus™ Marine Grade LED
Share
Magnilumen Plus™ Marine Grade delivers corrosion-resistant LED performance engineered to withstand harsh coastal and marine environments while maintaining superior illumination and durability.
Exposures to harsh conditions like moisture, salt, vibration, and extreme temperature- challenges where traditional lighting often falls short. Designed specifically for these tough environments.
Superior durability, energy efficiency, and long-lasting performance, with its rugged, corrosion-resistant construction ensuring reduced maintenance, simplified and enhanced safety and visibility.
Applications
Marine and industrial environments – Offshore drilling rigs, docks, ships, ferry boats, marinas, shipbuilding facilities, ports, harbors, marine terminals, container terminals, shipping yards, and cargo wharfs.
FEATURES
| Wattages | Magnilumen Plus™: Programmable Driver 40W, 50W, 60W Magnilumen Plus™ High Output: 2ft- 30W; 4ft- 60W |
| Color Temps | Magnilumen Plus™: 30K, 35K, 40K, 50K, Green Magnilumen Plus™ High Output: 40K, 50K |
| Efficacy | Magnilumen Plus™: 150 lm/W with Frosted Lens 170 lm/W with Clear Lens 180 lm/W with No Lens Magnilumen Plus™ High Output: 155 lm/W with Frosted Lens 165 lm/W with Clear Lens 173 lm/W with No Lens |
| Input Voltage | 100/277V |
| Driver Out Voltage | 27-54VDC |
| Rated | IP67 – Driver IP65 – Bars via silicone encapsulation |
| Listed | ETL |
| LED Lifespan (L70) | Magnilumen Plus™: 100,000 hours Magnilumen Plus™ High Output: 50,000 hours |
| Dimming | 0-10V |
| Ambient Temp Driver | -40ºC to 90ºC; -40ºF to 48.2ºF |
| Ambient Temp Bars | -20ºC to 50ºC; -4ºF to 122ºF |
| Warranty | Magnilumen Plus™: 5 year 3 year – Color Magnilumen Plus™ High Output: 5 year |
| Bar Measurements | Length: 2ft – 21.06”; 4ft – 42.75″ Width: .73″ |
| CRI | 80 |
| Driver Vibration Test | 10- 500Hz X, Y, Z vertical axes vibrate at a constant acceleration of 1.0G (depth 3.5mm) for 1 hour |
| Lens Options | Clear – Included (Frosted Lens or No Lens Optional) |
| Surge Protection | 6KV |
| Flicker | Meets Title 24 Flicker Requirements |
| Options | EM Battery |
| Lumens | See Lumens Chart |
Catalog Number
Build Your Own Magnilumen Plus™ Marine Grade – See Spec Sheet
