Magnilumen Plus+™ LX Retrofit LED Lighting

Magnilumen Plus+™ LX LED  Retrofit Lighting Solutions

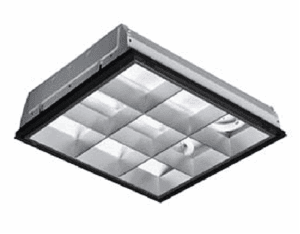

Retrofitting existing fluorescent fixtures has never been easier with these magnetic, quick connecting LED Magnetic Retrofit Lighting Solutions. Magnilumen Plus+™ LX  is the GAME CHANGER in LED retrofitting. – EASY-TO-INSTALL MAGNETIC LED BAR RETROFIT KITS FOR TRADITIONAL FLUORESCENT LAMP

Upgrade to LED lighting with confidence. Magnilumen Plus™ LX delivers a powerful, high-efficiency retrofit solution designed to modernize existing fixtures without costly replacements. Engineered for performance, versatility, and simplicity, Magnilumen Plus™ LX transforms outdated lighting into sleek, energy-saving LED systems that last.

Why Choose Magnilumen Plus™ LX?

  • Fast, Hassle-Free Retrofits
    Easily integrate into decorative, commercial, and architectural fixtures with plug-and-play simplicity.

  • Enhanced Light Quality
    High CRI, consistent color temperatures, and smooth dimming options.

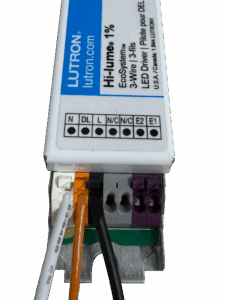

  • Smart Power Control

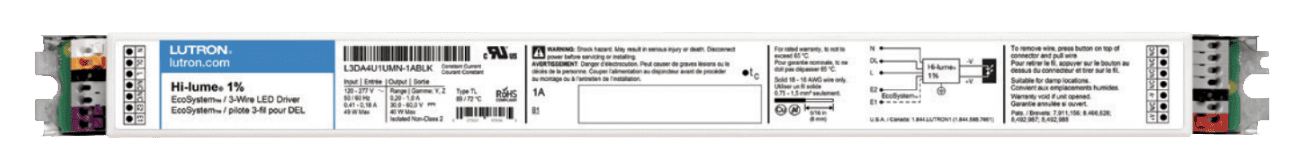

    • Lutron® compatibility between installed control system
    and existing fixture
    • EcoSystem® digital control – dims down to 1%
    • Keep existing fixtures, controls, sensors & programming capability

  • Emergency-Ready
    Optional Magnilumen Plus™ Emergency Battery Back-Up Kits ensure continued illumination when it matters most.

  • Energy Savings Up to 80%
    Replace inefficient fluorescent, HID, or CFL sources while reducing maintenance and operating costs.

  • Slim, Versatile Design
    Fits tight housing spaces, decorative fixtures, sconces, pendants, wall mounts, and more.

Where Magnilumen Plus™ LX Excels

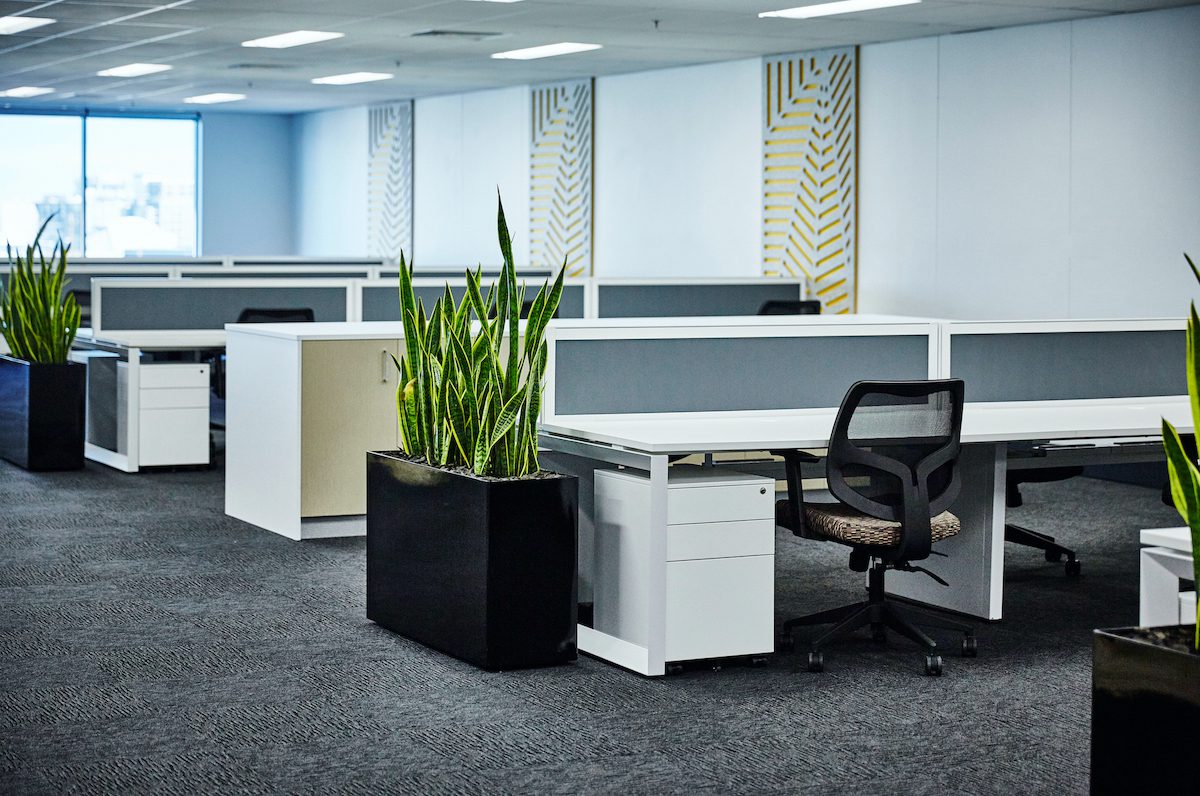

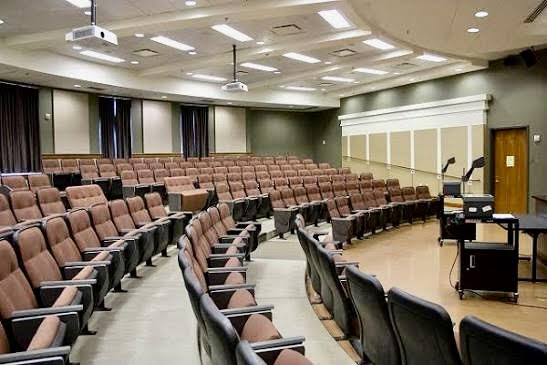

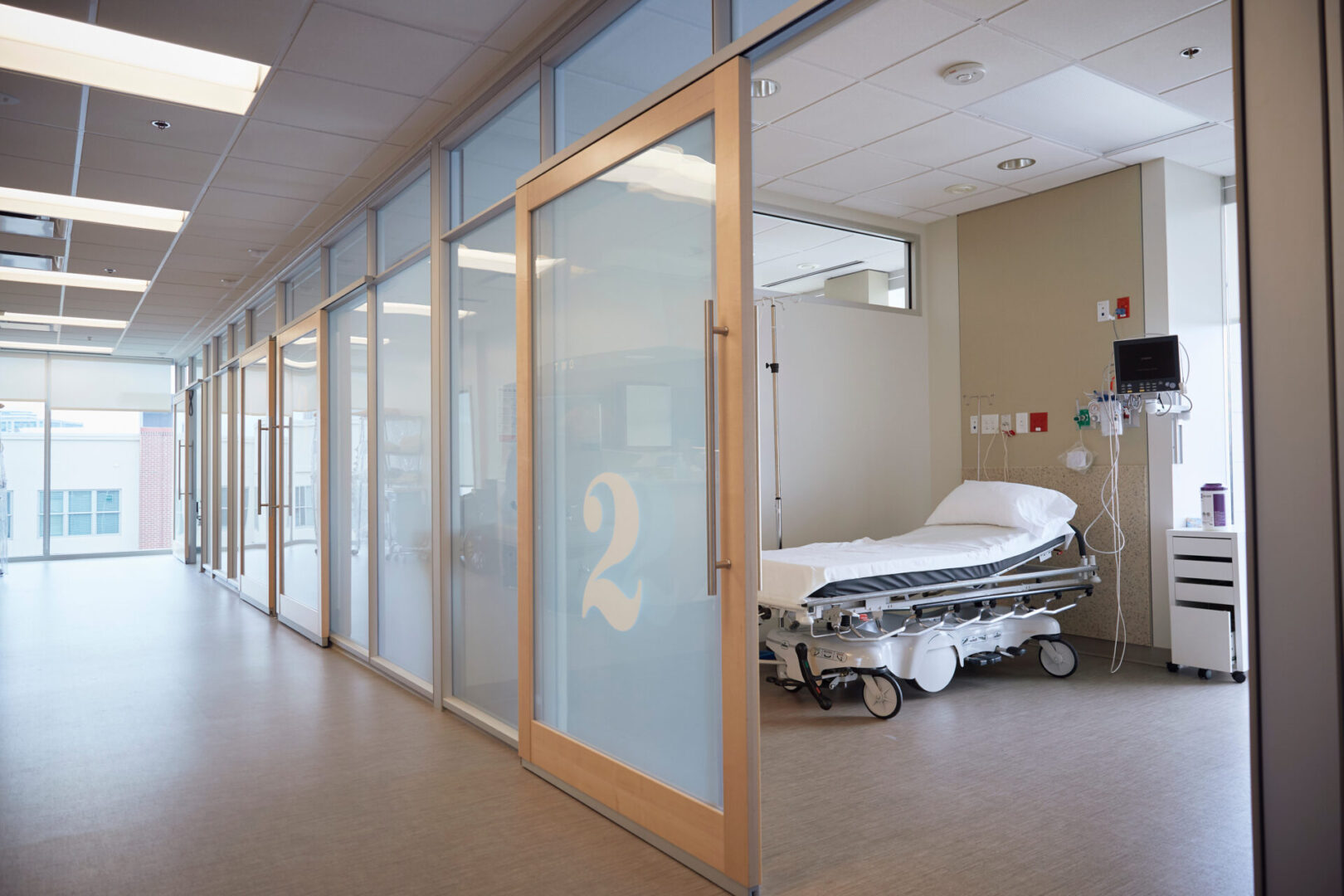

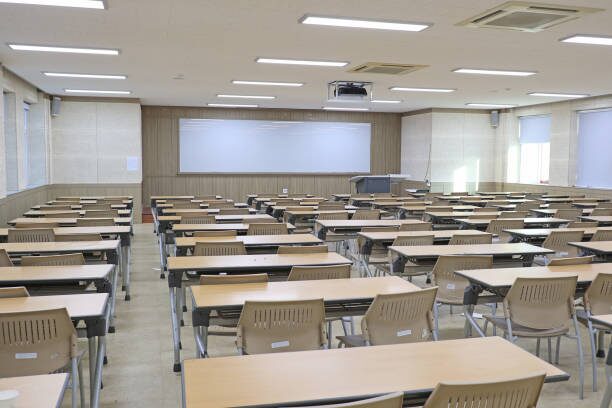

Perfect for commercial buildings, retail, airports, hospitality, schools, office environments, and any space needing a reliable, high-performance LED upgrade.

Features:

FEATURES

Wattages Wattage fixed drivers:
20W, 30W, 40W
50W = (2) x 25W
60W = (2) x 30W
Color Temperature 27K, 30K, 35K, 40K, 50K, 65K
Optional: CSK 35/40/50K
MagniBlend
* Specialty Colors – Contact Factory
Input Voltage 120/277V
Driver Output  27-42 VDC
Efficacy 150 lm/W with Frosted Lens
170 lm/W with Clear Lens
180 lm/W with No Lens

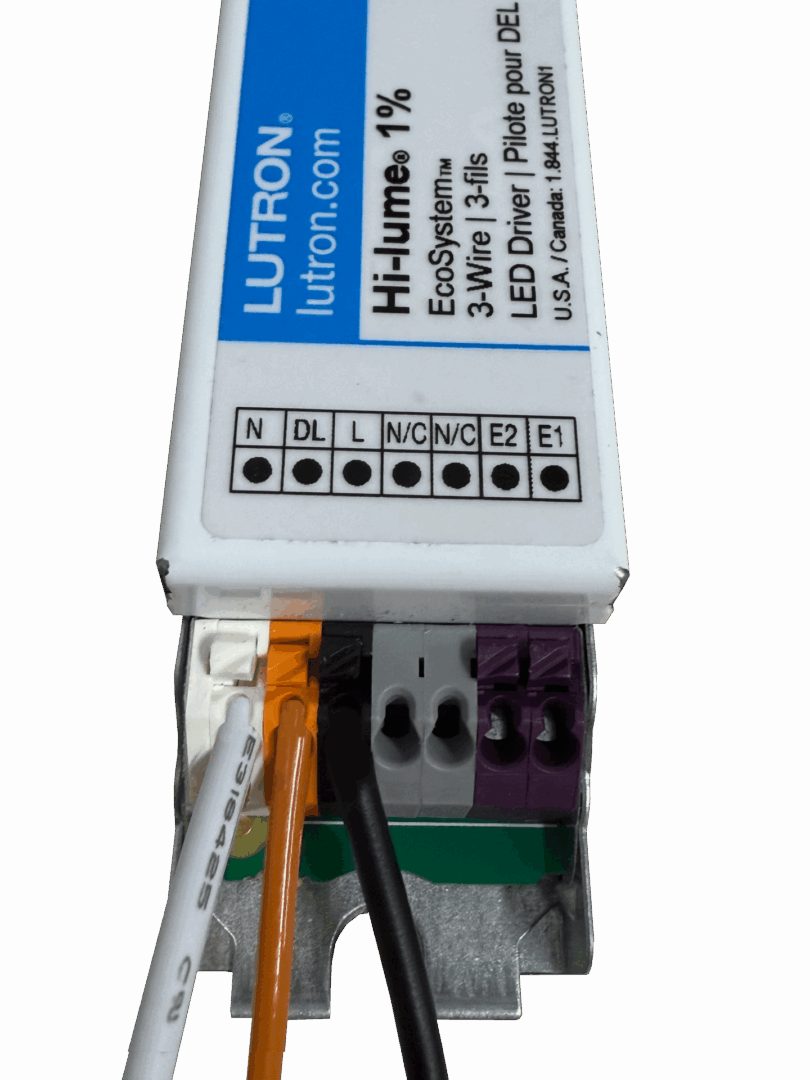

Dimming LUTRON® 3-Wire Dimming;
Ecosystem® Dimming
Bar Dimensions Length:

16 = 16 inches

2 = 2 feet (21.06 inches)

3 = 3 feet (30.91 inches)

4 = 4 feet (42.91 inches)

5 = 5 feet (58 inches)

Width: .72”

Height:     .75”

Lumens See Lumens Charts
LED Lifespan (L70) 100,000 hours
Surge Protection 2KV
Ambient Temperature -20 to 50C;-4 to 122F
CRI 80+ (standard); 90+ (special order)
Rated IP20
Listed ETL
Warranty

7 year Magnilumen Standard

Catalog Number

Build Your Own Magnilumen Plus+™ LX Retrofit Kit System – See Spec Sheet

Spec Sheet

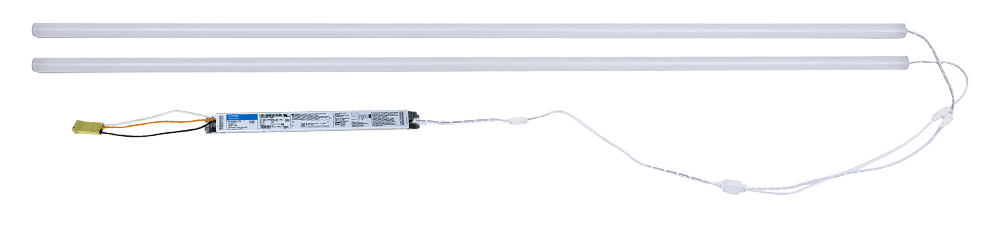

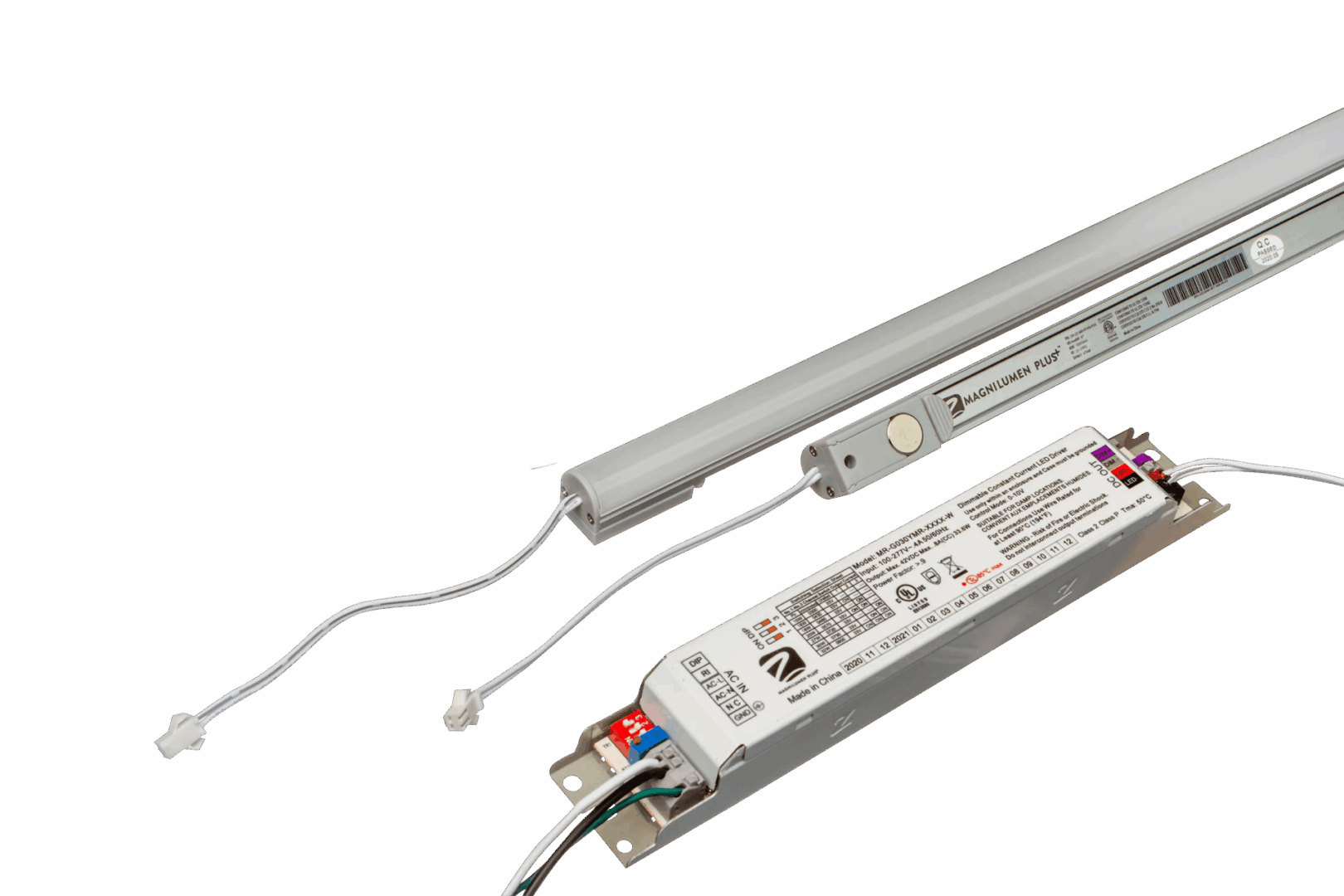

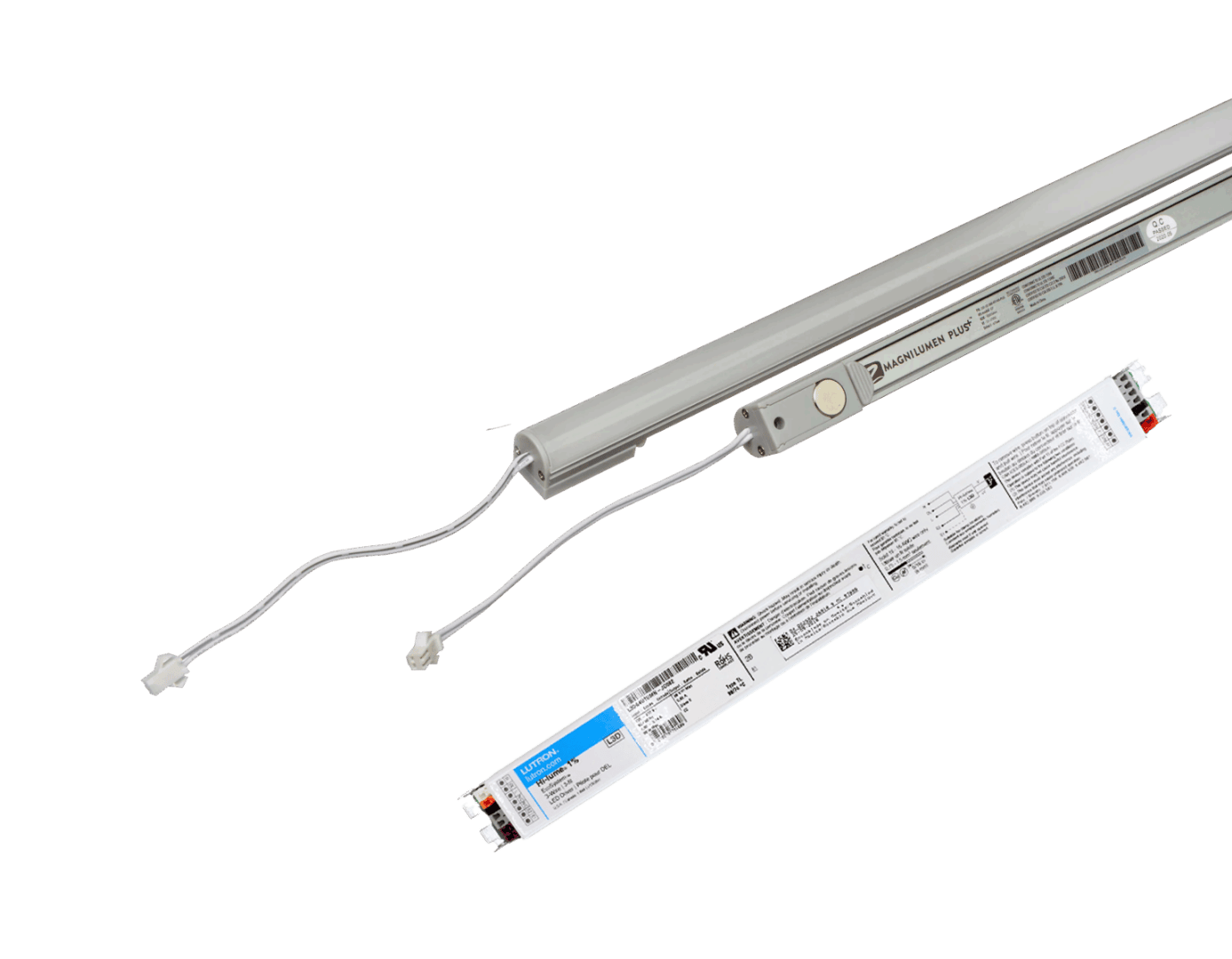

Magnilumen Plus+™ LX Retrofit Kit System Includes

• Magnetic LED bars
• Driver
• Color Options: MagniBlend
• 24” harness
• Screws
(27K, 30K, 35K, 40K, 50K, 65K
Optional: CSK 35/40/50K)
