MagniBlend – A Color Temperature Mixing Retrofit from the Creators of Magnilumen Plus+™ !
High CRI Color Mixing (Kelvin) is your solution to have people, products and environments look “true to color” in a retail, classroom, or workplace that benefits shoppers, students and staff.
ZLEDLighting has developed an innovative solution with the introduction of the MagniBlend LED retrofit bar, part of the Magnilumen Plus+™ product line. This retrofit bar features a high 90 CRI (Color Rendering Index) and a unique blend of Kelvin temperature LED chips, designed to create a superior lighting experience.

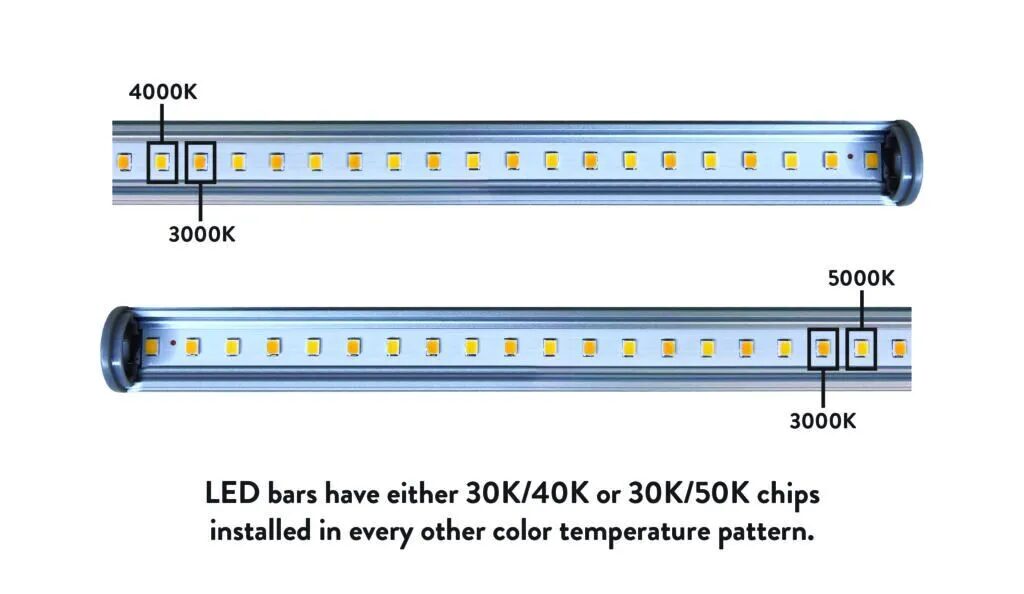

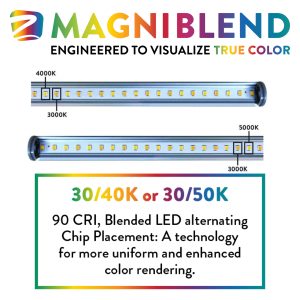

Recognizing that 3000K can be too warm and 4000K too cold, MagniBlend combines different Kelvin temperatures to achieve a balanced, versatile lighting solution. This allows for a wider color palette in environments typically set to 3500K or 4000K.The high CRI ensures that colors appear true to life, enhancing the vibrancy and clarity of products, people, and environments. This is especially beneficial in retail spaces, classrooms, and workplaces, where accurate color representation is crucial. By mixing high 90 CRI with various Kelvin temperature chips in an alternating pattern, MagniBlend brings out the full spectrum of colors, providing a more dynamic and visually appealing lighting experience. Once installed, these bars not only reduce energy costs but also improve the overall aesthetic of the space, making it more inviting and engaging for customers, students, and staff alike. True-to-Color Representation: MagniBlend enhances the appearance of products, making them more attractive to shoppers and aiding in educational settings by providing better visibility for materials. Improved Ambiance: The combination of warmth and clarity contributes to a positive atmosphere, enhancing mood and productivity in any environment.
Custom Lighting Design:
ZLEDLighting is committed to helping clients achieve the perfect lighting solution tailored to specific project needs. With MagniBlend, the ability to create spaces that not only look great but also function optimally, benefiting everyone who interacts with them. Experience the difference with MagniBlend, where color meets efficiency!
Discover the power of precision lighting—visit our newest line of ZBlend LED lighting products and retrofit solutions and see the difference true color performance can make.


FEATURES
| Wattages | 20W, 30W, 40W, 50W, 60W, 100W (selectable) |
| Color Temperature | 30/40K (35K equivalent) 30/50K (40K equivalent) |
| Input Voltage | 120/277V |
| Driver Output Voltage | 27-42VDC |
| Efficacy | No Lens: 173Lm/w Clear Lens: 165Lm/w Frosted Lens: 155Lm/w |
| Dimming | 0-10VDC |
| Operating Temp | -40 – 122F |
| Lumens | 130 lm/W with Lens 150 lm/W without Lens |
| LED Lifespan (L70) | 100,000 hours |
| Surge Protection | 2KV |
| Lengths | 2 ft. and 4 ft. |
| CRI | 90+ |
| Rated | IP20 |
| Listed | ETL |
| Warranty | 7 Year |
Catalog Number
Build Your Own MagniBlend Lighting System – See Spec Sheet
