LED Solar Street Light-High Lumen – 8W, 20W, 30W – STC Series

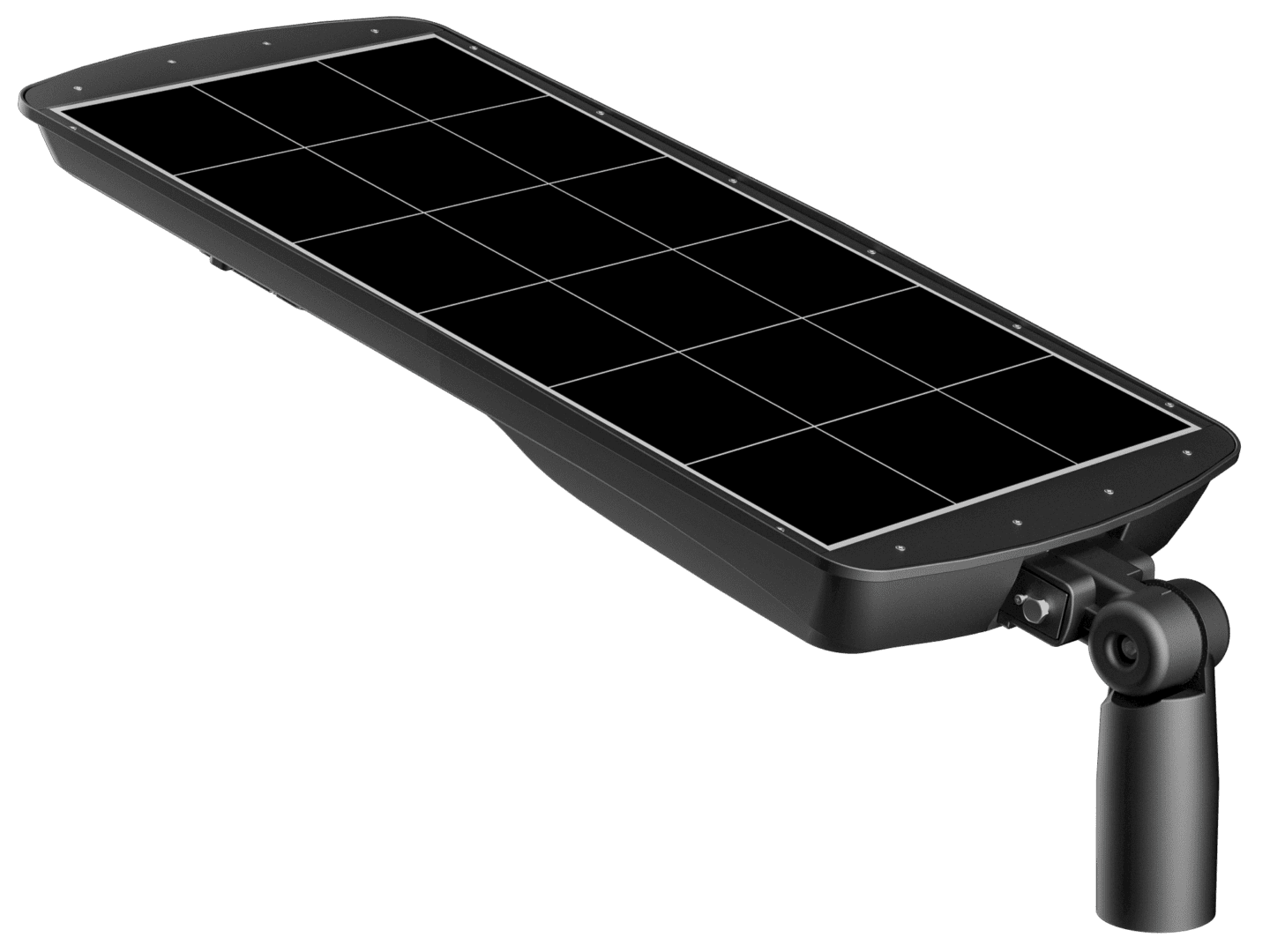

Solar-powered street light with panel attachment.
Metal mounting bracket with bolts and screws.
Black metal bracket with mounting holes.

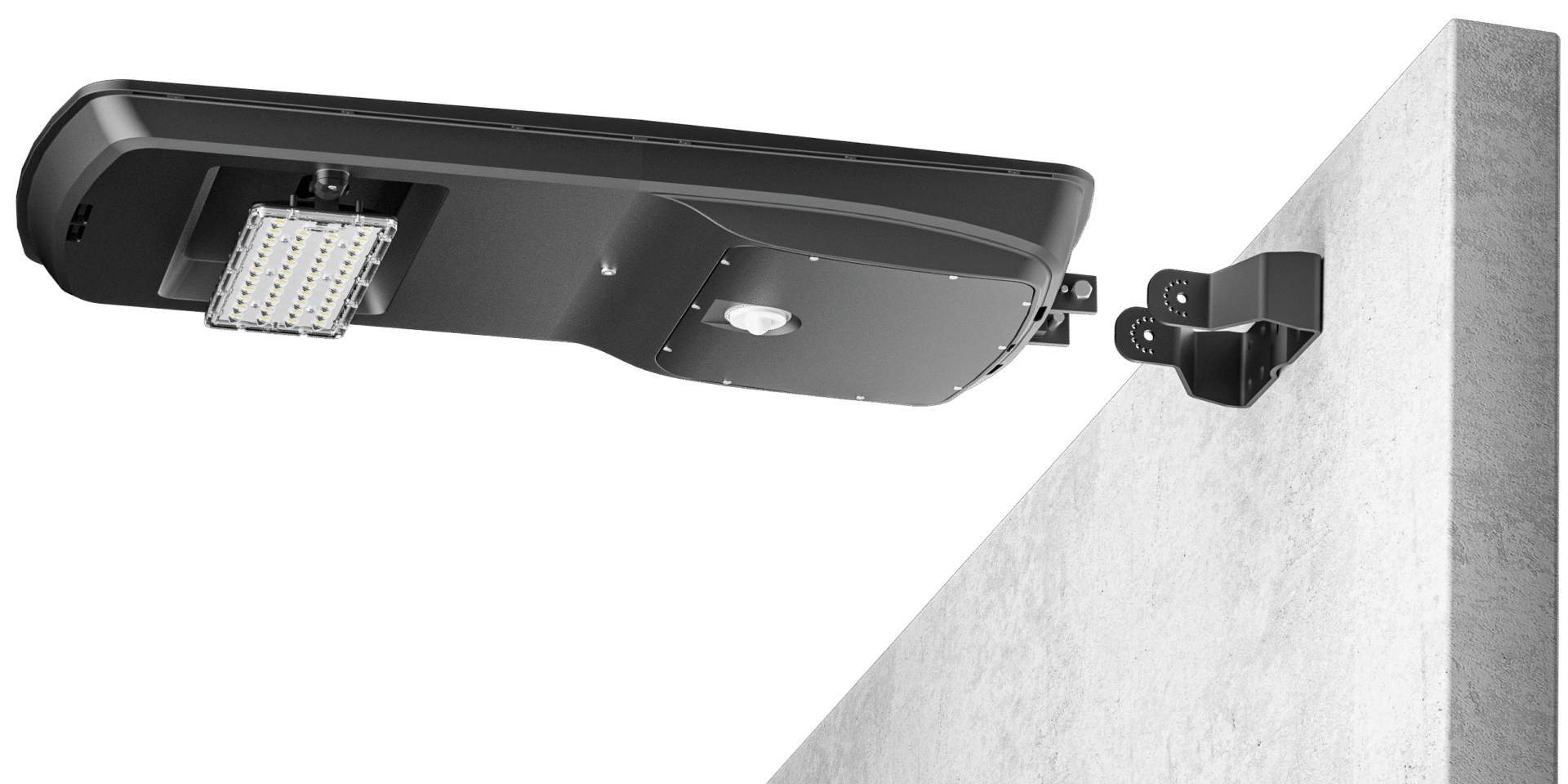

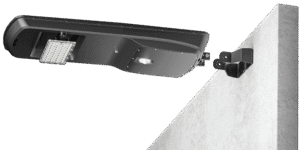

Outdoor LED light mounted on a wall.

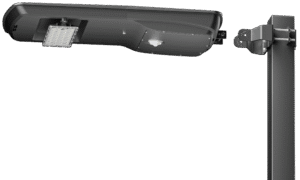

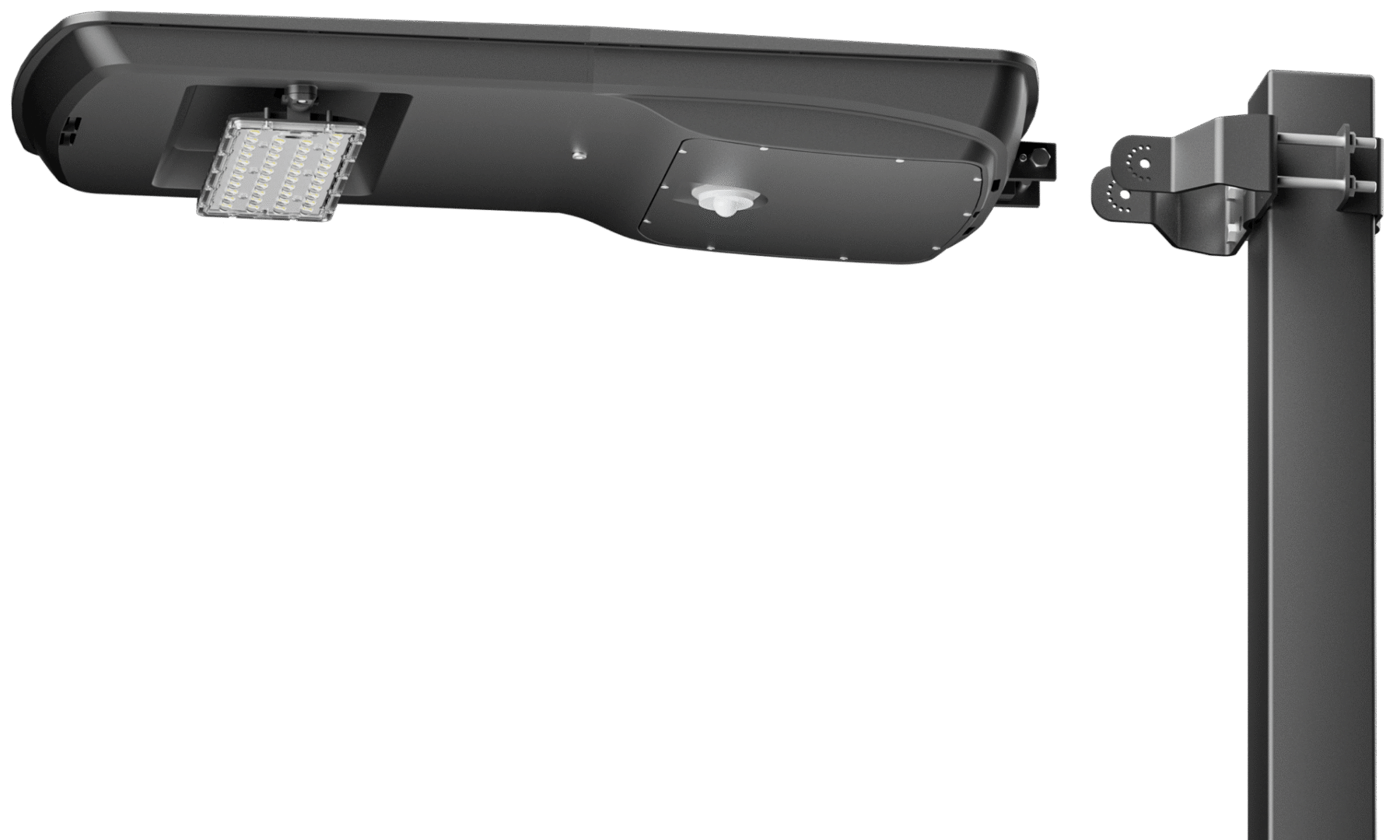

Modern LED street light on pole.

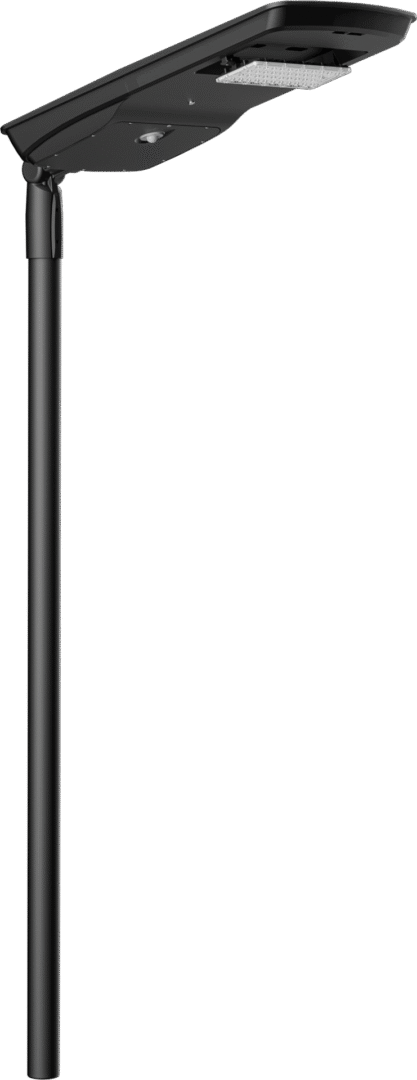

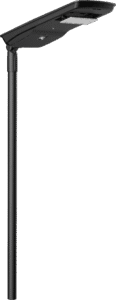

Black streetlight with modern LED fixture.

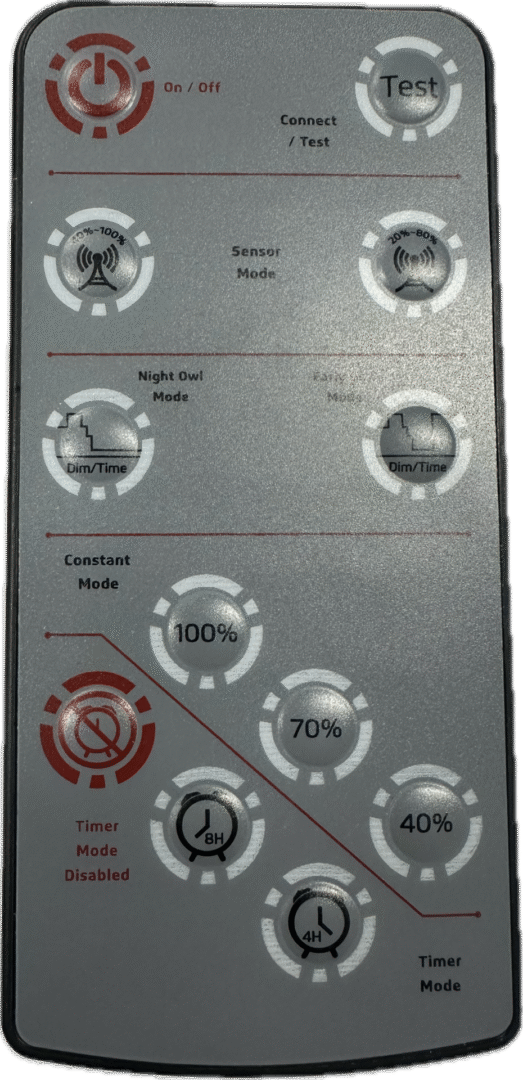

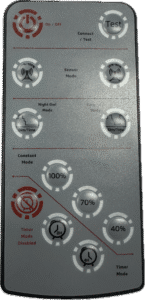

Remote control with various mode buttons.

Share

The world’s first UL Listed Solar Street Light. The ZLEDLighting solar-powered streetlight is ideal for a wide range of applications, including residential streets, parks and recreational areas, commercial environments, roadways and highways, public transport stations, campus and school grounds, tourist attractions, or any remote locations with no access to conventional power. With its eco-friendly design and efficient lighting, it provides reliable illumination in areas where traditional power sources are unavailable.

Applications

Solar street lighting offers a sustainable and cost-effective solution for illuminating residential streets, parks, commercial districts, highways, campuses, transport stations, tourist areas, and remote locations without access to conventional power.

CCT Selectable, directional control.

FEATURES

Wattage 8W, 20W, 30W
Color Temperature 30K, 40K, 50K, 57K
Fixture Housing Die cast A380 aluminum fixture housing is rust free
Housing Color Gray or Black
Dimensions 16.6” W x 36.2″ L x 3.9” D
Rated IP65
Listed UL
Warranty 3 year
Mounting Option Choice Included
Photocell Sensor Included
Lumens @ 5000K 8W- 1,600
20W- 4,000
30W- 6,000
Efficacy @ 5000K 200 lm/W
LED Chip Lumileds 5050 (215lm-CRI>70)

BATTERY: Grade A LiFePO4 Battery Pack, 2000+ full charging cycles.
Operating Temperature: -4ÂşF to 140ÂşF
Charging Temperature: 32ÂşF to 140ÂşF (-22ÂşF to 140ÂşF optional for STC 30W)
LiFePO4 Battery: 384WH 12.8V 30AH
Charging Time: 7 Hours
Run Time: 10 Hours

SOLAR PANEL
Rating Power: 18V 52W
Weight: 32.4 lbs.
CRI: >70

MAXIMUM AUTONOMY
Motion Sensor Mode: 40%–100% 35 hours, 280%–80% 55 hours
Time Control Mode: Night Owl 28 hours Early Bird 25 hours
Constant Mode: 100% 11 hours, 70% 15.5 hours, 40% 27 hours

Catalog Number

See Spec Sheet for Design your own Solar Street Light

Accessories
Slip Fitter = ZL-SSL-A
Pole Mount Square = ZL-SSL-B

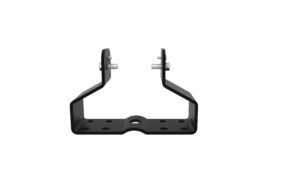

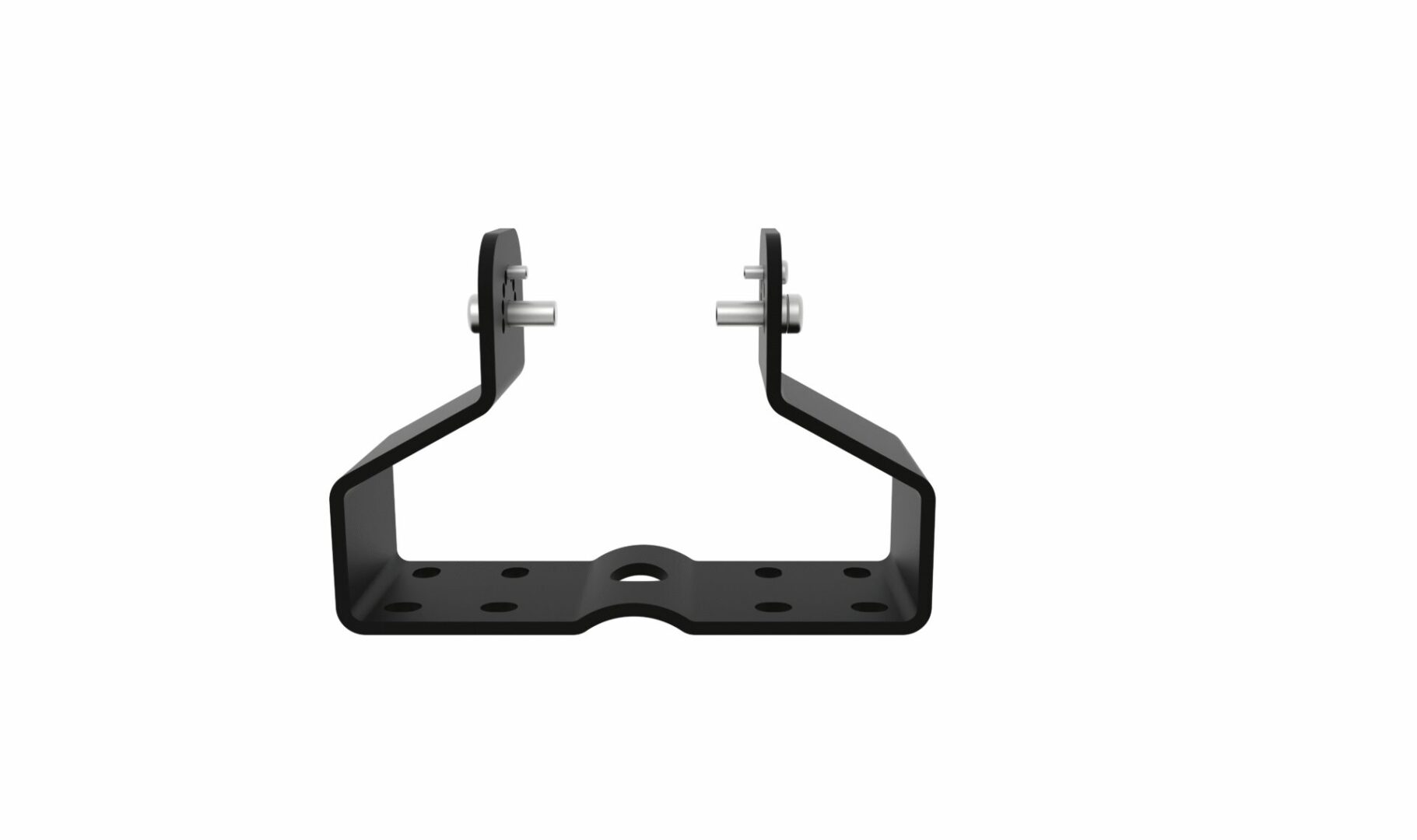

Wall Mount = ZL-SSL-C

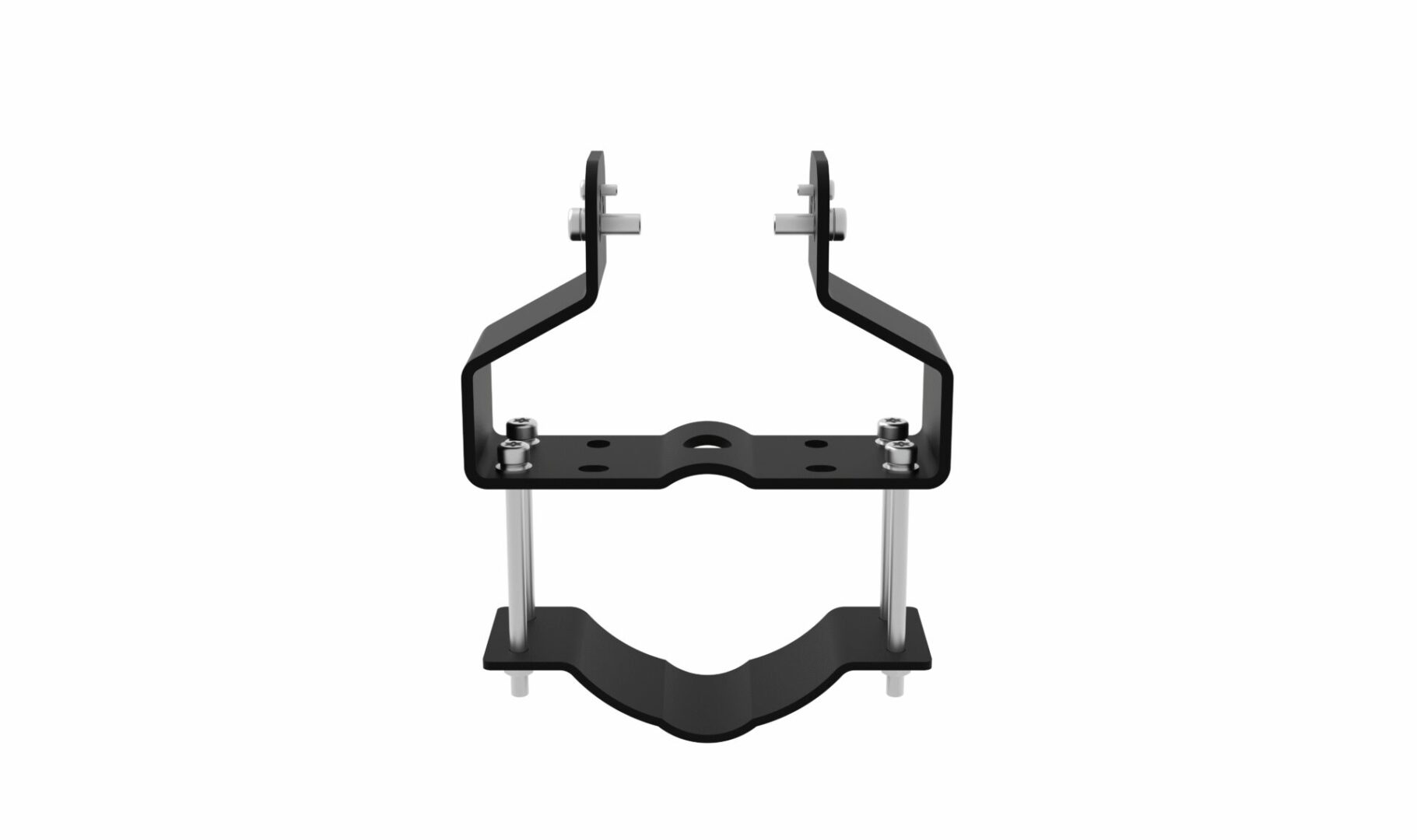

Pole Mount Round = ZL-SSL-D
Remote Control = ZL-REMOTE-SSL-8-20-30-50
