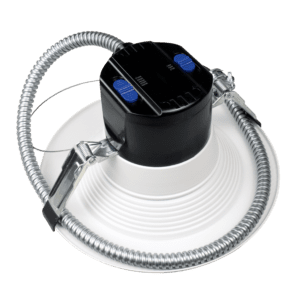

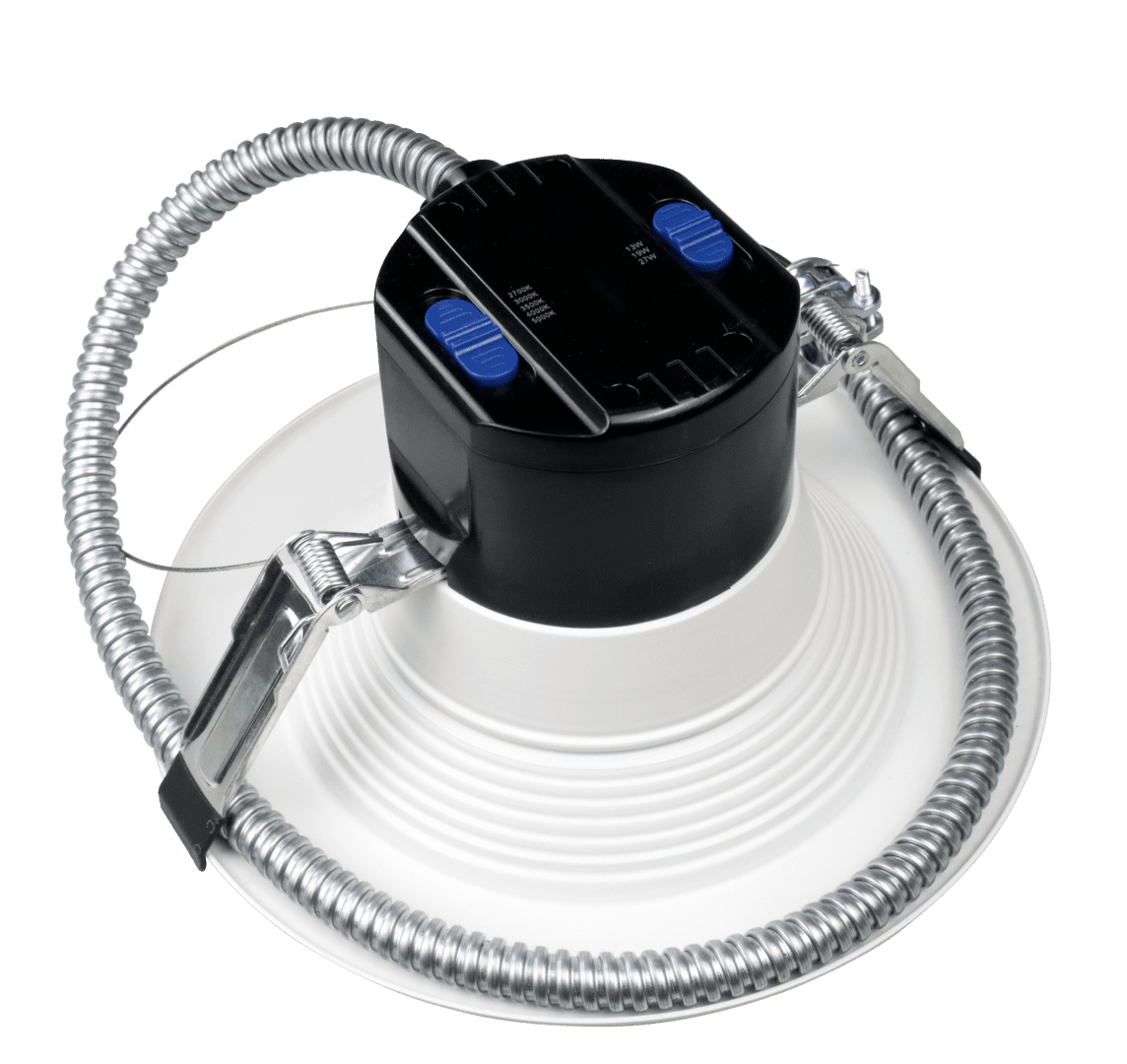

4″, 6″, 8″ LED Downlight – White Baffle – Wattage and CCT Selectable – FX Series
Share
Elevate a space with the FX Series White Baffle LED Downlights from ZLEDLighting, designed to deliver exceptional brightness and versatility. Available in 4″, 6″, 8″ sizes, these downlights offer superior performance in a sleek, modern white housing. Adjustable wattage and color temperature (CCT) settings, the FX Series ensures you can customize the lighting to meet a specific needs, whether aiming for bright task lighting or a softer, ambient glow.
Applications
Commercial, Office, Educational Institutions.
FEATURES
| Wattage Selectable | 4″- 9/13/18W* 6″- 13/19/27W 8″- 18/27/36W |
| Color Temperature Selectable | 27/30/35/40/50K |
| Input Voltage | 120/277V |
| Housing Color | White Baffle |
| Trim | White |
| Dimensions | 4″ 5.91” x 4.02” 6″ 8.27” x 4.41” 8″ 10.24” x 4.76” |
| Rated | Damp Location |
| Listed | ETL |
| Warranty | 5 year |
| LED Lifespan (L70) | 50,000 hours |
| Efficacy | 110 lm/W |
| Beam Angle | 120° |
| CRI | 80 |
| Dimming | 0-10V |
| Emergency Battery | Optional |
| Lumens | 9W- 1,000; 13W- 1,500 18W- 2,000; 19W- 2,090 27W- 2,970; 36W- 3,960 |
Catalog Number
ZL-DL-4INCH-PA-CCT-WH-FX-D*
ZL-DL-6INCH-PA-CCT-WH-FX-D
ZL-DL-8INCH-PA-CCT-WH-FX-D
*Special order
Emergency Driver
BL-EMRG-FXT-8D-A
