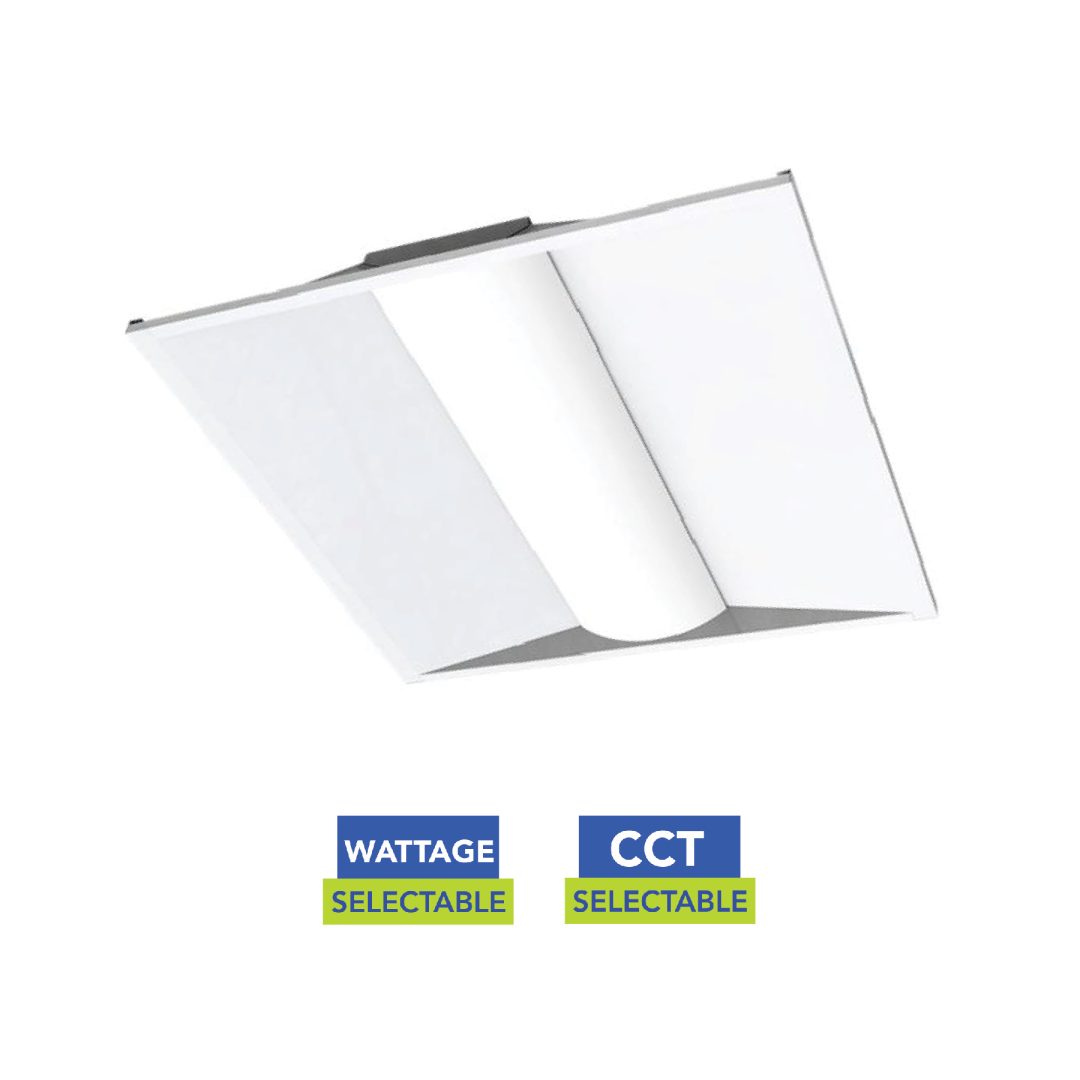

2×2, 2×4 Center Basket Troffer – 5 Wattages and 4 CCT Selectable – DM Series
The DM Series LED Center Basket Troffer delivers efficient, uniform illumination with 5 wattage selectable and 4 color temperature selectable technology, providing flexibility for a variety of commercial and institutional environments. Available in 2×2-foot models with selectable wattages of 20W/25W/30W/35W/40W and 2×4-foot models with selectable wattages of 25W/30W/35W/40W/50W, both configurations feature selectable color temperatures of 3000K, 3500K, 4000K, and 5000K. ETL Listed, sensor-ready, and available with optional emergency battery backup, the DM Series provides reliable, comfortable illumination while helping reduce energy consumption and maintenance costs. Its modern center basket design makes it an excellent choice for new construction and LED retrofit projects.
Applications
Ideal for offices, schools, healthcare facilities, conference rooms, retail stores, and commercial interiors.



FEATURES
| Wattage Selectable | 2×2- 20W/25W/30W/35W/40W
2×4- 25W/30W/35W/40W/50W |
| Color Temperature Selectable | 30K/35K/40K/50K |
| Input Voltage | 120/277V |
| Warranty | 5 year |
| Listed | ETL |
| Efficacy | 140 lm/W |
| CRI | 80 |
| Dimmable | 0-10V |
| Dimensions | 47.24” x 23.62” x 1.8” |
| Fixture Size | 2×2; 2×4 |
| Lens | Polycarbonate |
| Mounting | Surface or Ceiling Grid |
| Mounting Kits | Optional Sold Separately |
| Motion Sensor | Optional Integrated Network Lighting Control Motion Sensor |
| Remote | Sold Separately |
| Emergency Battery | Optional |
Catalog Number
See Spec Sheet for part builder
