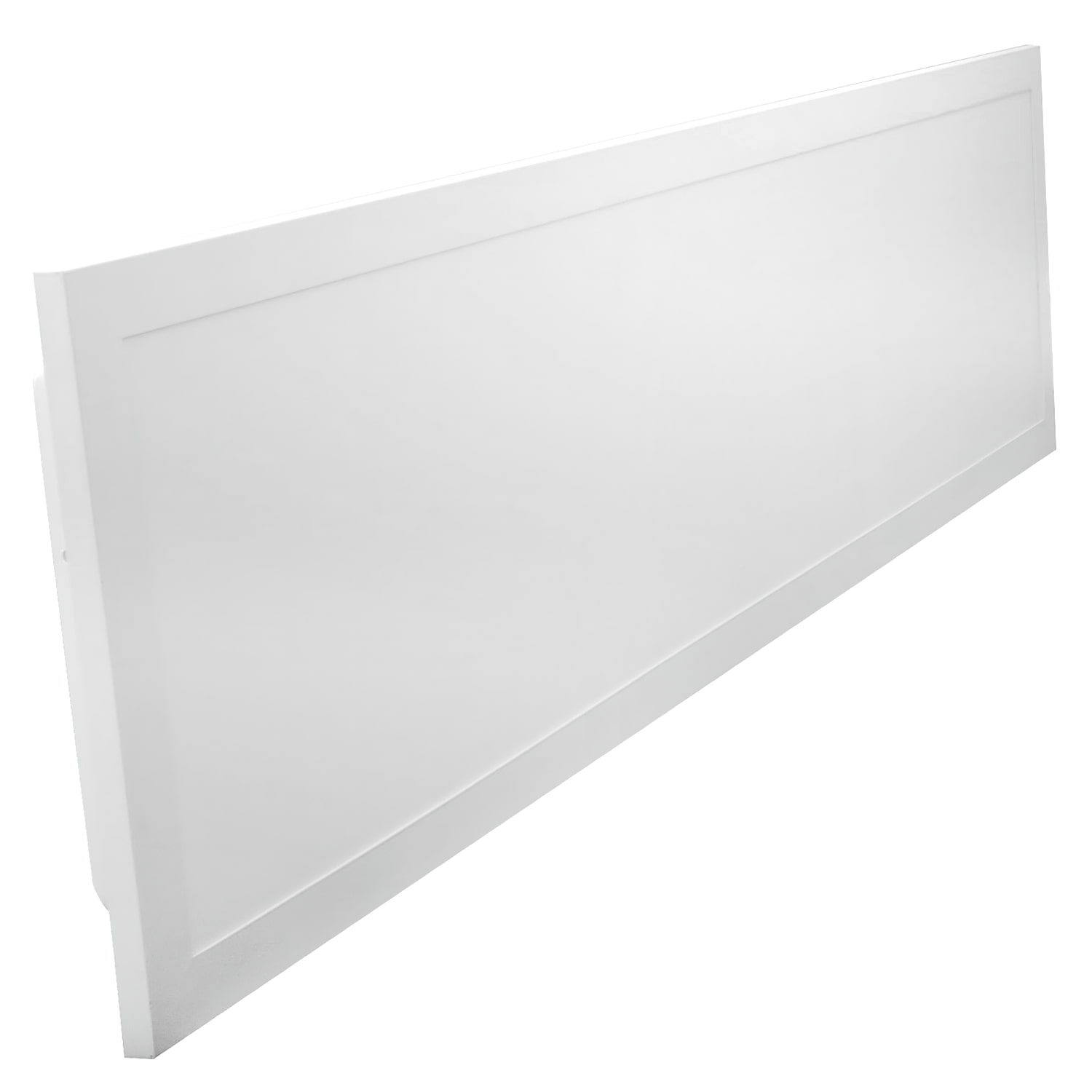

XM Series 5 Wattage x 5 CCT Selectable LED Back-Lit Flat Panel
DESCRIPTION
The XM Series offers 5 Wattage Selections and 5 CCT Selections making it the most versatile lighting fixture.
LED Back-Lit flat panels that are wattage and CCT (Correlated Color Temperature) selectable, are versatile lighting solutions that allow installers to adjust both the brightness (wattage) and the color temperature (CCT) to suit different environments or preferences in the field. The XM Series offers 5 Wattage Selections and 5 CCT Selections making it the most versatile lighting fixture
Applications
• Shopping Centers
• Office Buildings
• Schools
• Factories
FEATURES
Wattages | 2×2’ & 1×4’- 40/35/30/25/20W (selectable)
2×4’- 72/60/50/40/30W (selectable) |
Color Temperatures | 30K, 35K, 40K, 50K, 65K (selectable) |
Efficacy | 125 lm/W |
Voltage Input | 2×2’ & 1×4’- AC: 120/277V; |
CRI | >80 |
Lens | Frosted |
LED Lifespan (L70) | 50,000 hours |
Warranty | 5 years |
Rated | IP64 |
Listed | UL |
Warranty | 5 years |
Options | Emergency Driver |
Accessories | Surface Mount Kits |
LITERATURE
ZL-FP-PA-CCT-2×2-XM
ZL-FP-PA-CCT-1×4-XM
ZL-FP-PA-CCT-2×4-XM
