Backit LED Flat Panels – Wattage and Color Selectable – MK Series
Share

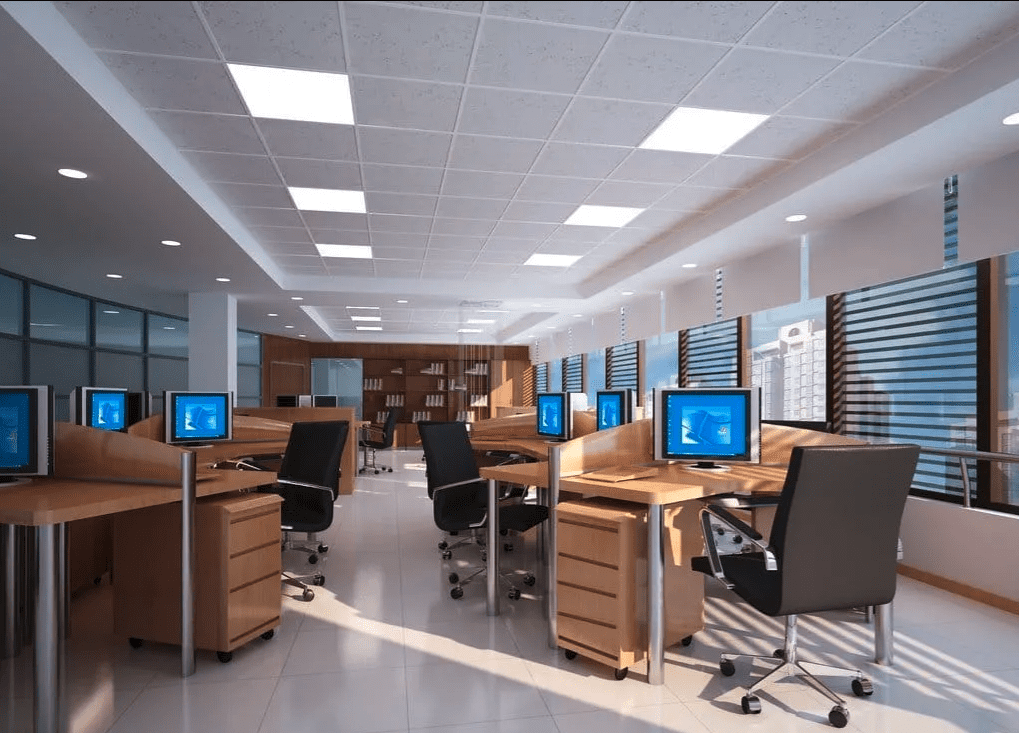

2×2 and 2×4 Backlit LED Flat Panels have built-in wattage and color selectable features making it easy to adjust for in the field installations. These Back-Lit LED Flat Panels have a 0-10V dimmable driver and an emergency backup battery version is also available. Great lighting applications for settings like offices, schools, hospitals, and factories. Its superior features and fast installation options make it an ideal choice for any commercial space. Surface mount kits available.
FEATURES
| Wattages | 2×2 – 20/30/40W (selectable) 2×4 – 30/40/50W (selectable) |
| Color Temperatures | 2×2 – 35/40/50K selectable |
| Efficacy | 125 lm/W |
| Input Voltage | 120/277V |
| CRI | 80 |
| Lens Type | Frosted |
| LED Lifespan (L70) | 50,000 hours |
| Dimmable | 0-10V |
| Warranty | 5 year |
| Emergency Battery | Optional |
| Dimensions | 2×2, 2×4 |
| Listed | UL |
| Lumens at 4000K | 20W- 2,500 30W- 3,750 40W- 5,000 50W- 6,250 |
Catalog Number
ZL-FP-PA-CCT-2X2-MK
ZL-FP-PA-CCT-2X4-MK
ZL-FP-PA-CCT-2X2-EM-MK
ZL-FP-PA-CCT-2X4-EM-MK
Surface Mount Kit
ZL-SF-2X2
ZL-SF-2X4
